Pioneer 48,000 BTU 17.5 SEER2 Ducted Central Split Inverter+ Air Conditioner Heat Pump System, 2nd Generation - DYR4248GMFI18R
- Ultra High Efficiency Inverter+ central ducted split heat pump system
- Cooling capacity: 48,000 BTU/H with 17.5 SEER2 / 10.1 EER2 efficiency
- Heating capacity: 47,000 BTU/H with 8.5 HSPF2 / 3.3 COP2 efficiency
- Voltage: 208~230 V, 60 Hertz, 1 Ph
-
Central Ducted Air Conditioning & Heating System
- Variable Speed DC Inverter Operation Mode
- Energy-Star Cold-Climate Certified
-
Communicating system with dedicated signal transmission
- Includes 10 kW Electric Strip Heater
- AHRI Estimated Annual Operating Costs:
- Cooling: $352.00
- Heating: $1015.00

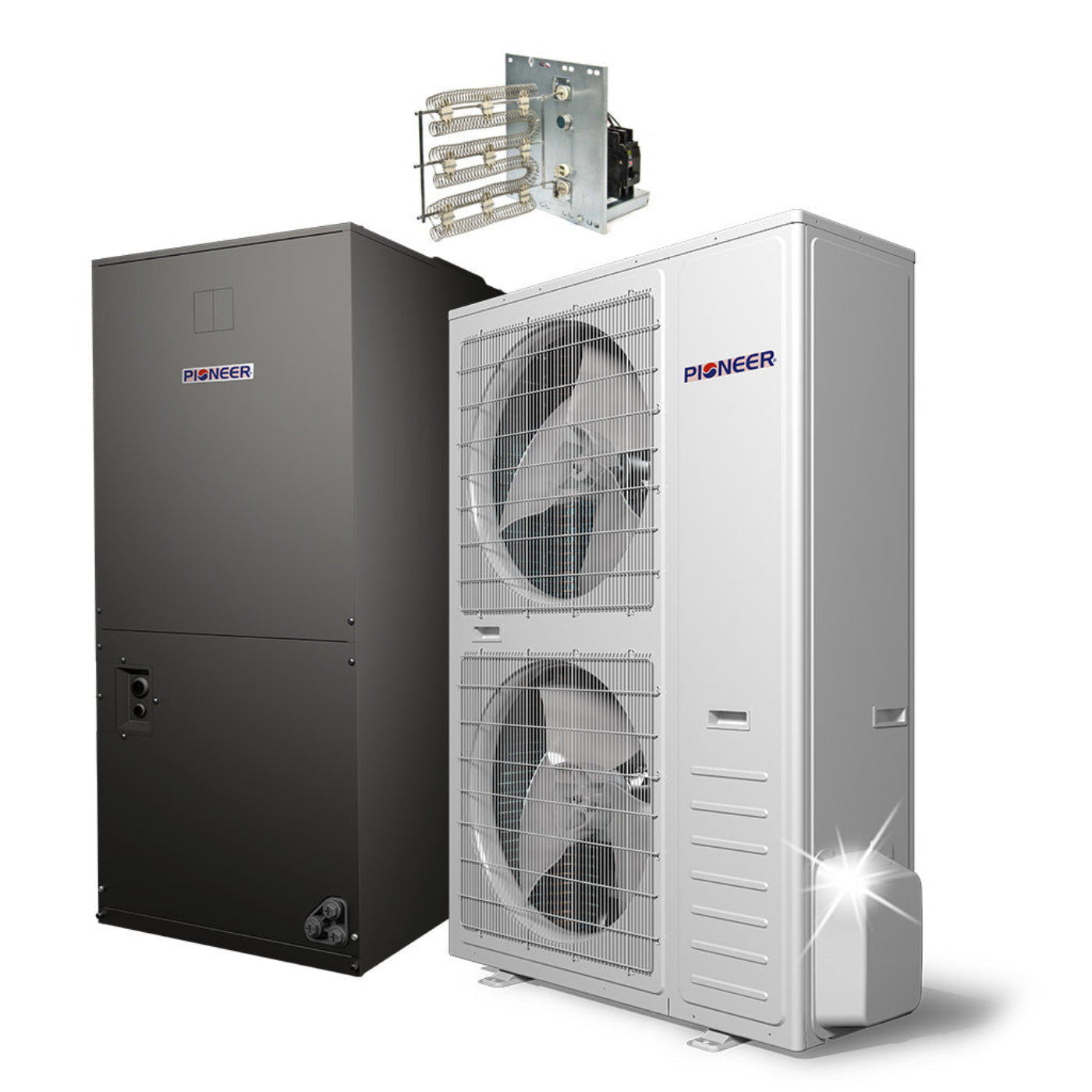

Included
- Indoor Unit (Downflow-capable, with TXV)
- Outdoor Unit (Side-Discharge, with filter drier)
- Electric Strip Heater (10 kW)
- Installation Manual
- User’s Manual
What our Experts Think
-
Whole‑home HVAC performance (48,000 BTU)
This central split system is engineered to handle large spaces (~1,600 sq ft) with strong cooling and heating capacity, making it suitable as a primary climate solution for whole houses or big open plans.
-
Solid seasonal efficiency (17.5 SEER2 + 10.1 EER2)
17.5 SEER2 gives above‑baseline energy performance, lowering operating costs compared with traditional non‑inverter central HVAC systems and helping improve comfort with reduced utility bills.
-
Inverter+ heat pump technology
Variable‑speed DC inverter operation provides precise temperature control, smoother cycles, and quieter performance, adapting output dynamically to indoor demand.
-
All‑season heat pump with electric backup
Includes a 10 kW electric strip heater for reliable heating during extreme cold, giving year‑round comfort without separate heaters.
-
Communicating system for advanced control
Built‑in communication between indoor and outdoor sections enables coordinated performance and is typically compatible with modern thermostats for optimized control.
-
Complete solution with indoor & outdoor units
Comes with both indoor air handler and outdoor condenser, plus manuals and warranty support—helping ensure a full, matched system solution.
-
Reliable operation backed by warranty
Typically includes 5‑year limited parts and compressor warranties, offering peace of mind for long‑term use.
-
Wide operating temperature range
Designed to operate comfortably in cold winter climates (down to ~‑13 °F) and warm summers (up to ~122 °F), adapting to diverse weather demands.
Q&A
Q: What size area is this 48,000 BTU ducted central split system suitable for?
A: Ideal for large homes or commercial spaces (approx. 1,800–2,500 sq. ft.), delivering centralized cooling and heating.
Q: Does it provide both cooling and heating?
A: Yes, this inverter+ heat pump provides year-round cooling and heating for full-home comfort.
Q: How energy-efficient is the 17.5 SEER2 rating?
A: With 17.5 SEER2, it offers solid energy efficiency for a large-capacity system while reducing operating costs.
Q: What voltage does it require?
A: Designed for 208–230V single-phase power.
Q: What is included in the full system?
A: Includes ducted indoor unit and outdoor condenser; professional installation and ductwork required for operation.
Q: Is this a 2nd generation model?
A: Yes, improved inverter+ technology offers enhanced efficiency, quieter operation, and better reliability compared to the previous generation.
Q: Does it support Wi-Fi or smart control?
A: Wi-Fi support may be available with compatible modules for remote operation and scheduling.
Q: How quiet is the system?
A: Engineered for quiet operation relative to its size; typically 40–50 dB in the living space depending on airflow.
Q: What comfort and usability features are included?
A: Turbo mode, ECO mode, sleep mode, auto restart, and programmable timer for consistent climate control.
Q: Is professional installation required?
A: Yes, professional installation is required, including ductwork, refrigerant line connections, and proper electrical setup.
Maintenance Tips
-
Clean or replace air filters every 2–4 weeks – Maintains optimal airflow and 17.5 SEER2 efficiency for large spaces
-
Inspect and clean evaporator and condenser coils every 6 months – Prevents dust buildup and ensures peak cooling/heating performance
-
Check and clear condensate drain lines regularly – Prevents water backup and potential damage
-
Keep indoor and outdoor units free of dust and debris – Ensures consistent airflow and energy-efficient operation
-
Inspect refrigerant lines and connections annually – Prevents leaks and maintains reliable capacity
-
Check electrical connections periodically – Prevents shorts or power issues
-
Use ECO and Sleep modes where available – Reduces compressor wear and energy consumption
-
Schedule professional servicing yearly – Maximizes inverter efficiency and extends system lifespan
