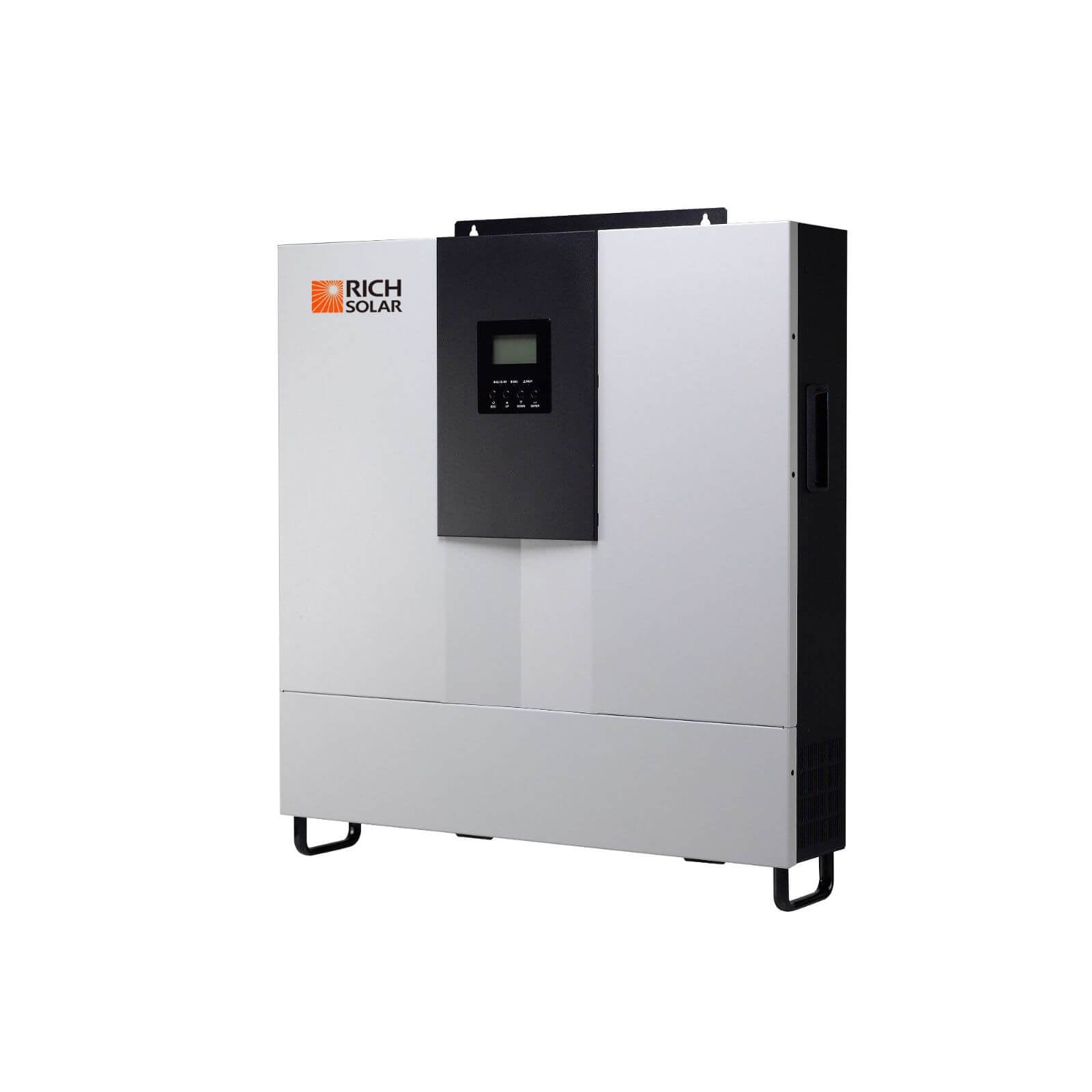

6000 Watt Off-grid Hybrid Split Phase Solar Inverter
6000 Watt Off-grid Hybrid Split Phase Solar Inverter
6000 Watt Off-grid Hybrid Split Phase Solar Inverter
6000 Watt Off-grid Hybrid Split Phase Solar Inverter
6000 Watt Off-grid Hybrid Split Phase Solar Inverter
6000 Watt Off-grid Hybrid Split Phase Solar Inverter
6000 Watt Off-grid Hybrid Split Phase Solar Inverter
6000 Watt Off-grid Hybrid Split Phase Solar Inverter
6000 Watt Off-grid Hybrid Split Phase Solar Inverter

6000 Watt Off-grid Hybrid Split Phase Solar Inverter

$1,804.99 $1,660.99 Sale

6000 Watt Off-grid Hybrid Split Phase Solar Inverter

Features
  • Pure sine wave inverter
  • Selectable output voltage at 120VAC/208VAC/240VAC depending on applications
  • Built-in 2 strings of MPPT solar charge controller
  • Selectable input voltage range for home appliances and personal computers
  • Configurable AC/Solar input priority via LCD setting
  • Compatible to mains voltage or generator power
  • Auto restart while AC is recovering
  • Overload and short circuit protection
  • Smart battery charger design for optimized battery performance
  • Cold start function
  • Maximum 3 units in parallel operation for single phase, split phase and three phase applications
Specs

Rated Power: 6000VA/6000W
Parallel Capability: Yes, 3 units

INPUT

Rated Input Voltage: 110/120 VAC(L-N or L1-N-L2)
Input Voltage Range: '95 ~ 140 VAC (For Personal Computers), 65 ~ 140 VAC (For Home Appliances)'
Frequency Range: 50 Hz/60 Hz (Auto sensing)

OUTPUT

AC Voltage Regulation (Batt. Mode): 110/120 VAC(L-N or L1-N-L2)
Efficiency(Peak): 90%
Transfer Time: '10 ms (For Personal Computers), 20 ms (For Home Appliances)'
Waveform: Pure sine wave

BATTERY

Battery Voltage: 48 VDC
Floating Charge Voltage: 54 VDC
Overcharge Protection: 60VDC

SOLAR CHARGER & AC CHARGER

Solar Charger Type: MPPT
Maximum PV Array Open Circuit Voltage: 145 VDC
Number of MPP Trackers: 2
Maximum PV Array Power: 4000 W x 2
MPP Range @ Operating Voltage: 60 VDC ~ 115 VDC
Maximum Solar Charge Current: 80 A x 2
Maximum AC Charge Current: 60 A
Maximum Charge Current: 220 A
Maximum MPPT Charging Efficiency: 96%
Maximum AC Charging Efficiency: 92%

OPERATING ENVIRONMENT

Humidity: 5% ~ 95% non-condensing
Operating Temperature: -10°C ~ 50°C
Storage Temperature: -15ºC ~ 60ºC

PHYSICAL

Dimension(D X W X H): 130 x 622.6 x 610 mm
Net Weight: 30 kg

Manual
6000 Watt Off-grid Hybrid Split Phase Solar Inverter User Manual
6000 Watt Off-grid Hybrid Split Phase Solar Inverter












What Our Experts Think
  • High Capacity & Versatility: The 6000 Watt Off-grid Hybrid Split Phase Solar Inverter is ideal for larger off-grid homes or cabins, providing reliable power for high-demand appliances, lights, and systems.
  • Hybrid Design: Offers both solar and grid power integration, allowing you to switch between energy sources for optimal efficiency and reliability.
  • Split Phase Output: Delivers 240VAC split-phase output, perfect for homes that require dual-phase power for heavy-duty equipment or multiple circuits.
  • Efficient & Reliable: Designed for off-grid systems, this inverter ensures steady and efficient energy conversion from solar power, with the flexibility to connect to the grid when needed.
  • Durable & Long-Lasting: Built with high-quality components to withstand harsh conditions and ensure years of dependable performance.
Q&A

Q: What is the 6000W Off-grid Hybrid Split Phase Solar Inverter?
A: This inverter converts DC power from solar panels and batteries into 120V/240V AC power, providing reliable off-grid energy for homes, cabins, and RVs.

Q: What is the power capacity of this inverter?
A: The inverter has a 6000W capacity, capable of handling large loads and providing consistent power for multiple devices and appliances.

Q: Can this inverter work with solar panels?
A: Yes, it integrates seamlessly with solar panels and battery systems, supporting hybrid setups for both solar energy and backup power.

Q: Is this inverter suitable for off-grid use?
A: Yes, it is designed for off-grid applications, providing split-phase power for homes, cabins, or other remote locations without utility connections.

Q: What is the output voltage?
A: The inverter provides 120V/240V AC output, making it compatible with standard household appliances and devices.

Q: Can this inverter be expanded?
A: Yes, the system can be expanded by adding more solar panels or batteries to increase power capacity as your energy needs grow.

Q: Does it offer monitoring features?
A: Yes, it includes monitoring capabilities that allow you to track energy usage, system performance, and battery status in real time.

Q: What warranties are included?
A: The inverter comes with a manufacturer warranty for quality assurance and long-term reliability.

Maintenance Tips
  • High Power Capacity: 6000W output, capable of powering large off-grid systems, homes, or cabins with a split-phase 240V AC output.
  • Hybrid Technology: Combines solar, battery storage, and grid power for maximum efficiency and flexibility, ensuring continuous power supply.
  • Advanced Battery Charging: Smart charging system to optimize battery life and ensure reliable energy storage.
  • Durable & Reliable: Built for off-grid and harsh environments, offering long-lasting performance and durability.
  • Eco-Friendly & Cost-Effective: Harness solar energy to reduce reliance on the grid and lower electricity costs.
