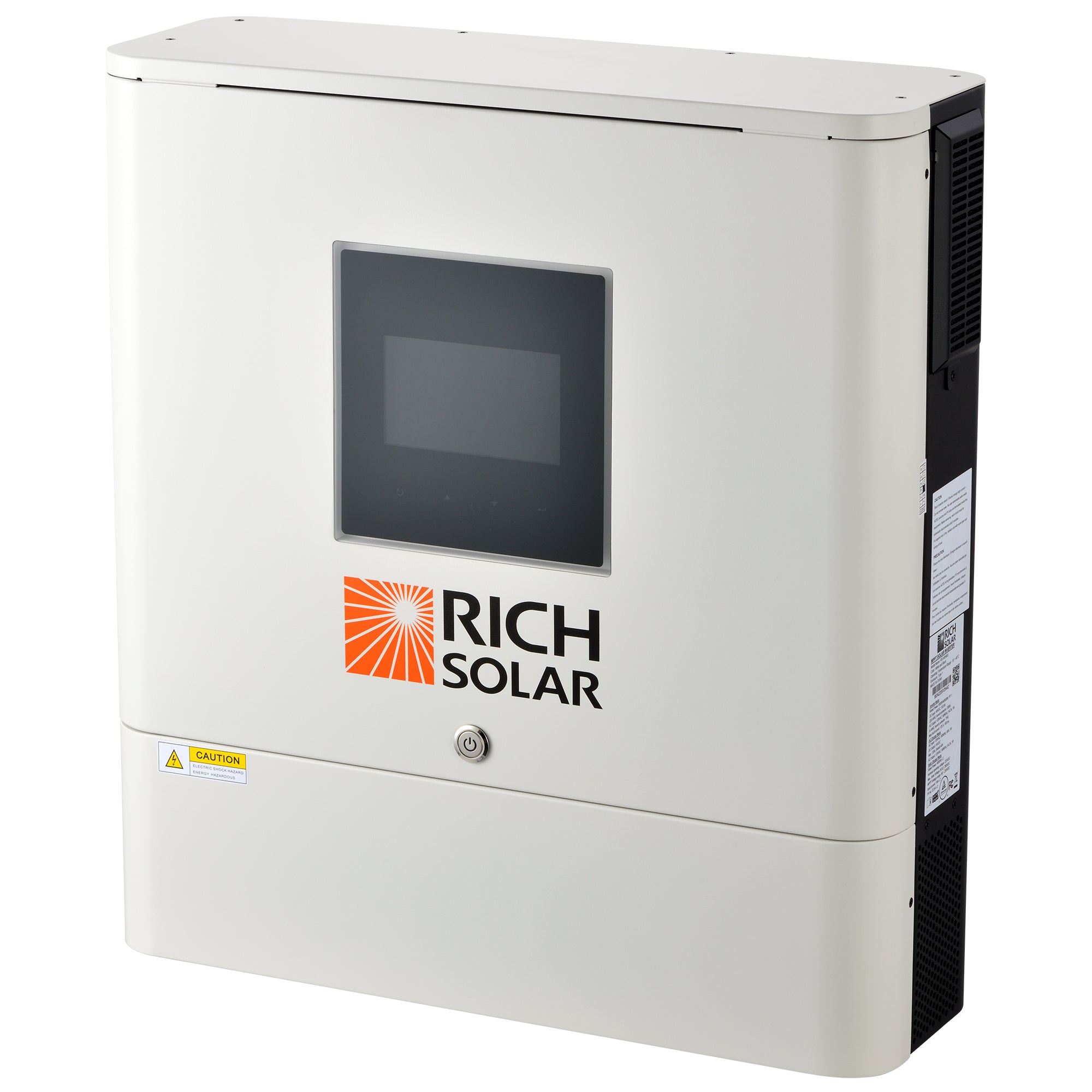

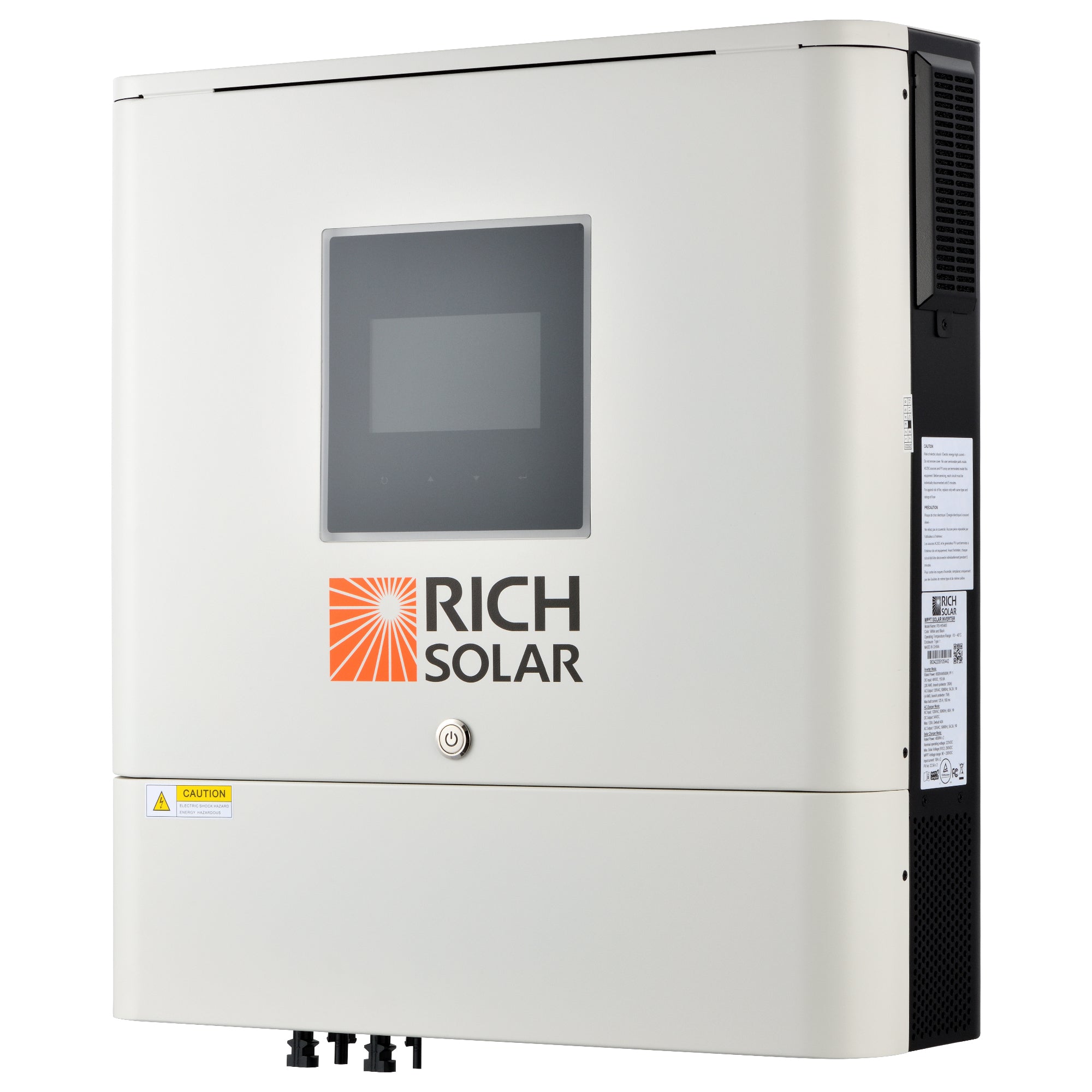

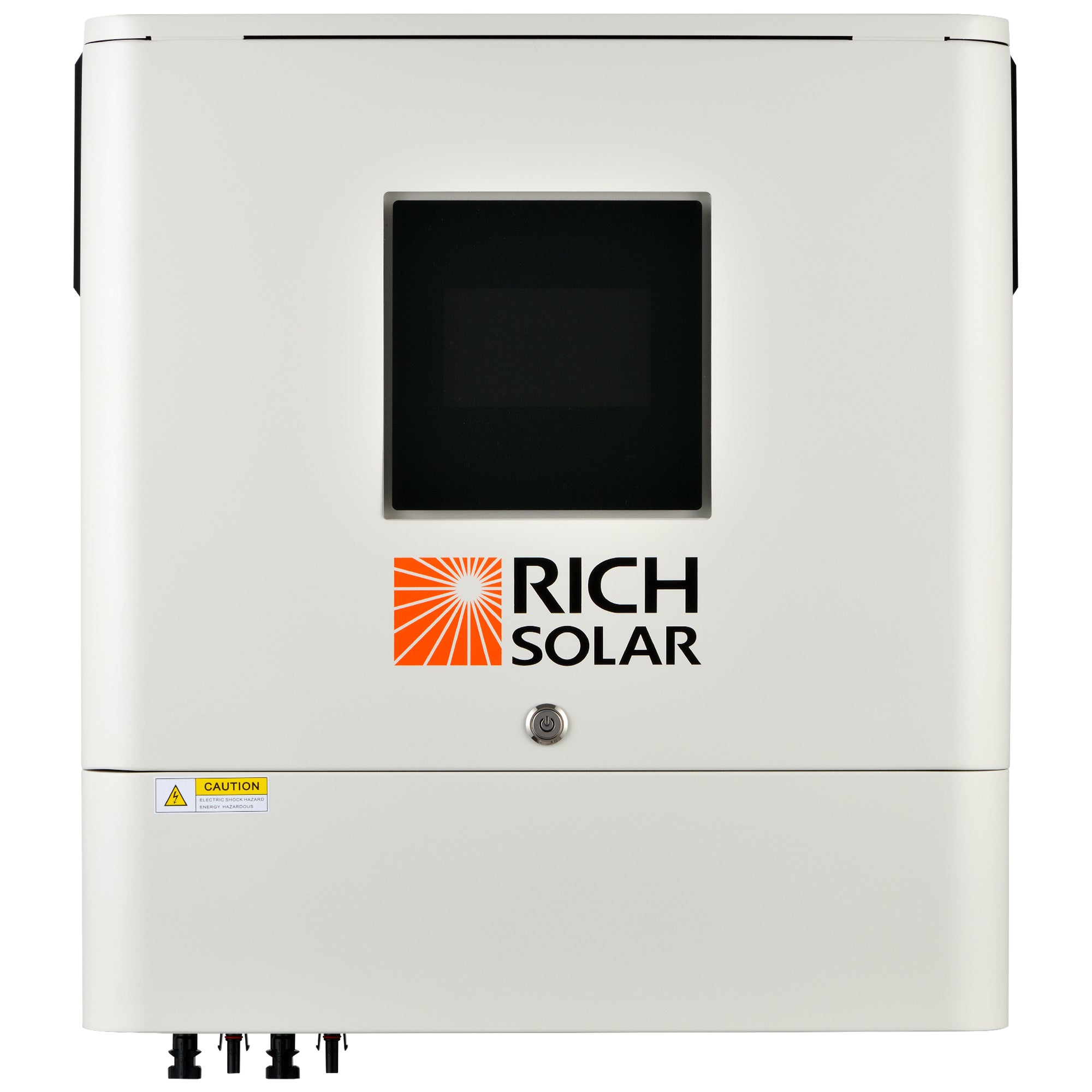

6500 Watt (6.5kW) 48 Volt Off-grid Solar Inverter H6548S

Regular price ~~$1,424.99~~ $1,310.99 Sale

6500 Watt (6.5kW) 48 Volt Off-grid Solar Inverter H6548S

Features

UL Certification
Status indication with RGB lights
Built-in Wi-Fi for mobile monitoring (Android/iOS App is available)
Supports USB On-the-Go function
Data log events stored in the inverter
Reserved communication port for BMS (RS485, CAN-BUS or RS232)

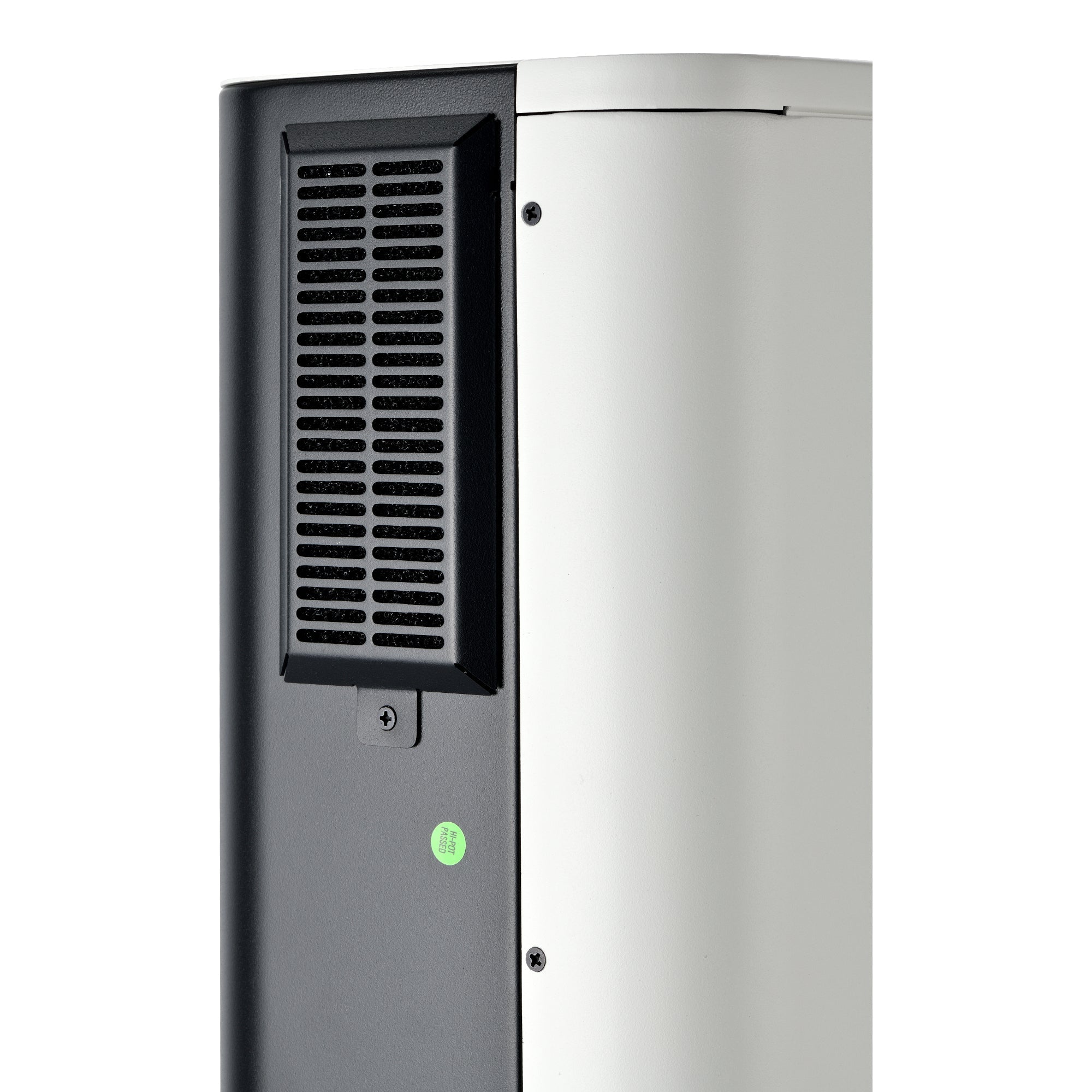

Replaceable fan design for ease of maintenance
Battery independent design
Configurable AC/PV output usage timer and prioritization
Selectable high power charging current
Selectable input voltage range for home appliances and personal computers
Compatible to Utility Mains or generator input
Built-in anti-dust kit
Optional DC output for DC fan, LED bulb, router and so on.
Parallel operation with 6 units

Specs

Specifications:

Model: RS-H6548S
Rated Inverter Power: 6500VA/6500W
PARALLEL CAPABILITY: Yes, 6 units

INPUT

Voltage: 120 VAC
Selectable Voltage Range: 90-140 VAC (For Computers)
80-140 VAC (For Home Appliances)
Frequency Range: 50 Hz/60 Hz (Auto Sensing)

OUTPUT

AC Voltage Regulation (Batt. Mode): 120VAC ± 5%
Surge Power: 13000VA
Efficiency (Peak): 91%
Transfer Time: 15 ms (For Personal Computers), 20 ms (For Home Appliances)
Waveform: Pure Sine Wave
No Load Power Consumption: <70W
Optional DC Voltage: 12 VDC ± 5%, 100W
Dual Outputs: Yes

BATTERY

Battery Voltage: 48 VDC
Floating Charge Voltage: 54 VDC
Overcharge Protection: 66 VDC

SOLAR CHARGER & AC CHARGER

Solar Charger Type: MPPT

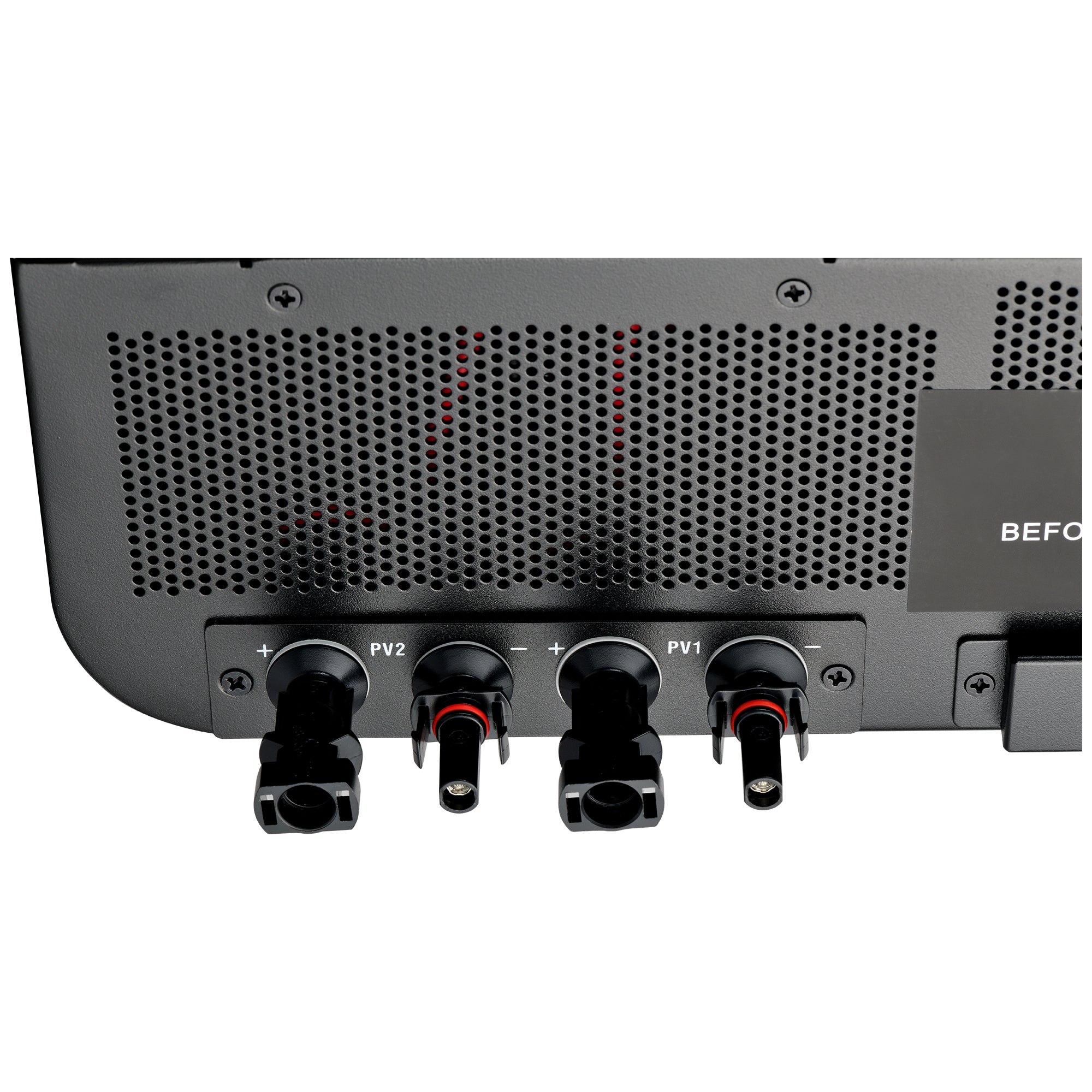

Maximum PV Array Power: 8000W (4000W x 2)
MPPT Operating Voltage Range: 90 ~ 230 VDC
Maximum PV Array Open Circuit Voltage: 250 VDC
Maximum Solar Charge Current: 120A
Maximum AC Charge Current: 120A
Maximum Charge Current: 120A

PHYSICAL

Dimension(D X W X H): 5.8 x 17.0 x 21.8 in
Net Weight: 44.09 lb

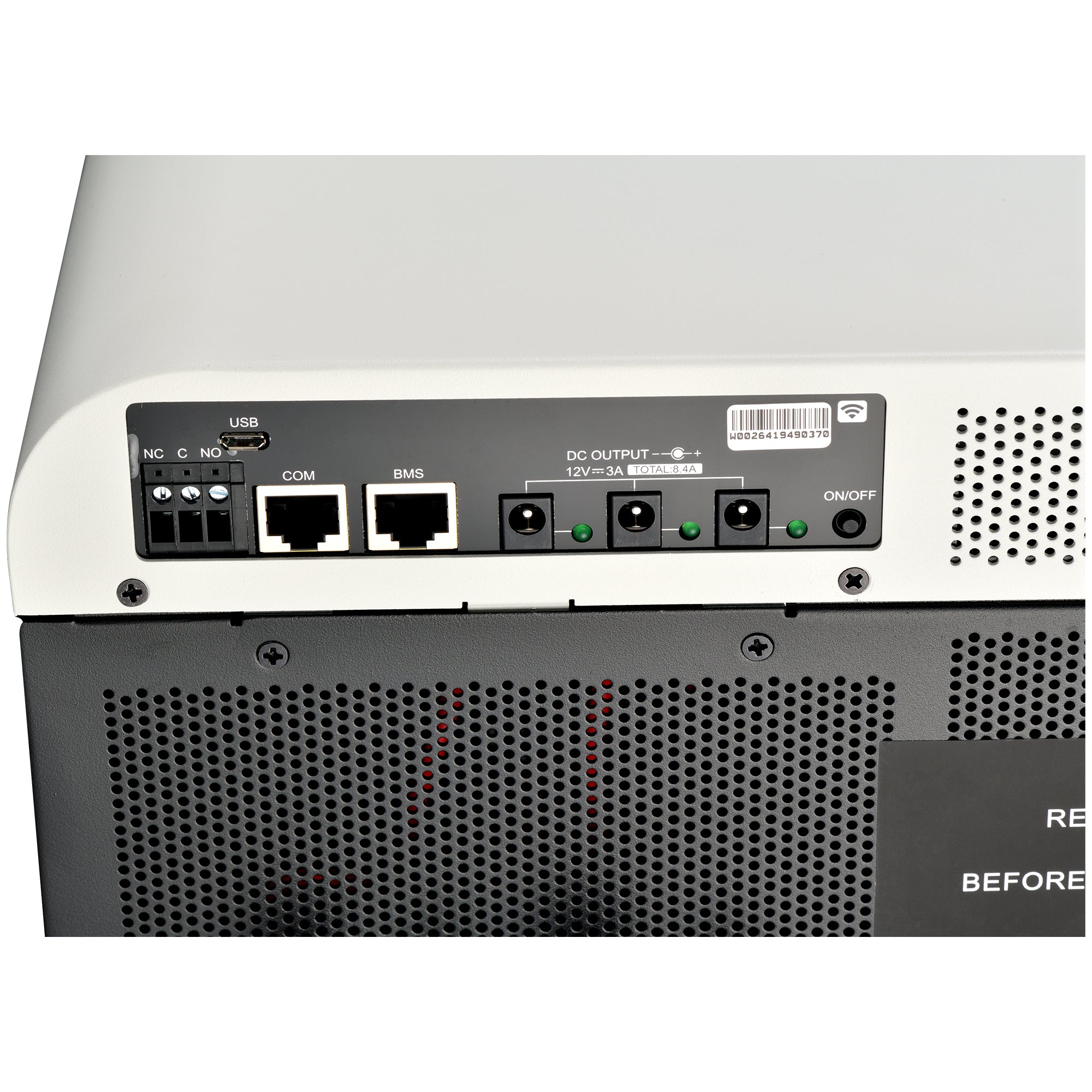

Communication Interface: USB/RS232/RS485/Wi-Fi/Dry-contact

OPERATING ENVIRONMENT

Humidity: 5% to 95% Relative Humidity(Non-condensing)
Operating Temperature: -10°C to 50°C
Storage Temperature: -15°C to 60°C

STANDARD

Compliance Safety: UL

Manual

6500 WATT (6.5KW) 48 VOLT OFF-GRID HYBRID SOLAR INVERTER

What Our Experts Think

High-Powered & Efficient: The 6500 Watt (6.5kW) 48 Volt Off-grid Solar Inverter H6548S is designed to meet the energy demands of large off-grid homes, cabins, or remote facilities, providing reliable power for high-demand appliances.
Optimal Energy Conversion: Engineered to efficiently convert solar energy into stable AC power, maximizing the performance of your solar system and ensuring minimal energy loss.
Durable & Robust: Built with durable, weather-resistant components, ensuring reliable operation in tough environments and extreme weather conditions.
User-Friendly: Equipped with easy-to-use controls and monitoring systems, allowing for straightforward installation and real-time performance tracking.
Scalable for Growth: Suitable for larger energy needs, with the flexibility to expand as your power requirements increase over time.

Q&A

Q: What is the 6500W (6.5kW) 48V Off-grid Solar Inverter H6548S?
A: The H6548S is a 6500W off-grid solar inverter that converts DC power from solar panels and batteries into AC power, designed for off-grid applications such as remote homes and cabins.

Q: What is the power capacity of this inverter?
A: This inverter has a 6500W capacity, making it suitable for powering large appliances, lighting, and electronics in off-grid settings.

Q: Can this inverter be used with solar panels?
A: Yes, it works seamlessly with solar panels, converting their DC output into 120V/240V AC power for your off-grid system.

Q: Is this inverter suitable for off-grid systems?
A: Yes, it is specifically designed for off-grid use, providing reliable and efficient power where grid access is unavailable.

Q: What is the output voltage of this inverter?
A: The inverter provides 120V/240V AC output, compatible with most standard household appliances.

Q: Can the system be expanded?
A: Yes, the system is scalable by adding additional solar panels or batteries to increase your energy capacity as needed.

Q: Does the inverter include monitoring features?
A: Yes, the inverter offers monitoring features to track energy production, battery levels, and system performance.

Q: What warranties are included?
A: The inverter comes with a manufacturer warranty, ensuring long-term reliability and quality performance

Maintenance Tips

High Power Output: 6500W at 48V, ideal for large off-grid systems, cabins, homes, or remote properties requiring substantial power.
Pure Sine Wave Inverter: Delivers clean, stable power for sensitive electronics and appliances, ensuring optimal performance.
Durable & Reliable: Built for off-grid applications, designed to withstand tough environments and provide long-lasting, consistent power.
Efficient Energy Conversion: Converts DC to AC power efficiently, maximizing the energy harvested from your solar panels.
Supports High-Power Loads: Can handle high-demand appliances and equipment, making it perfect for diverse off-grid energy needs.
Eco-Friendly: Reduces dependence on the grid and fossil fuels by providing sustainable solar energy.
