Baumalight 3P24 Stump Grinder for Tractors - BML-3P24-S1050-C1-NT
Regular price
$7,030.99
$6,468.99
Sale

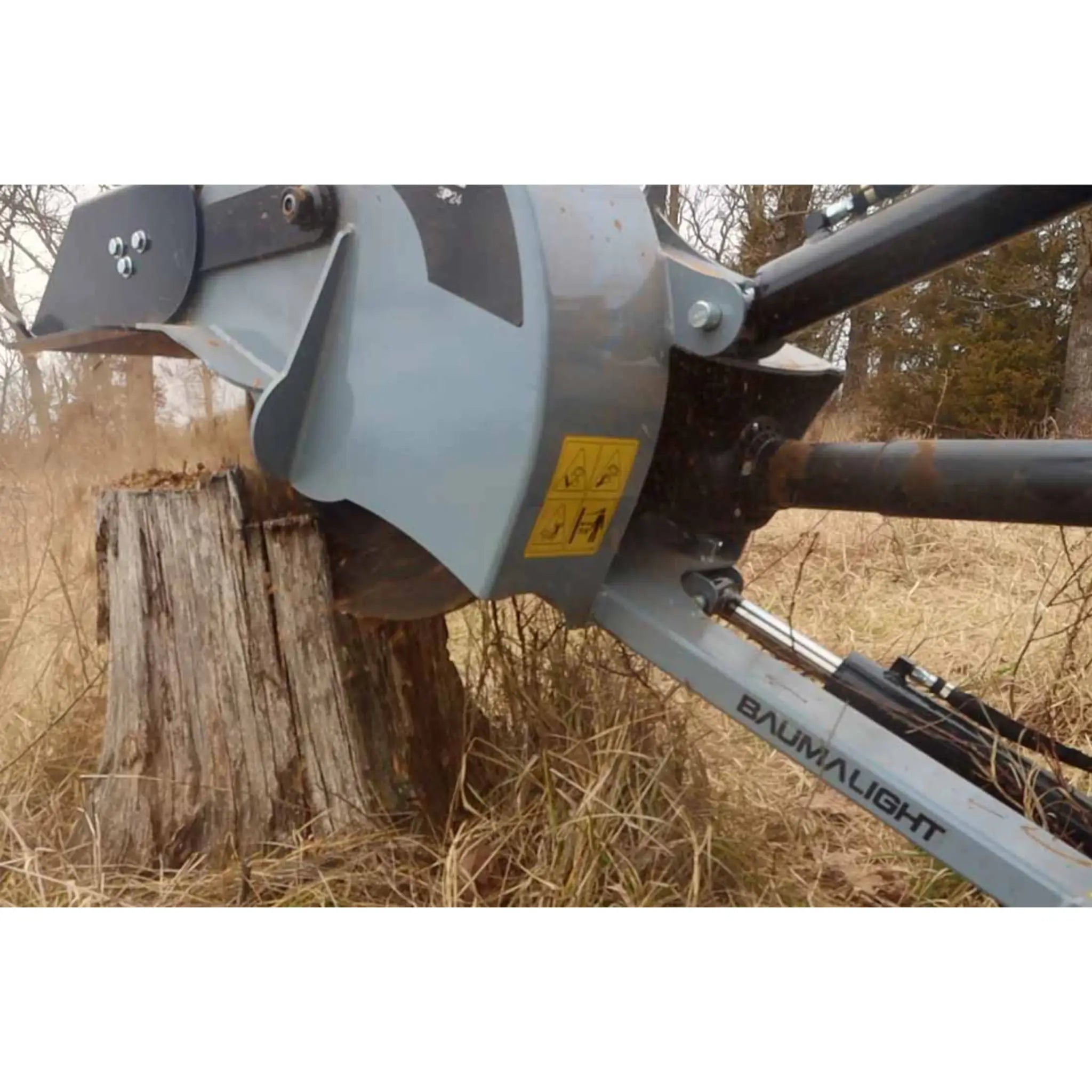

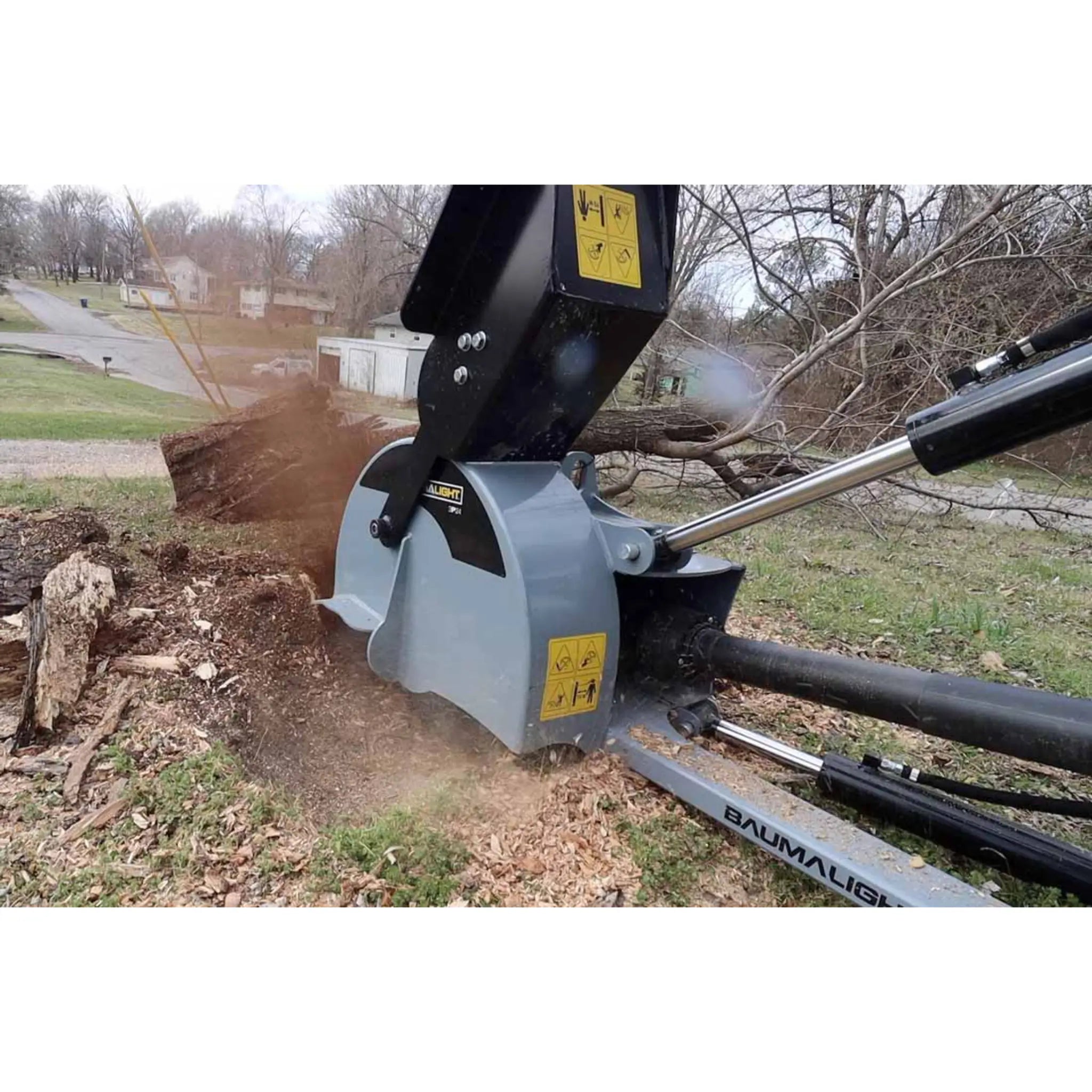

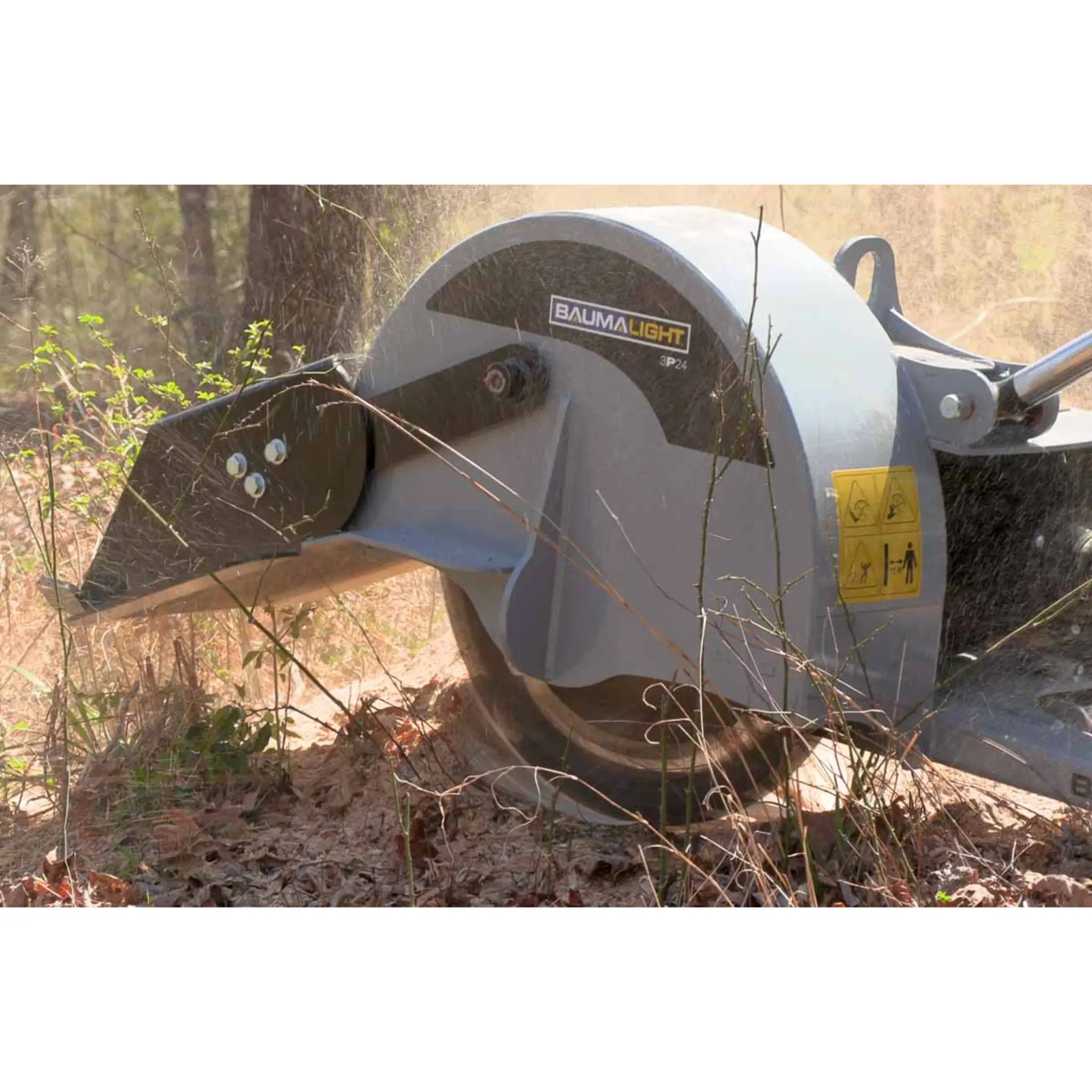

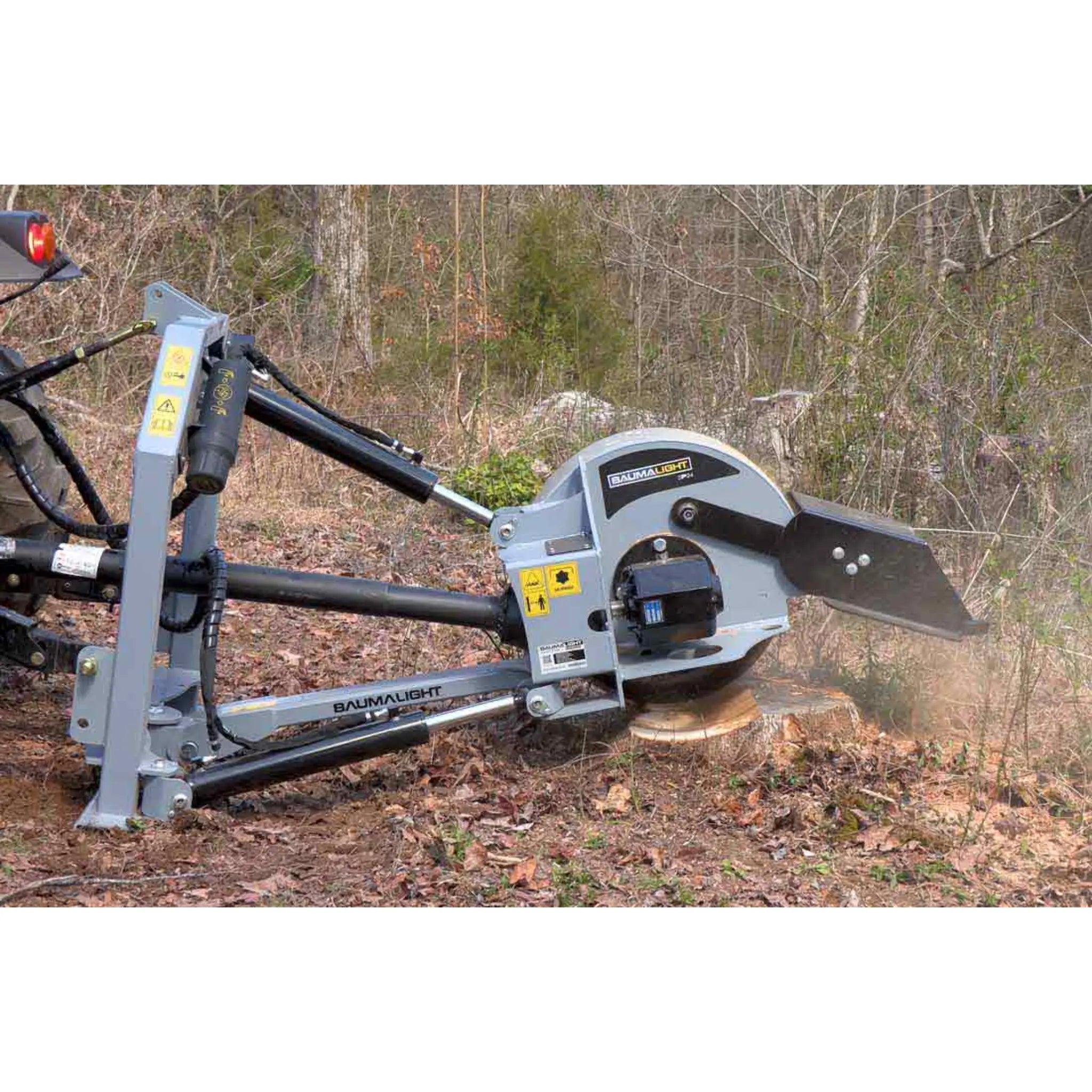

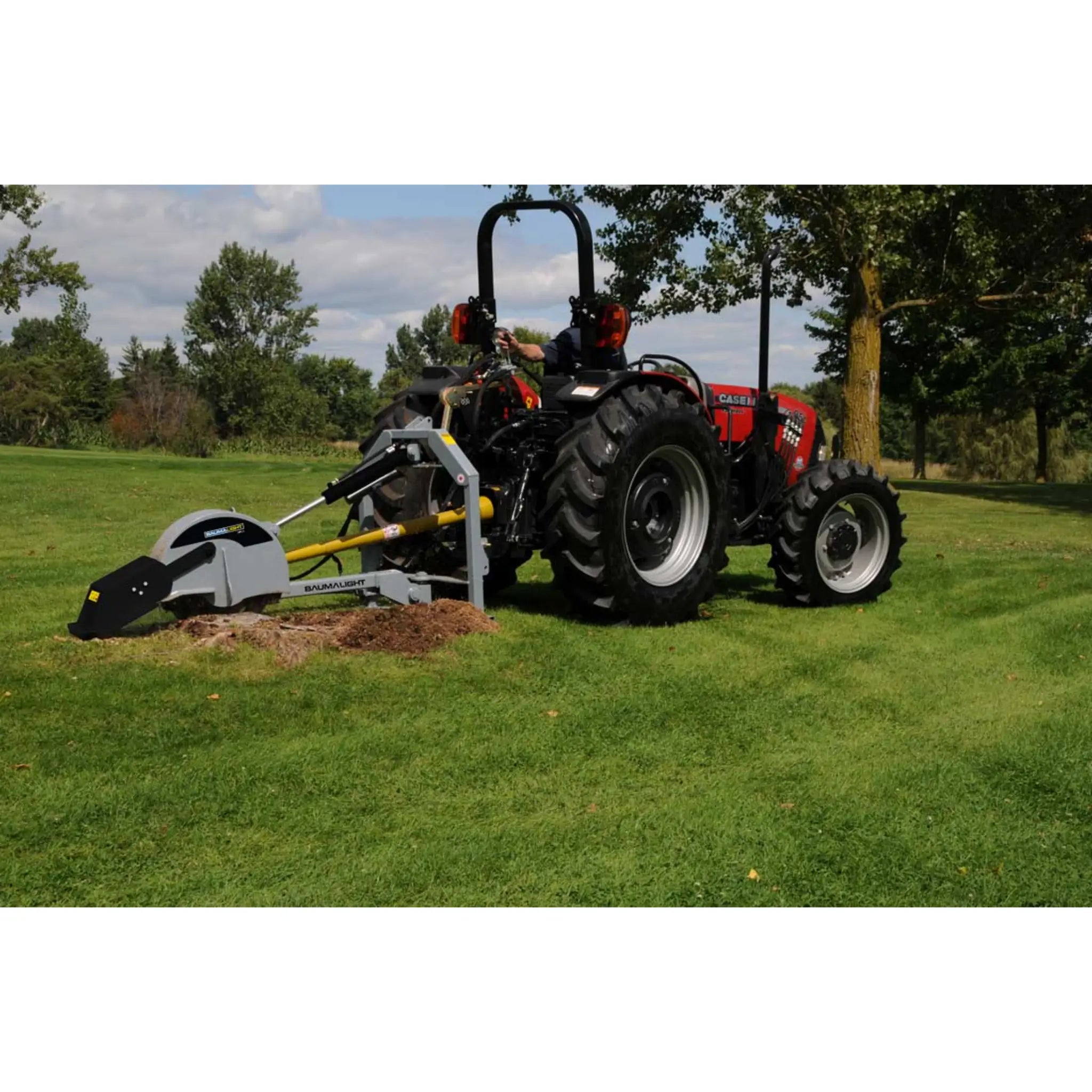

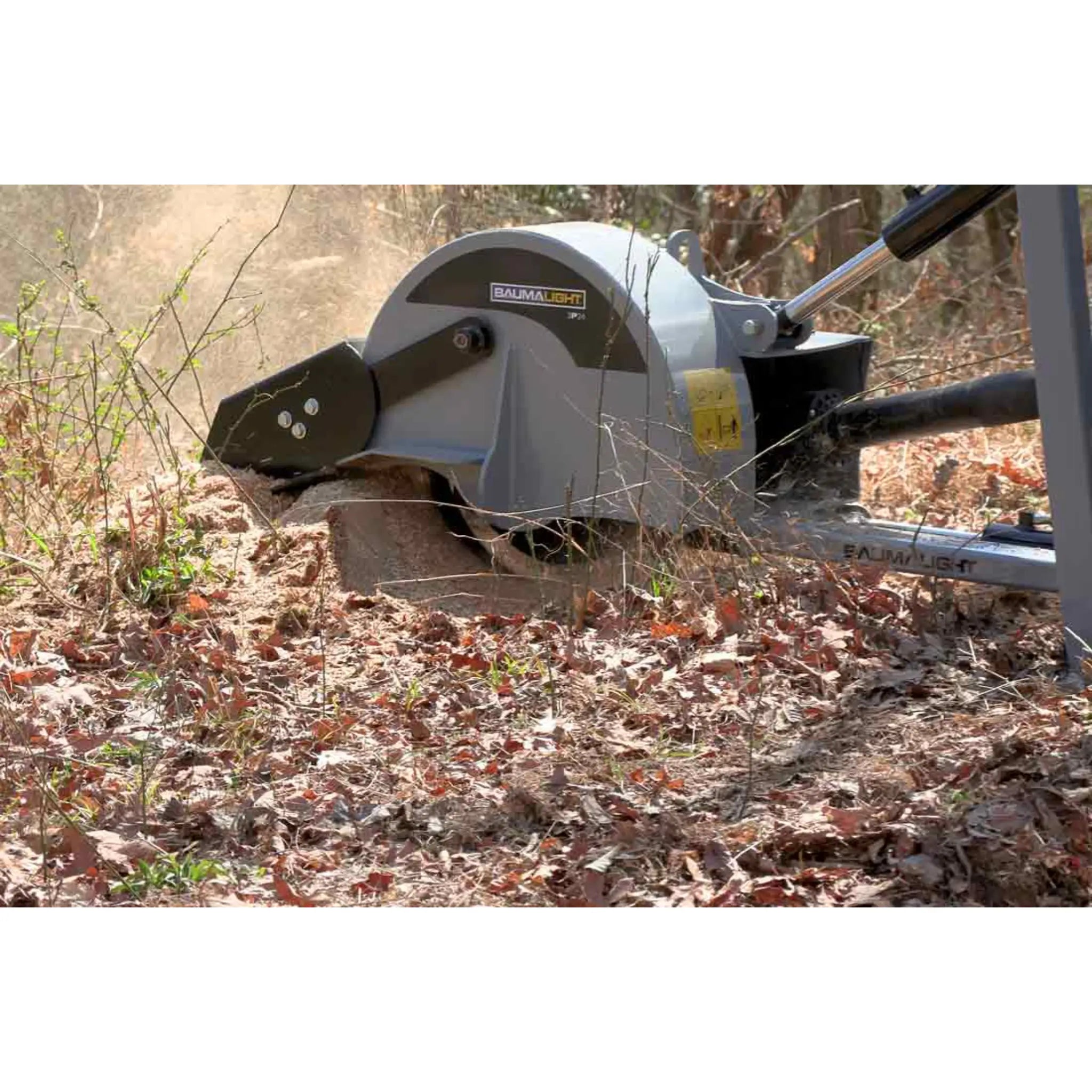

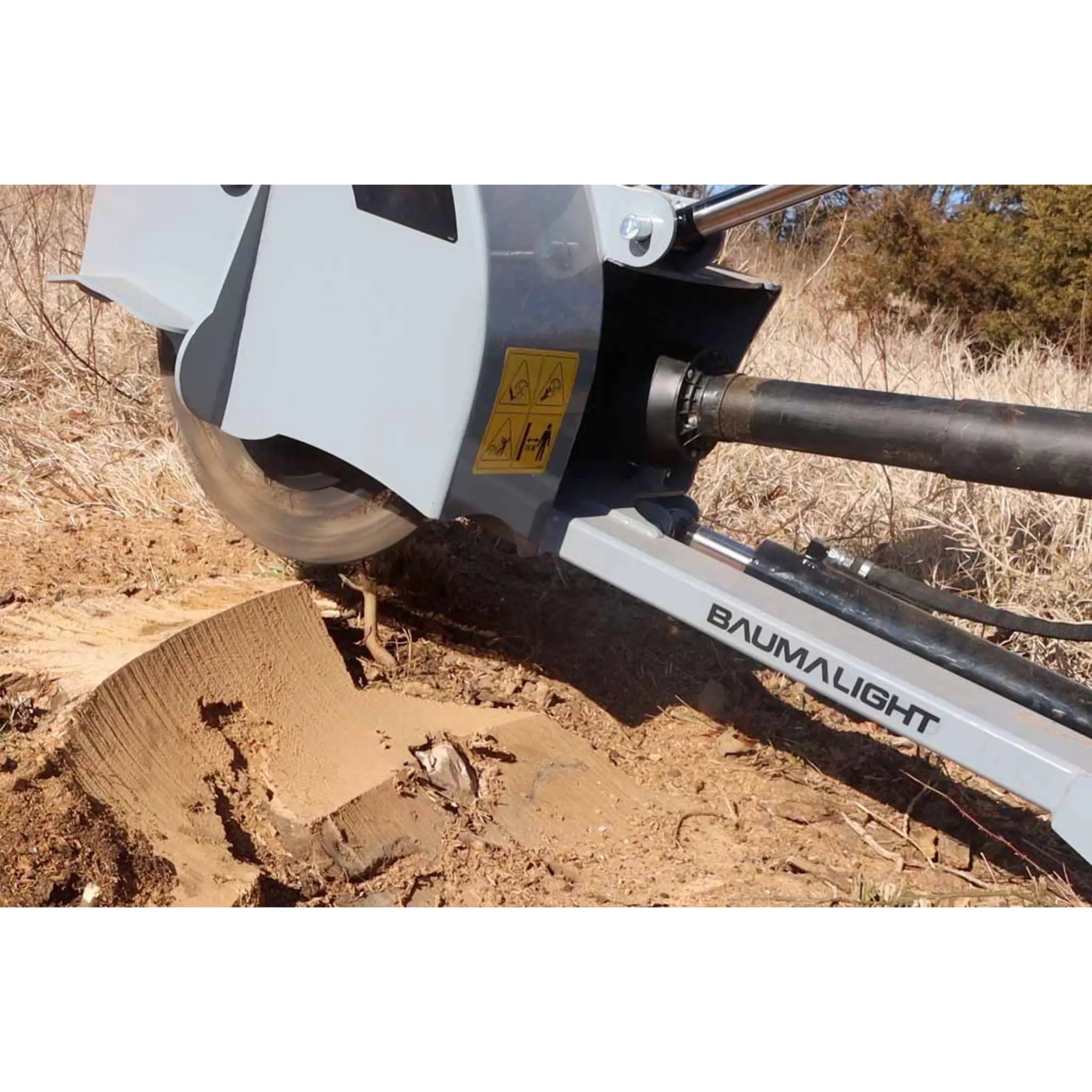

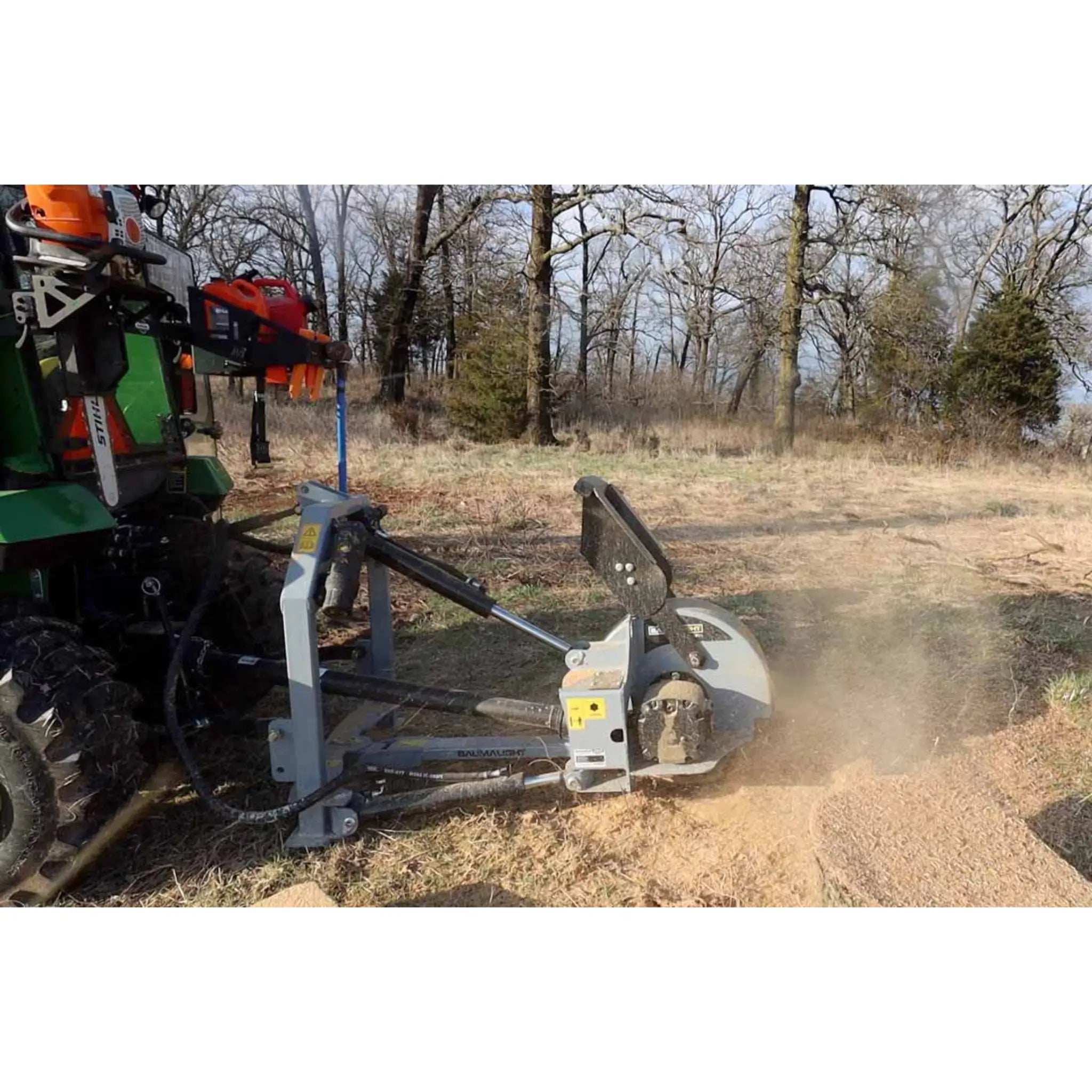

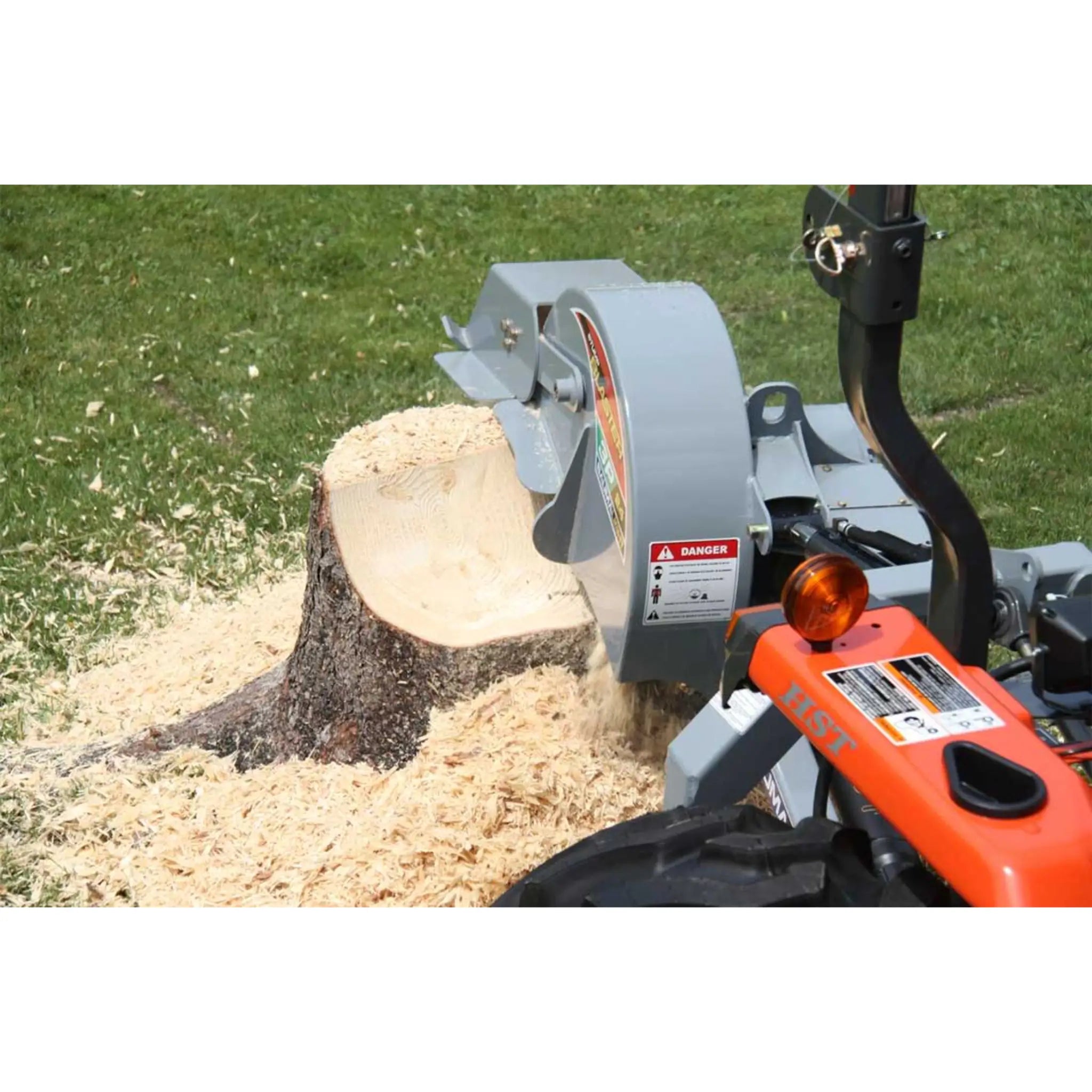

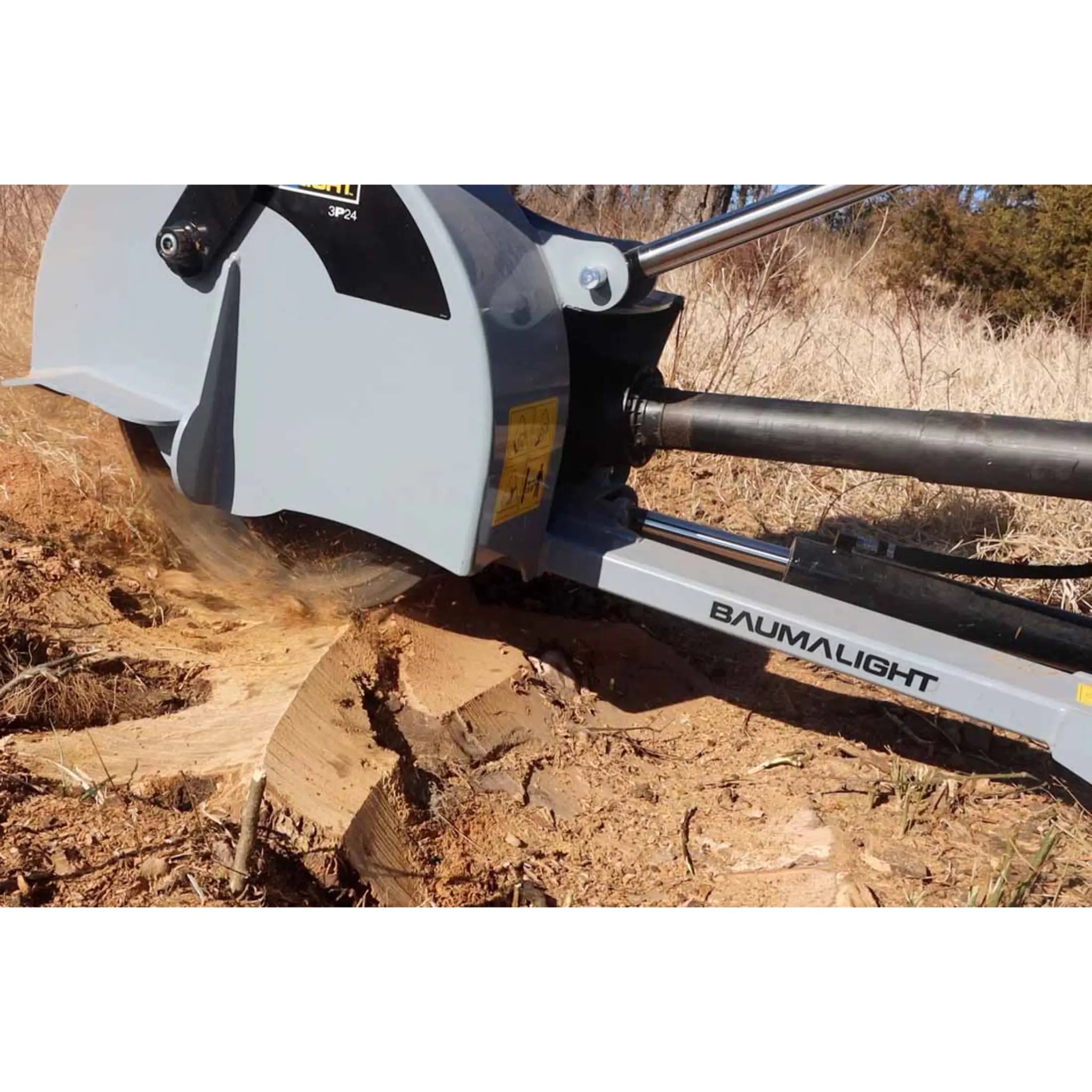

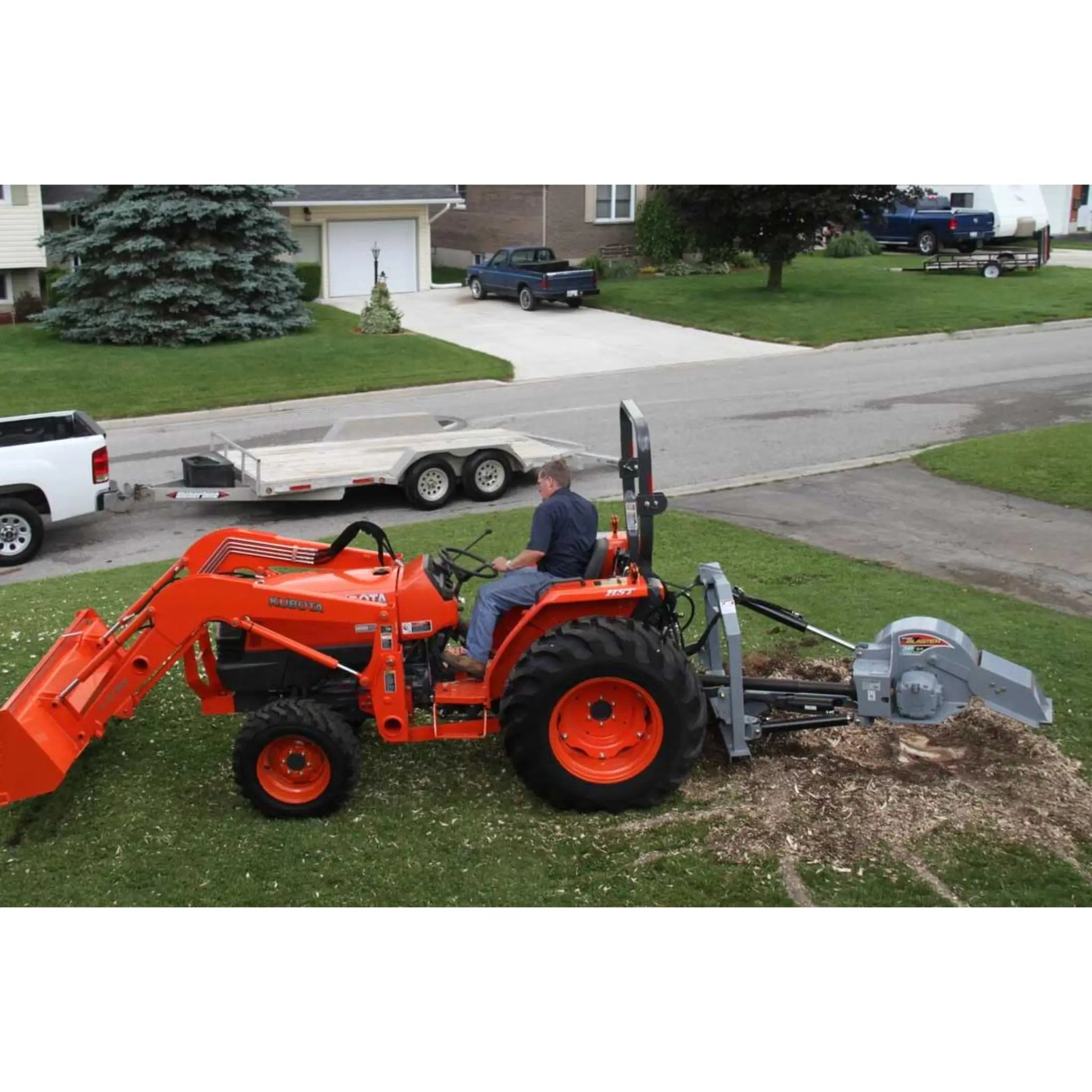

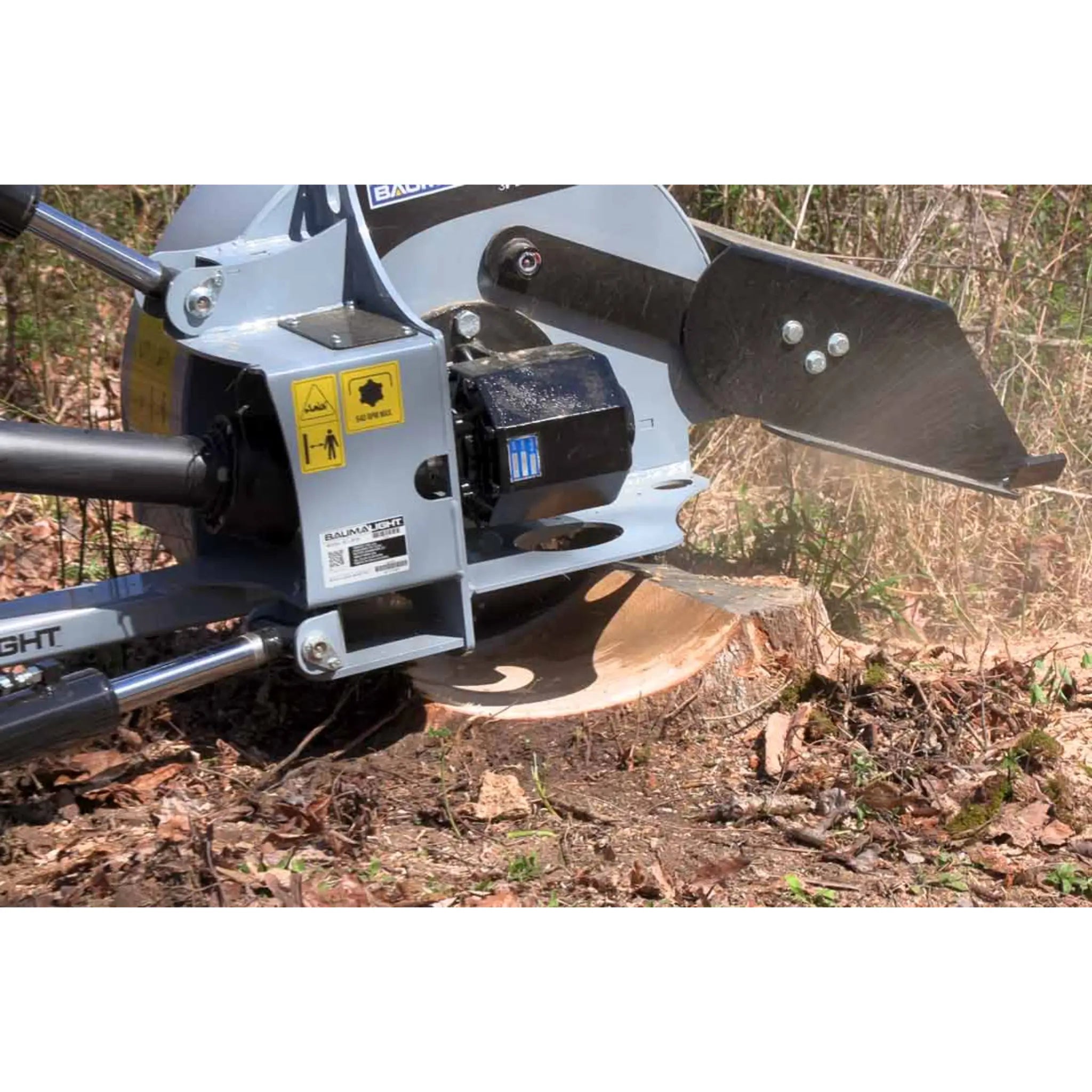

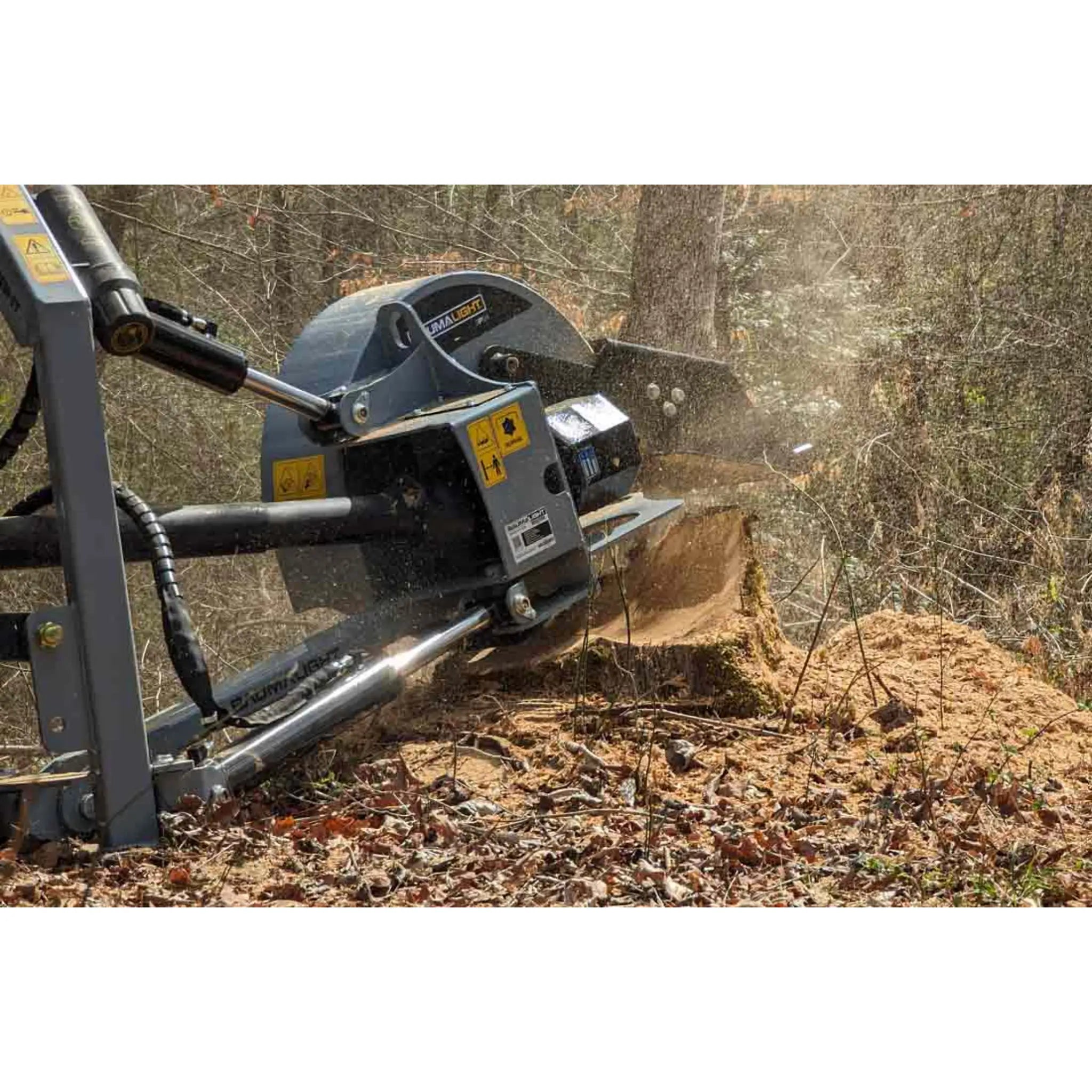

Baumalight 3P24 Stump Grinder For Tractors - BML-3P24-S1050-C1-NT
Enjoy relentless power and lightning-fast efficiency with the Baumalight 3P24 PTO Stump Grinder. Engineered for tractors with 30-60 HP, this robust grinder features a 24" rotor with 34 carbide teeth for optimal grinding prowess. With a substantial 803 Ft.-Lbs of torque at 810 RPM, and dual hydraulic remote com
Baumalight 3P24 Stump Grinder
patibility, it ensures deep, precise cuts—18" above and 8" below ground.
The Baumalight 3P24 PTO stump grinder stands as a pinnacle of efficiency and rugged strength, tailor-made for tractors equipped with a 30-50 HP motor. Designed to conquer even the most challenging stumps, this unit boasts a formidable 24-inch rotor with 34 replaceable carbide teeth, ensuring a cutting depth of 18 inches above ground and 8 inches below. Its powerful direct drive system, complemented by a heavy-duty gearbox, delivers a whopping 803 Ft-Lbs of torque, turning the rotor at 810 RPM to pulverize stumps into dust efficiently.
Crafted for adaptability, the 3P24 requires two hydraulic remotes from your tractor to operate the cutting and lifting cylinders effectively. For those with limited hydraulic options, Baumalight offers a convenient S1050 valve kit, enhancing compatibility and control, especially on smaller tractors. The unit’s flow control feature allows operators to fine-tune the grinding speed, maximizing productivity and minimizing wear on the equipment.
The robust design extends to every aspect of the 3P24, from its heavy-duty base that stabilizes operations and reduces tractor stress, to the high-grade chrome-vanadium AISI 6150 steel spring bushings at all main pivot points. An optional external control mounted on an adjustable arm provides enhanced cutting control, crucial for optimal performance in diverse working conditions. With Baumalight’s commitment to durability and performance, this stump grinder is not just a purchase; it’s a long-term investment in your land management arsenal.
Specifications
| Model No. | 1P24 | 3P24 | 3P34 | 3P40 |
|---|---|---|---|---|
| Recommended HP Size | 20-45 | 25-55 | 45-80 | 60-120 |
| Maximum Engine HP | 50 | 58 | 85 | 125 |
| Maximum PTO HP | 40 | 50 | 75 | 115 |
| Transmission | Hydrostatic only | Any | Any | Any |
| Hydraulic GPM | -- | 5–20 | 5–20 | 5–20 |
| Rotor Size | 24" | 24" | 34" | 34" |
| Number of Teeth | 34 | 34 | 54 | 54 |
| Tooth Part number | S1000 | S1000 | S1000 | S1000 |
| Tooth Construction | Carbide steel bolt-in | Carbide steel bolt-in | Carbide steel bolt-in | Carbide steel bolt-in |
| Cutting Wheel Speed | 540 RPM | 810 RPM | 810 RPM | 1000 RPM |
| Cutting Height - Above Ground | 10" | 18" | 25" | 25" |
| Cutting Depth - Below Ground | 6" | 8" | 14" | 14" |
| Maximum Cutting Depth - Per Pass | 5" | 6" | 9" | 9" |
| Maximum Horizontal Cut | 22" | 22" | 32" | 32" |
| Swing Arc | 0° | 65° | 65° | 65° |
| Hub Torque | 803 Ft.-Lbs. | 803 Ft.-Lbs. | 803 Ft.-Lbs. | 1050 Ft.-Lbs. |
| Over Torque Protection | Slip clutch | Slip clutch | Slip clutch | Slip clutch |
| Hitch | Cat I | Cat I or II | Cat II | Cat II |
| Quick hitch compatibility | Yes | No | No | No |
| Requires 12 Volt DC | No | No | No | No |
| Input Speed | 540 | 540 | 540 | 1000 |
| Unit Weight (Shipping) Lbs. | 350 | 920 | 1231 | 1280 |
| Width (Shipping) | 48" | 42" | 48" | 48" |
| Length (Shipping) | 48" | 49" | 54" | 54" |
Stump cutting time chart
 |
||||||||
|---|---|---|---|---|---|---|---|---|
| Tractor HP | 20Hp | 30Hp | 40Hp | 60Hp | 70Hp | 80Hp | 90Hp | 120Hp |
| -- | 30 min | 20 min | 15 min | -- | -- | -- | -- | -- |
 |
||||||||
| Tractor HP | 20Hp | 30Hp | 40Hp | 60Hp | 70Hp | 80Hp | 90Hp | 120Hp |
| -- | -- | 15 min | 12 min | 10 min | -- | -- | -- | -- |
 |
||||||||
| Tractor HP | 20Hp | 30Hp | 40Hp | 60Hp | 70Hp | 80Hp | 90Hp | 120Hp |
| -- | -- | -- | -- | 6 min | 5 min | 4 min | -- | -- |
 |
||||||||
| Tractor HP | 20Hp | 30Hp | 40Hp | 60Hp | 70Hp | 80Hp | 90Hp | 120Hp |
| -- | -- | -- | -- | 6 min | 5 min | 4 min | 3 min | 2 min |
