Baumalight GXM550 Stump Grinder For 3.5 - 8 Ton Excavators - BML-GXM550-X508-EWC3.5-6-B
Regular price
$8,550.99
$7,866.99
Sale
Baumalight GXM550 Stump Grinder For 3.5 - 8 Ton Excavators - BML-GXM550-X508-EWC3.5-6-B

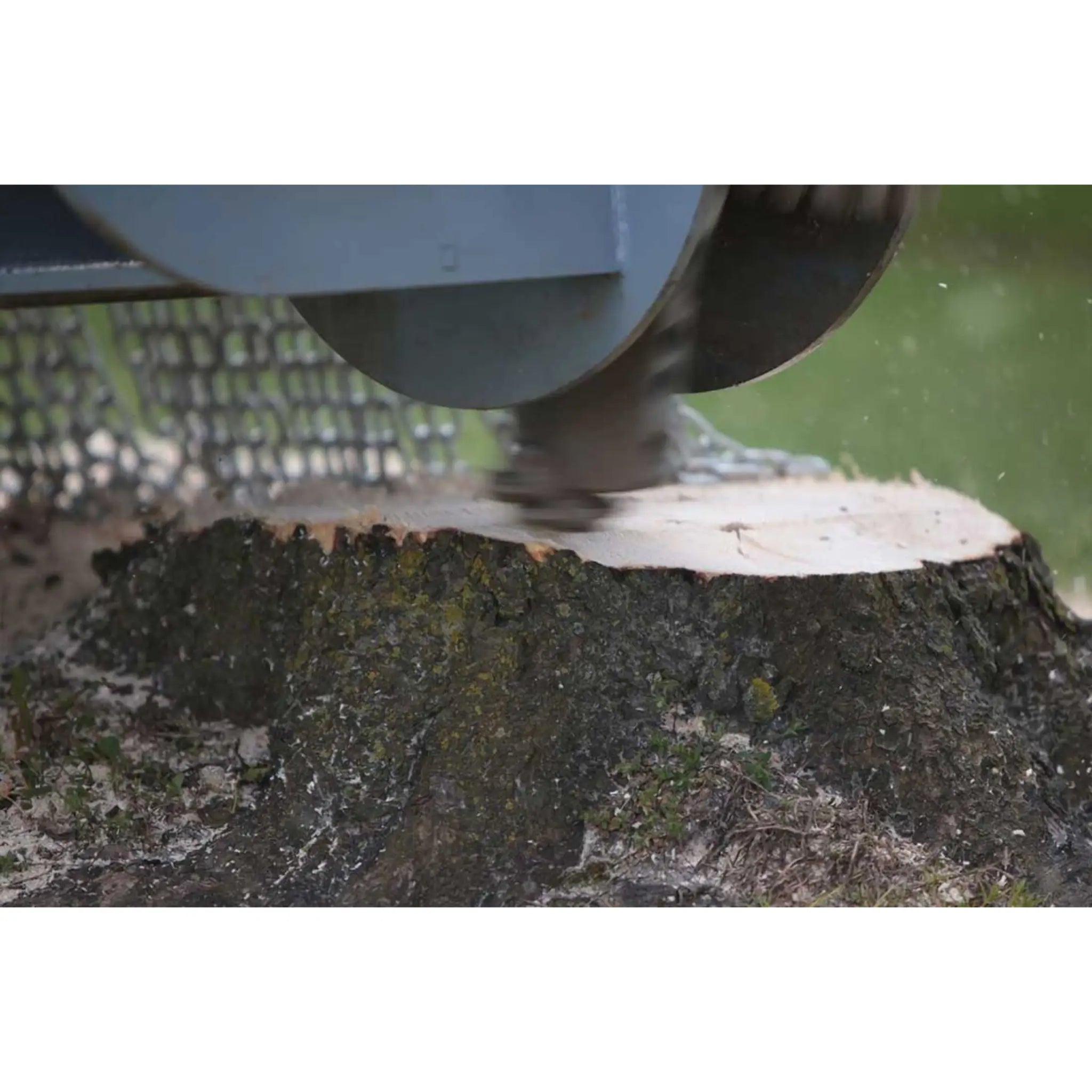

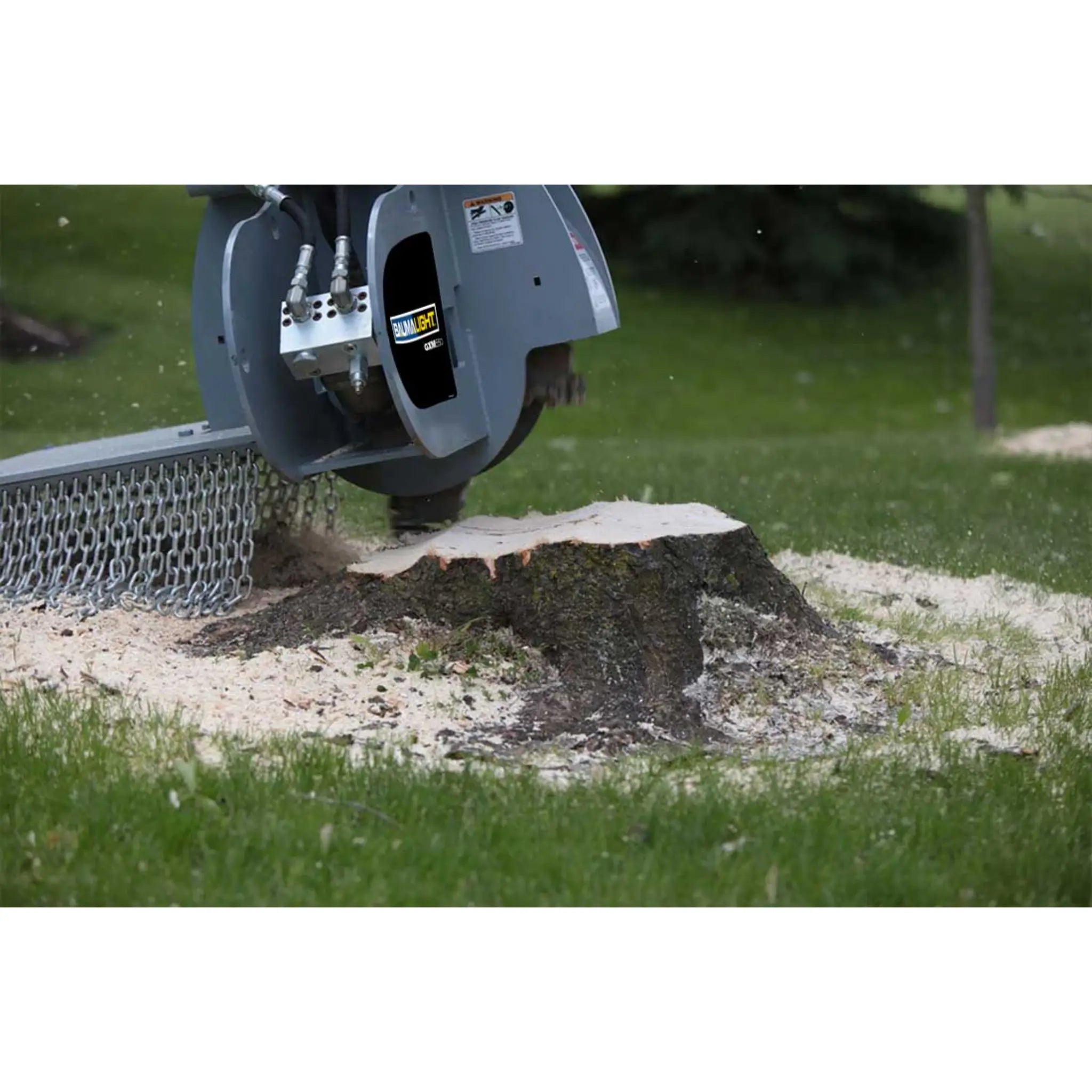

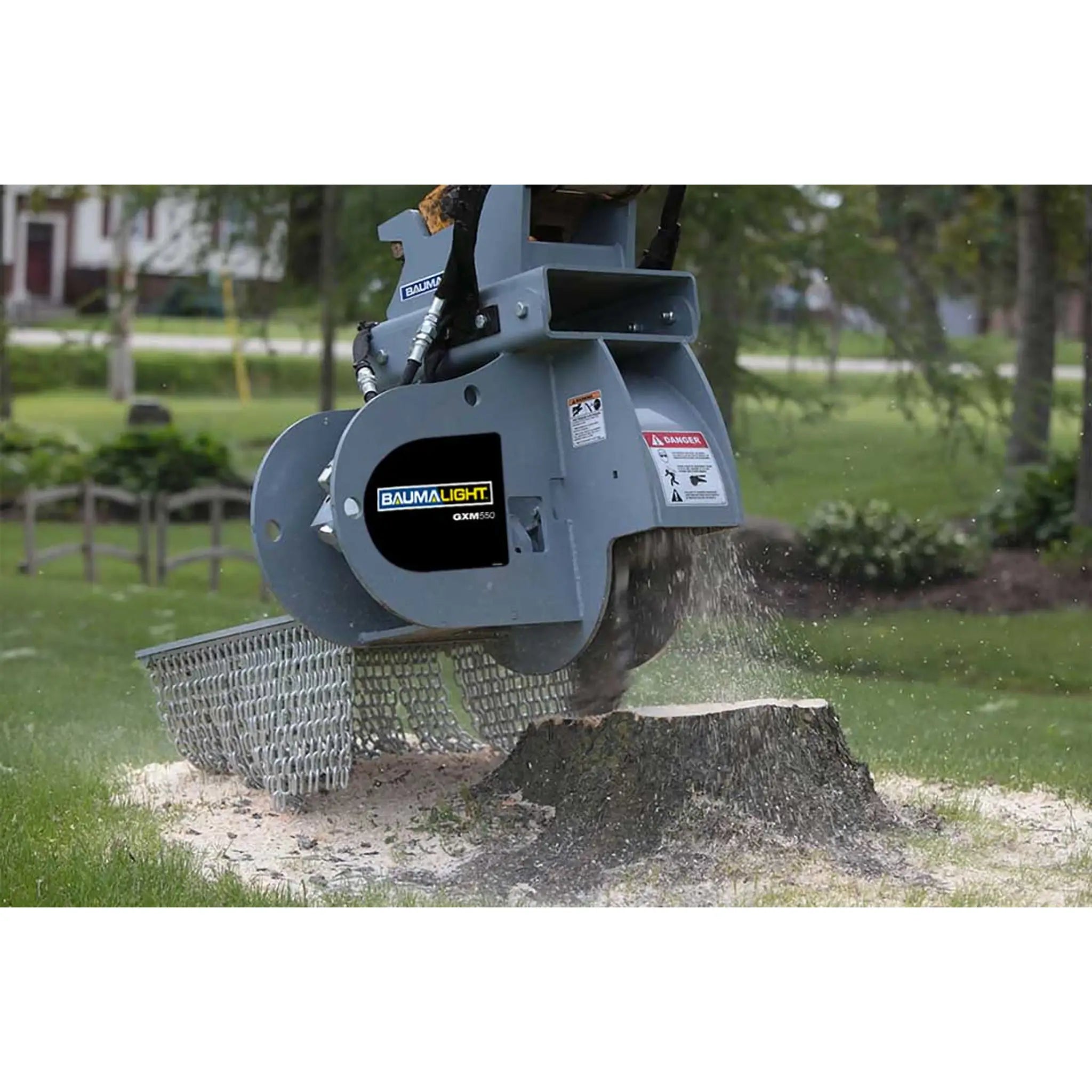

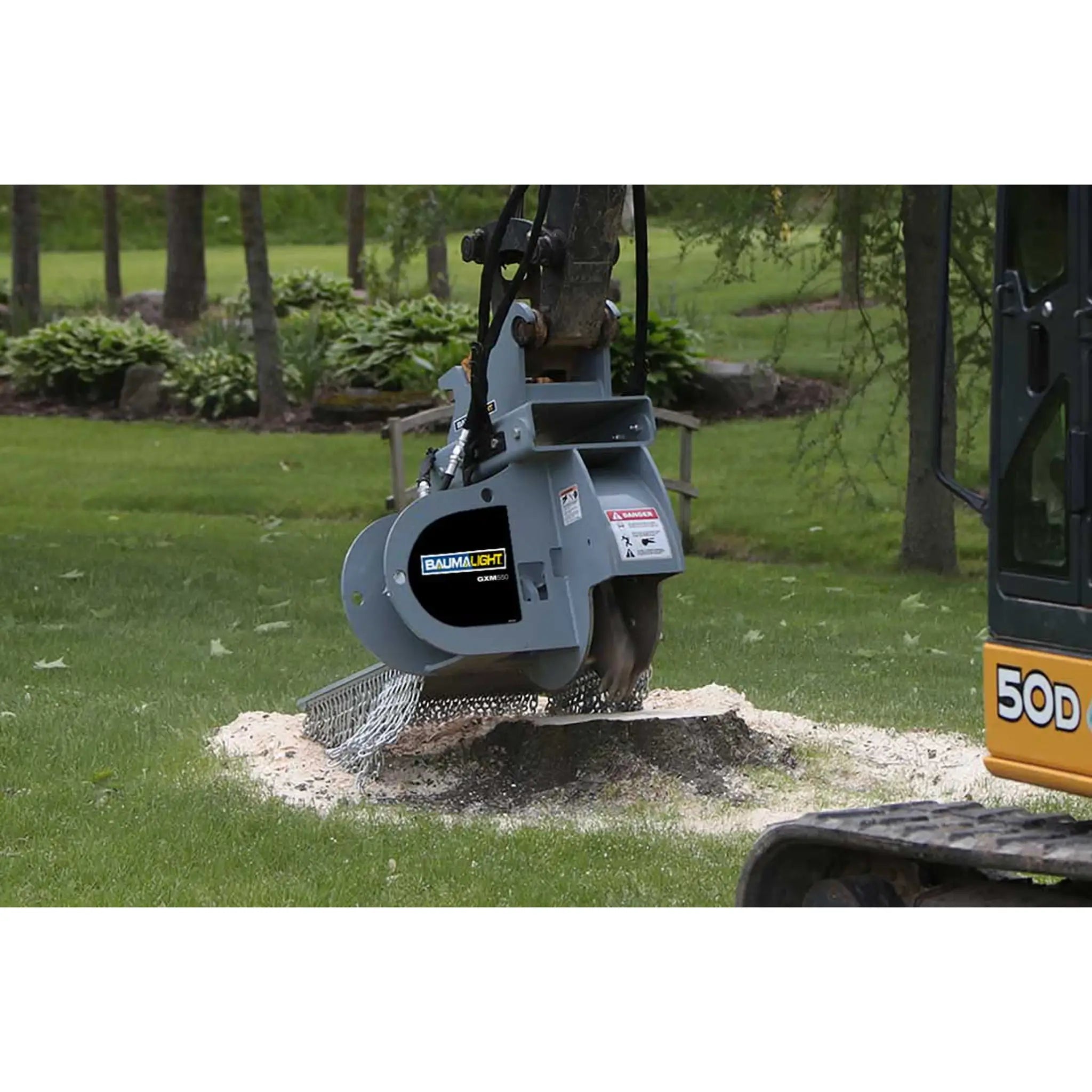

Maximize stump removal efficiency with the Baumalight GXM550. This robust stump grinder features a 24" rotor and a bent-axis piston motor, ensuring powerful performance. The grinder is equipped with 12 carbide teeth, each rotatable up to three times for extended use. The unique concave tooth design delivers aggressive, precise cuts, reducing wear and enhancing mulch quality.

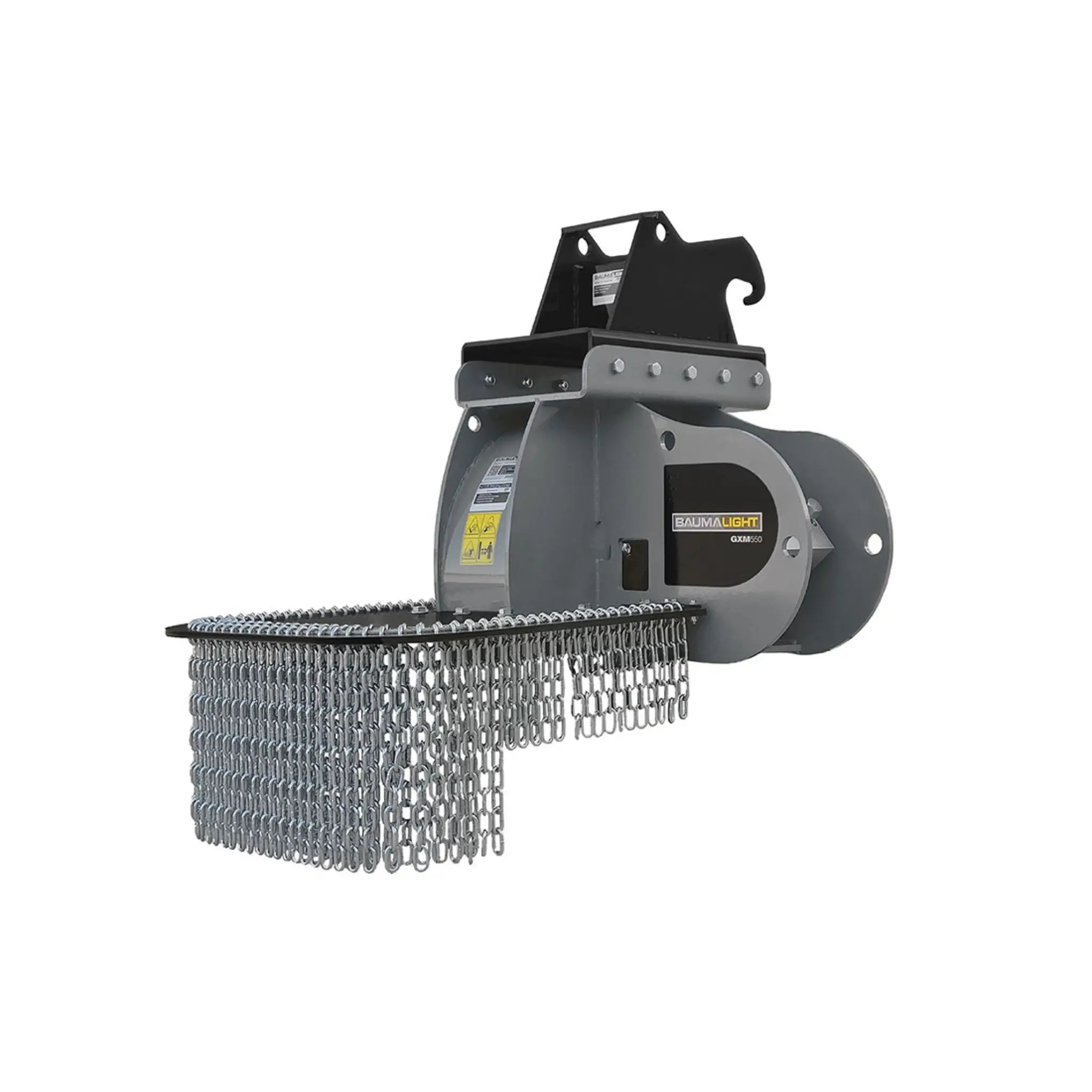

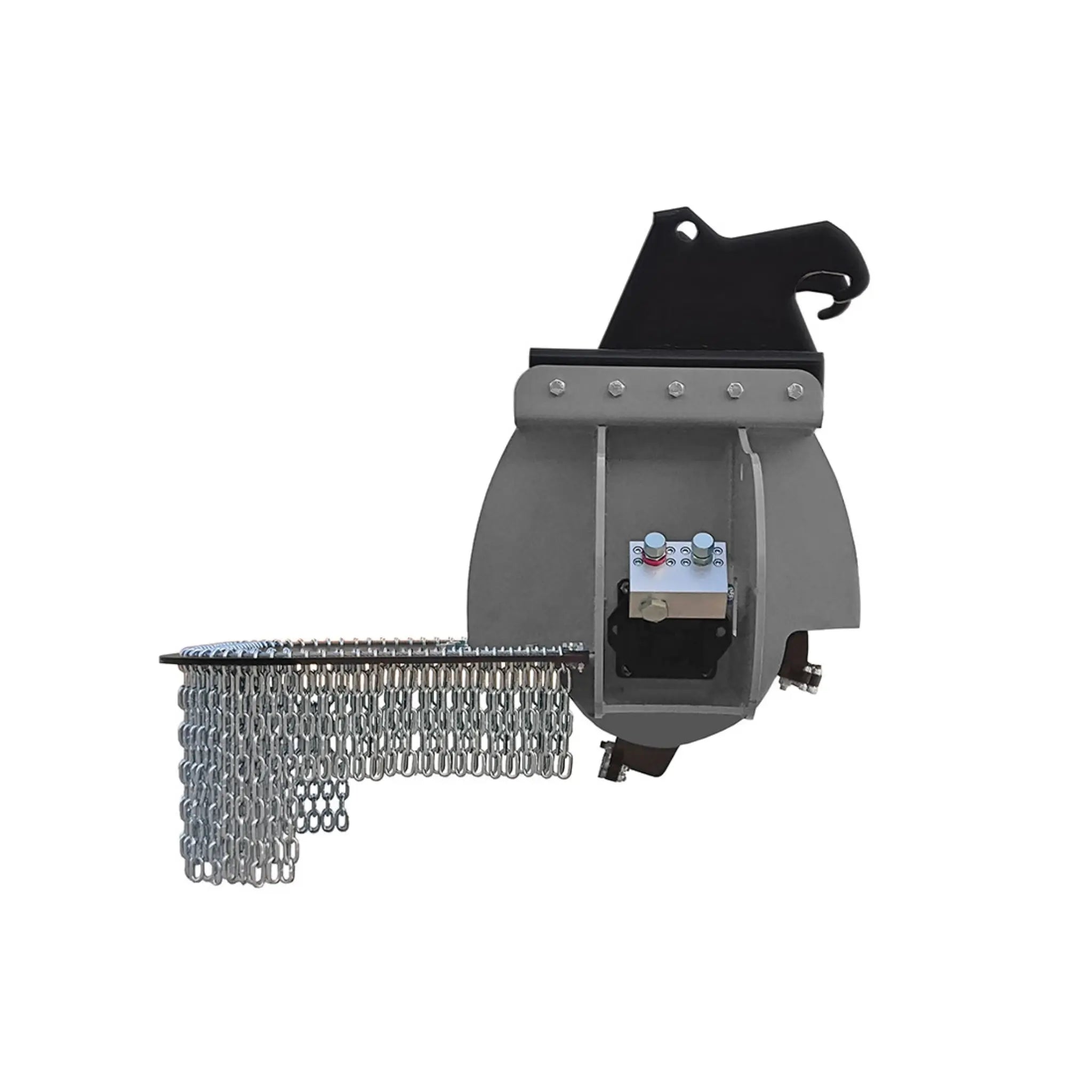

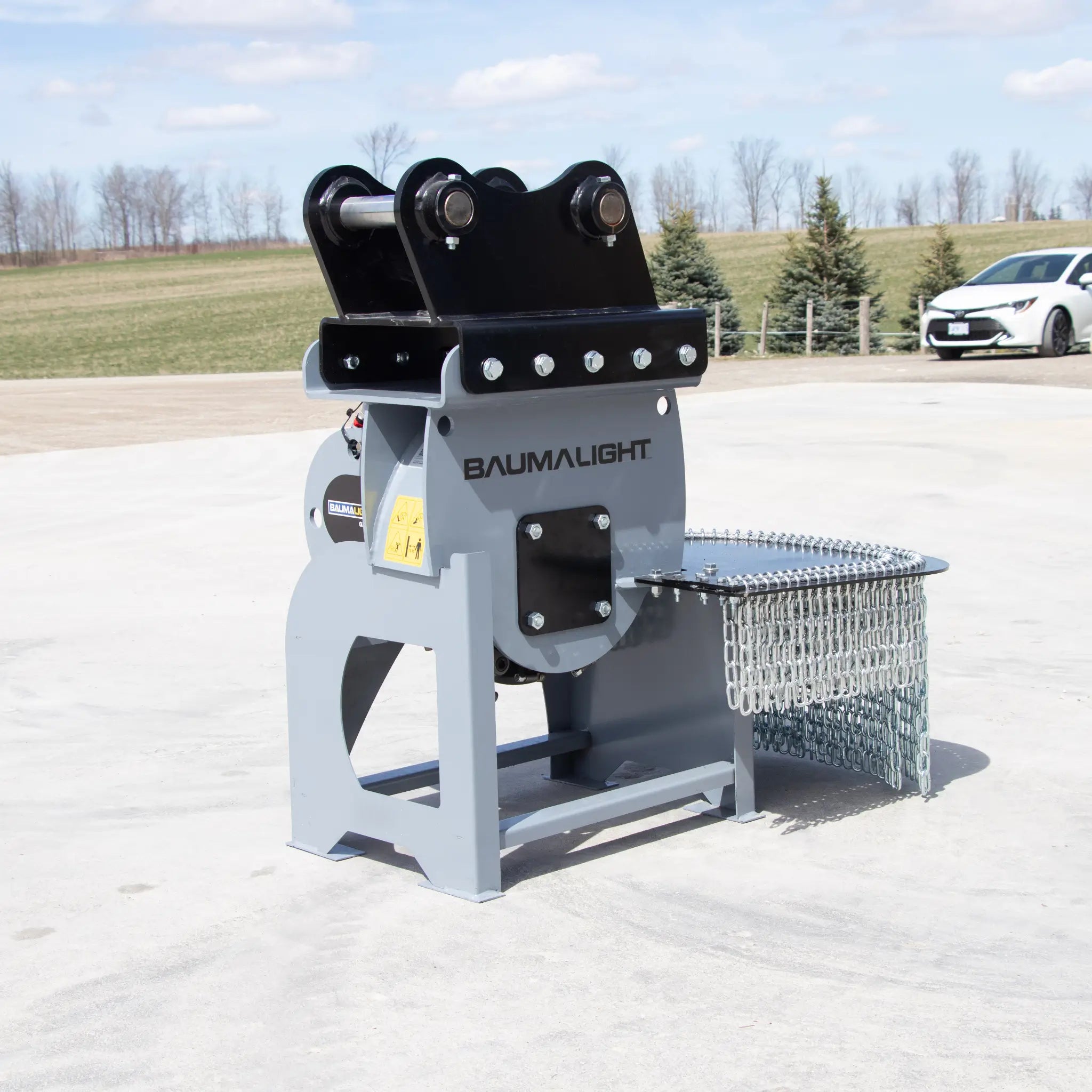

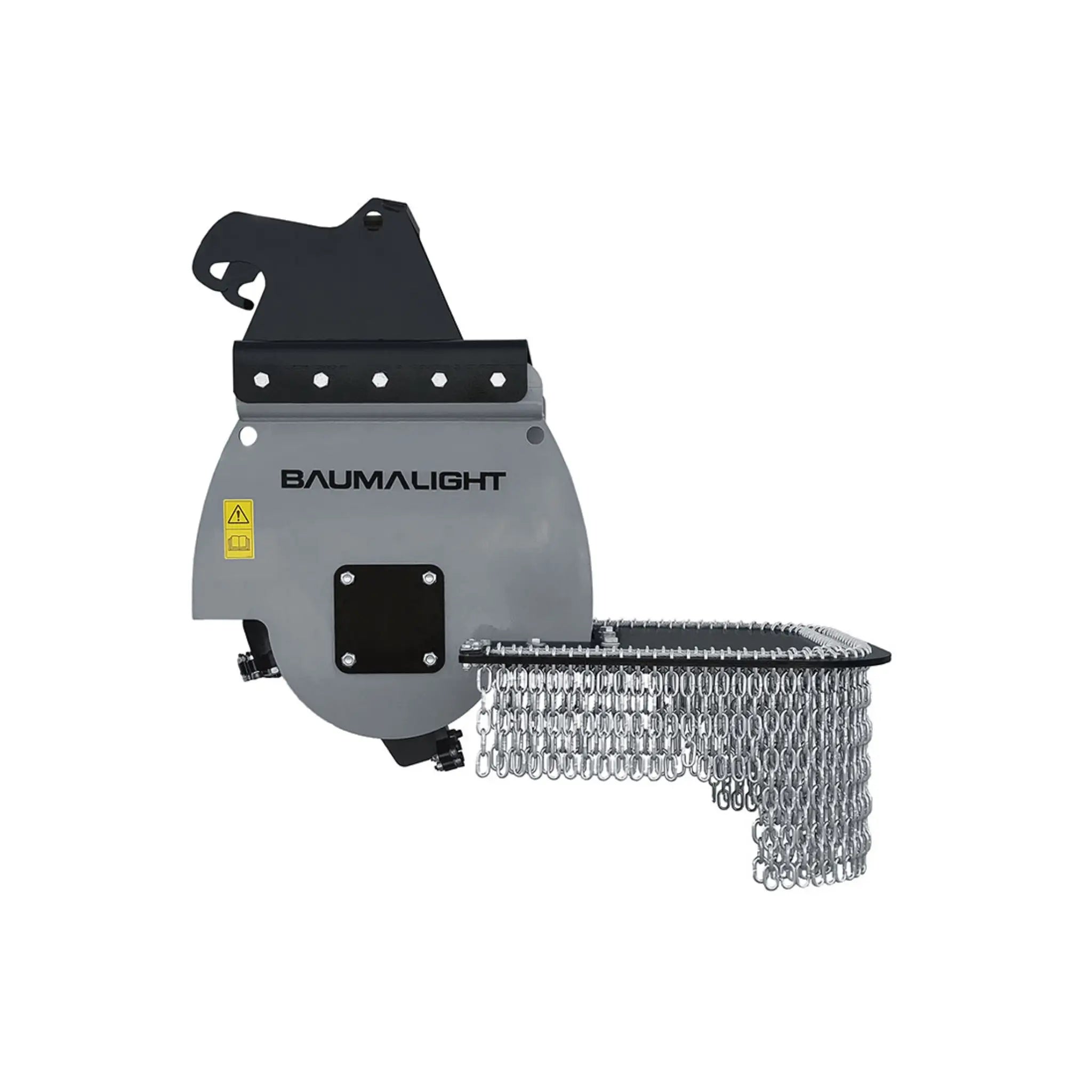

Baumalight GXM550

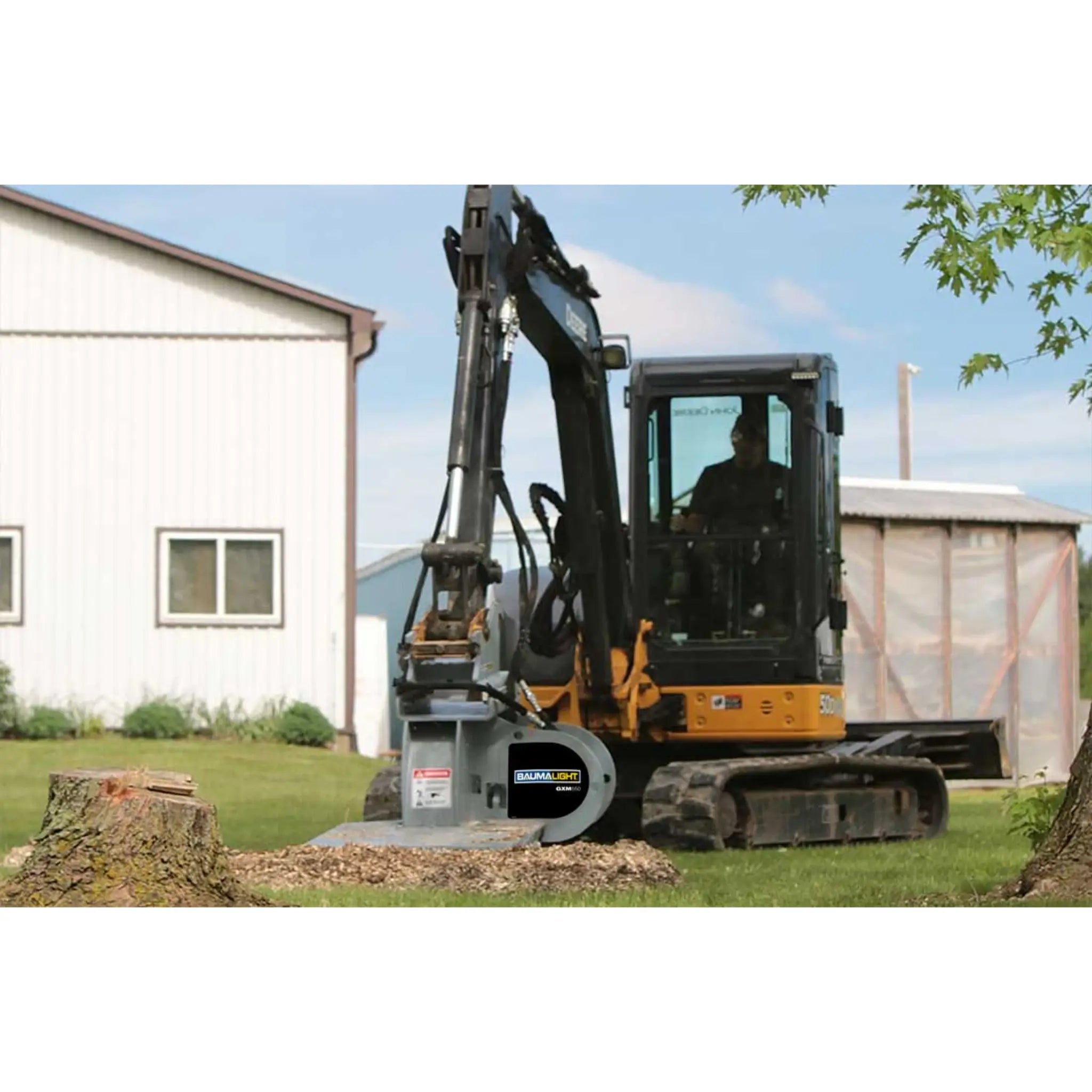

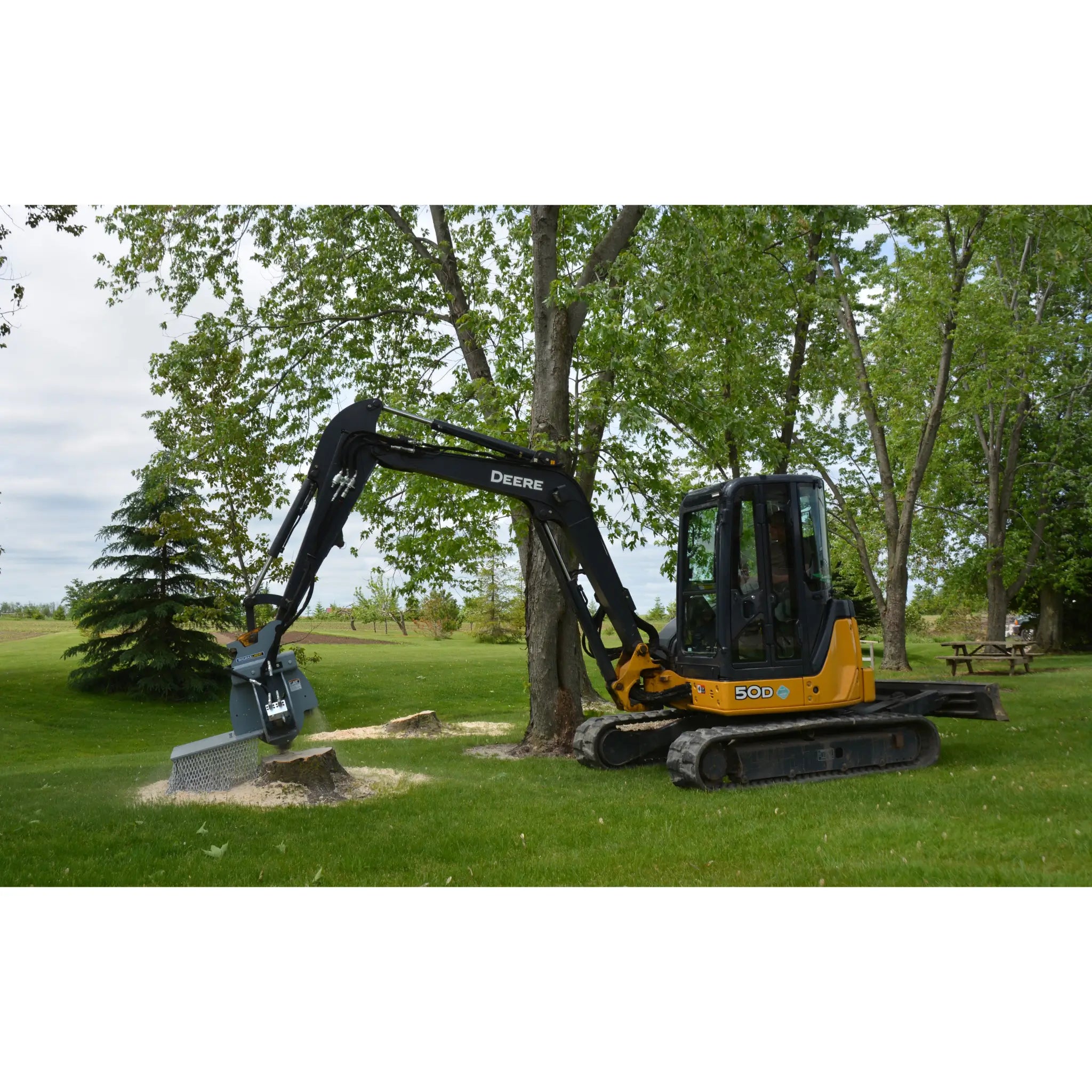

Designed for superior performance, the Baumalight GXM550 stump grinder is tailored for excavators weighing 3.5 to 8 tons and accommodates hydraulic flows between 8 to 40 gallons per minute. Its robust 24" rotor, powered by a high-efficiency bent-axis piston motor, ensures deep and effective stump removal. The durable 1.25" thick steel rotor serves as the foundation for the carbide-tipped cutting system, crucial for maintaining momentum even in the toughest conditions.
Equipped with 12 high-speed, round carbide teeth arranged in trios, the GXM550 allows each tooth to rotate to a fresh edge up to three times, maximizing longevity and efficiency in stump grinding. This unique design not only extends the service life of the teeth but also produces finer mulch, which enhances the smoothness of operation. The bolt-on design of the teeth simplifies replacement, reducing downtime and maintenance costs.
Specifications
| Model No. | S14 | S18 | GXM350 | GXM550 | GXM750 |
|---|---|---|---|---|---|
| Baumalight Connection Code | A04 | A04 | A02 | A02 | A02 |
| Recommended Carrier Size | 1-2 ton | 1.5-4 ton | 1.5-4.5 ton | 3.5-8 ton | 7-18 ton |
| Motor Type | Gerotor | Gerotor | High efficiency bent axis piston | High efficiency bent axis piston | High efficiency bent axis piston |
| Hydraulic GPM | Check Motor Options | Check Motor Options | Check Motor Options | Check Motor Options | Check Motor Options |
| Rotor Size | 18" | 24" | 19" | 24" | 24" |
| Number of Teeth | 12 | 34 | 12 | 12 | 12 |
| Tooth Part number | H3000 | S1000 | H3000 | H3000 | H3000 |
| Tooth Construction | High speed | Planer | High speed | High speed | High speed |
| Cutting Wheel Speed | Depends on GPM | Depends on GPM | Depends on GPM | Depends on GPM | Depends on GPM |
| Cutting Height - Above Ground | No limit | No limit | No limit | No limit | No limit |
| Cutting Depth - Below Ground | 6" | 10" | 16" | 24" | 24" |
| Maximum Cutting Depth - Per Pass | 2" | 5" | 3/4" | 1" | 1" |
| Maximum Horizontal Cut | 12" | 22" | 12" | 22" | 22" |
| Over Torque Protection | Relieve valve | Relieve valve | Relieve valve | Relieve valve | Relieve valve |
| Hitch | 1" pivot pins | 1" pivot pins | Bolt on | Bolt on | Bolt on |
| No. of Remotes Required - Hydraulic | 1 | 1 | 1 | 1 | 1 |
| Requires 12 Volt DC | No | No | No | No | No |
| Unit Weight (Shipping) Lbs. | 394 | 642 | 650 | 822 | 1300 |
Motor options - stump cutting time chart
EXCAVATOR STUMP CUTTING TIMES BASED ON 24" STUMP
| Motor | Case Drain | PSI | 12 GPM | 15 GPM | 20 GPM | 25 GPM | 30 GPM | 35 GPM | 40 GPM | 50 GPM | 60 GPM | CC |
Motor Type |
RPM at MAX GPM |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
X508 Motor Available for : GXM350,GXM550 |
Critical | 3,000 | 25 min | 20 min | -- | -- | -- | -- | -- | -- | -- | 25 | Piston | 2300 |
| 4,000 | 20 min | 15 min | -- | -- | -- | -- | -- | -- | -- | |||||
|
X510 Motor Available for : GXM350,GXM550 |
Critical | 3,000 | 25 min | 15 min | 8 min | 7 min | -- | -- | -- | -- | -- | 34 | Piston | 4290 |
| 4,000 | 20 min | 10 min | 7 min | 5 min | -- | -- | -- | -- | -- | |||||
|
X530 Motor Available for : GXM350,GXM550 |
Critical | 3,000 | -- | 16 min | 8 min | 7 min | 7 min | -- | -- | -- | -- | 47 | Piston | 2100 |
| 4,000 | -- | 11 min | 7 min | 5 min | 5 min | -- | -- | -- | -- | |||||
|
X540 Motor Available for : GXM550,GXM750 |
Critical | 3,000 | -- | -- | 8 min | 7 min | 6 min | 5 min | -- | -- | -- | 65 | Piston | 2100 |
| 4,000 | -- | -- | 7 min | 5 min | 5 min | 4 min | -- | -- | -- | |||||
|
X550 Motor Available for : GXM550,GXM750 |
Critical | 3,000 | -- | -- | -- | 7 min | 6 min | 5 min | 4 min | -- | -- | 64 | Piston | 2140 |
| 4,000 | -- | -- | -- | 5 min | 5 min | 4 min | 3 min | -- | -- | |||||
|
X570 Motor Available for : GXM750 |
Critical | 3,000 | -- | -- | -- | -- | 7 min | 6 min | 4 min | 3 min | -- | 84 | Piston | 2000 |
| 4,000 | -- | -- | -- | -- | 6 min | 4 min | 3 min | 3 min | -- | |||||
|
X590 Motor Available for : GXM750 |
Critical | 3,000 | -- | -- | -- | -- | -- | -- | 5 min | 3 min | 3 min | 108 | Piston | 1900 |
| 4,000 | -- | -- | -- | -- | -- | -- | 3 min | 3 min | 2 min |
