Baumalight GXM750 Stump Grinder for 7-18 Ton Excavators - BML-GXM750-X540-EWC7-9-B
Regular price
$9,595.99
$8,828.99
Sale
Baumalight GXM750 Stump Grinder For 7 - 18 Ton Excavators - BML-GXM750-X540-EWC7-9-B

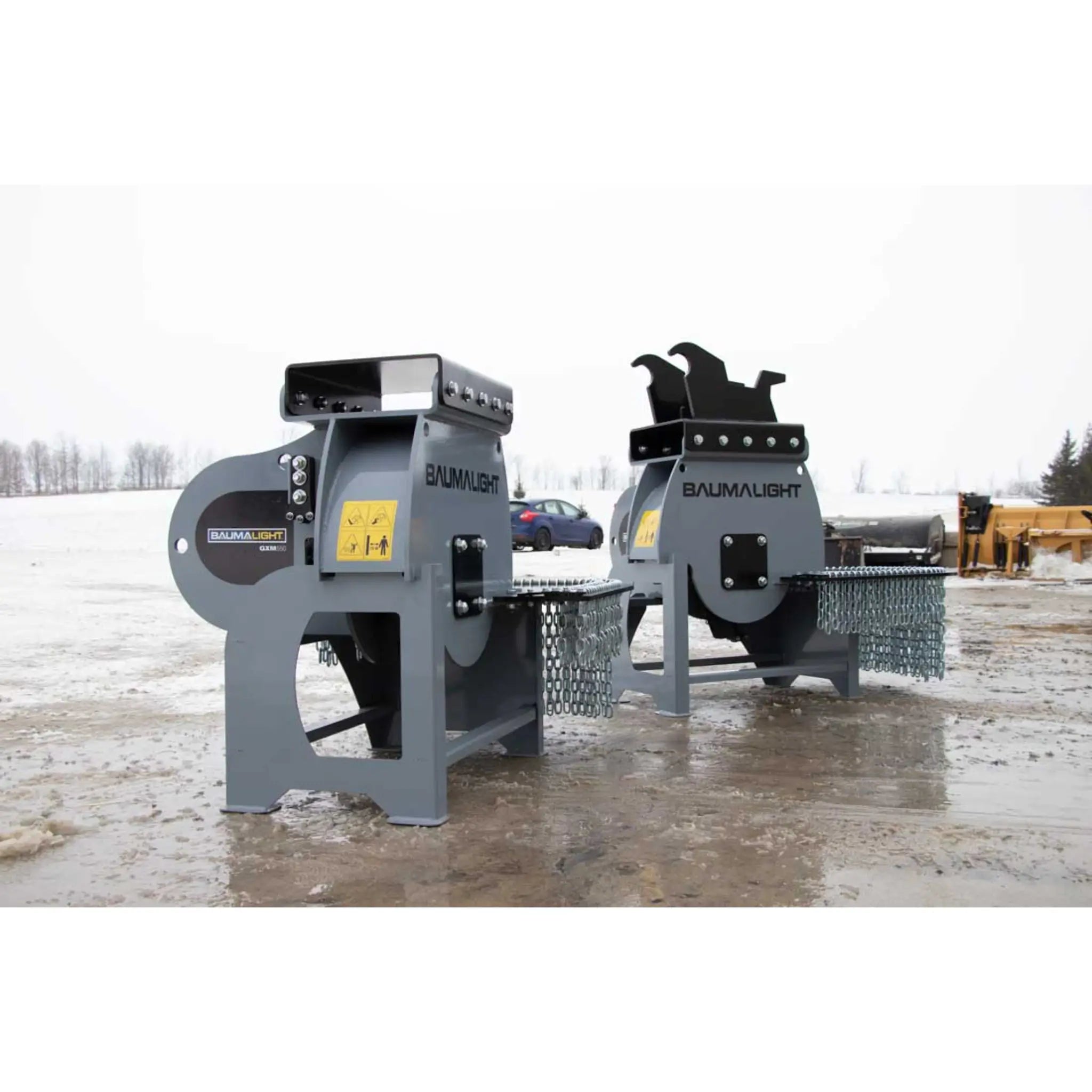

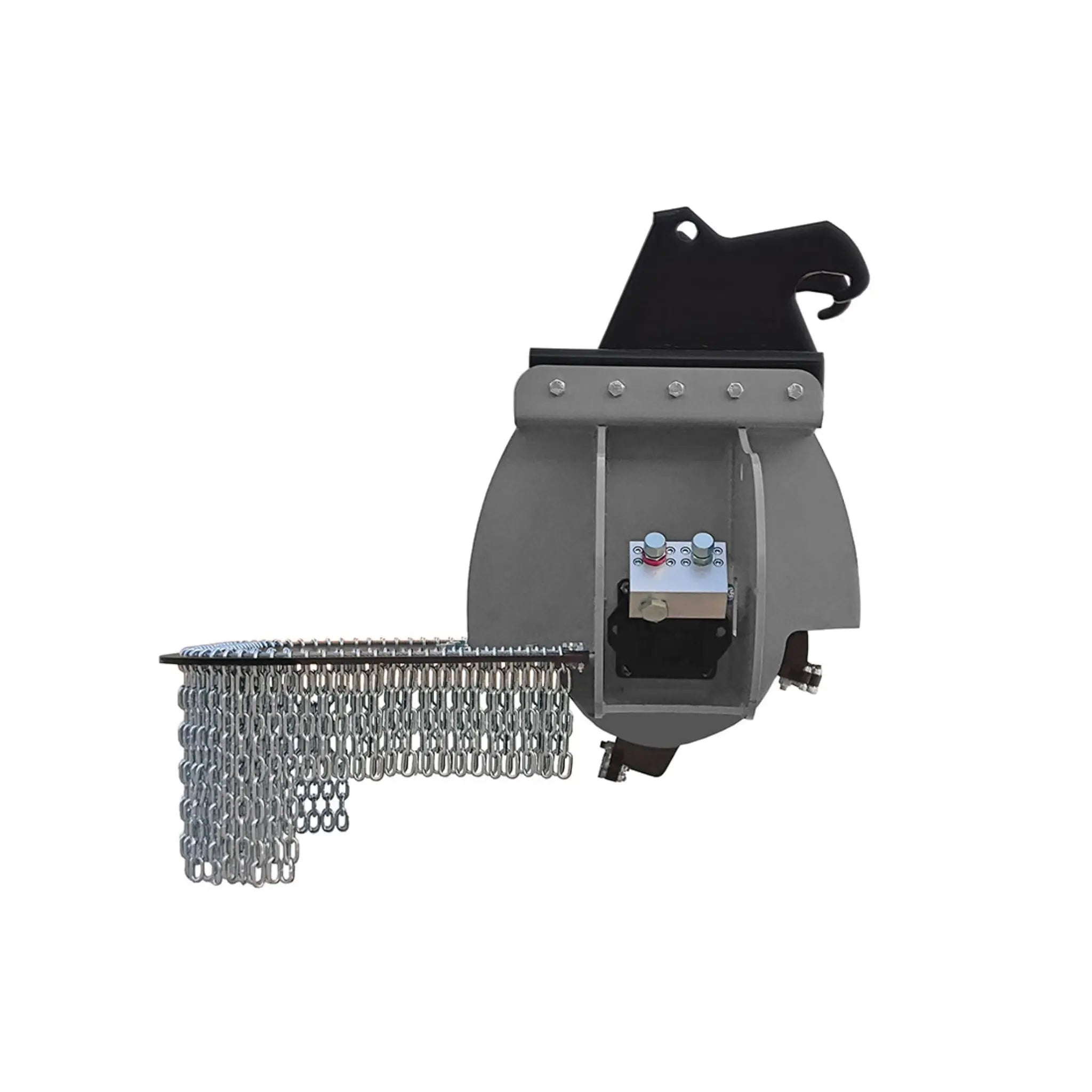

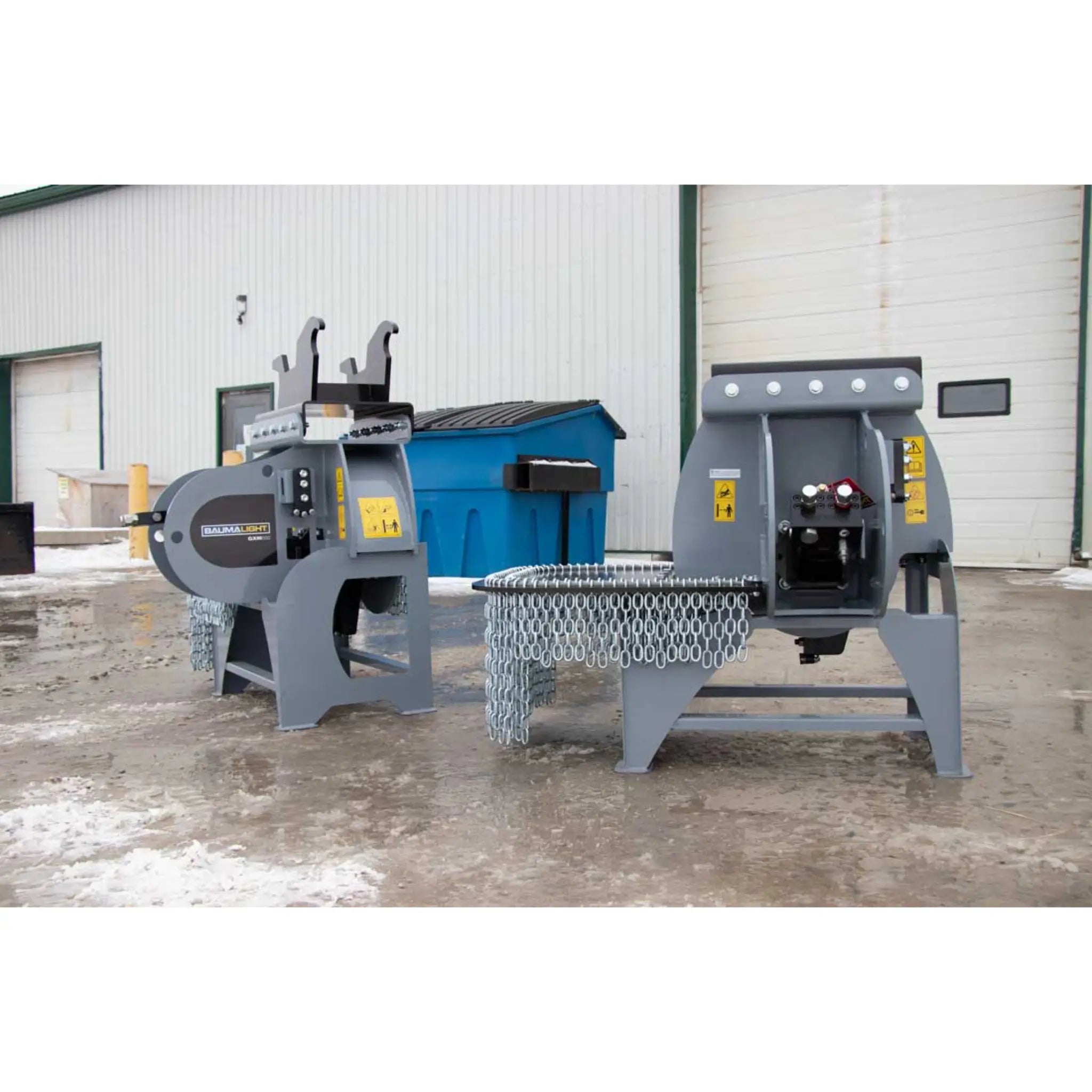

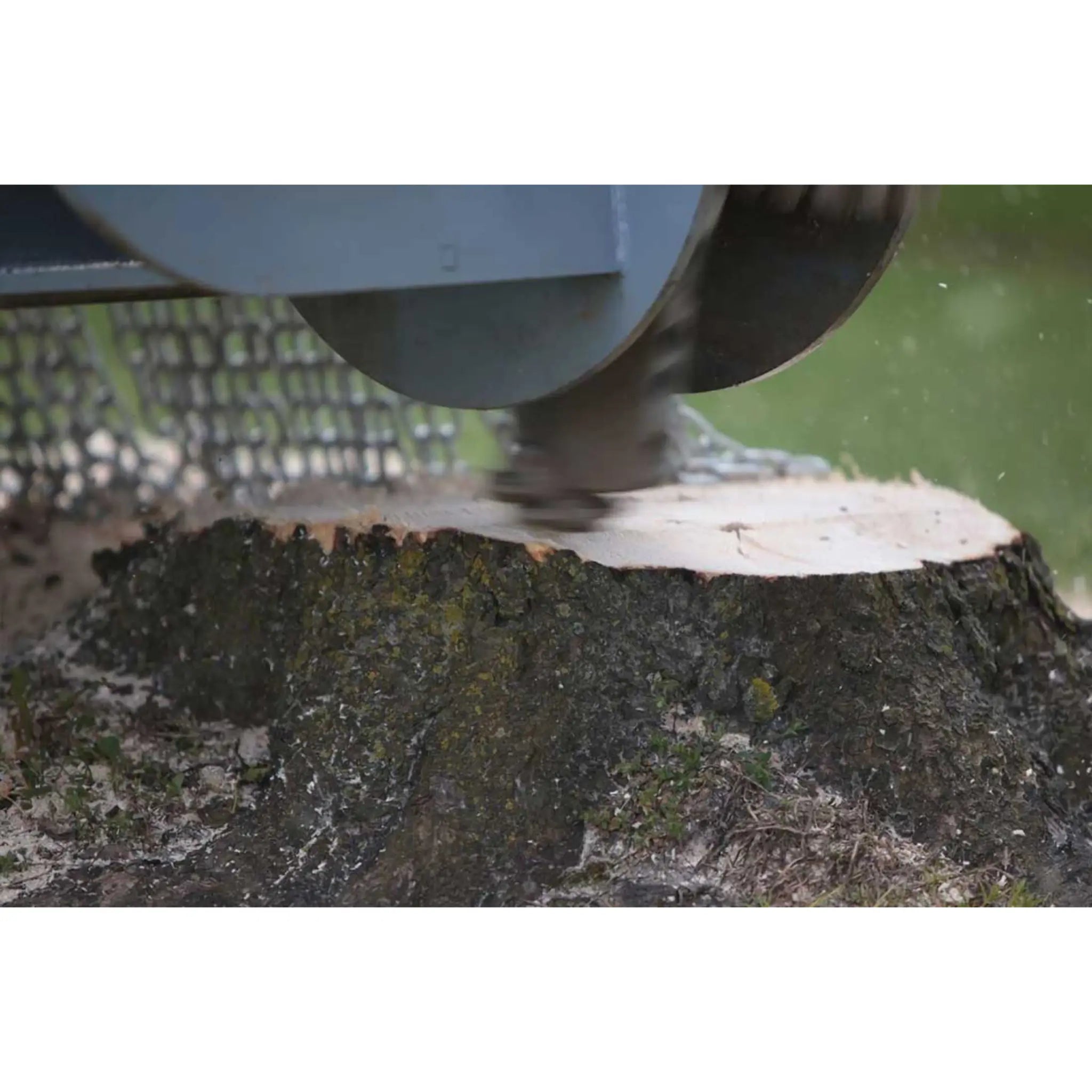

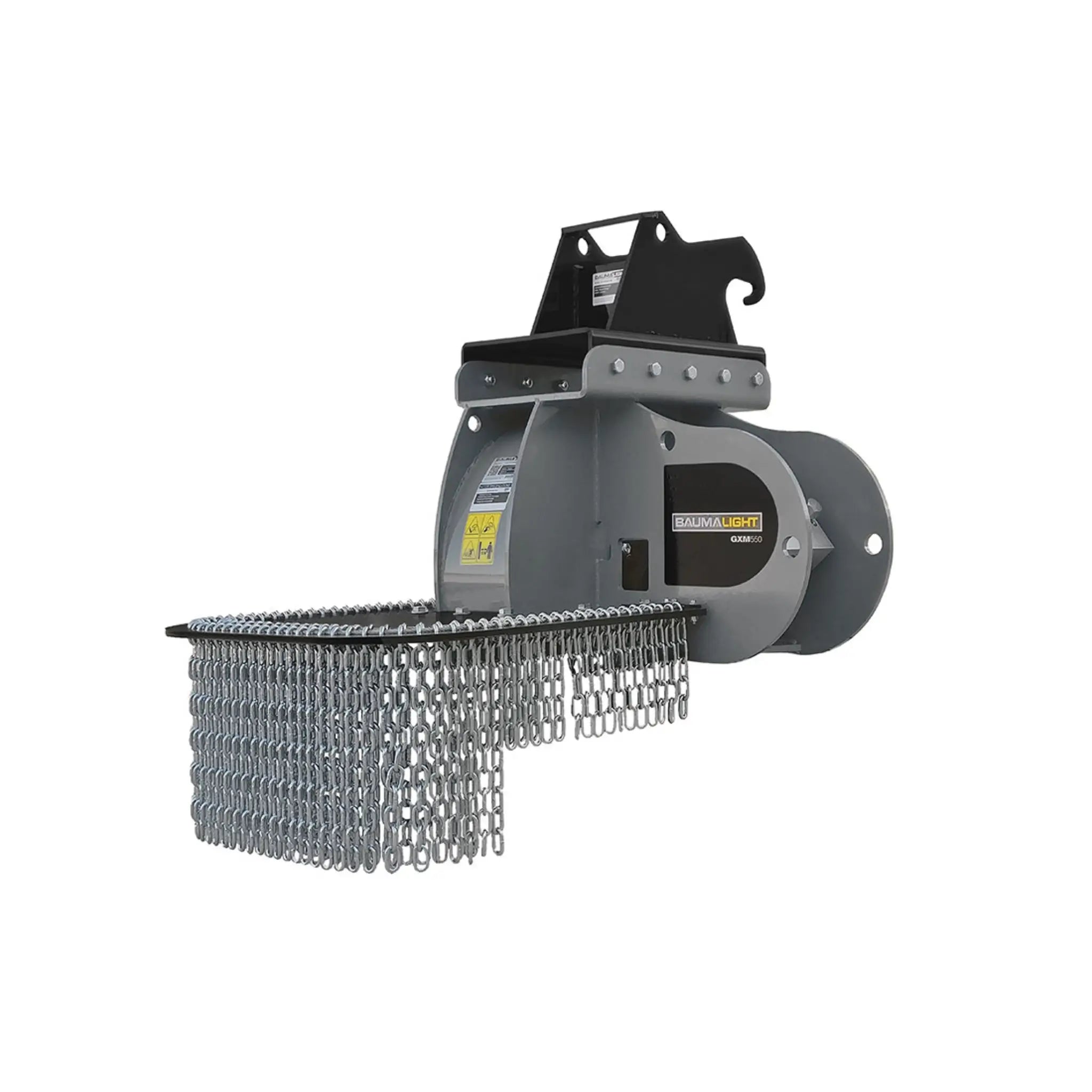

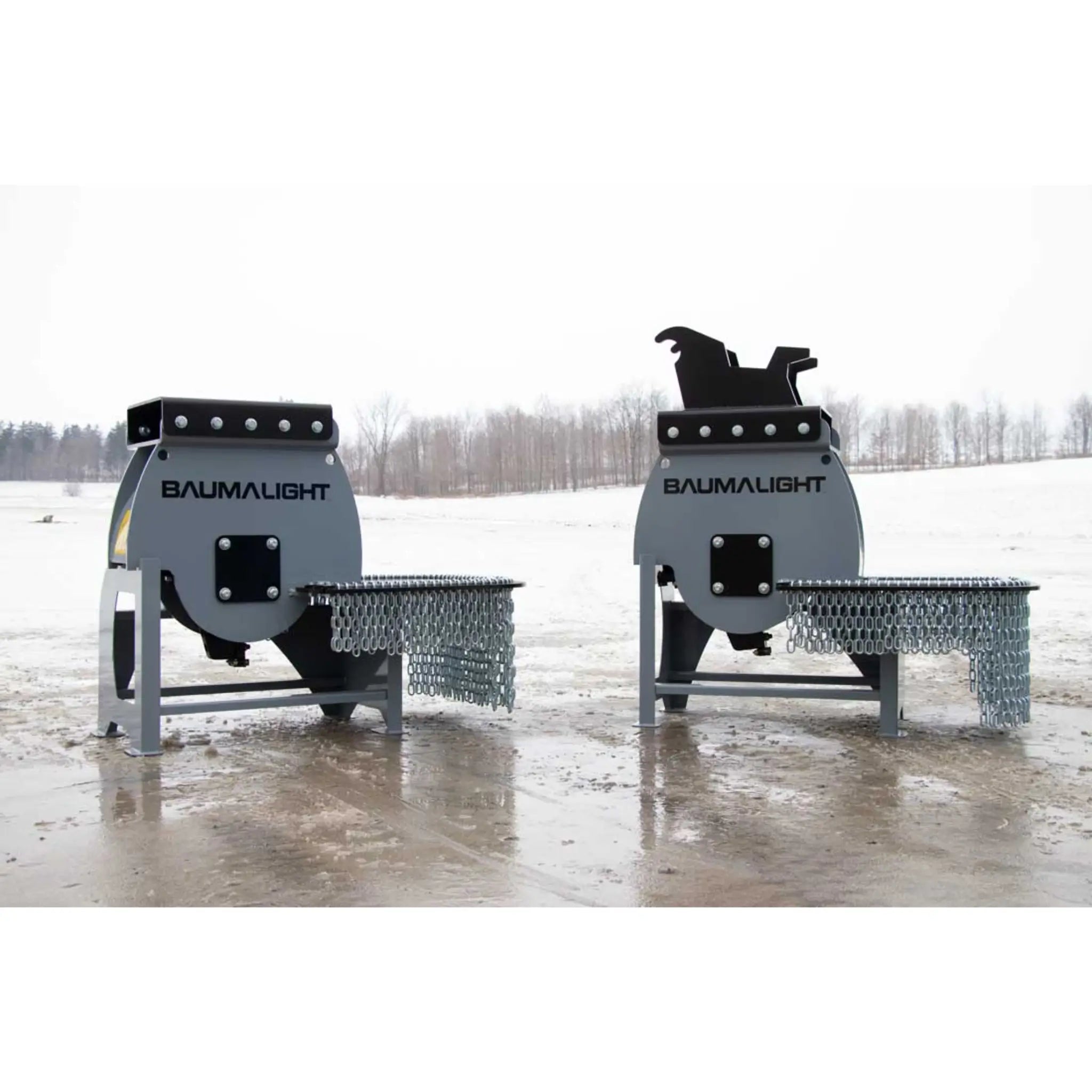

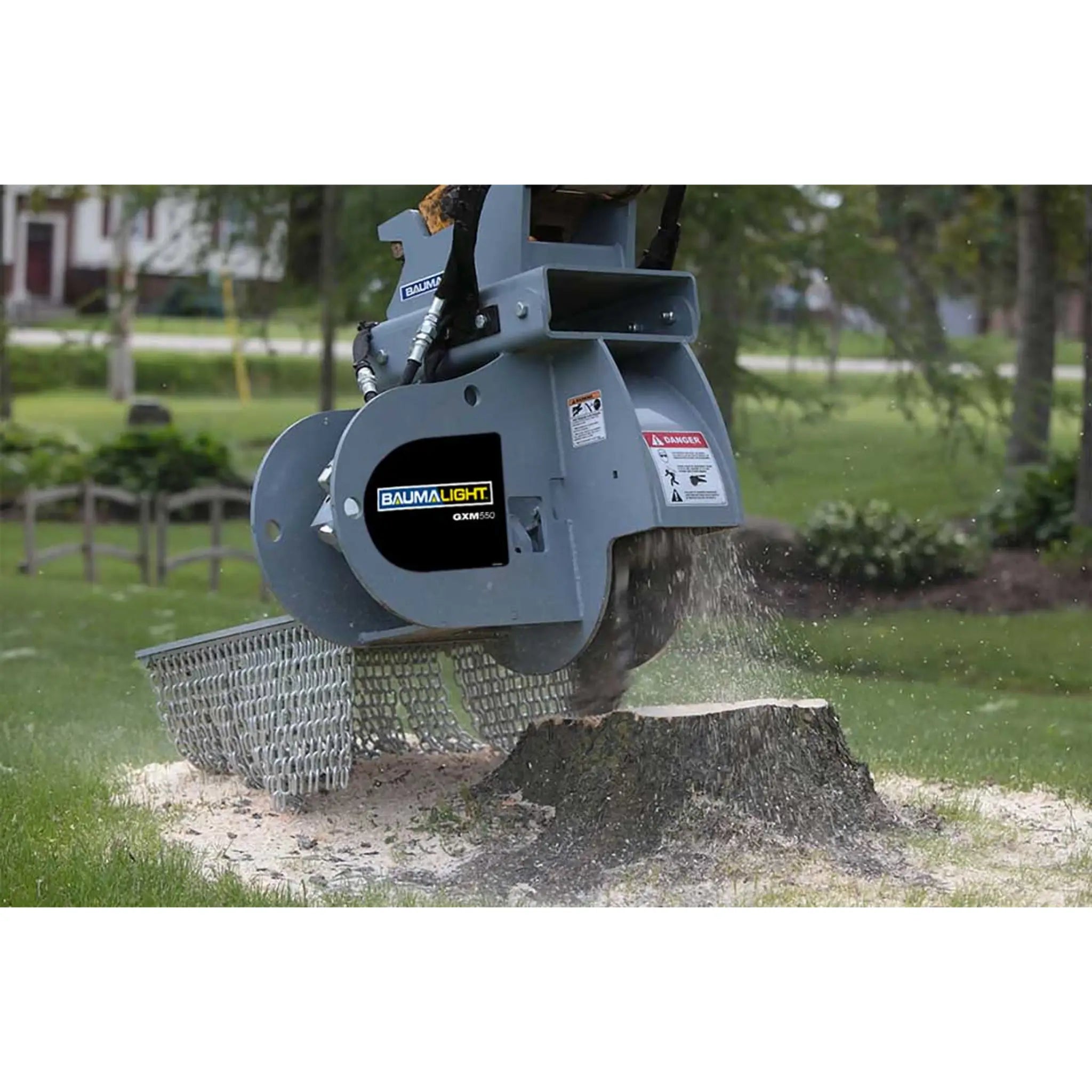

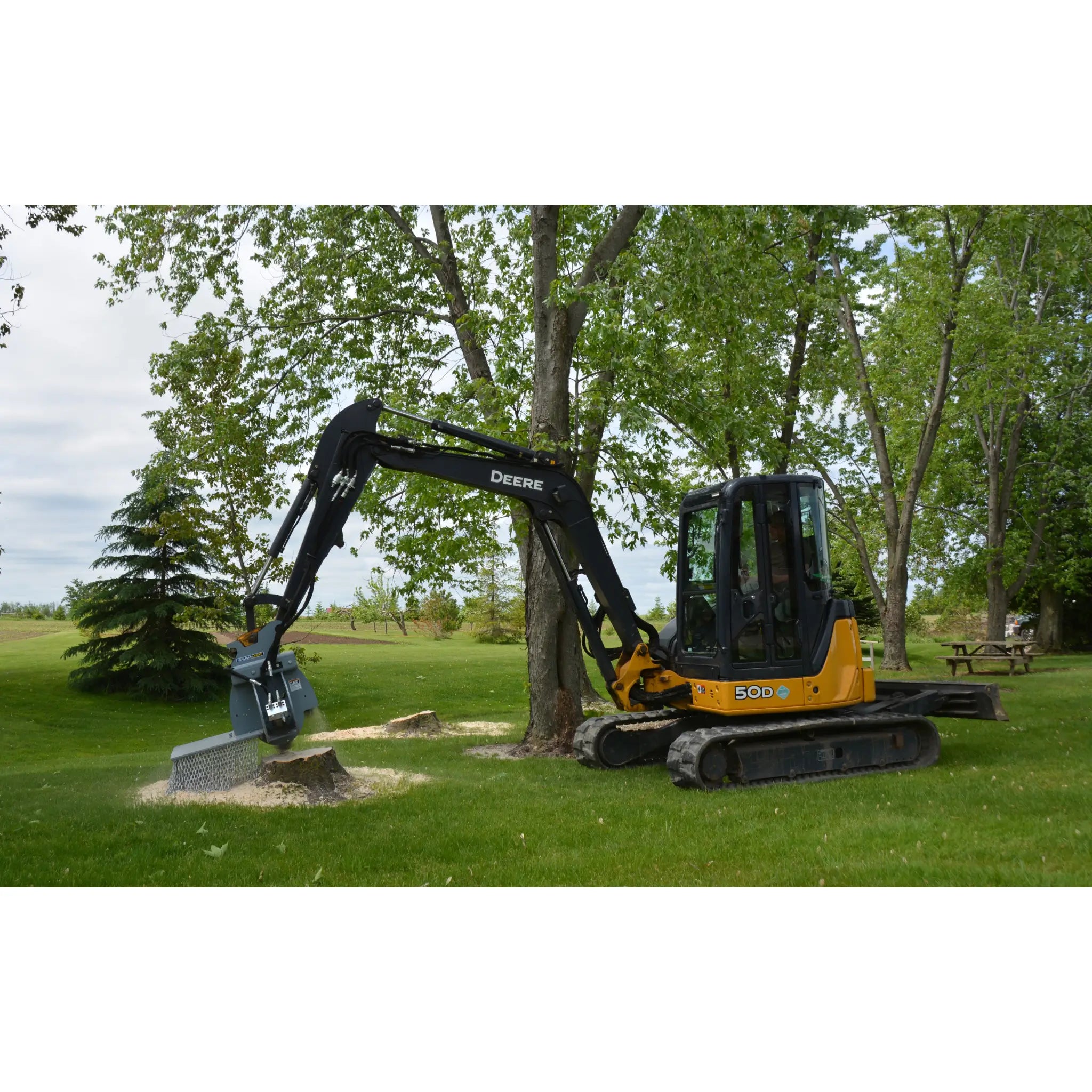

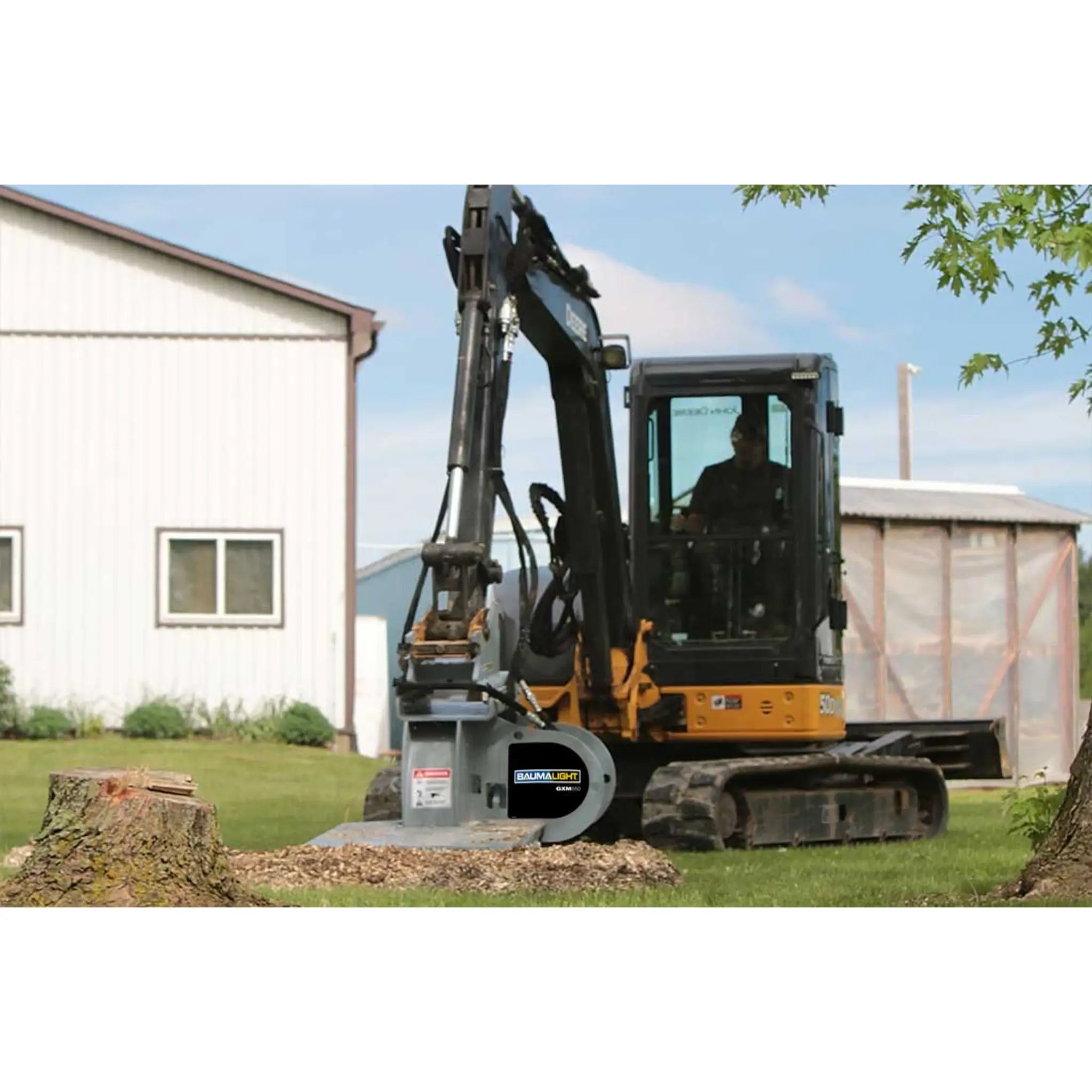

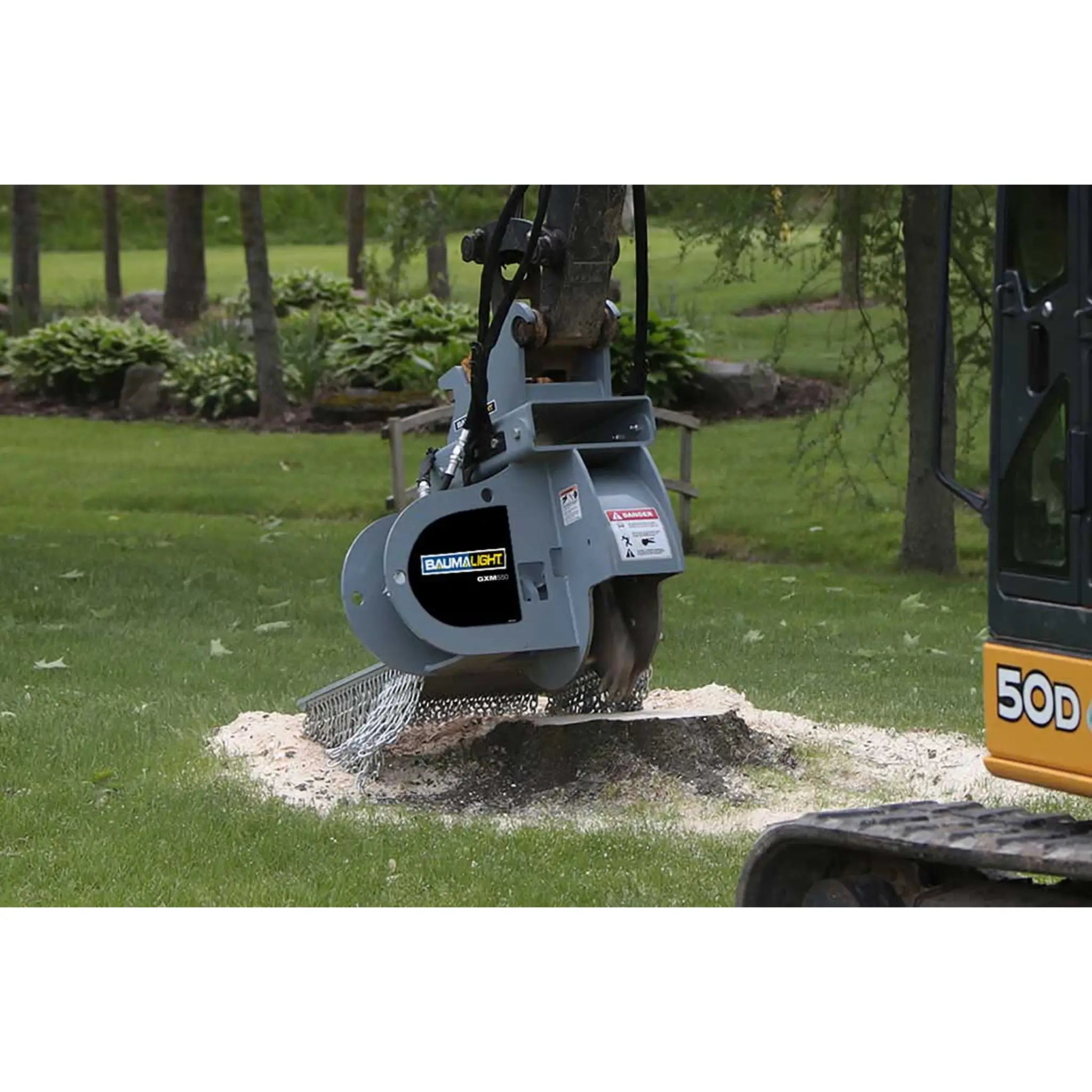

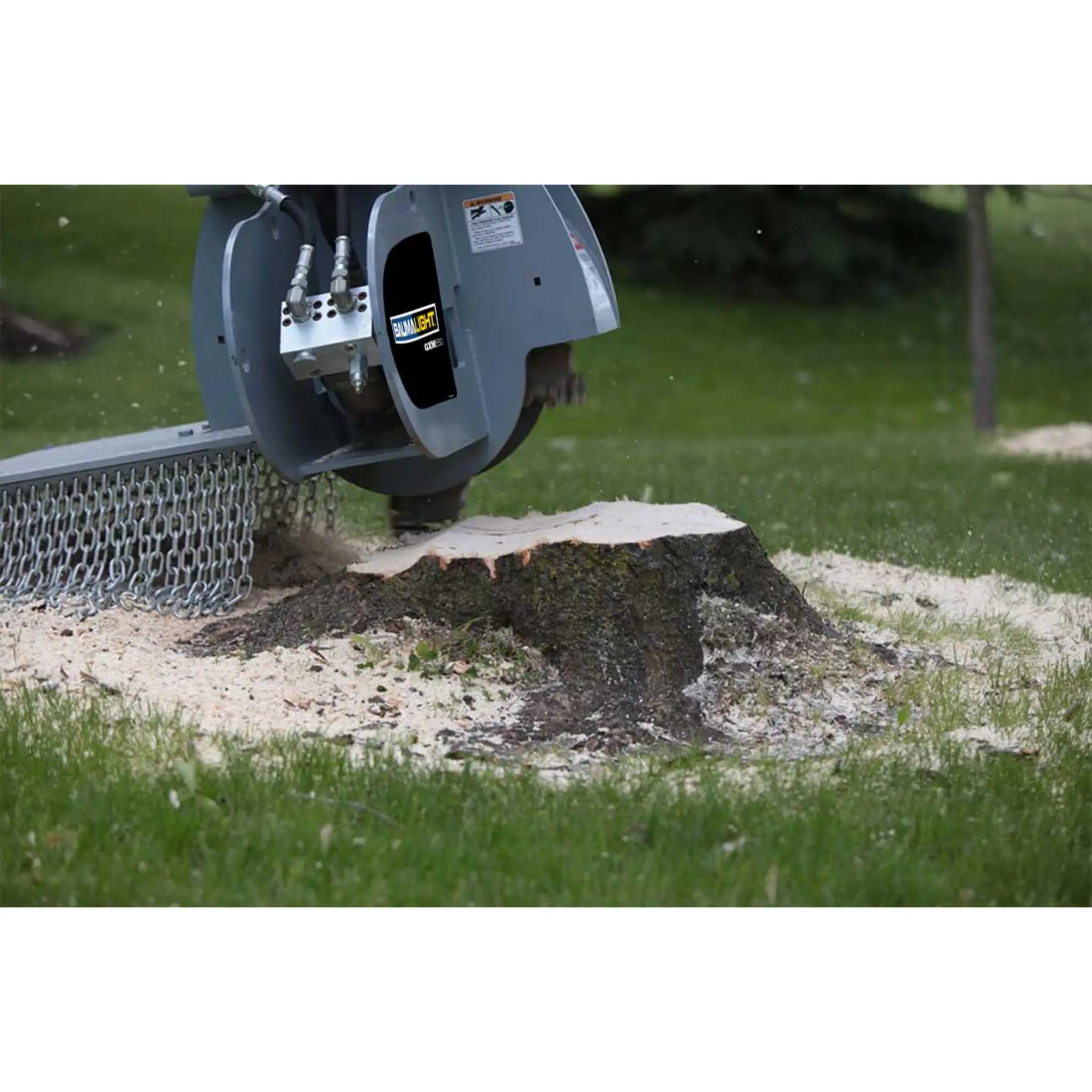

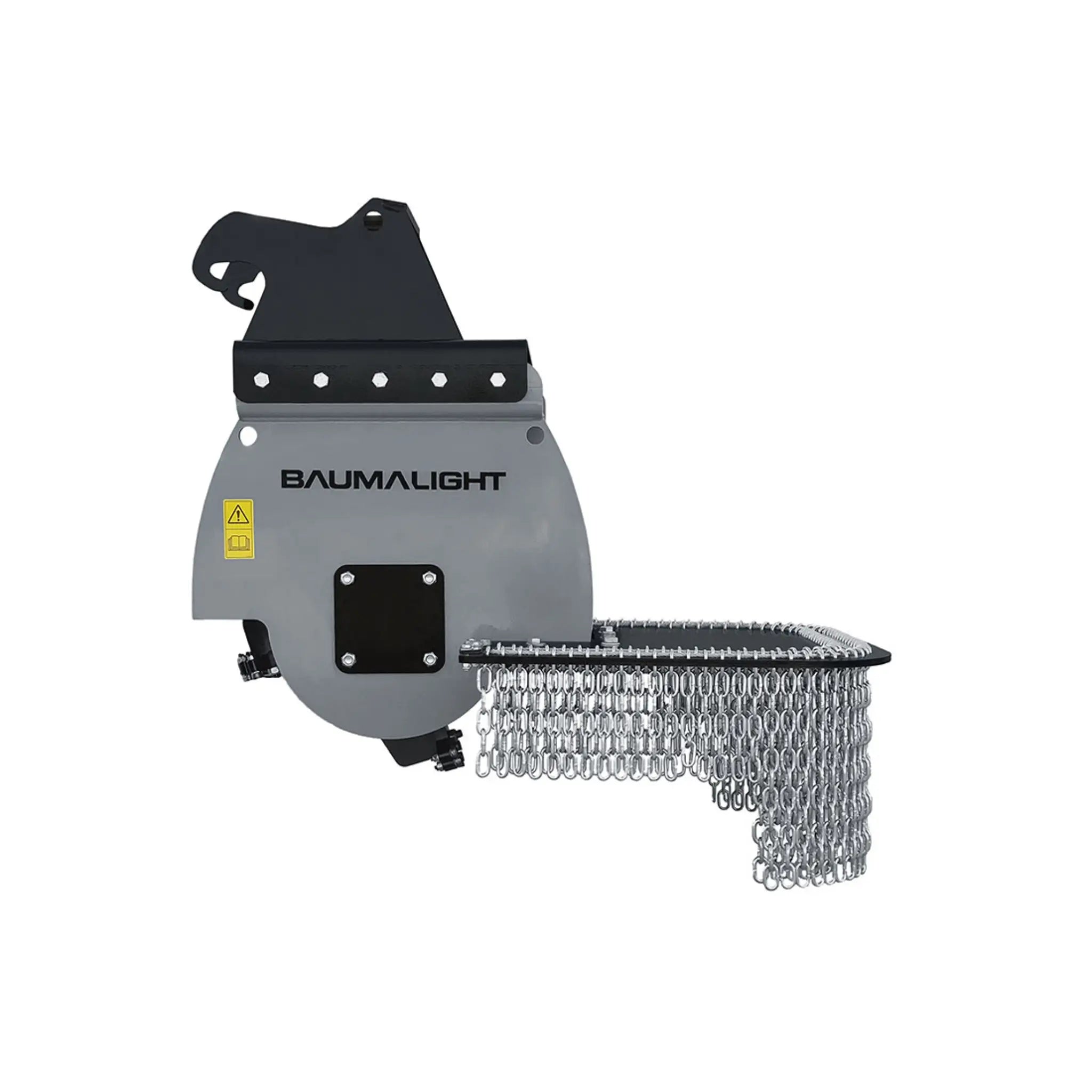

The GXM750 is your ultimate partner for stump removal on 7 to 18 ton excavators. Equipped with a 24" thick steel rotor, high-speed carbide teeth that rotate to maintain sharpness, and a powerful bent-axis piston motor, this grinder tackles the toughest stumps effortlessly. Enhanced safety features include a large blast shield and dual chain curtains to keep debris contained.
Specifications
| Model No. | S14 | S18 | GXM350 | GXM550 | GXM750 |
|---|---|---|---|---|---|
| Baumalight Connection Code | A04 | A04 | A02 | A02 | A02 |
| Recommended Carrier Size | 1-2 ton | 1.5-4 ton | 1.5-4.5 ton | 3.5-8 ton | 7-18 ton |
| Motor Type | Gerotor | Gerotor | High efficiency bent axis piston | High efficiency bent axis piston | High efficiency bent axis piston |
| Hydraulic GPM | Check Motor Options | Check Motor Options | Check Motor Options | Check Motor Options | Check Motor Options |
| Rotor Size | 18" | 24" | 19" | 24" | 24" |
| Number of Teeth | 12 | 34 | 12 | 12 | 12 |
| Tooth Part number | H3000 | S1000 | H3000 | H3000 | H3000 |
| Tooth Construction | High speed | Planer | High speed | High speed | High speed |
| Cutting Wheel Speed | Depends on GPM | Depends on GPM | Depends on GPM | Depends on GPM | Depends on GPM |
| Cutting Height - Above Ground | No limit | No limit | No limit | No limit | No limit |
| Cutting Depth - Below Ground | 6" | 10" | 16" | 24" | 24" |
| Maximum Cutting Depth - Per Pass | 2" | 5" | 3/4" | 1" | 1" |
| Maximum Horizontal Cut | 12" | 22" | 12" | 22" | 22" |
| Over Torque Protection | Relieve valve | Relieve valve | Relieve valve | Relieve valve | Relieve valve |
| Hitch | 1" pivot pins | 1" pivot pins | Bolt on | Bolt on | Bolt on |
| No. of Remotes Required - Hydraulic | 1 | 1 | 1 | 1 | 1 |
| Requires 12 Volt DC | No | No | No | No | No |
| Unit Weight (Shipping) Lbs. | 394 | 642 | 650 | 822 | 1300 |
Motor options - stump cutting time chart
EXCAVATOR STUMP CUTTING TIMES BASED ON 24" STUMP
| Motor | Case Drain | PSI | 12 GPM | 15 GPM | 20 GPM | 25 GPM | 30 GPM | 35 GPM | 40 GPM | 50 GPM | 60 GPM | CC |
Motor Type |
RPM at MAX GPM |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
X508 Motor Available for : GXM350,GXM550 |
Critical | 3,000 | 25 min | 20 min | -- | -- | -- | -- | -- | -- | -- | 25 | Piston | 2300 |
| 4,000 | 20 min | 15 min | -- | -- | -- | -- | -- | -- | -- | |||||
|
X510 Motor Available for : GXM350,GXM550 |
Critical | 3,000 | 25 min | 15 min | 8 min | 7 min | -- | -- | -- | -- | -- | 34 | Piston | 4290 |
| 4,000 | 20 min | 10 min | 7 min | 5 min | -- | -- | -- | -- | -- | |||||
|
X530 Motor Available for : GXM350,GXM550 |
Critical | 3,000 | -- | 16 min | 8 min | 7 min | 7 min | -- | -- | -- | -- | 47 | Piston | 2100 |
| 4,000 | -- | 11 min | 7 min | 5 min | 5 min | -- | -- | -- | -- | |||||
|
X540 Motor Available for : GXM550,GXM750 |
Critical | 3,000 | -- | -- | 8 min | 7 min | 6 min | 5 min | -- | -- | -- | 65 | Piston | 2100 |
| 4,000 | -- | -- | 7 min | 5 min | 5 min | 4 min | -- | -- | -- | |||||
|
X550 Motor Available for : GXM550,GXM750 |
Critical | 3,000 | -- | -- | -- | 7 min | 6 min | 5 min | 4 min | -- | -- | 64 | Piston | 2140 |
| 4,000 | -- | -- | -- | 5 min | 5 min | 4 min | 3 min | -- | -- | |||||
|
X570 Motor Available for : GXM750 |
Critical | 3,000 | -- | -- | -- | -- | 7 min | 6 min | 4 min | 3 min | -- | 84 | Piston | 2000 |
| 4,000 | -- | -- | -- | -- | 6 min | 4 min | 3 min | 3 min | -- | |||||
|
X590 Motor Available for : GXM750 |
Critical | 3,000 | -- | -- | -- | -- | -- | -- | 5 min | 3 min | 3 min | 108 | Piston | 1900 |
| 4,000 | -- | -- |
