Baumalight S24 Stump Grinder With Swing Cylinder For Skid Steers - BML-S24-S445-AUX

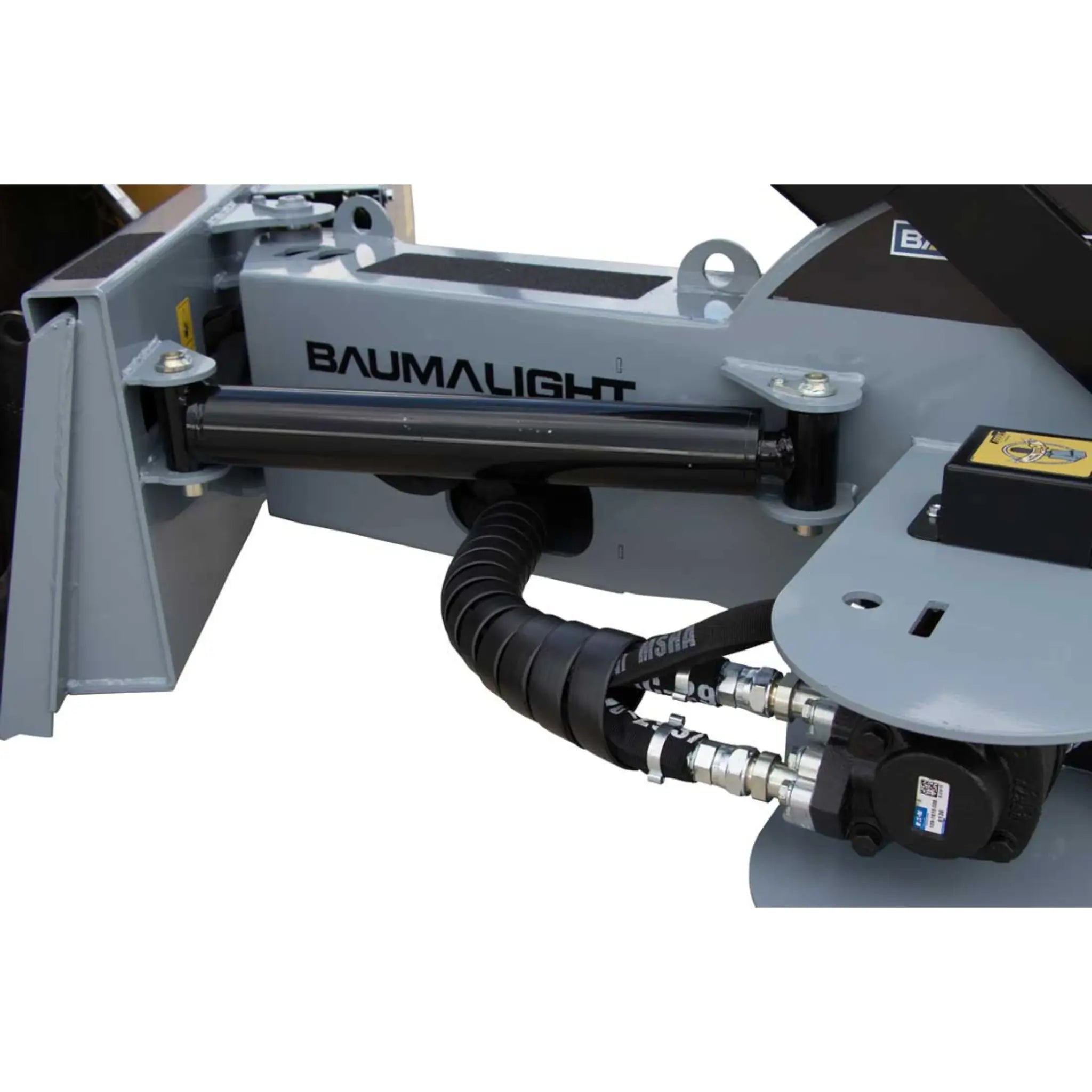

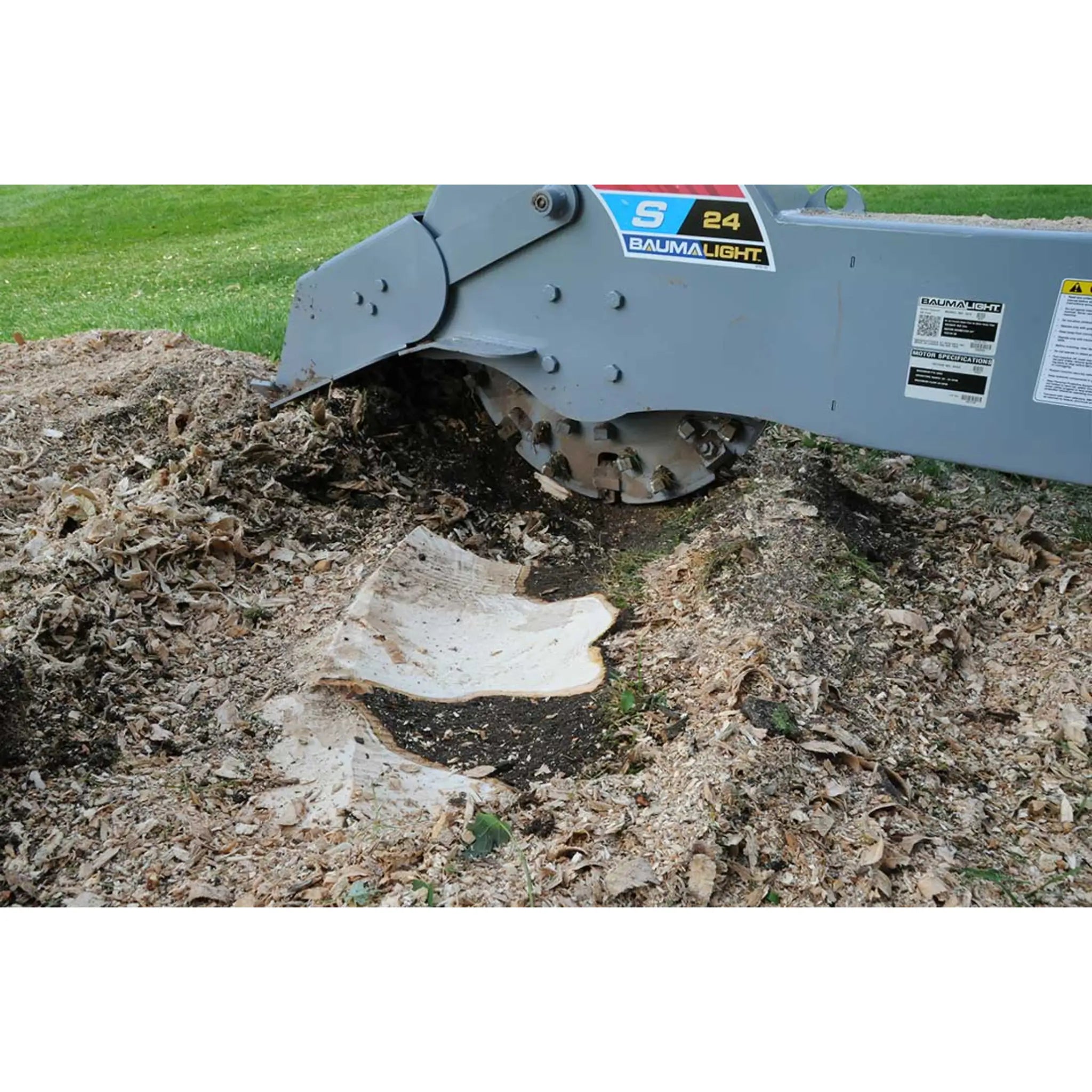

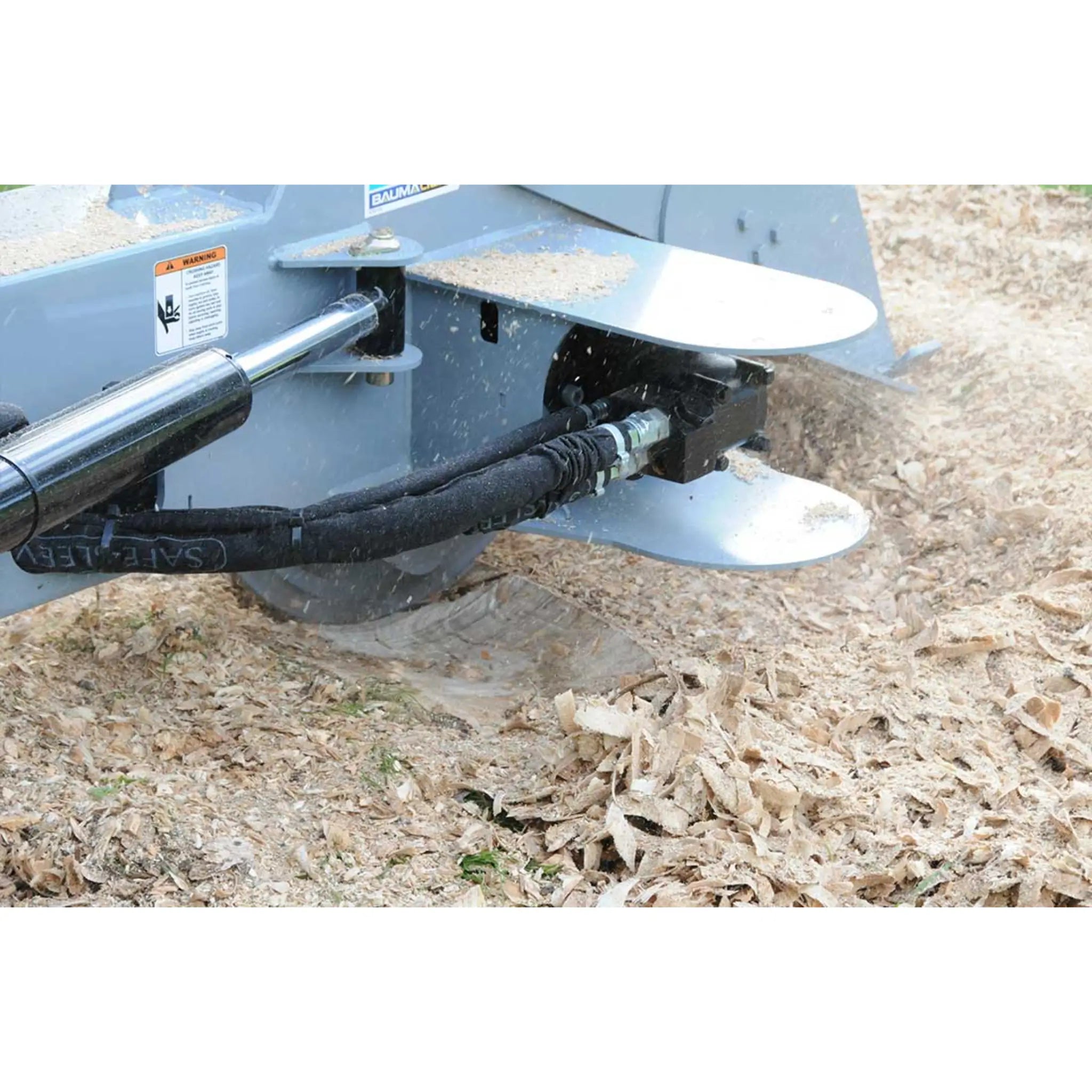

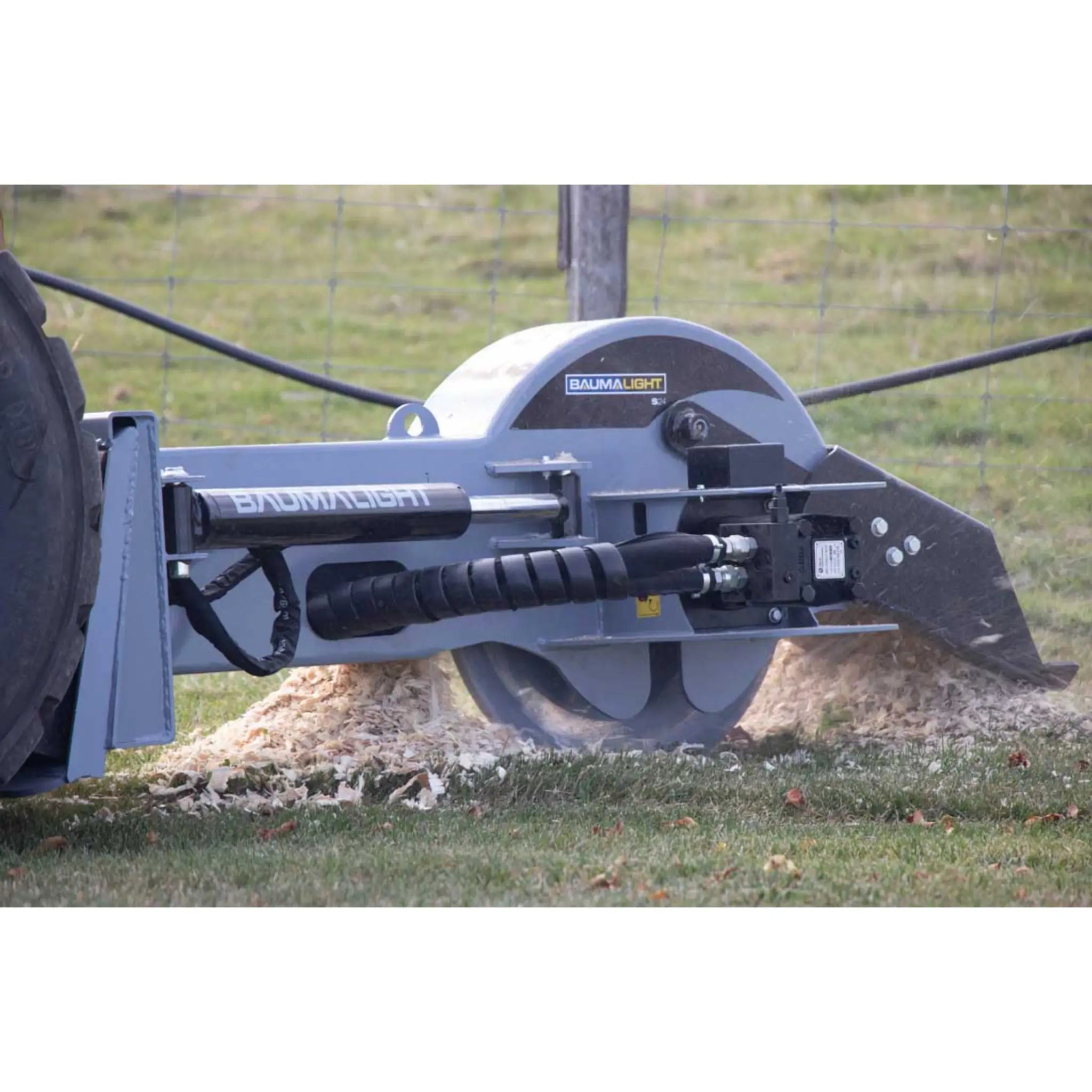

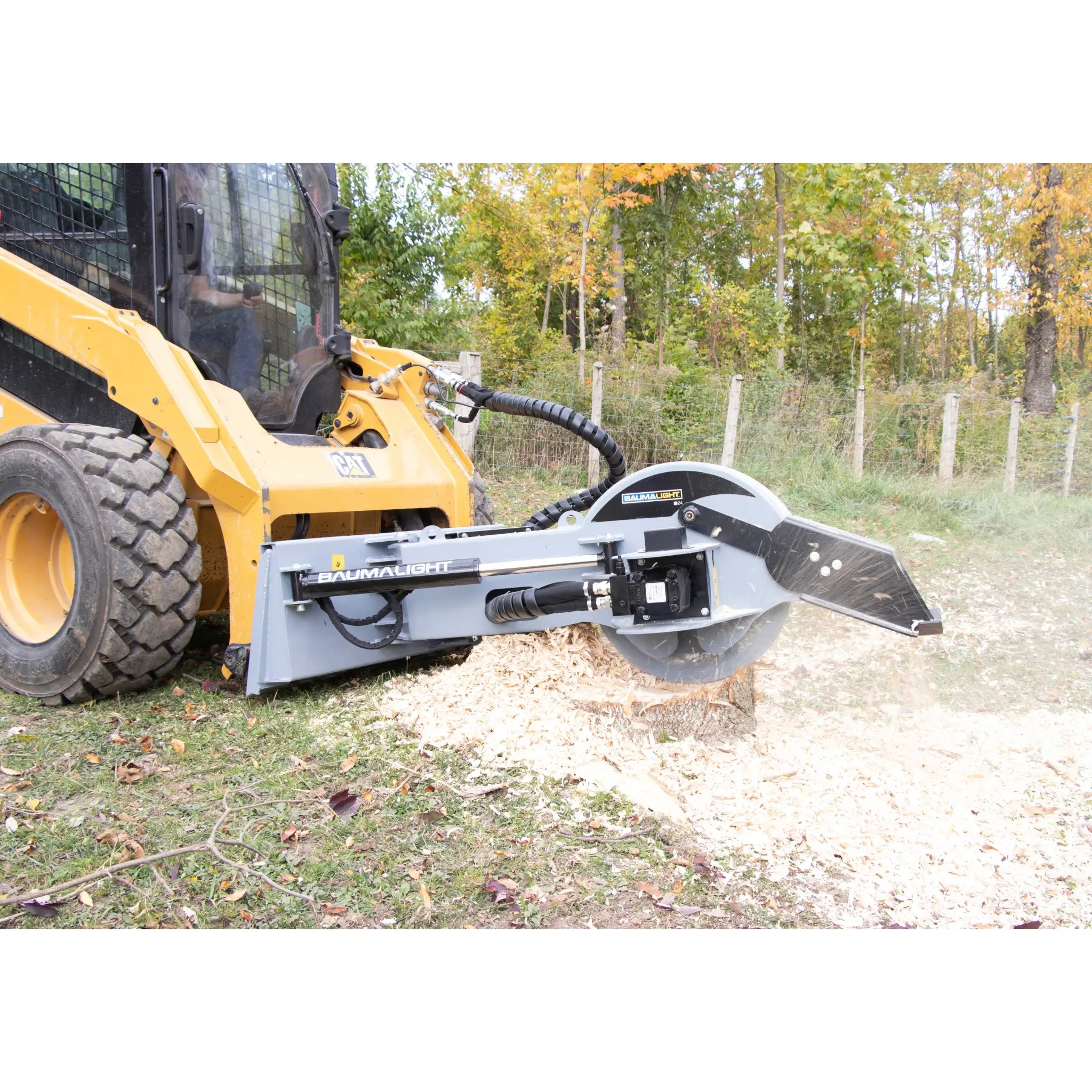

This model features a 12V diverter valve to enhance the control of its hydraulic swing cylinder, allowing precisely-controlled cutting movements. The S24 allows grinding up to 15" below ground without repositioning and boasts a broad 60-degree swing radius.
Baumalight S24 Stump Grinder

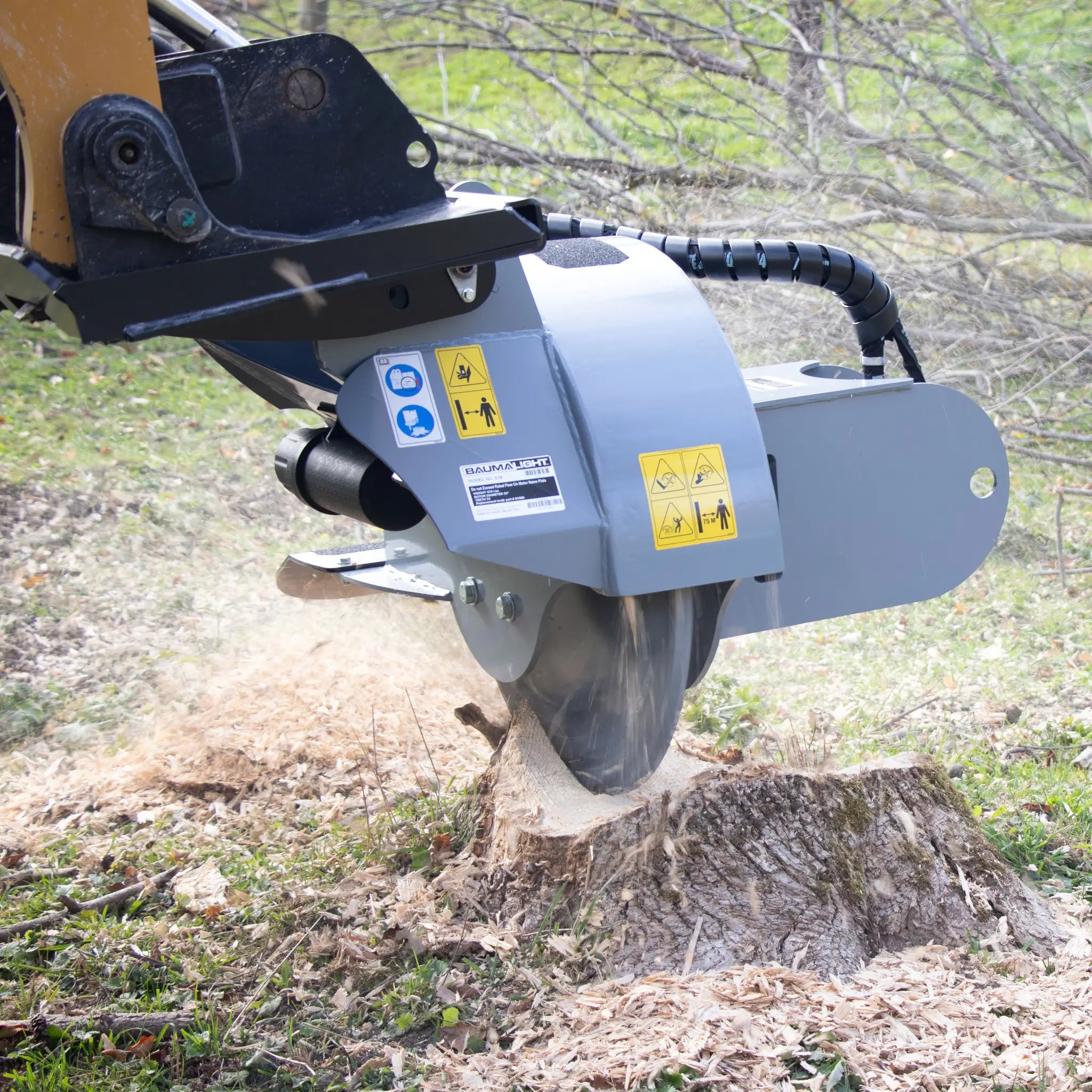

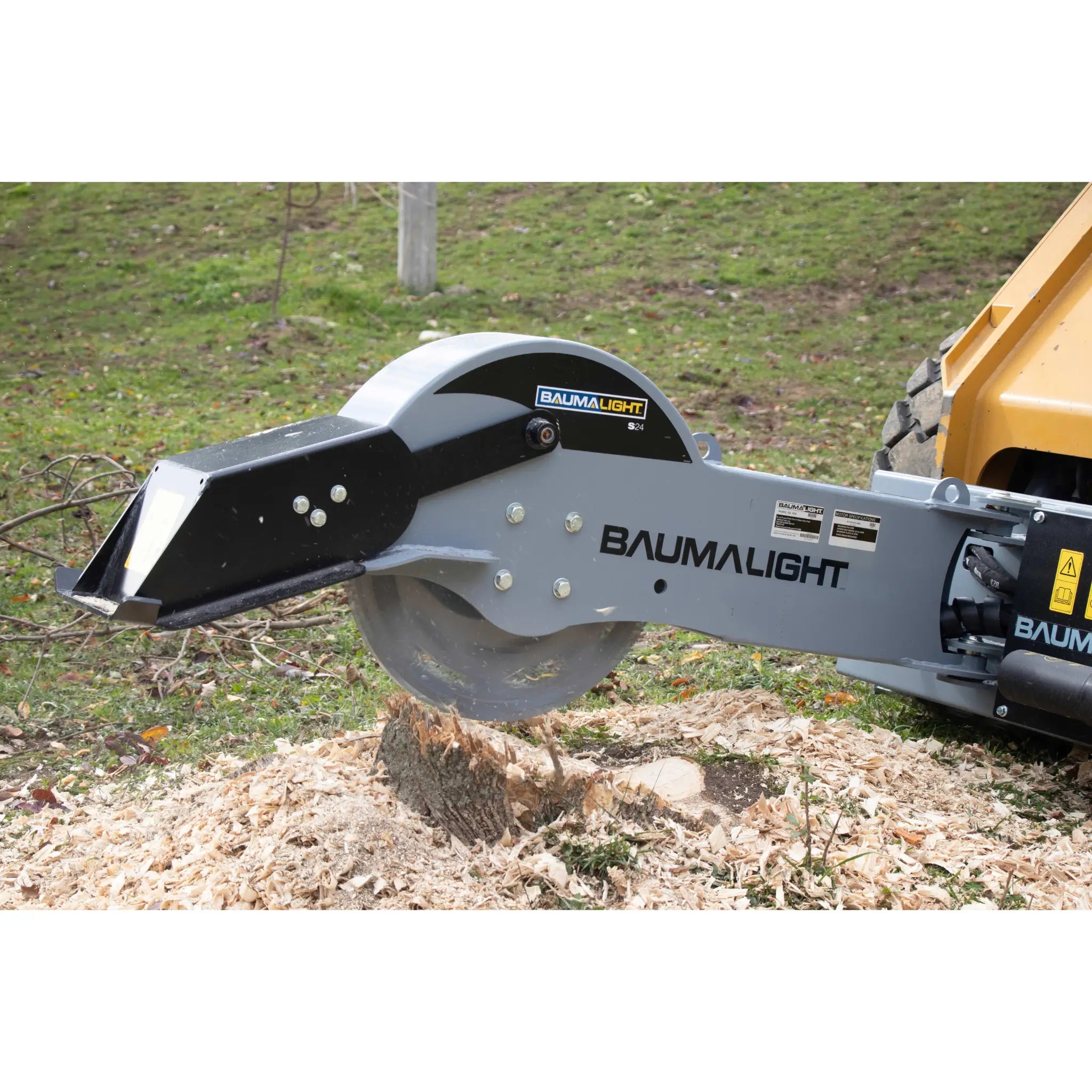

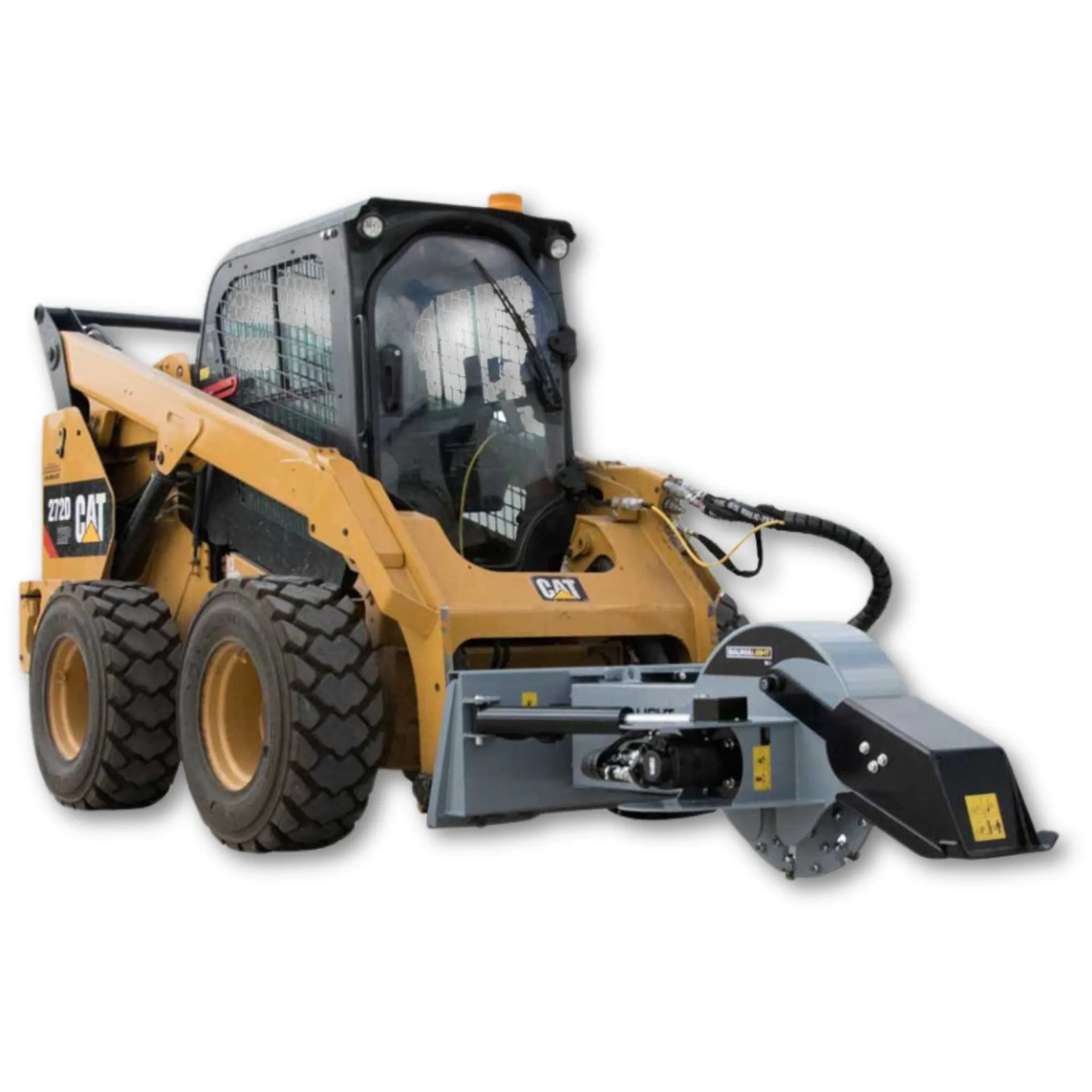

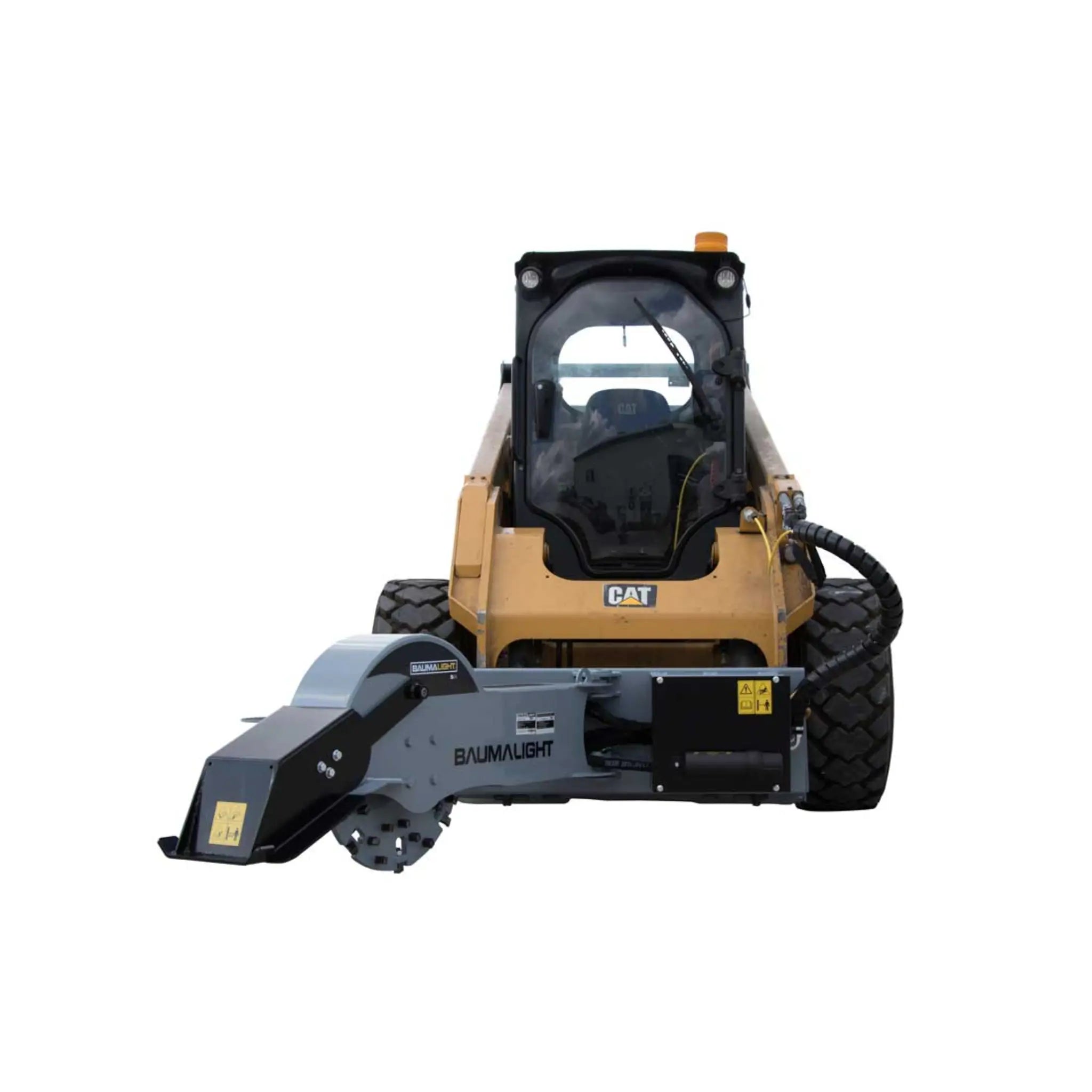

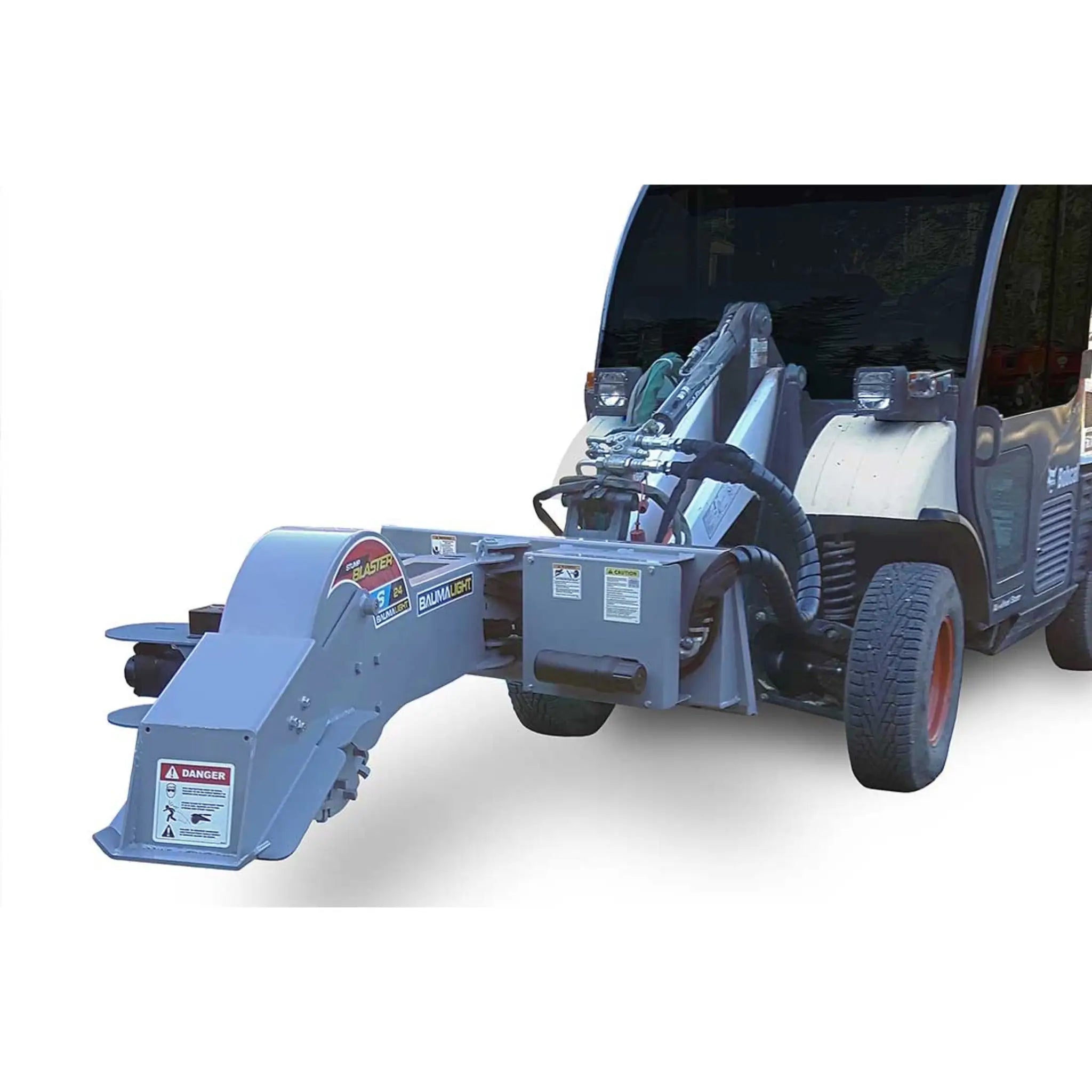

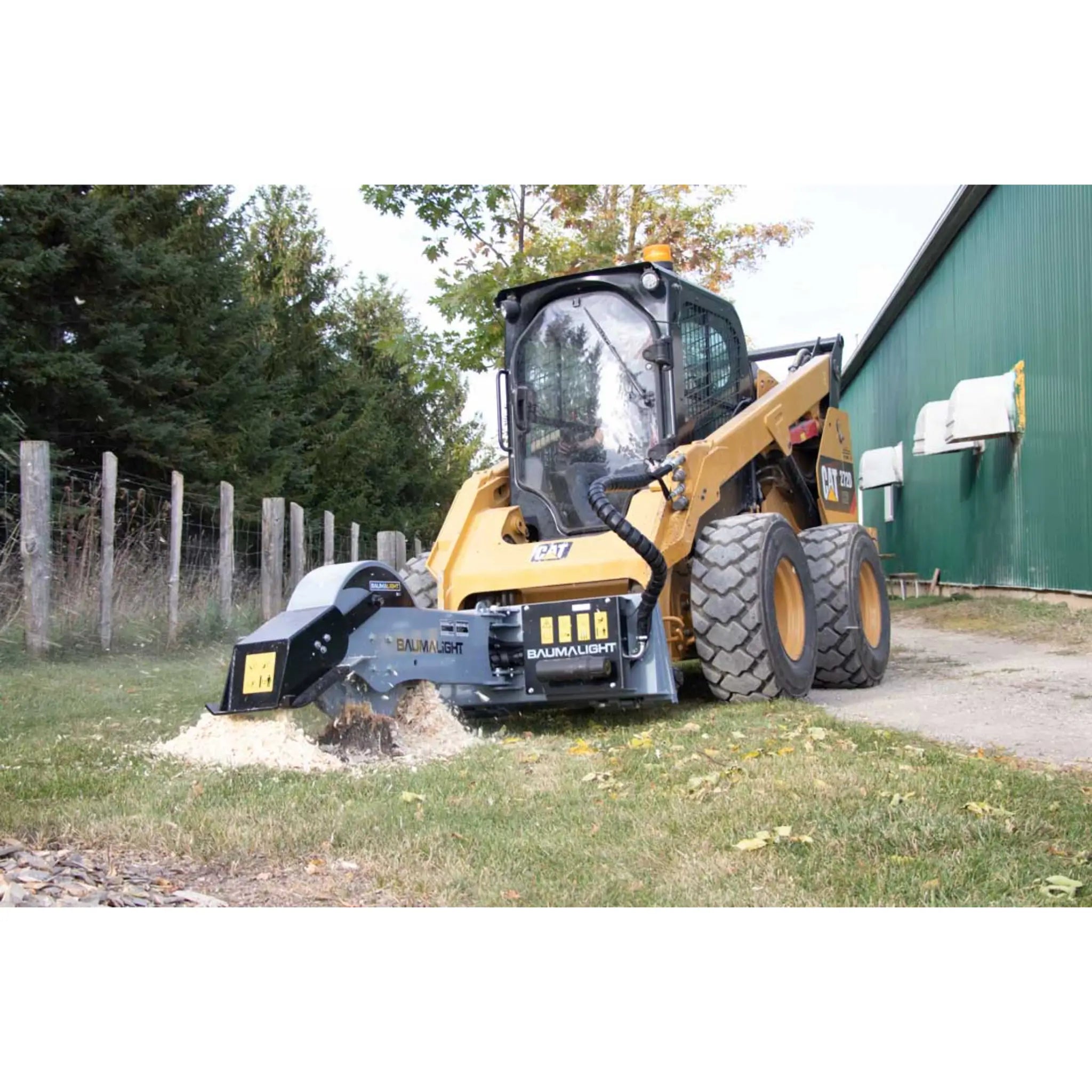

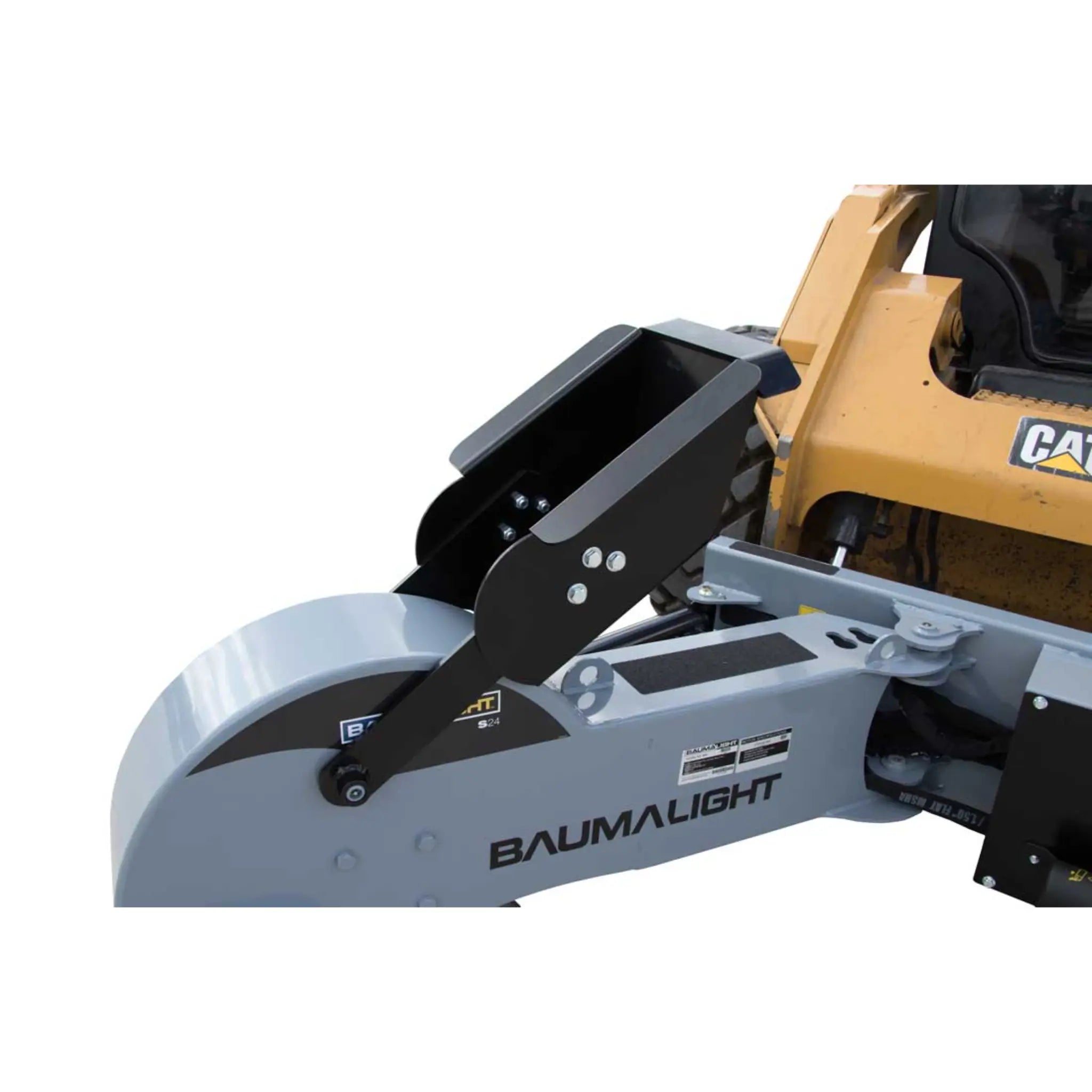

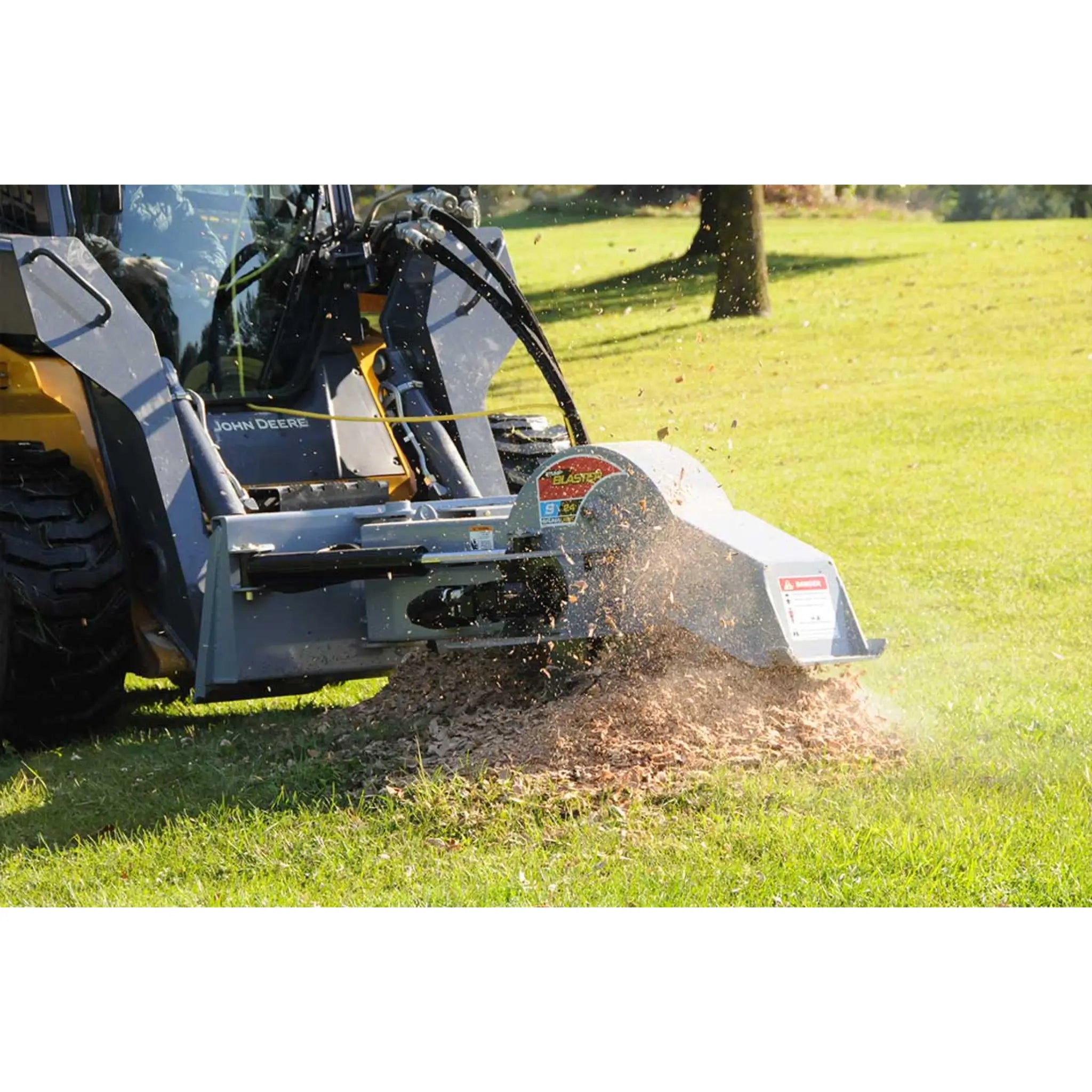

Experience the Baumalight S24 Skidsteer Stump Grinder, a robust tool engineered for efficient stump removal on medium-sized skidsteers and track loaders. Featuring a unique 12V diverter valve, this stump grinder controls a hydraulic swing cylinder, allowing for refined cutting maneuvers without constant repositioning.

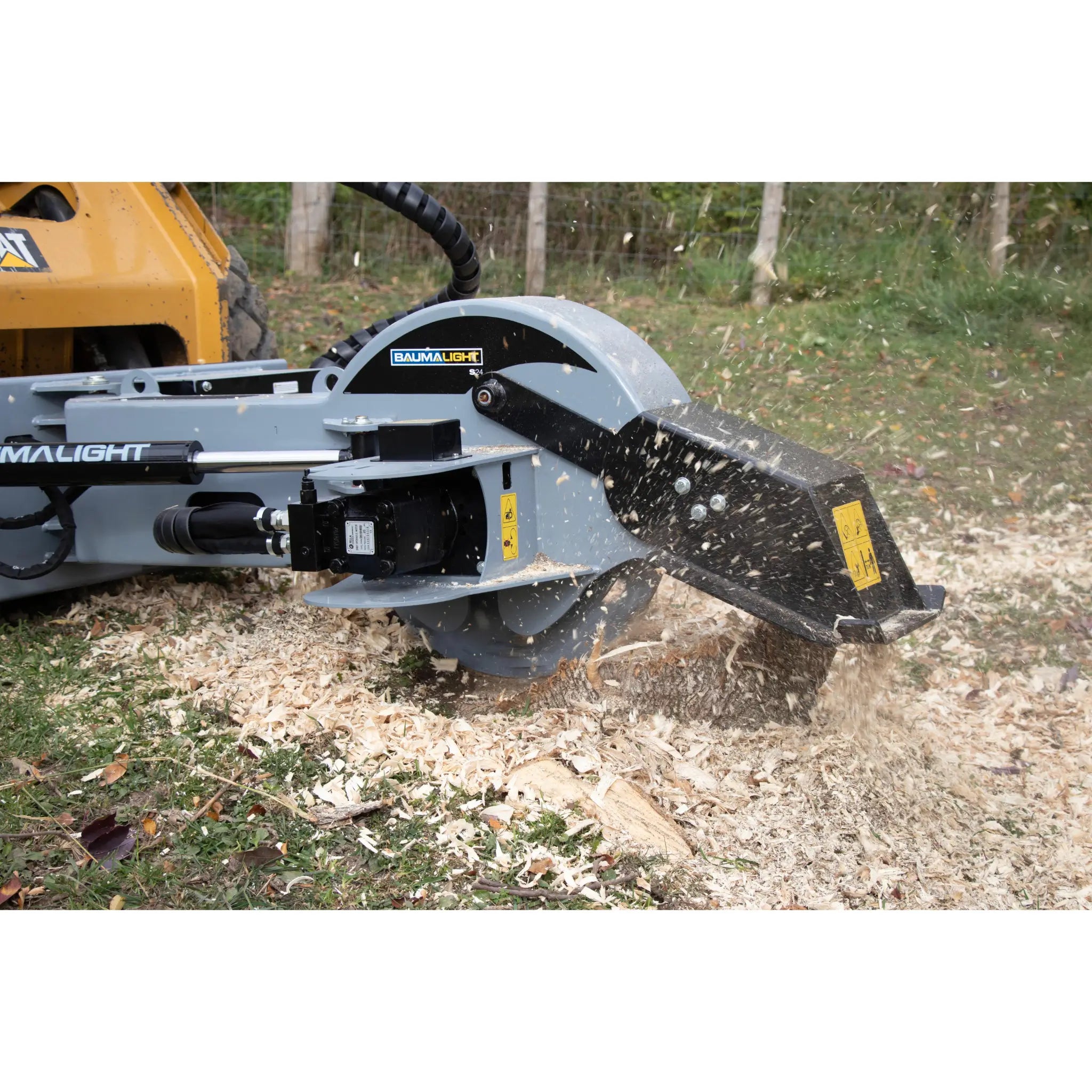

Constructed with a formidable ¾" thick steel rotor, the S24 is built to withstand the rigors of repetitive use. The rotor anchors carbide-tipped teeth that extend a full 1-¼ inches to prevent clogging from chips and mulch, ensuring smoother operations and reduced heat buildup that can lead to premature wear. These teeth are designed to distribute the workload evenly, ensuring longevity and minimizing the frequency of replacements.
Specifications
| Model No. | S14 | S16 | S18 | S24 | S28 | S40 |
|---|---|---|---|---|---|---|
| Recommended HP Size | Mini Skidsteer | Mini Skidsteer | 25-80 | 30-80 | 50-120 | 50-120 |
| Maximum Carrier Size | Check GPM & PSI | Check GPM & PSI | Check GPM & PSI | Check GPM & PSI | Check GPM & PSI | Check GPM & PSI |
| Motor Type | Gerotor | Bent Axis Piston | Gerotor | Gerotor | Gerotor | Bent Axis Piston |
| Hydraulic GPM | Check Stump Cutting Size Chart | Check Stump Cutting Size Chart | Check Stump Cutting Size Chart | Check Stump Cutting Size Chart | Check Stump Cutting Size Chart | Check Stump Cutting Size Chart |
| Rotor Size | 18" | 18" | 24" | 24" | 24" | 24" |
| Number of Teeth | 12 | 24 | 34 | 34 | 34 | 20 |
| Tooth Part number | H3000 | H3000 | S1000 | S1000 | S1000 | H3000 |
| Tooth Construction | High speed | High speed | Planer | Planer | Planer | High speed |
| Cutting Wheel Speed | Depends on GPM | Depends on GPM | Depends on GPM | Depends on GPM | Depends on GPM | Depends on GPM |
| Cutting Height - Above Ground | No limit | No limit | No limit | No limit | No limit | No limit |
| Cutting Depth - Below Ground | 6" | 6" | 10" | 10" | 10" | 24" |
| Maximum Cutting Depth - Per Pass | 2" | 2" | 5" | 6" | 6" | 1" |
| Maximum Horizontal Cut | 12" | 12" | 22" | 22" | 22" | 22" |
| Swing Arc | Self-feeding | 56° | Self-feeding | 60° | 63° | 85° |
| Hub Torque | 150 Ft.-Lbs. | - | 250 Ft.-Lbs. | 250 Ft.-Lbs. | 803 Ft.-Lbs. | - |
| Over Torque Protection | Relieve valve | Relieve valve | Relieve valve | Relieve valve | Relieve valve | Remote |
| Hitch | 1" pivot pins | 1" pivot pins | Mini Plate | Quick Attach | Quick Attach | Quick Attach |
| No. of Remotes Required - Hydraulic | 1 | 1 | 1 | 1 | 1 | 1 |
| Requires 12 Volt DC | No | Yes | No | Yes | Yes | Yes |
| Unit Weight (Shipping) Lbs. | 394 | 400 | 642 | 995 | 995 | 1,200 |
Motor options - stump cutting time chart
SKIDSTEER STUMP CUTTING TIMES BASED ON 24" STUMP
| Motor | Case Drain | PSI | 12 GPM | 15 GPM | 20 GPM | 25 GPM | 30 GPM | 35 GPM | 40 GPM | 50 GPM | CC |
Motor Type |
RPM at MAX GPM |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
S508 Motor Available for : S16 |
Critcal | 2500 | 40 min | 30 min | 20 min | -- | -- | -- | -- | -- | 25 | Piston | 2700 |
| 3,000 | 30 min | 25 min | 15 min | -- | -- | -- | -- | -- | |||||
|
S445 Motor Available for : S24 |
Recommended | 2500 | -- | 60 min | 40 min | 35 min | -- | -- | -- | -- | 125 | Roller Vane | 520 |
| 3,000 | -- | 50 min | 30 min | 30 min | -- | -- | -- | -- | |||||
| 3,500* | -- | 50 min | 30 min | 30 min | -- | -- | -- | -- | |||||
|
S545 Motor Available for : S24 |
Recommended | 2500 | -- | 80 min | 40 min | 35 min | 25 min | 20 min | -- | -- | 130 | Roller Vane | 700 |
| 3,000 | -- | 70 min | 30 min | 30 min | 20 min | 16 min | -- | -- | |||||
| 3,500* | -- | 60 min | 30 min | 30 min | 20 min | 16 min | -- | -- | |||||
|
S645 Motor Available for : S28 |
Recommended | 3,000 | -- | 40 min | 40 min | 25 min | 15 min | 12 min | 10 min | 130 | Roller Vane | 540 | |
| 3,500 | -- | -- | 30 min | 20 min | 12 min | 10 min | 8 min | ||||||
|
S740 Motor Available for : S40 |
Critcal | 2500 | -- | -- | 30 min | 15 min | 12 min | 10 min | -- | -- | 56 | Piston | 2100 |
| 3,000 | -- | -- | 25 min | 12 min | 10 min | 8 min | -- | -- | |||||
| 3,500* | -- | -- | 23 min | 10 min | 8 min | 6 min | -- | -- | |||||
|
S770 Motor Available for : S40 |
Critcal | 2500 | -- | -- | -- | 30 min | 20 min | 9 min | 8 min | 7 min | 84 | Piston | 2000 |
