Baumalight SWA540 Boom Mower for Skid Steers – BML-SWA540-D510-F2-JS4
Regular price
$20,615.99
$18,966.99
Sale
Baumalight SWA540 Boom Mower For Skid Steers - BML-SWA540-D510-F2-JS4

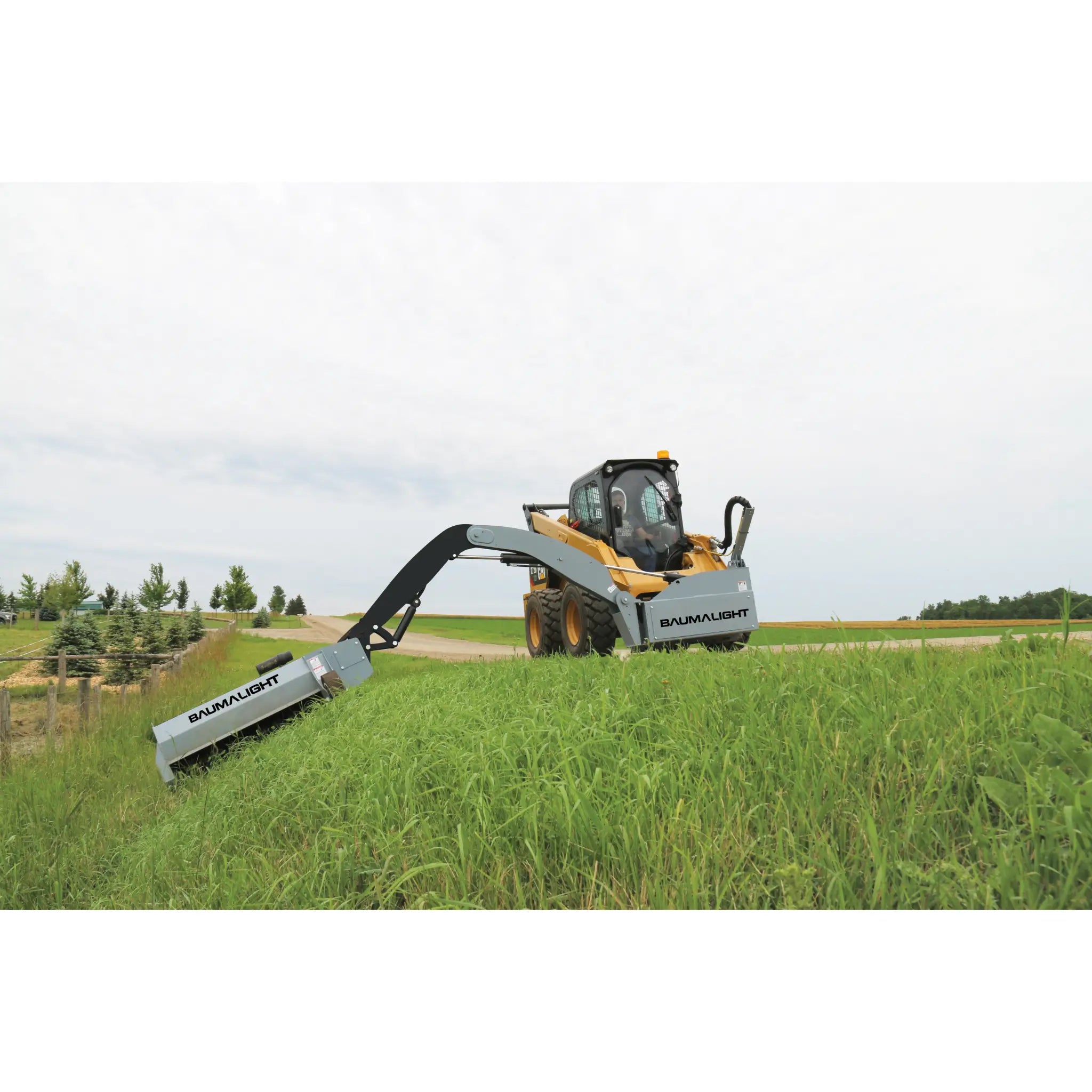

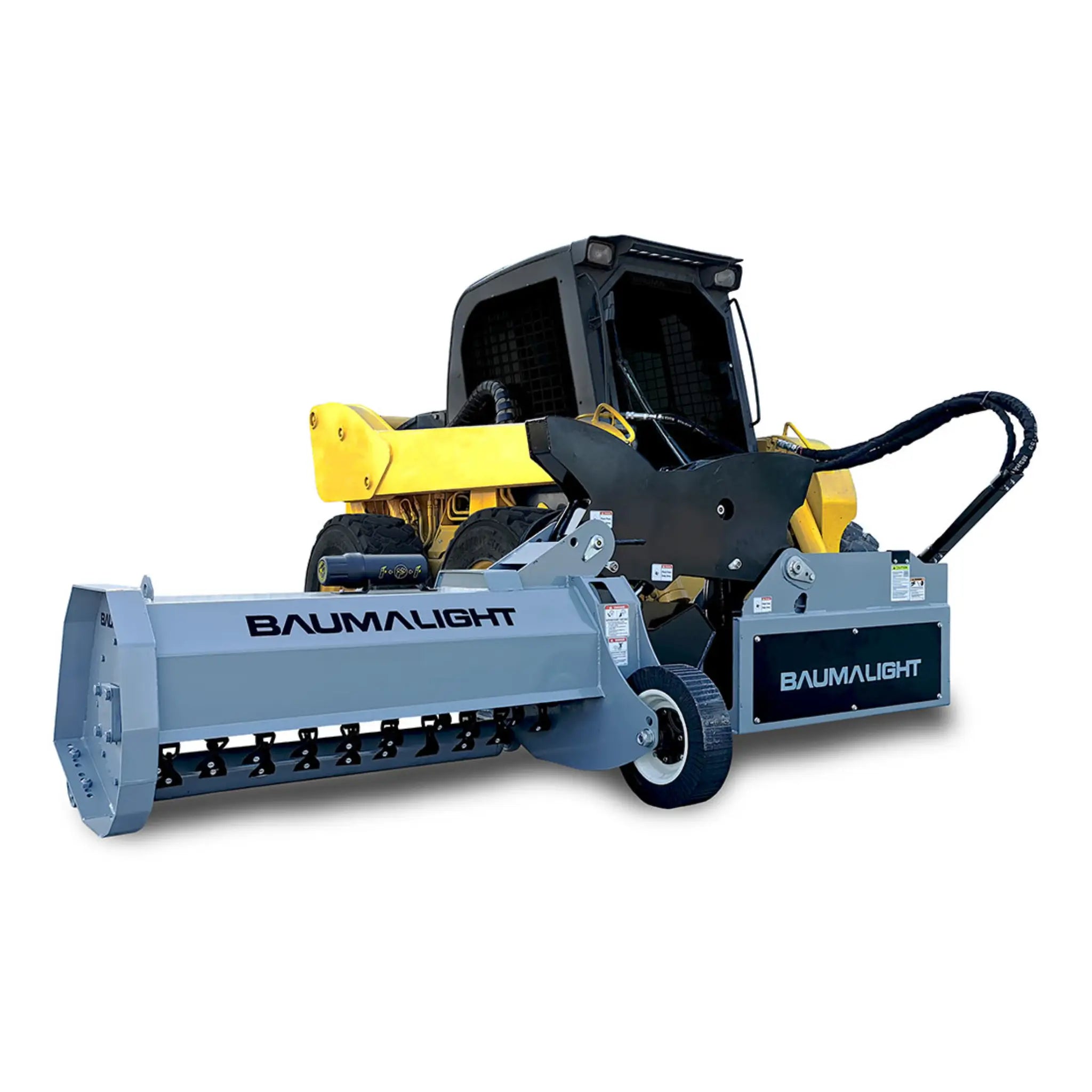

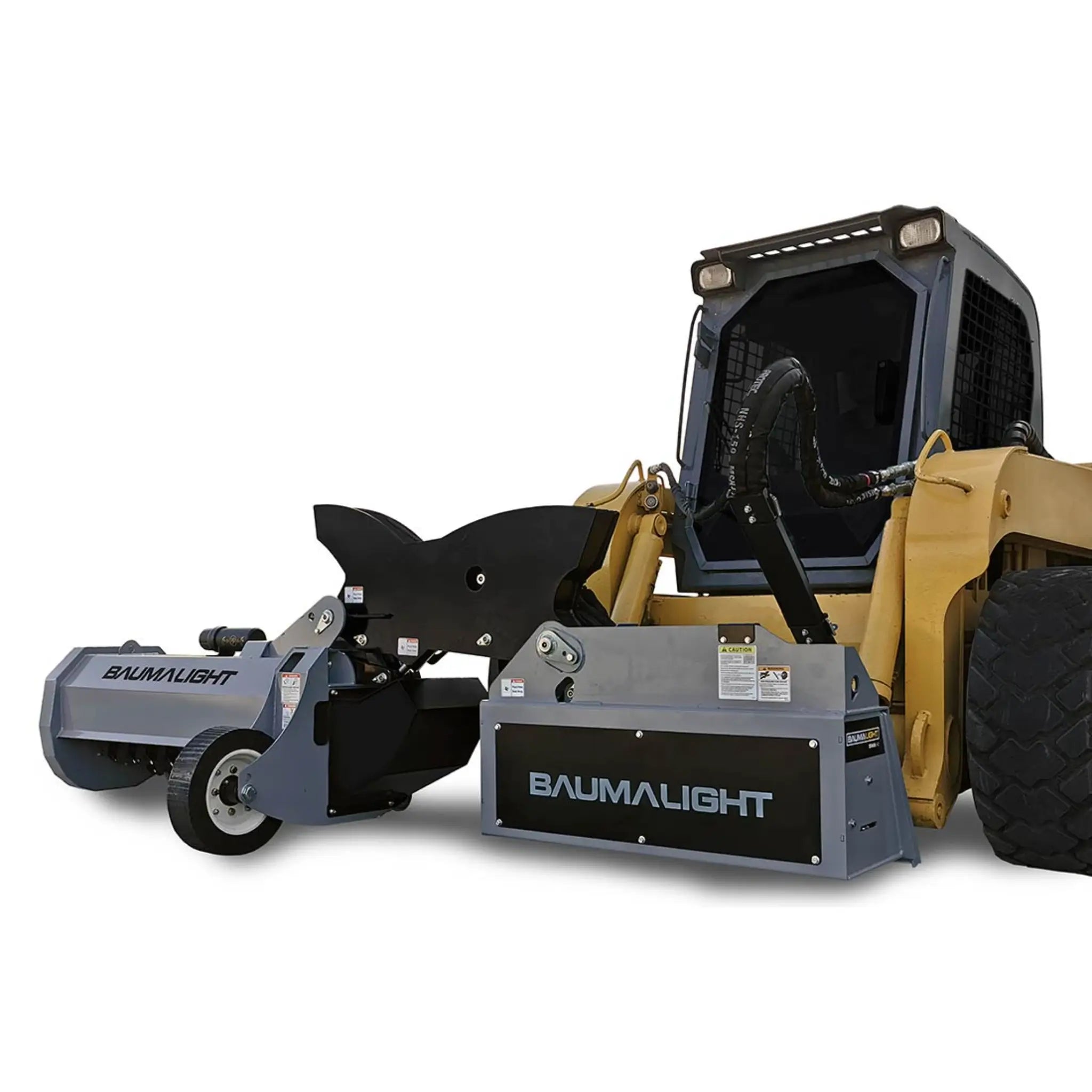

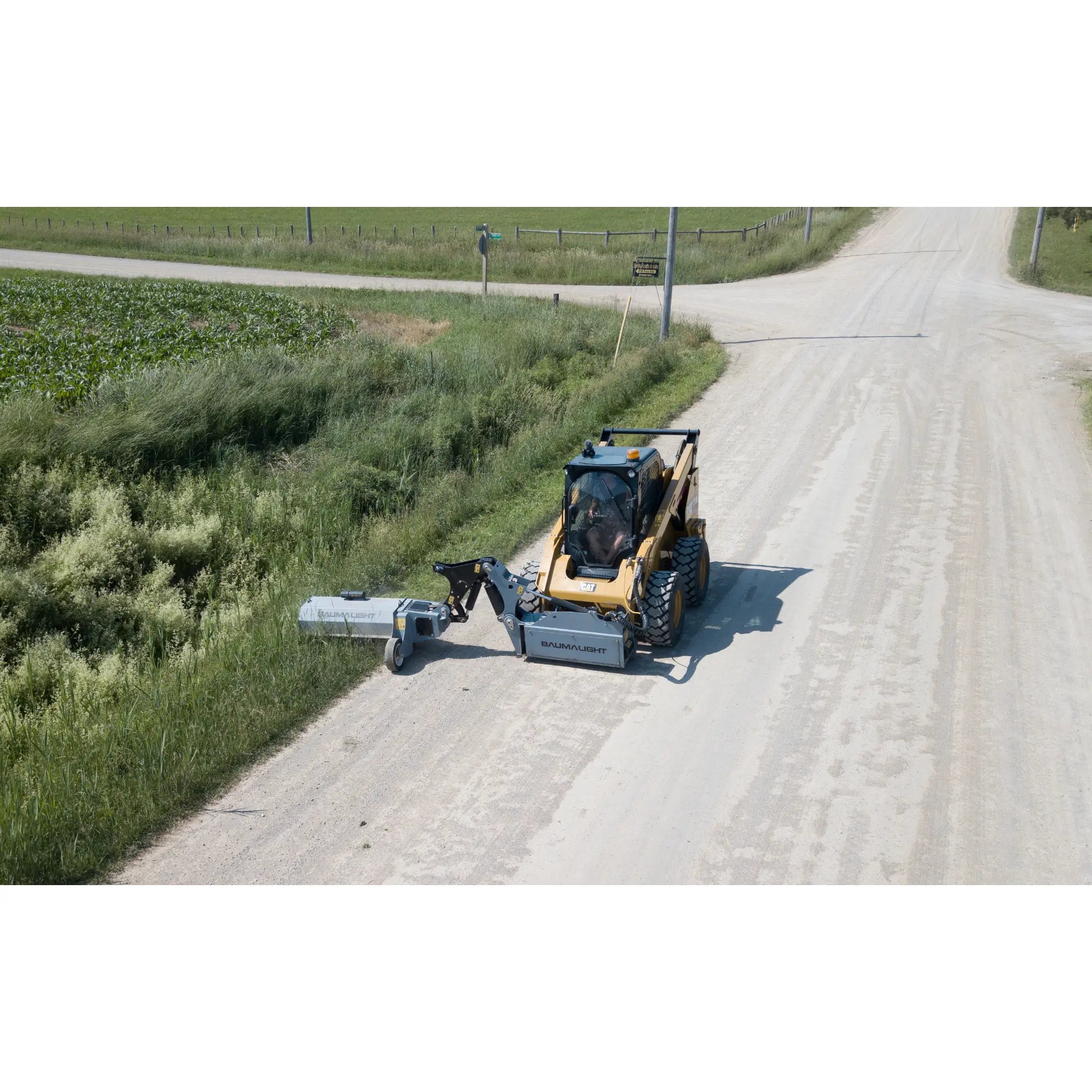

Maintain roadsides and fence lines effortlessly with Baumalight's SWA540 Boom Mower for Skid steers. Designed for carriers weighing at least 4,500 lbs, this ditch mower features a curved single-arm boom with a 6-foot reach, a 48" wide mowing head, and 200 series flail teeth. The boom conveniently folds up for easy transport between projects.
The SWA540 Boom Mower
Baumalight’s SWA540 Boom Mower for Skidsteer allows you to easily maintain roadside and fenceline grass and brush. The SWA540 is designed to work with skid steers with a minimum carrier weight of 4,500 lbs. With a 6 foot reach, the curved single arm boom gives you easy access hard to reach grass.

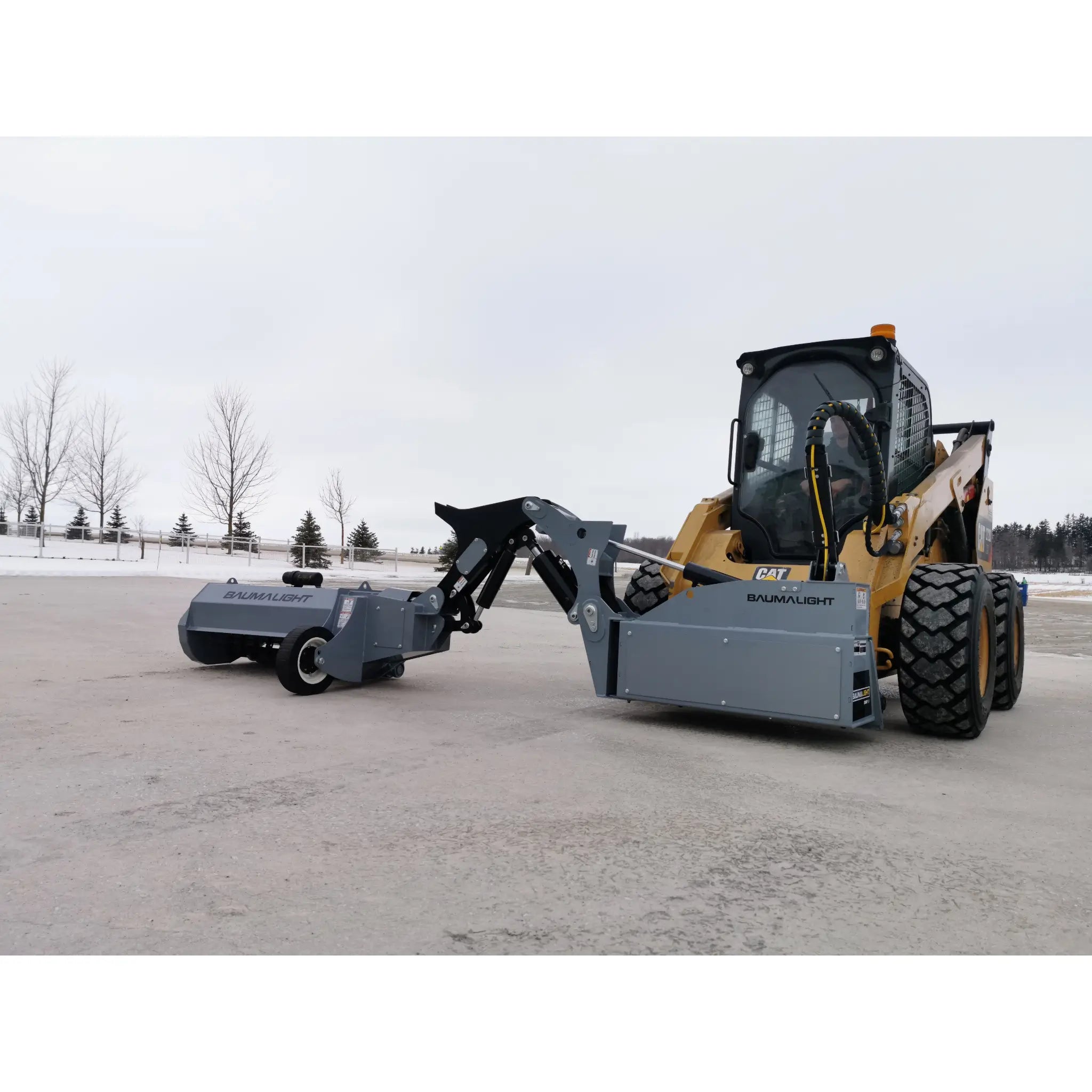

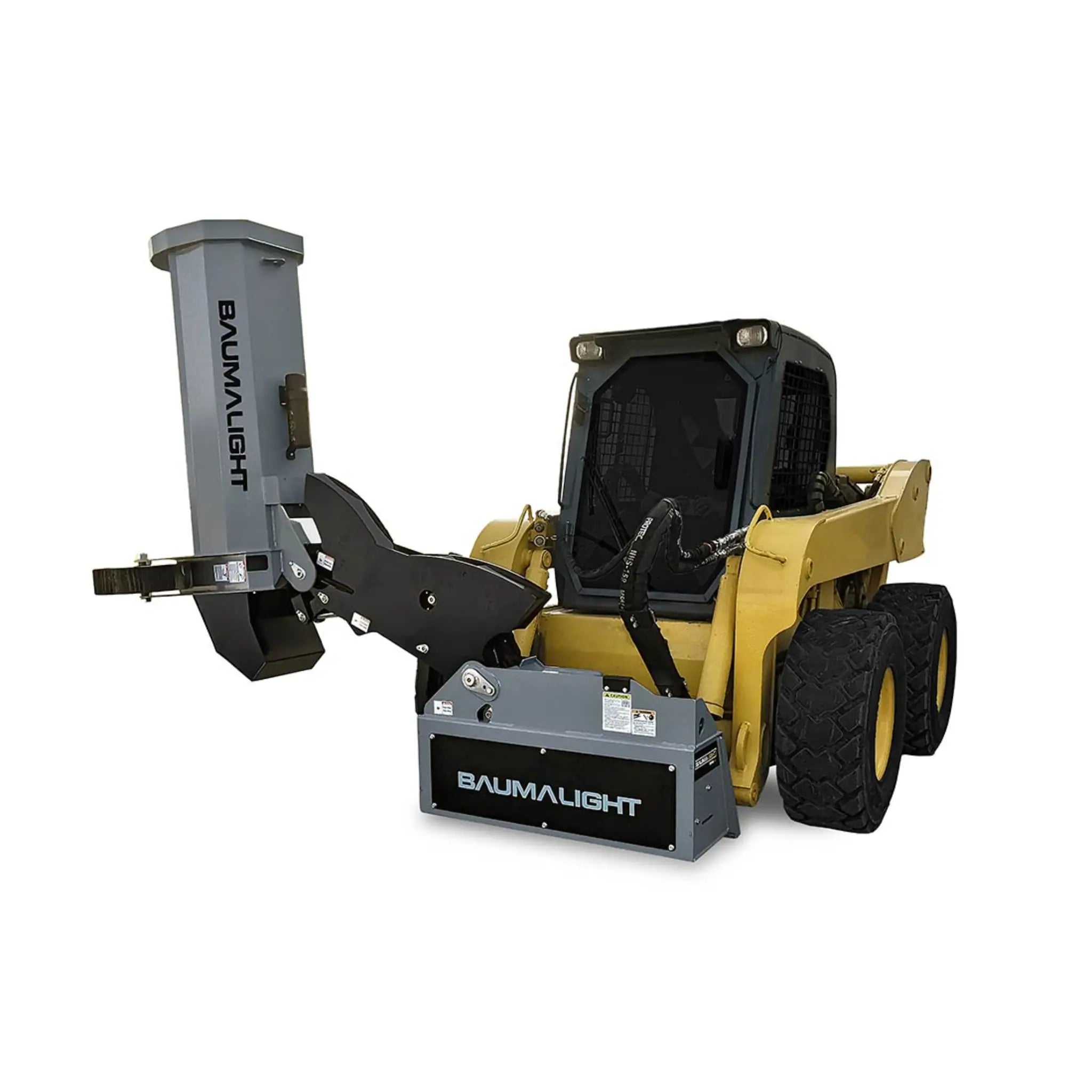

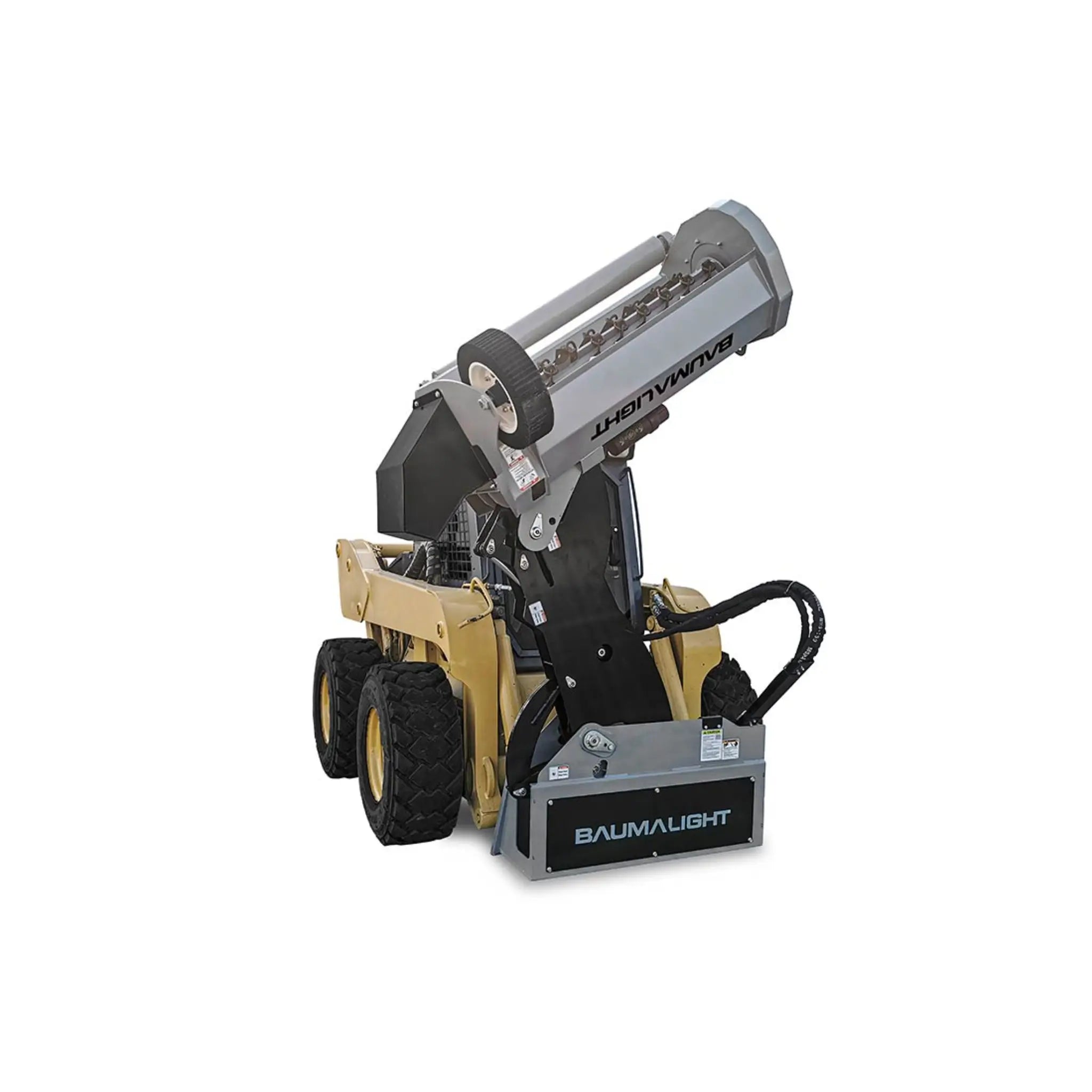

This ditch mower has a full 48” wide mowing head and features our 200 series flail teeth. When it’s time to move on to the next project, the boom conveniently folds up for travel.
Specifications
| Model No. | SWA540 | SWA550 | SWA560 | SWF560 | SWF580 | SWA750 |
|---|---|---|---|---|---|---|
| Total reach when flat | 6 ft | 7 ft | 10 ft | 10 ft | 14 ft | 7 ft |
| Cutting Width | 48" | 60" | 60" | 48" | 48" | 42" |
| Boom Type | Single Arm | Single Arm | Single Arm | Boom & Stick | Boom & Stick | Single Arm |
| Type of Blades | Flail | Flail | Flail | Flail | Flail | Rotary cutter |
| Minimum Skidsteer weight Warning; not applicable to wheel loaders |
4,500 lbs | 5,000 lbs | 5,500 lbs | 6,000 lbs | 8,000 lbs | 8,000 lbs |
| Maximum Skidsteer weight | 10,500 lbs | 11,000 lbs | 12,000 lbs | 12,000 lbs | 16,000 lbs | 12,000 lbs |
| Requires Case Drain | Yes | Yes | Yes | Yes | Yes | Yes |
| Hydraulic Hose & Couplers | Hose only | Hose only | Hose only | Hose only | Hose only | Hose only |
| Max PSI | 4,500 | 4,500 | 4,500 | 4,500 | 4,500 | 4,500 |
| Motor type | Piston | Piston | Piston | Piston | Piston | Piston |
| Estimated dealer set-up time | 6 hours | 6 hours | 6 hours | 8 hours | 9 hours | 7 hours |
| No. of blade clusters F2000(Standard) |
38 | 48 | 48 | 38 | 38 | - |
| No. of blade clusters F3000(Optional) |
76 | 96 | 96 | 76 | 76 | - |
| Shipping weight | 1775 lbs | 1900 lbs | 1750 lbs | 1650 lbs | 1800 lbs | 2050 lbs |
Motor options - brush size chart
Maximum Mowing Size
(Brush Diameter in Inches)
| MOTOR |
MOTOR TYPE |
CC |
CASE DRAIN |
IDEAL RPM |
BLADE STYLE |
PSI | 20 GPM | 25 GPM | 30 GPM | 35 GPM | 40 GPM |
|---|---|---|---|---|---|---|---|---|---|---|---|
| RPM | 1500 | 2000 | 2500 | 3000 | 3500 | ||||||
| D510 | Piston | 34 | Critical | 2200 | F2000 | 3000 3500 |
0.375" 0.5" |
0.5" 0.75" |
0.75" 0.75" |
N/A | N/A |
| D510 | Piston | 34 | Critical | 2200 | F3000 | 3000 3500 |
0.75" 1" |
1" 1" |
1" 1" |
N/A | N/A |
| MOTOR |
MOTOR TYPE |
CC |
CASE DRAIN |
IDEAL RPM |
BLADE STYLE |
PSI | 20 GPM | 25 GPM | 30 GPM | 35 GPM | 40 GPM |
|---|---|---|---|---|---|---|---|---|---|---|---|
| RPM | 1000 | 1500 | 1800 | 2100 | 2500 | ||||||
| D530 | Piston | 47 | Critical | 2100 | F2000 | 3000 3500 |
0.5" 0.75" |
0.75" 0.75" |
0.75" 0.75" |
0.75" 0.75" |
0.75" 0.75" |
| D530 | Piston | 47 | Critical | 2100 | F3000 | 3000 3500 |
1" 1" |
1" 1" |
1" 1" |
1" 1" |
1" 1" |
