Baumalight SWA560 Boom Mower for Skid Steers – BML-SWA560-D510-F2-JS4
Regular price
$21,090.99
$19,403.99
Sale

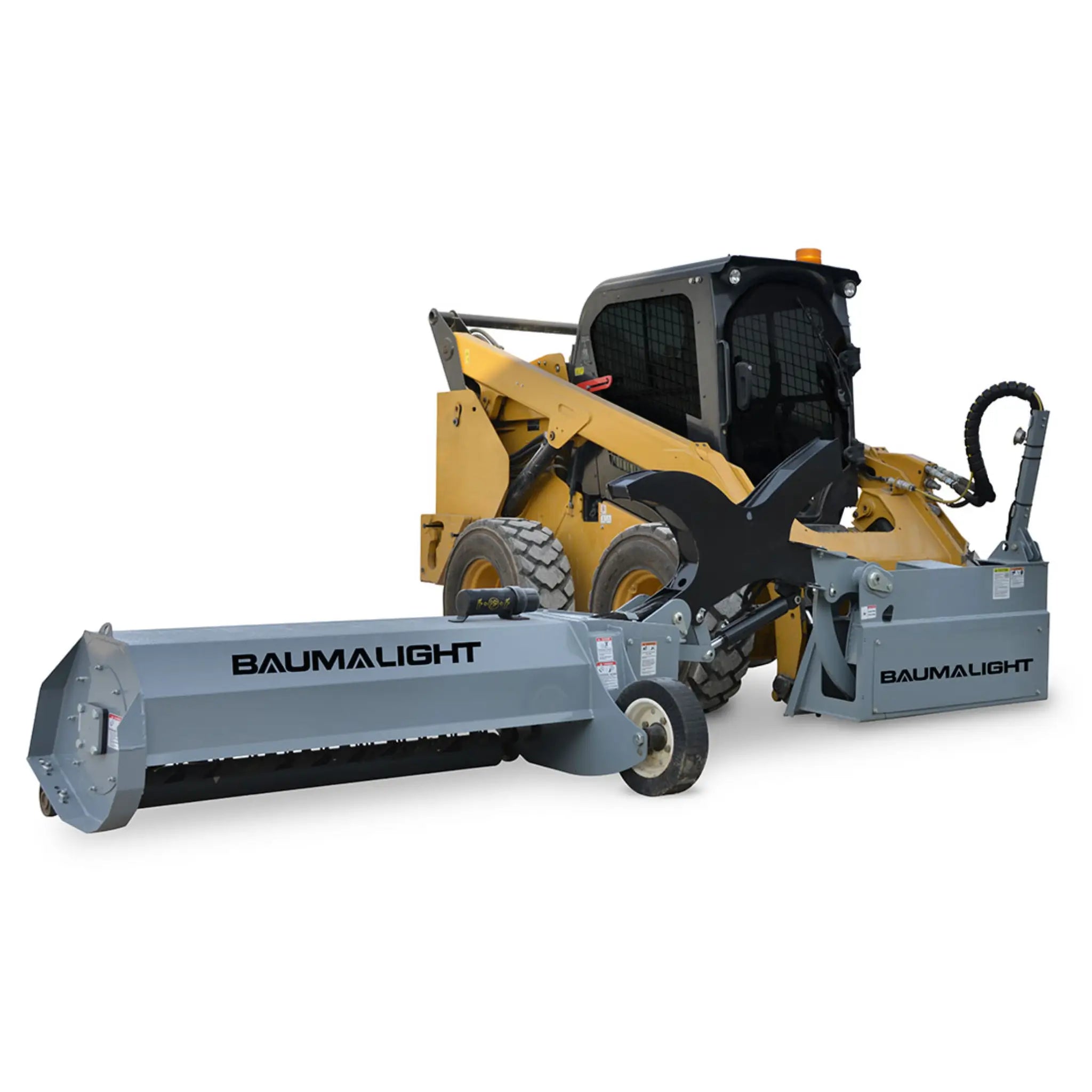

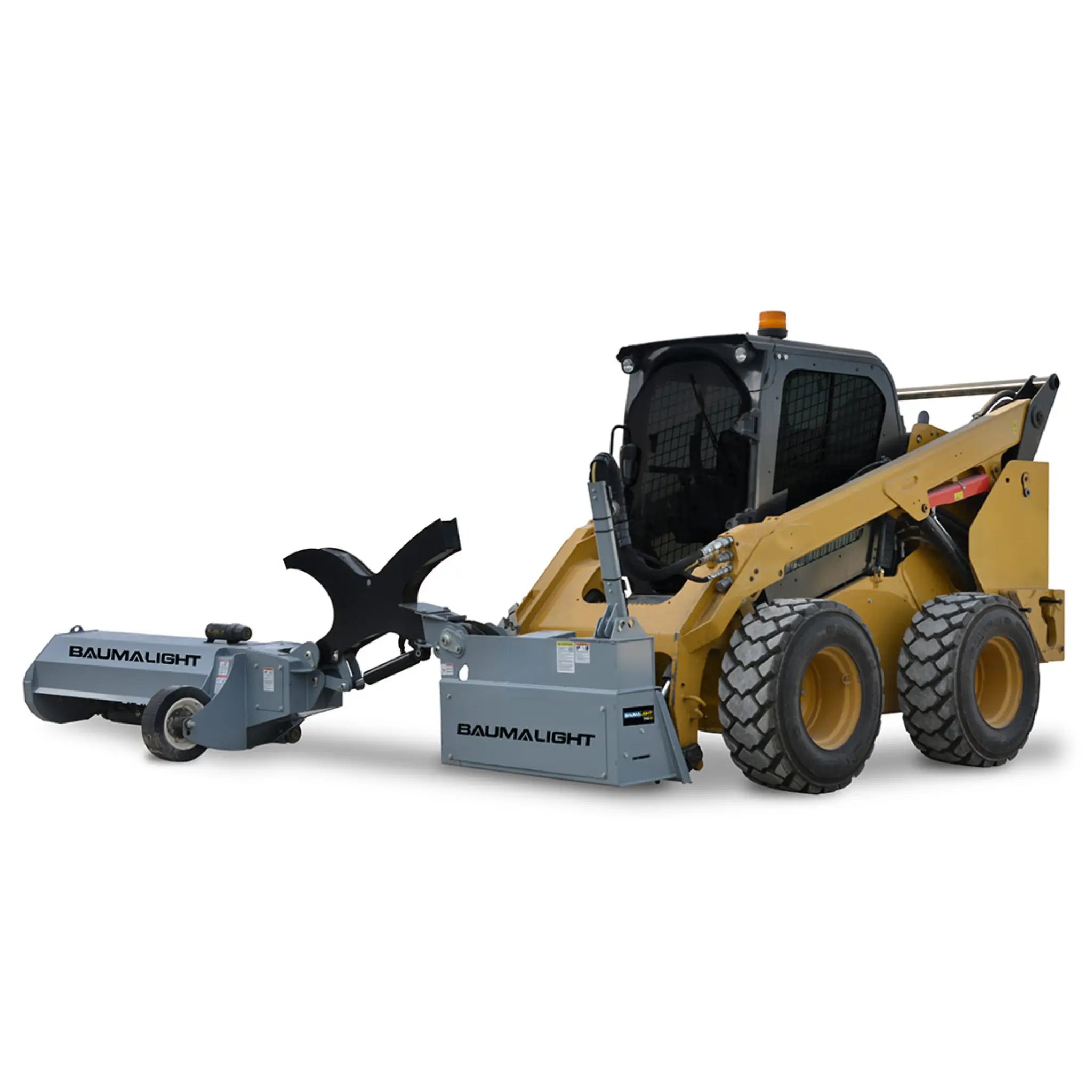

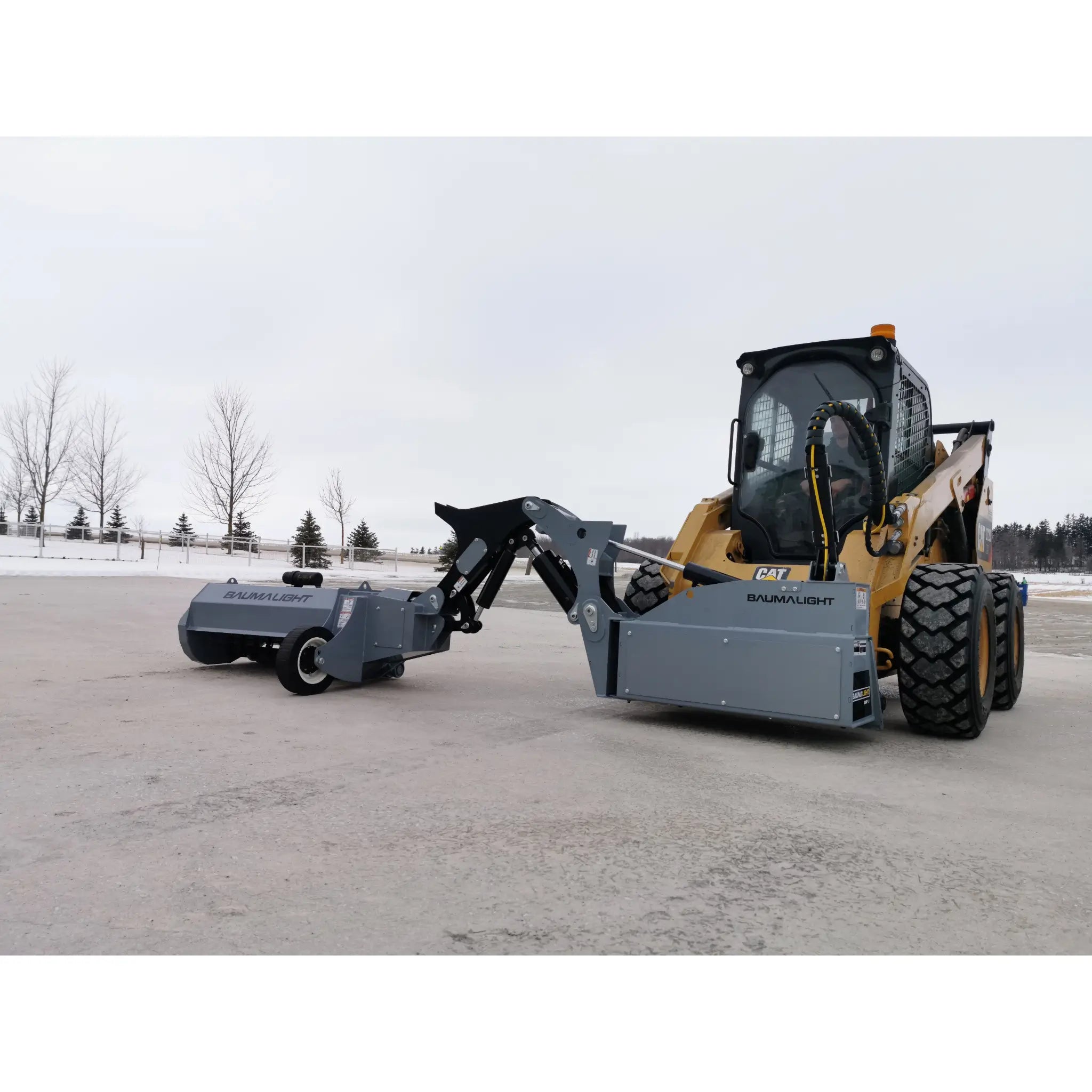

Baumalight SWA560 Boom Mower For Skid Steers - BML-SWA560-D510-F2-JS4
Mow ditches, roadsides, and fence lines with ease using Baumalight's SWA560 Boom Mower for Skid steers. Designed for carriers weighing at least 5,500 lbs, this mower features a curved single-arm boom with a 10-foot reach and a 60" wide head with 200 series flail teeth, handling brush up to 2" diameter. Conveniently folds for easy transport.
The SWA560 Boom Mower

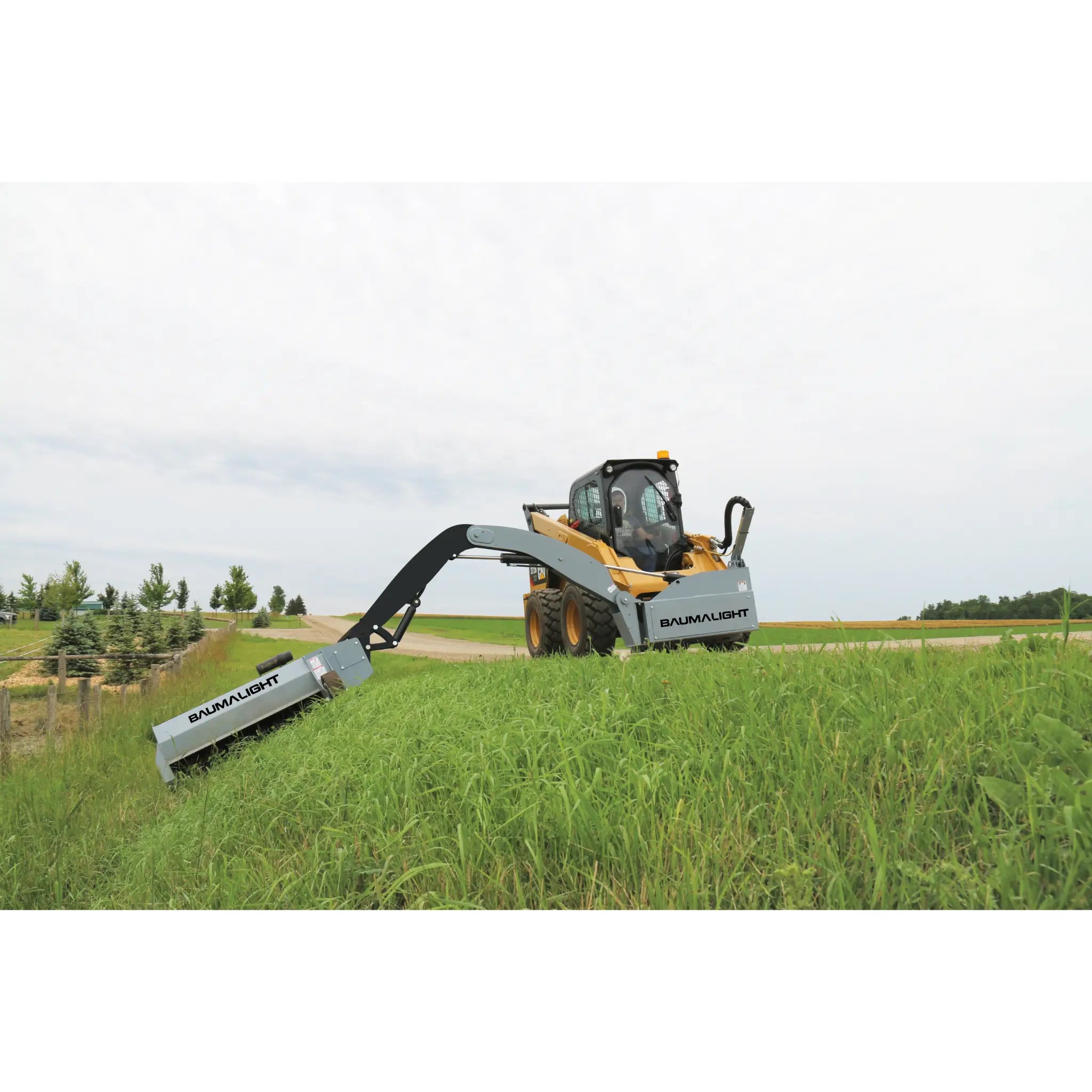

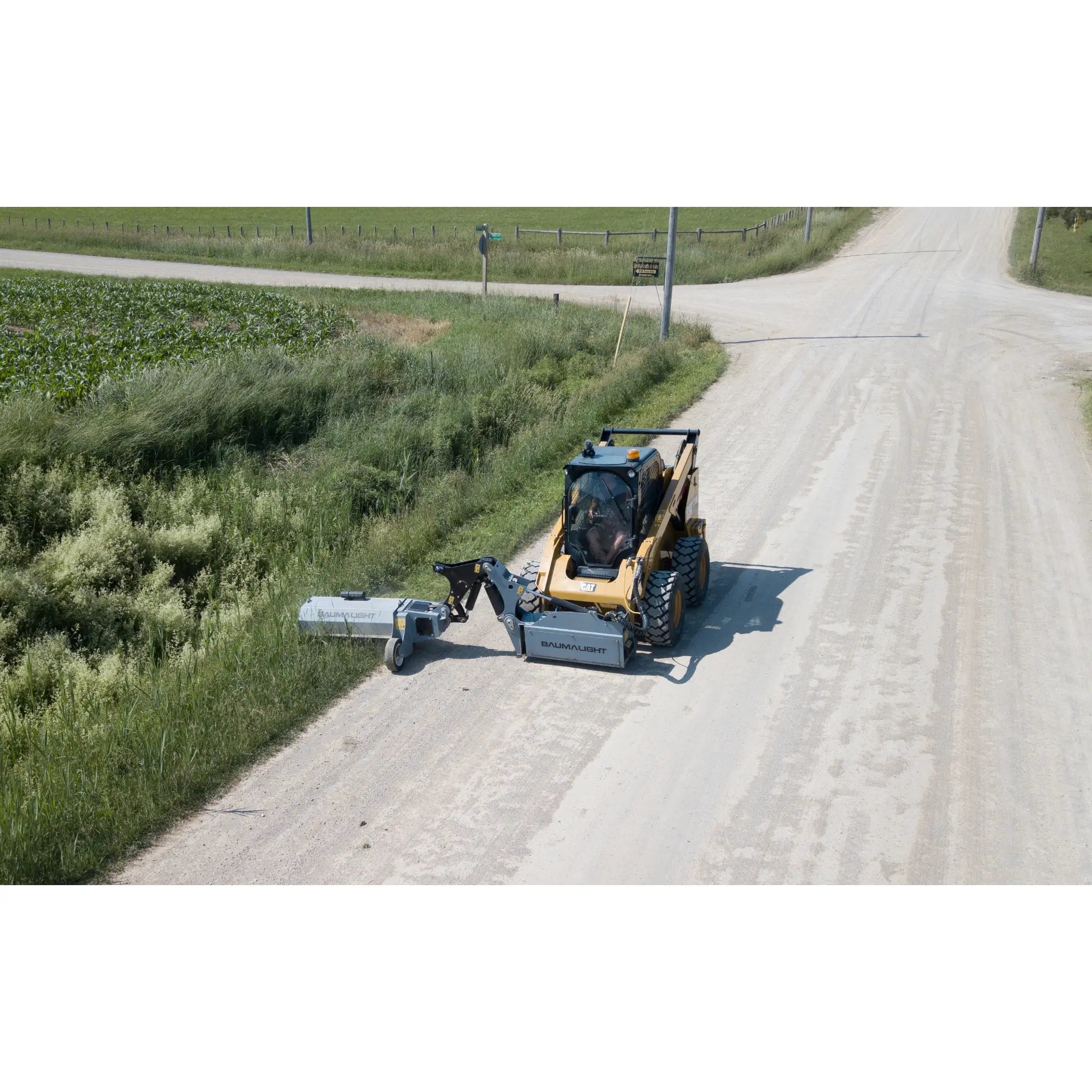

Baumalight’s SWA560 Boom Mower is a convenient skid steer attachment that makes mowing ditches, roadsides, and fence lines easier than ever. The SWA560 ditch mower is designed to work with skid steers with a minimum carrier weight of 5,500 lbs.

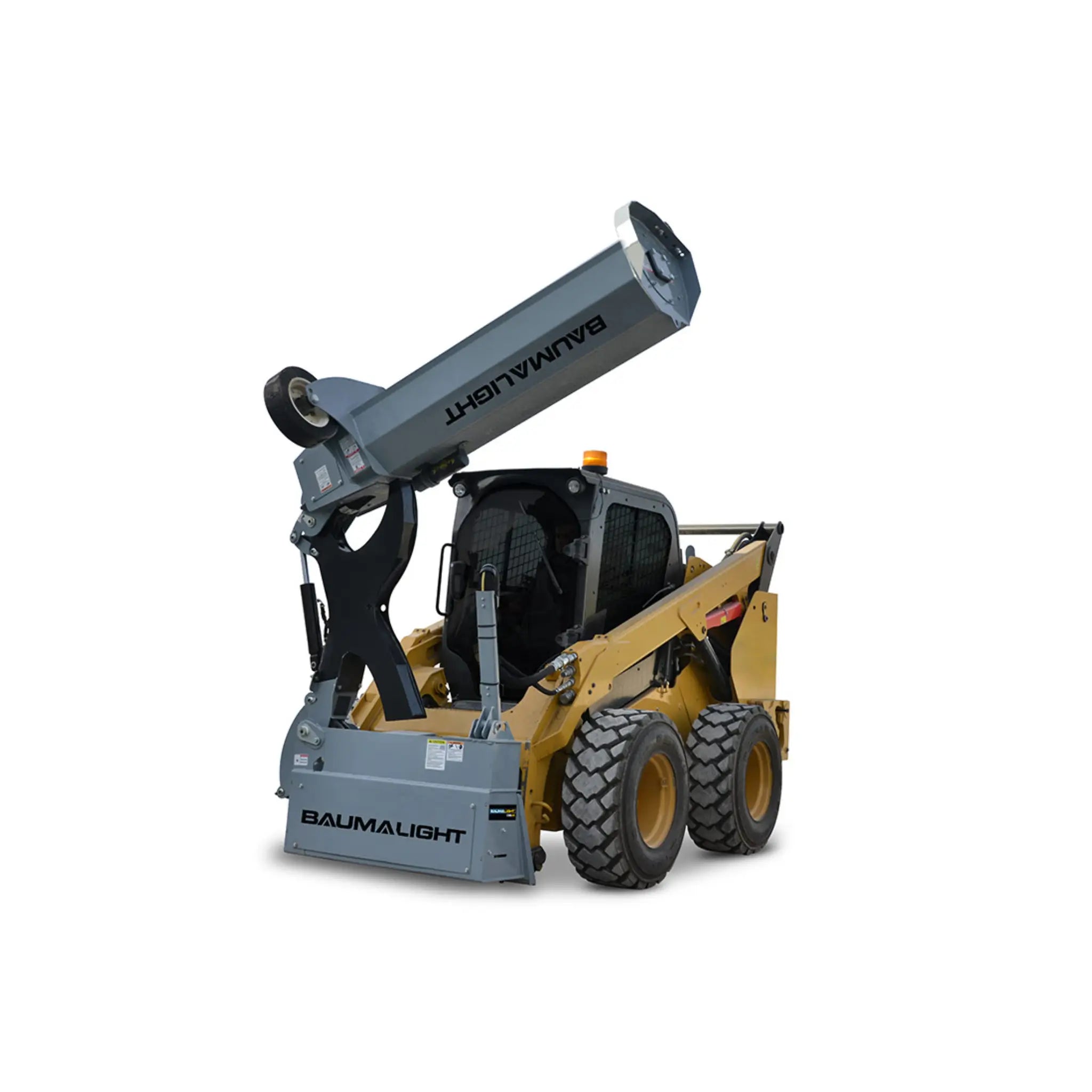

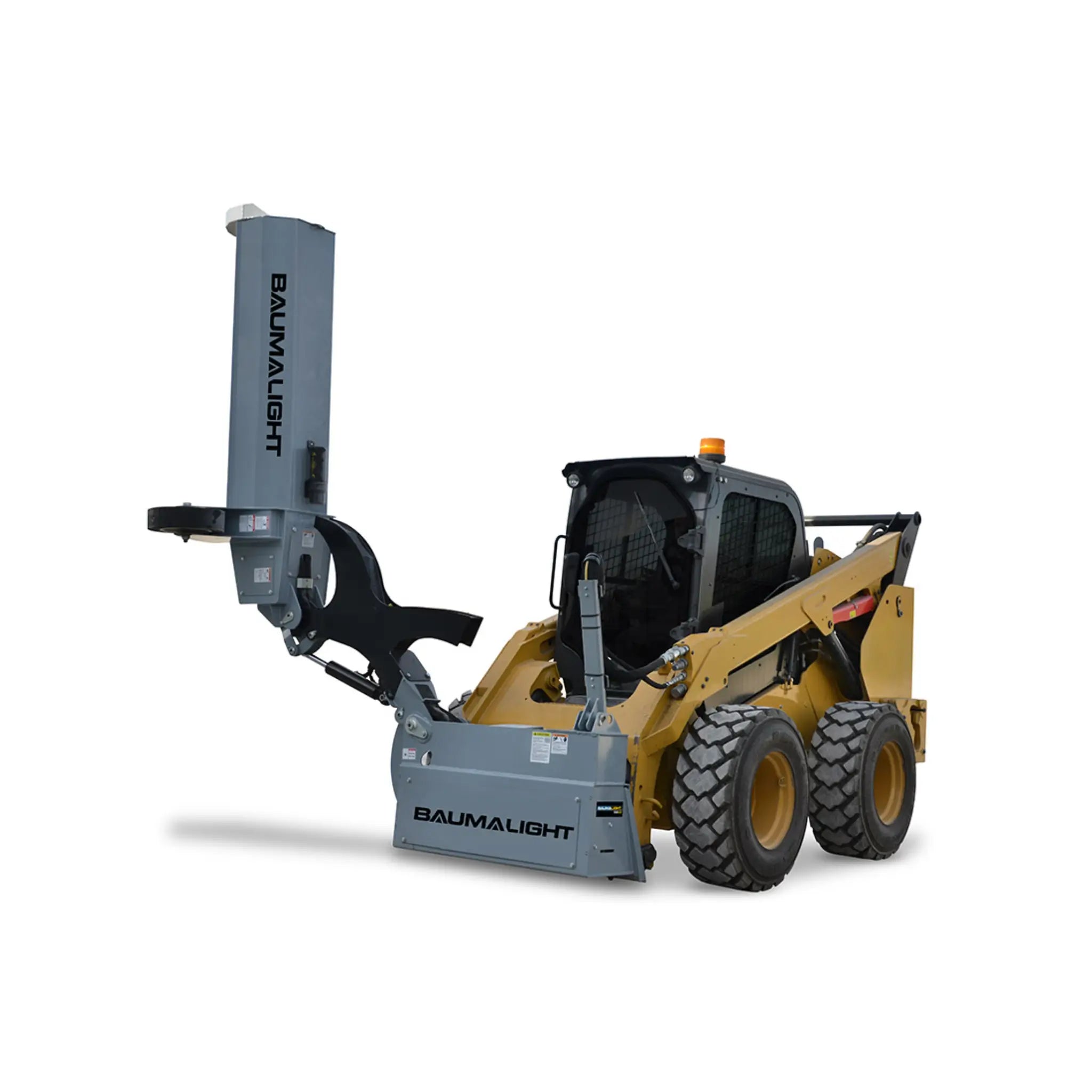

With an impressive 10 foot reach, the curved single arm boom gives you easy access hard to reach grass. This ditch mower has a full 60” wide mowing head and features our 200 series flail teeth. When it’s time to move on to the next project, the boom conveniently folds up for travel.
Specifications
| Model No. | SWA540 | SWA550 | SWA560 | SWF560 | SWF580 | SWA750 |
|---|---|---|---|---|---|---|
| Total reach when flat | 6 ft | 7 ft | 10 ft | 10 ft | 14 ft | 7 ft |
| Cutting Width | 48" | 60" | 60" | 48" | 48" | 42" |
| Boom Type | Single Arm | Single Arm | Single Arm | Boom & Stick | Boom & Stick | Single Arm |
| Type of Blades | Flail | Flail | Flail | Flail | Flail | Rotary cutter |
| Minimum Skidsteer weight Warning; not applicable to wheel loaders |
4,500 lbs | 5,000 lbs | 5,500 lbs | 6,000 lbs | 8,000 lbs | 8,000 lbs |
| Maximum Skidsteer weight | 10,500 lbs | 11,000 lbs | 12,000 lbs | 12,000 lbs | 16,000 lbs | 12,000 lbs |
| Requires Case Drain | Yes | Yes | Yes | Yes | Yes | Yes |
| Hydraulic Hose & Couplers | Hose only | Hose only | Hose only | Hose only | Hose only | Hose only |
| Max PSI | 4,500 | 4,500 | 4,500 | 4,500 | 4,500 | 4,500 |
| Motor type | Piston | Piston | Piston | Piston | Piston | Piston |
| Estimated dealer set-up time | 6 hours | 6 hours | 6 hours | 8 hours | 9 hours | 7 hours |
| No. of blade clusters F2000(Standard) |
38 | 48 | 48 | 38 | 38 | - |
| No. of blade clusters F3000(Optional) |
76 | 96 | 96 | 76 | 76 | - |
| Shipping weight | 1775 lbs | 1900 lbs | 1750 lbs | 1650 lbs | 1800 lbs | 2050 lbs |
Motor options - brush size chart
Maximum Mowing Size
(Brush Diameter in Inches)
| MOTOR |
MOTOR TYPE |
CC |
CASE DRAIN |
IDEAL RPM |
BLADE STYLE |
PSI | 20 GPM | 25 GPM | 30 GPM | 35 GPM | 40 GPM |
|---|---|---|---|---|---|---|---|---|---|---|---|
| RPM | 1500 | 2000 | 2500 | 3000 | 3500 | ||||||
| D510 | Piston | 34 | Critical | 2200 | F2000 | 3000 3500 |
0.375" 0.5" |
0.5" 0.75" |
0.75" 0.75" |
N/A | N/A |
| D510 | Piston | 34 | Critical | 2200 | F3000 | 3000 3500 |
0.75" 1" |
1" 1" |
1" 1" |
N/A | N/A |
| MOTOR |
MOTOR TYPE |
CC |
CASE DRAIN |
IDEAL RPM |
BLADE STYLE |
PSI | 20 GPM | 25 GPM | 30 GPM | 35 GPM | 40 GPM |
|---|---|---|---|---|---|---|---|---|---|---|---|
| RPM | 1000 | 1500 | 1800 | 2100 | 2500 | ||||||
| D530 | Piston | 47 | Critical | 2100 | F2000 | 3000 3500 |
0.5" 0.75" |
0.75" 0.75" |
0.75" 0.75" |
0.75" 0.75" |
0.75" 0.75" |
| D530 | Piston | 47 | Critical | 2100 | F3000 | 3000 3500 |
1" 1" |
1" 1" |
1" 1" |
1" 1" |
1" 1" |
