Baumalight SWA750 Boom Mower For Skid Steers - BML-SWA750-HX550-JS4

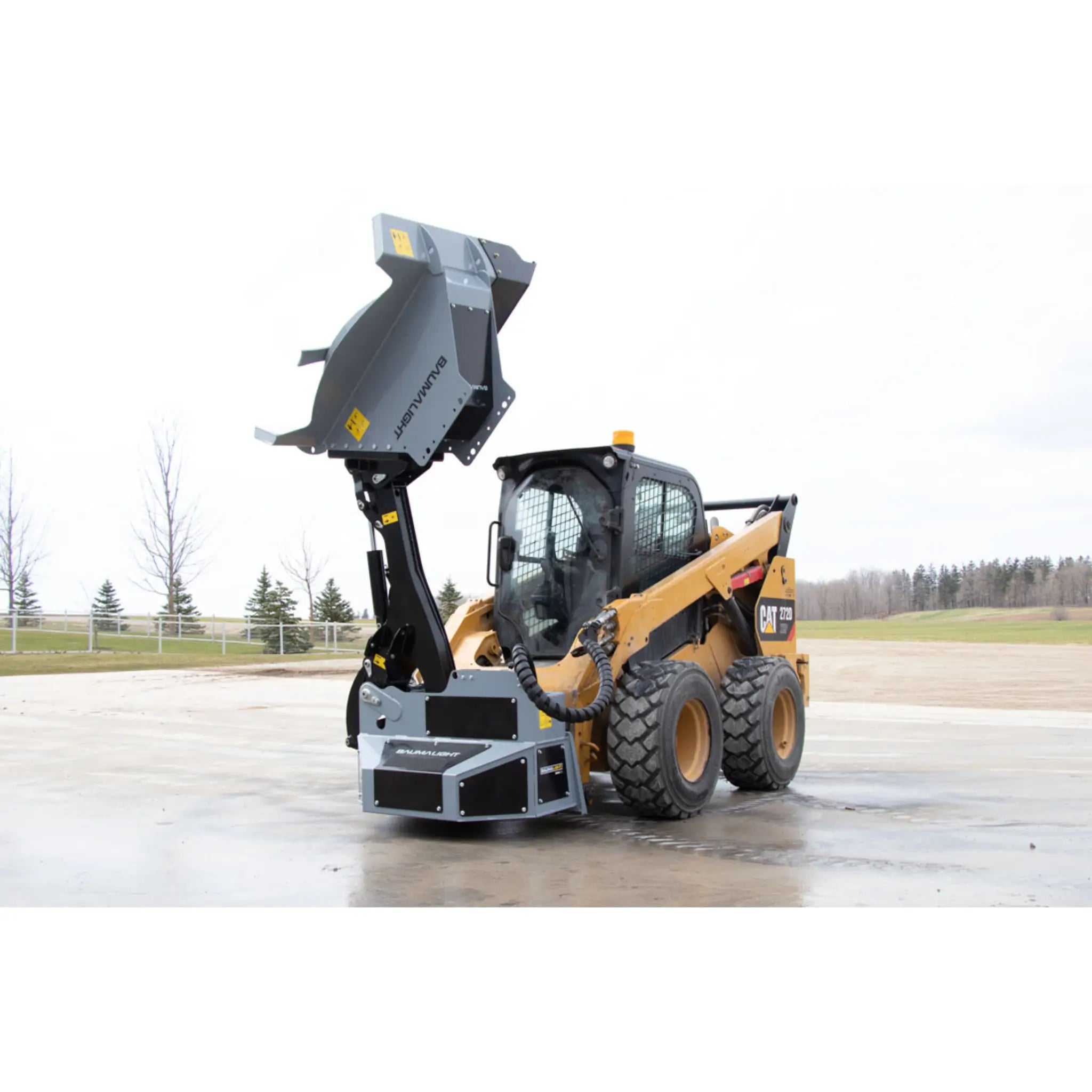

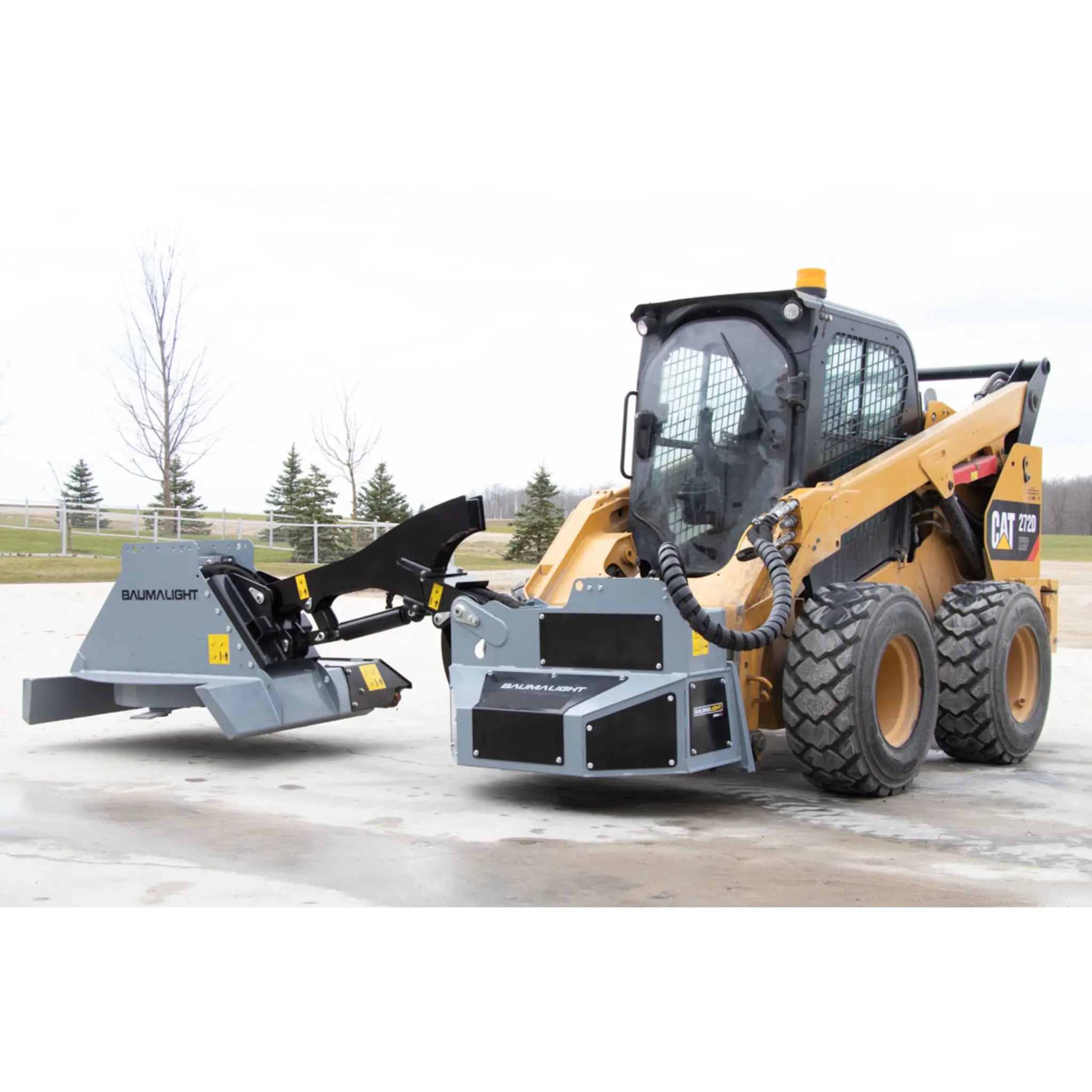

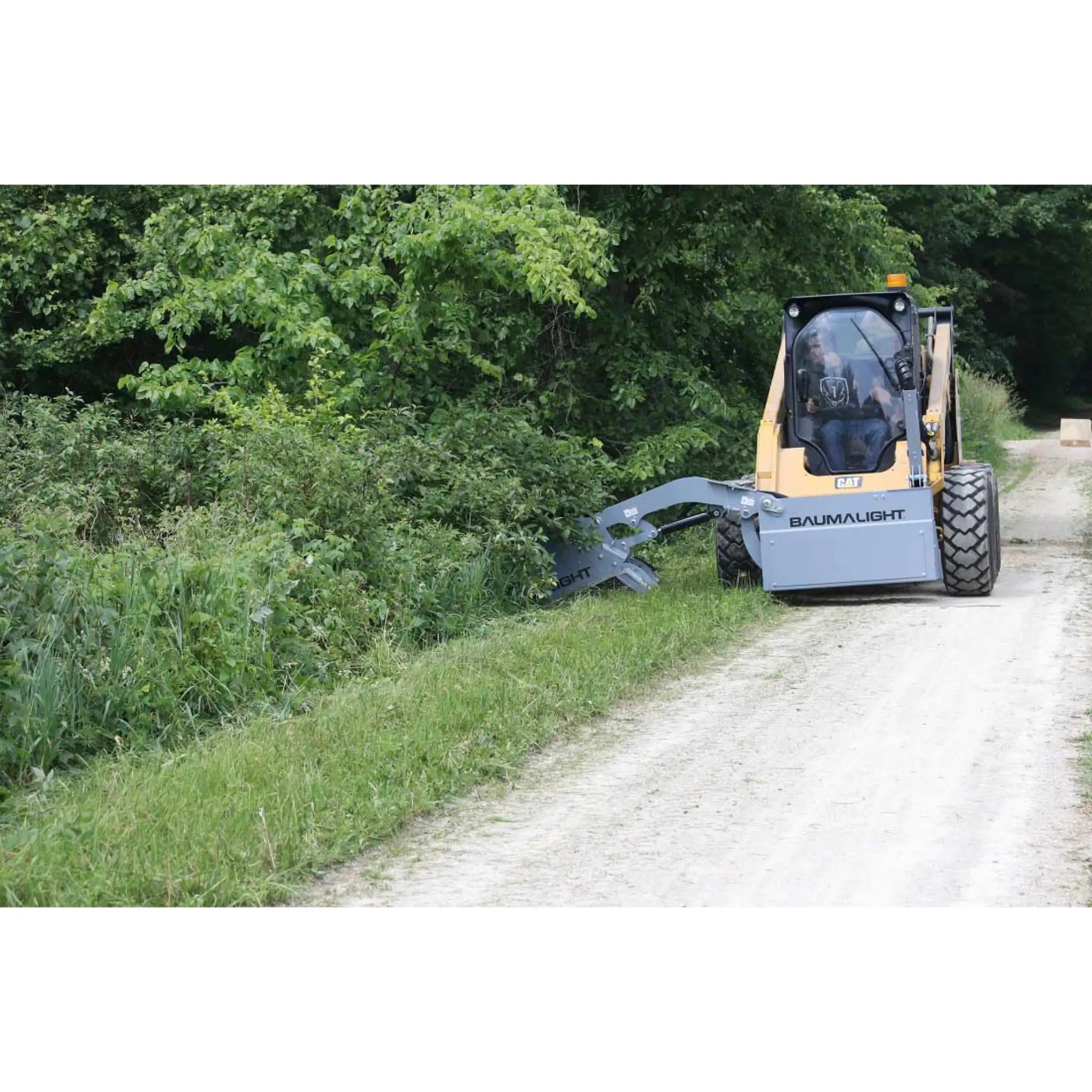

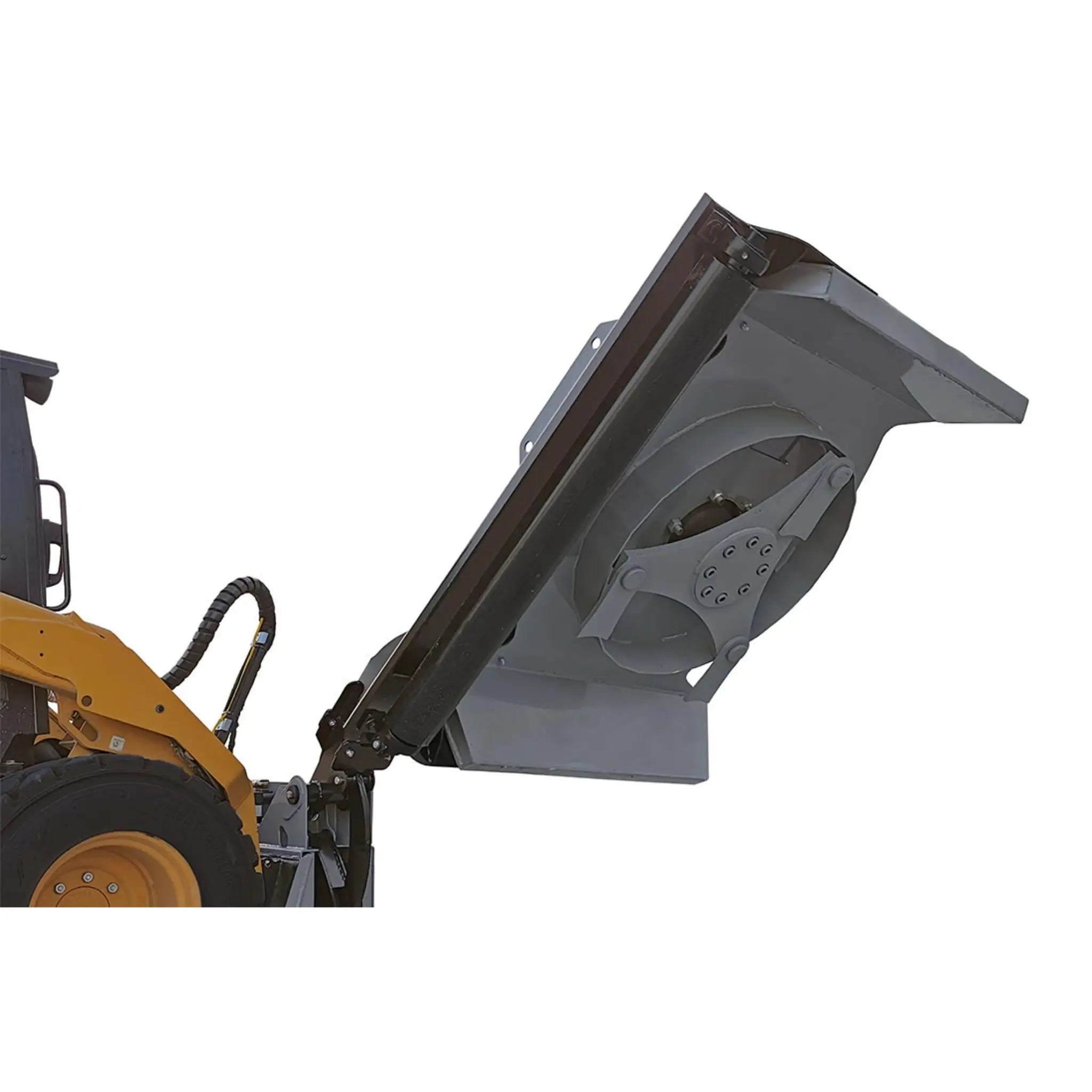

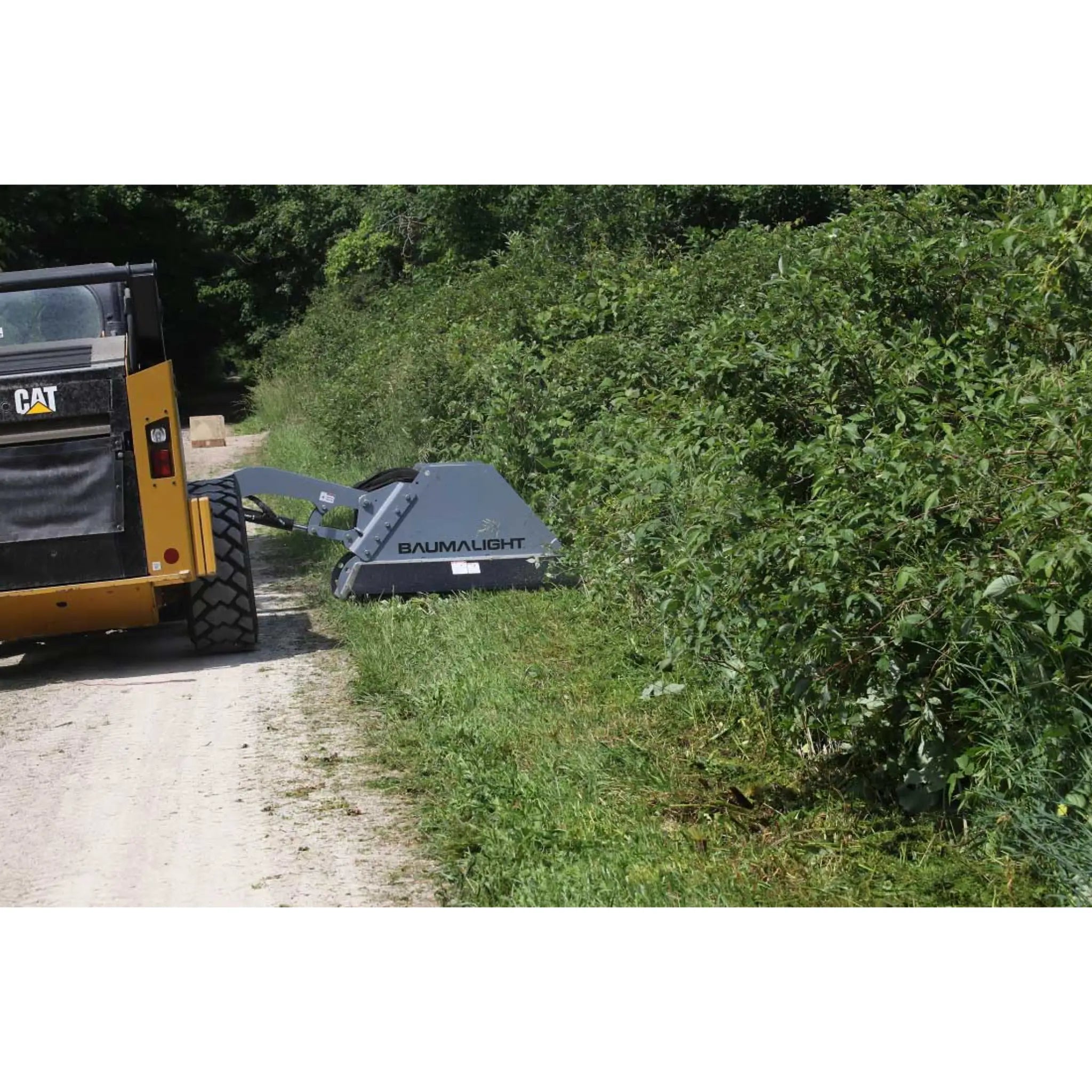

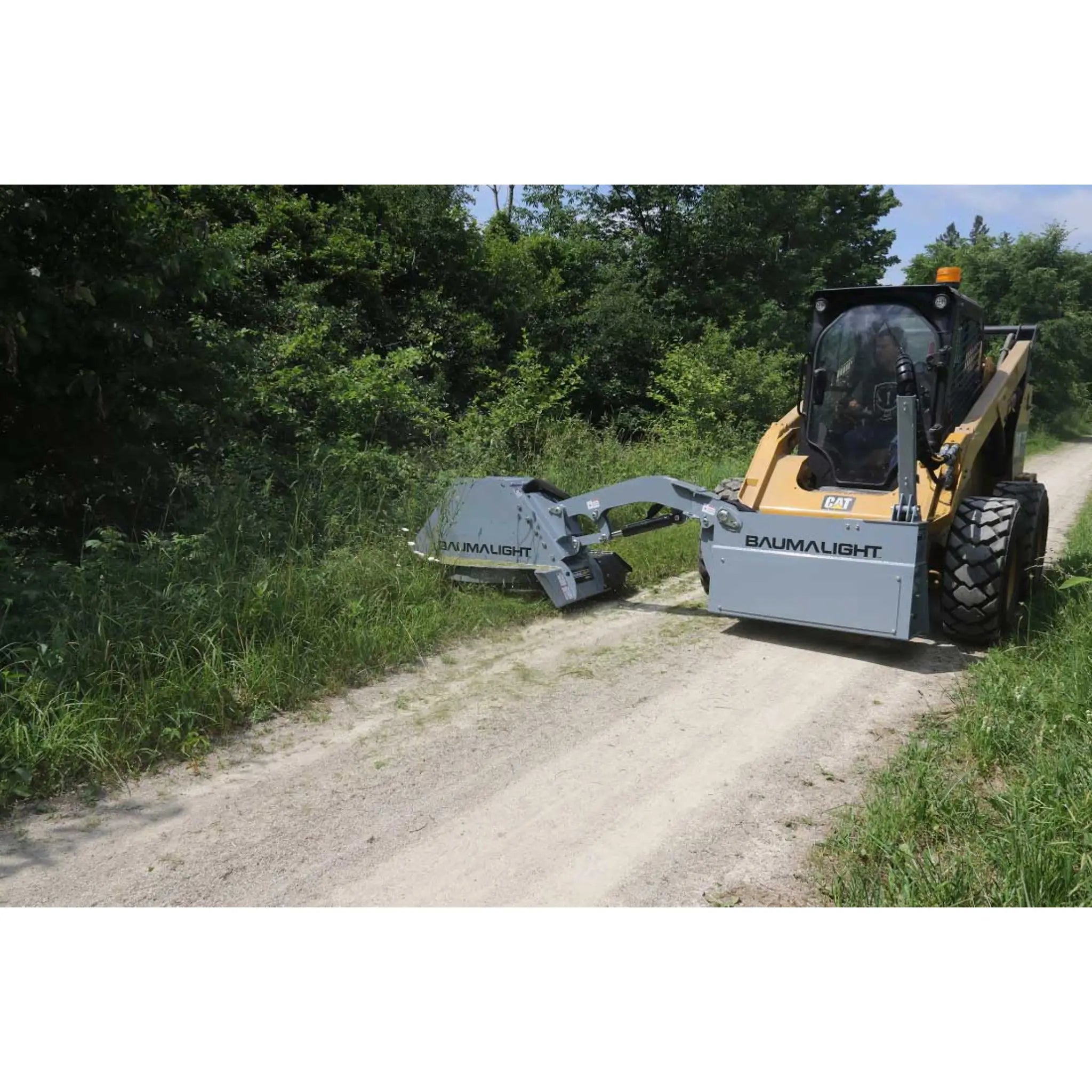

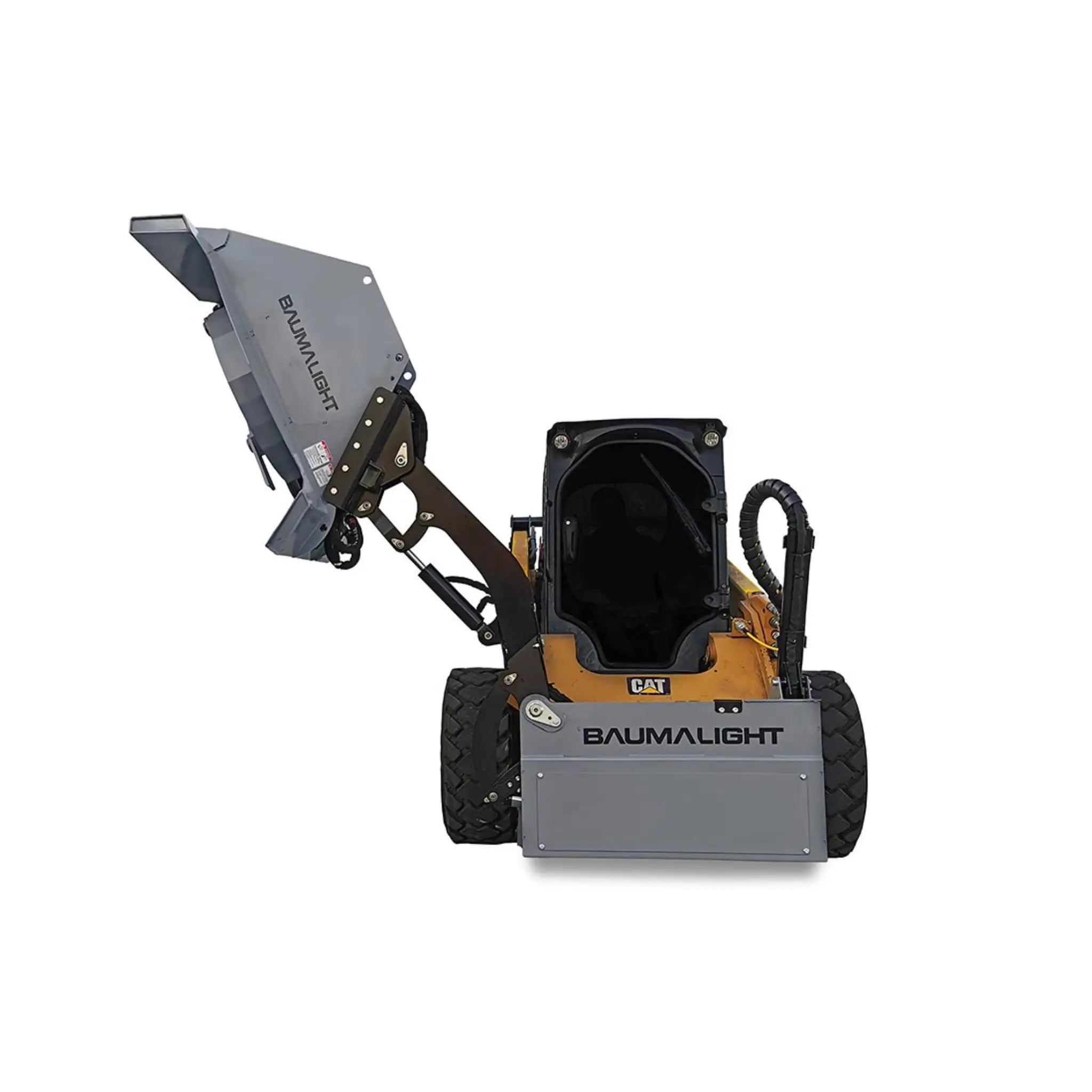

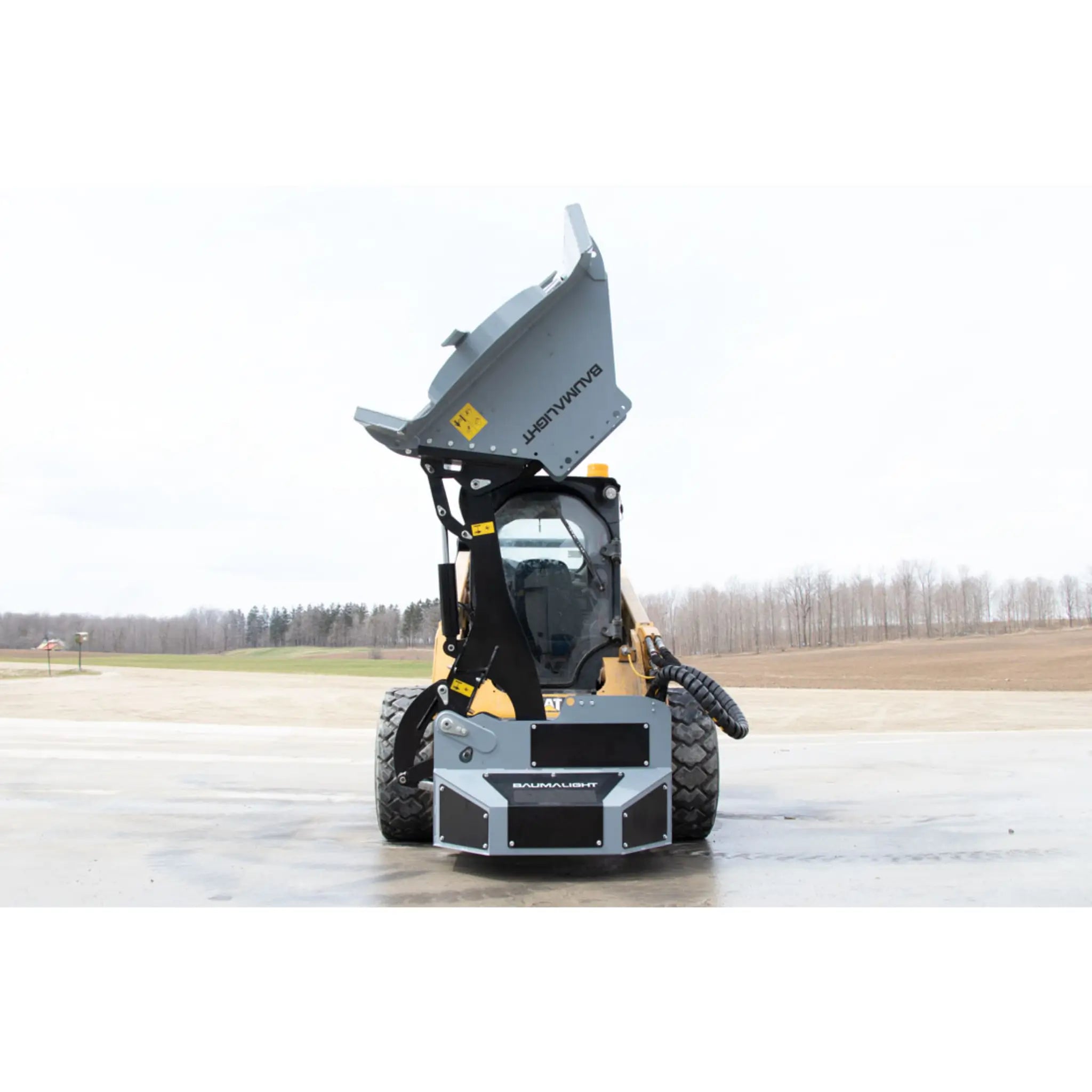

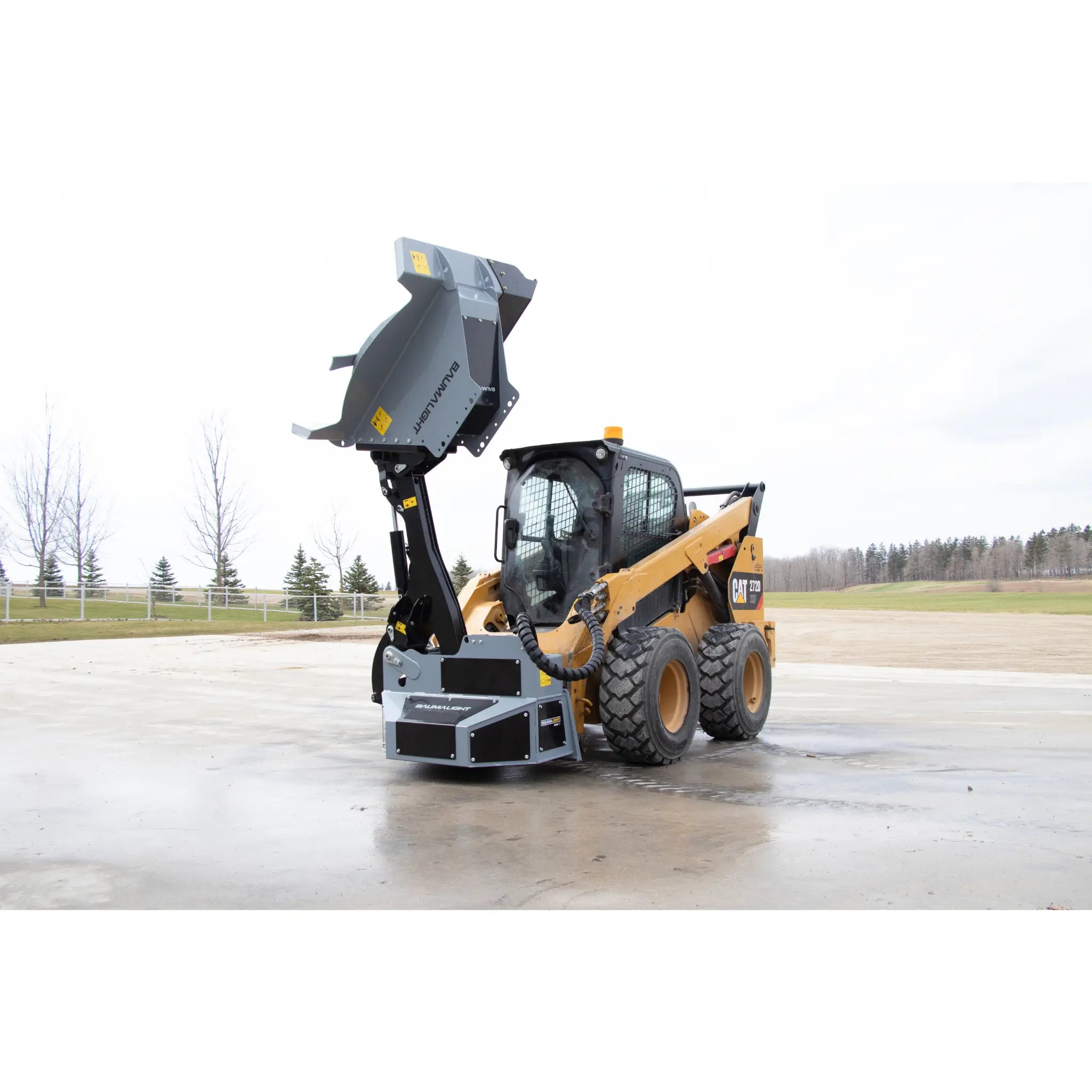

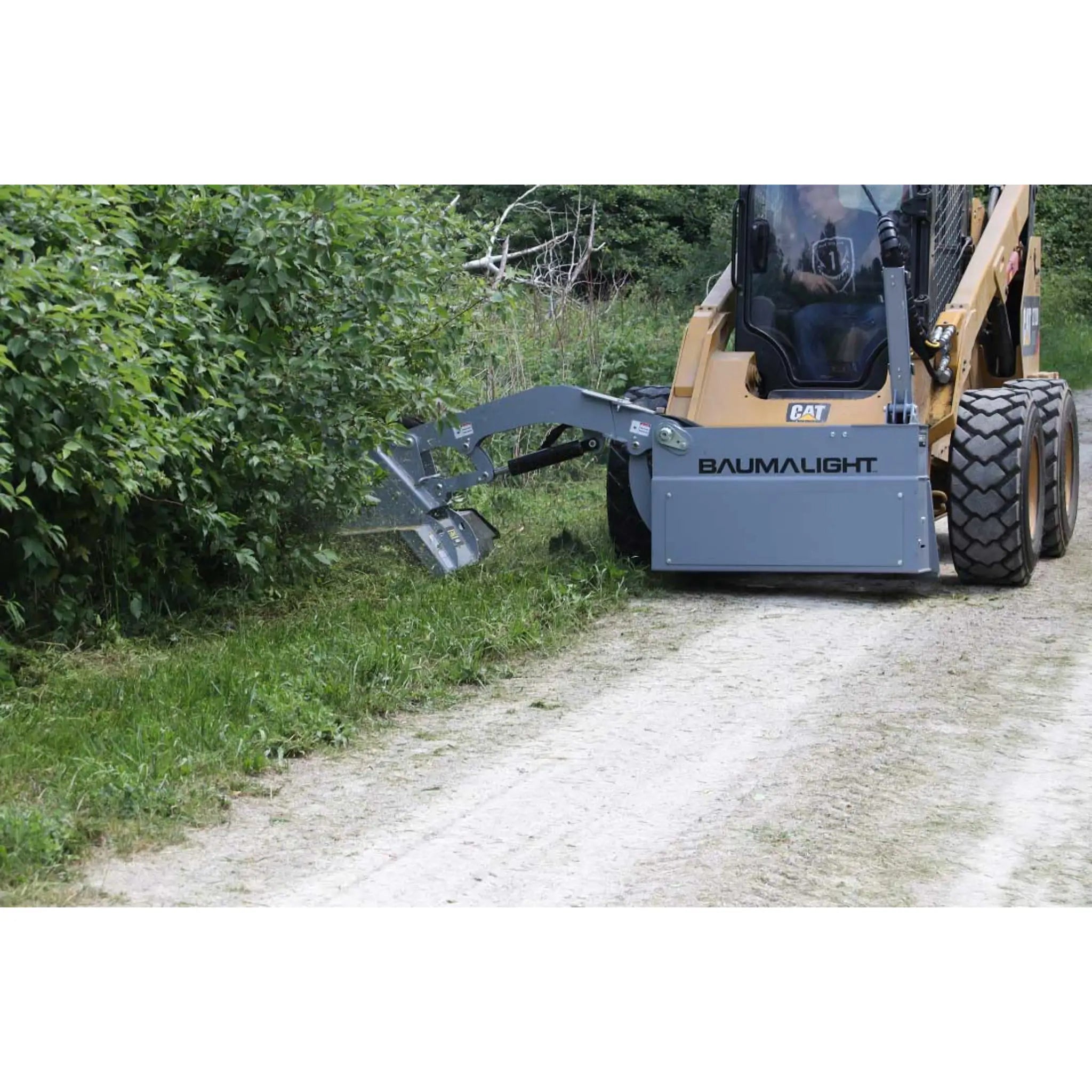

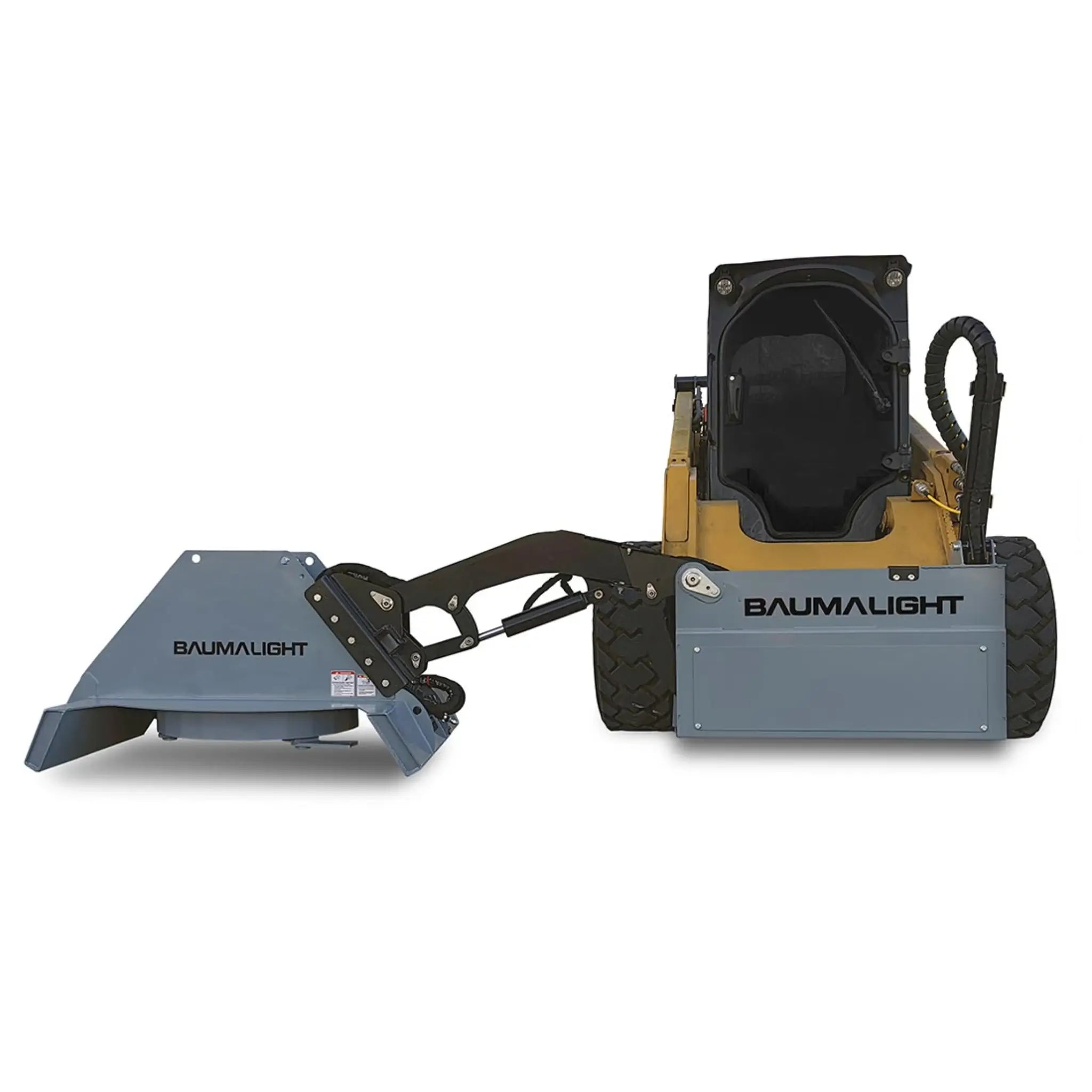

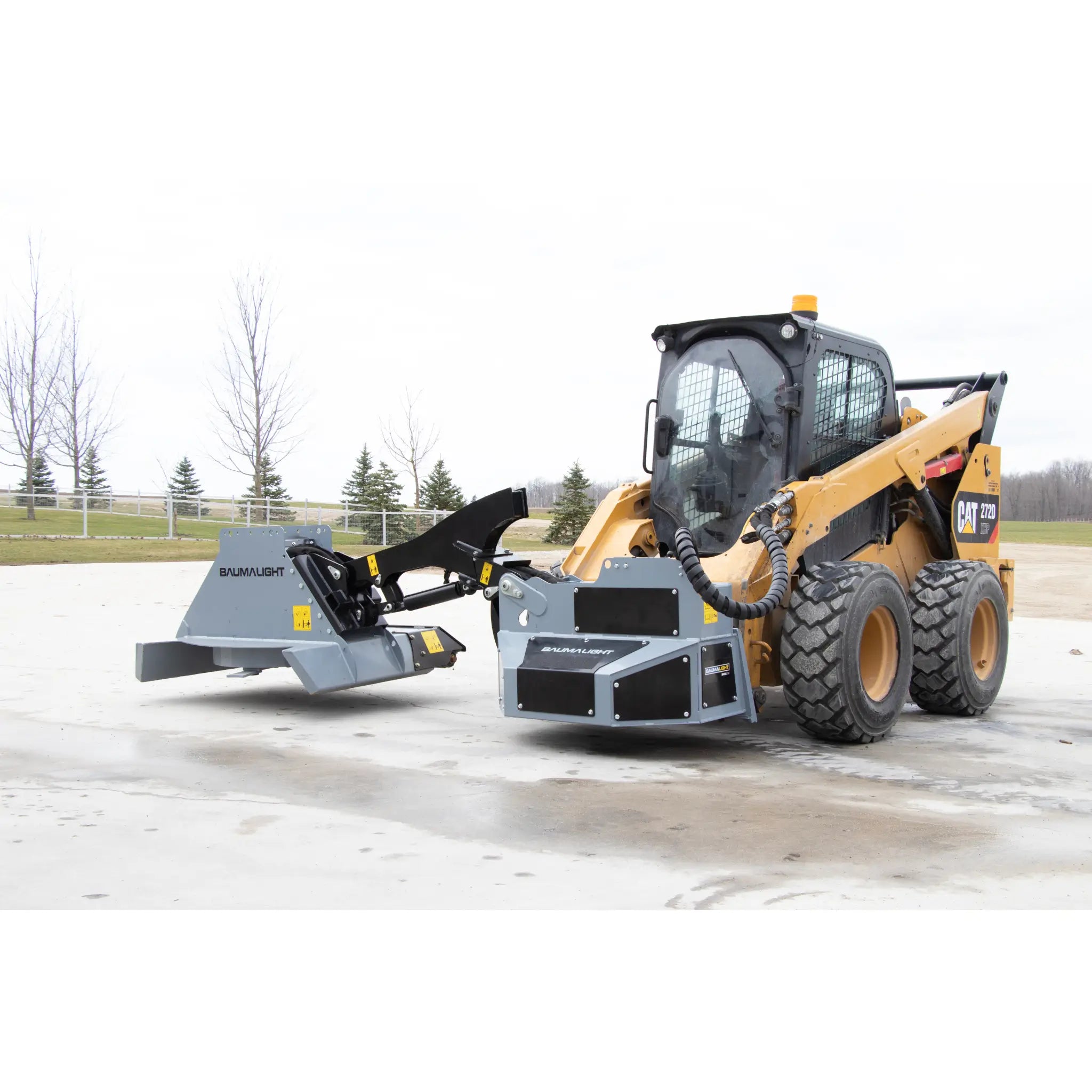

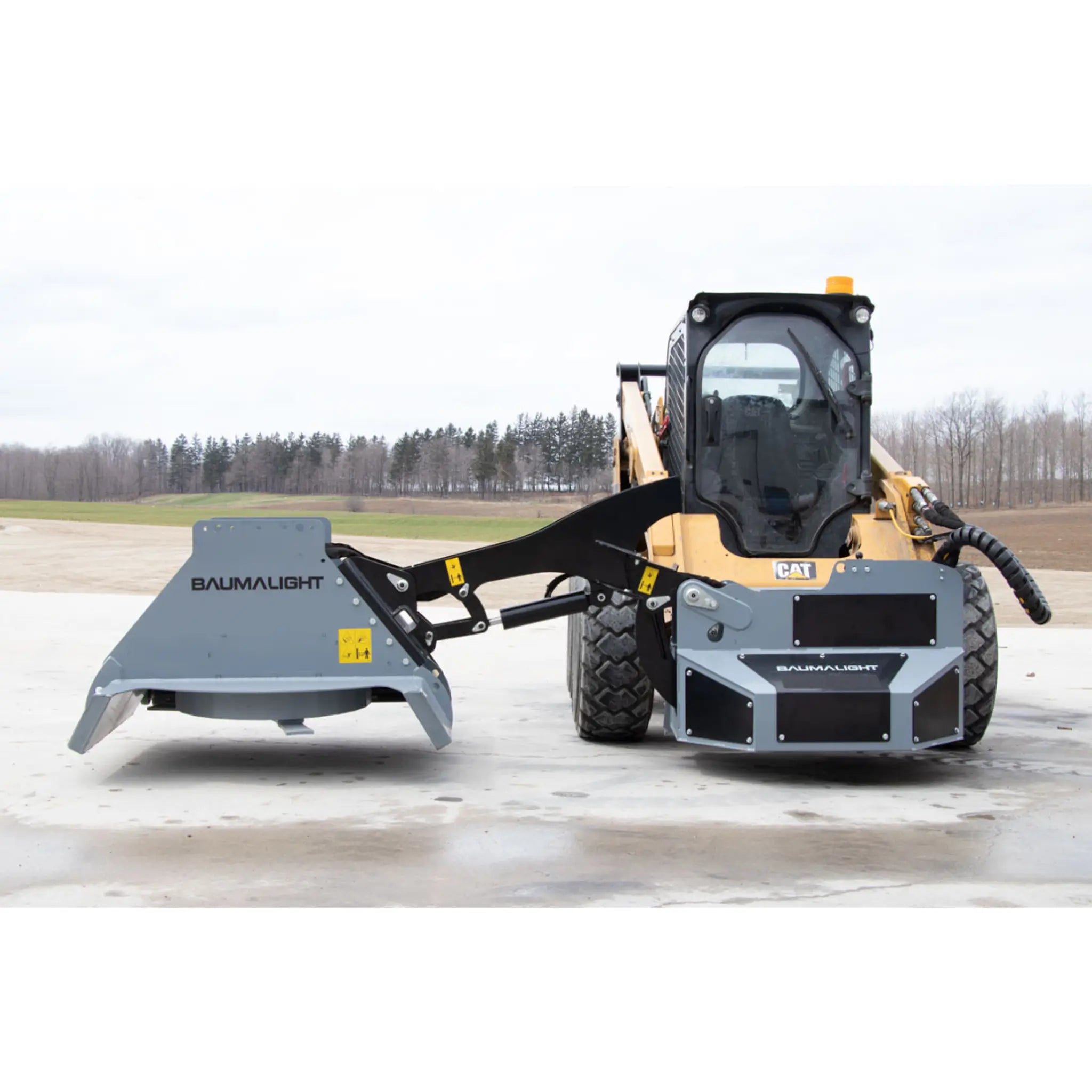

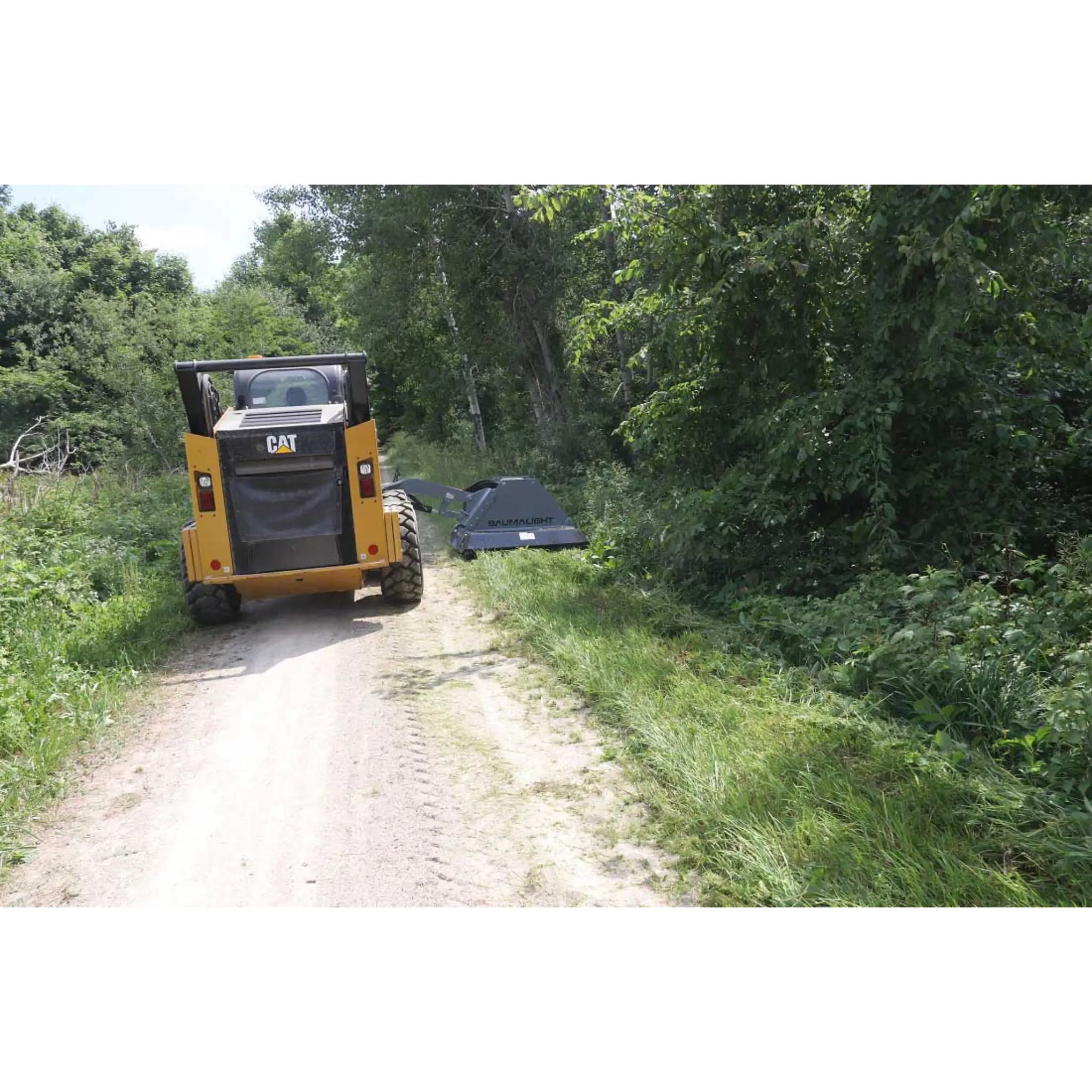

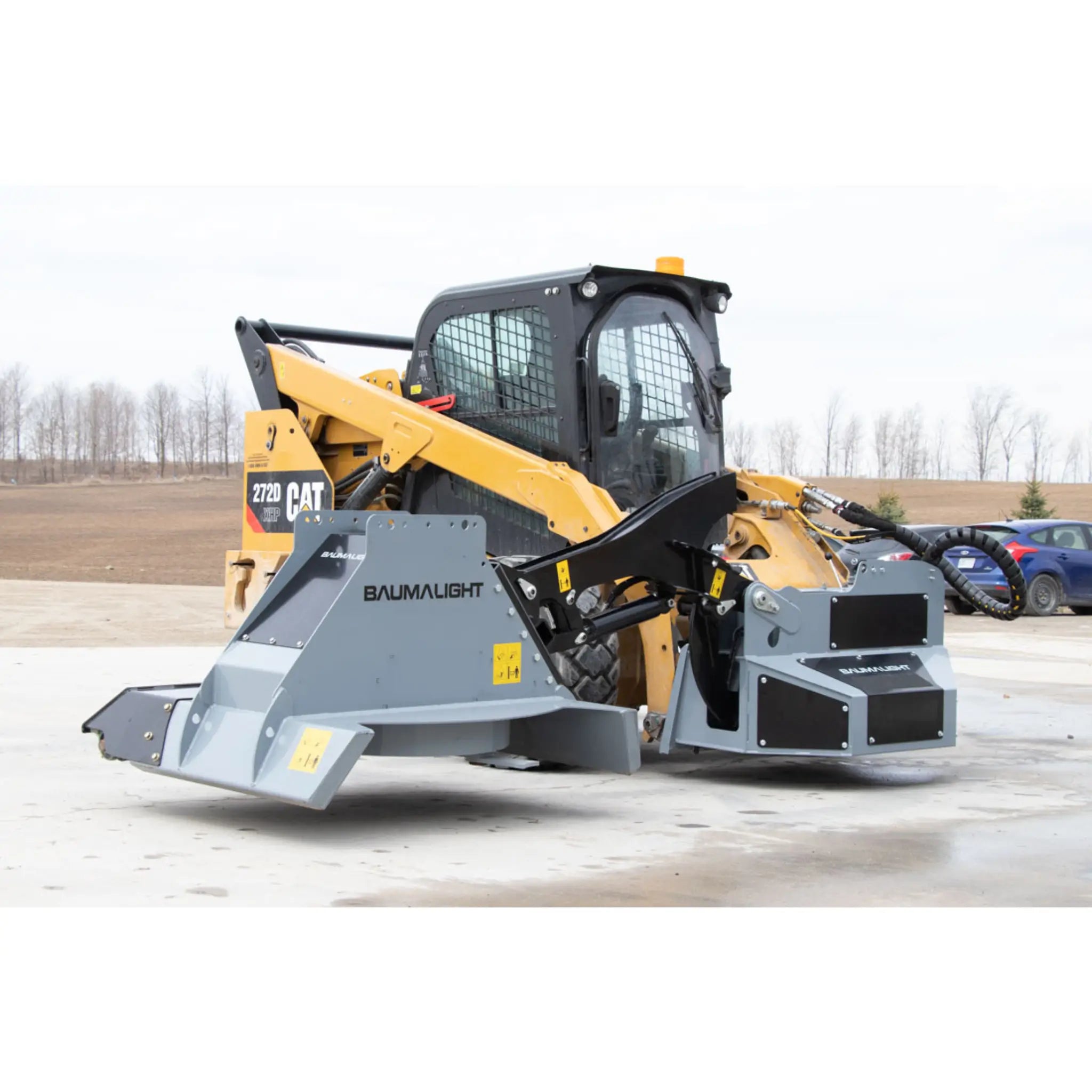

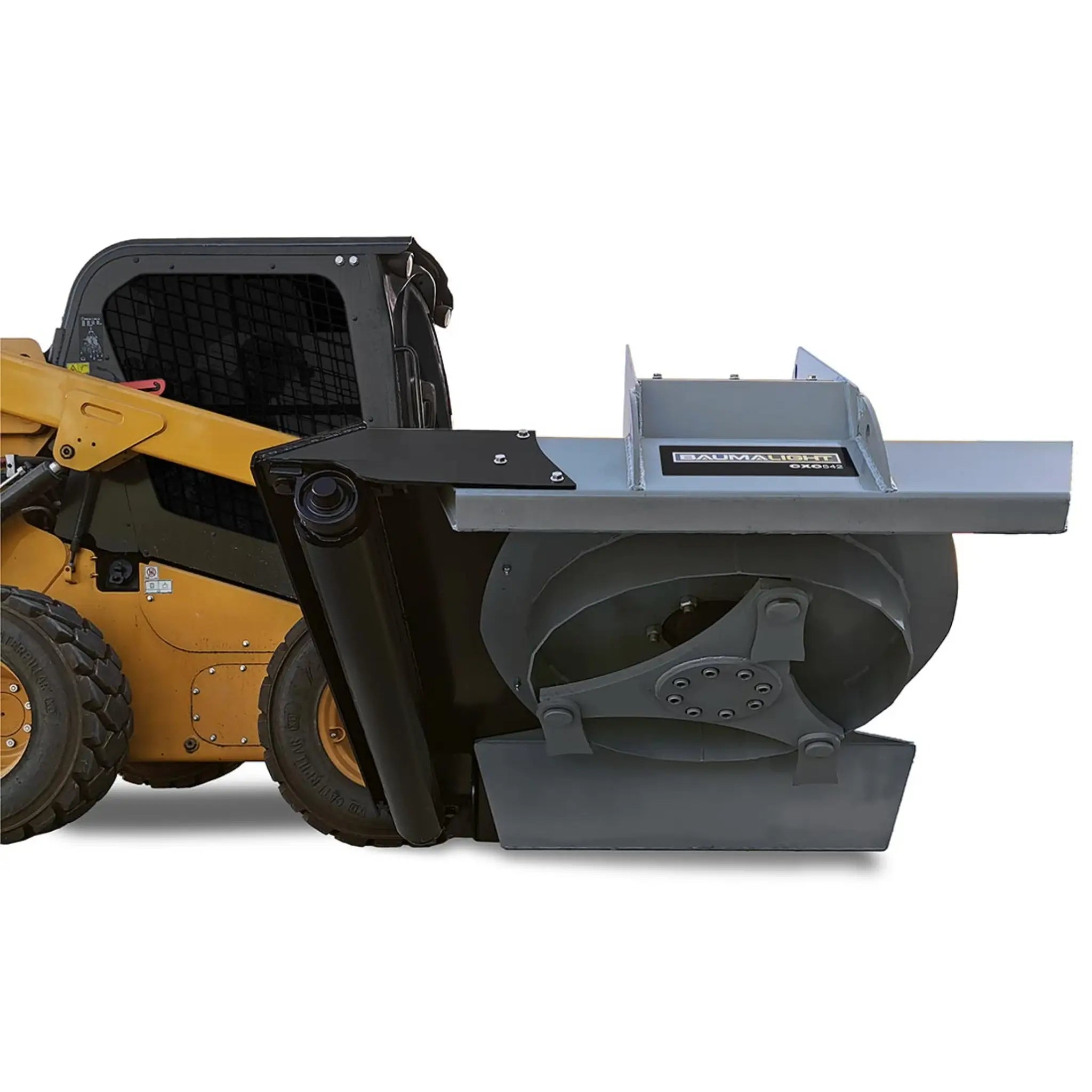

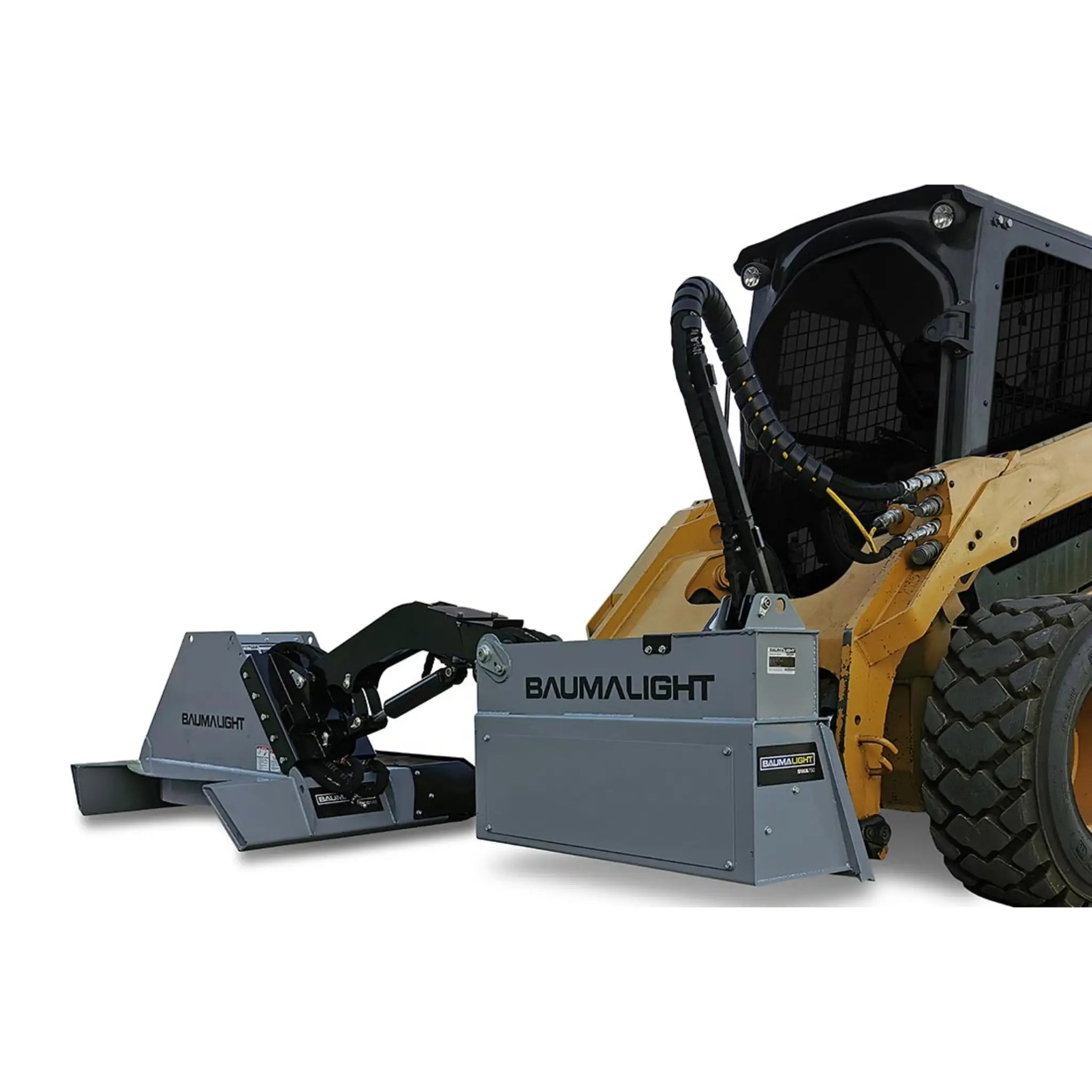

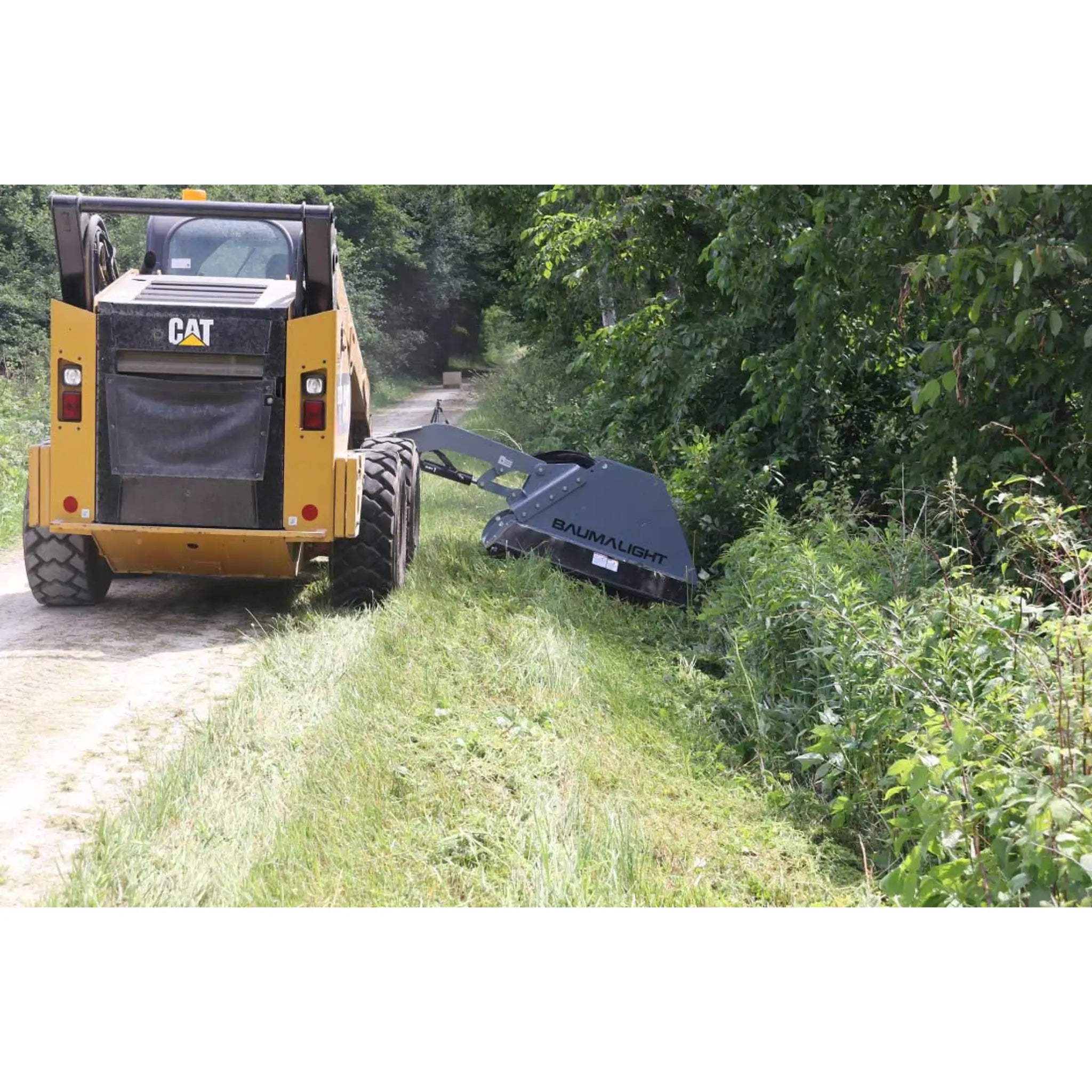

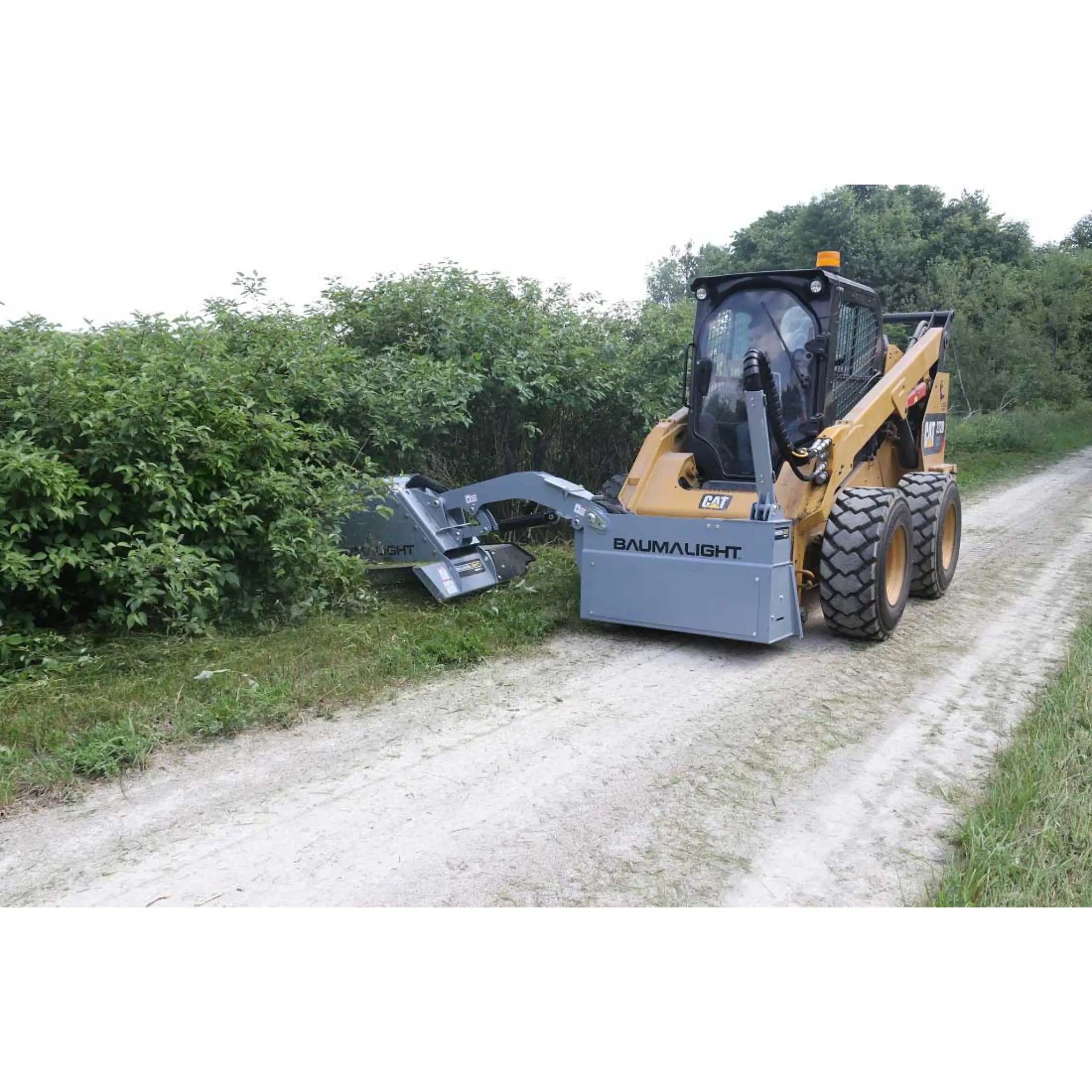

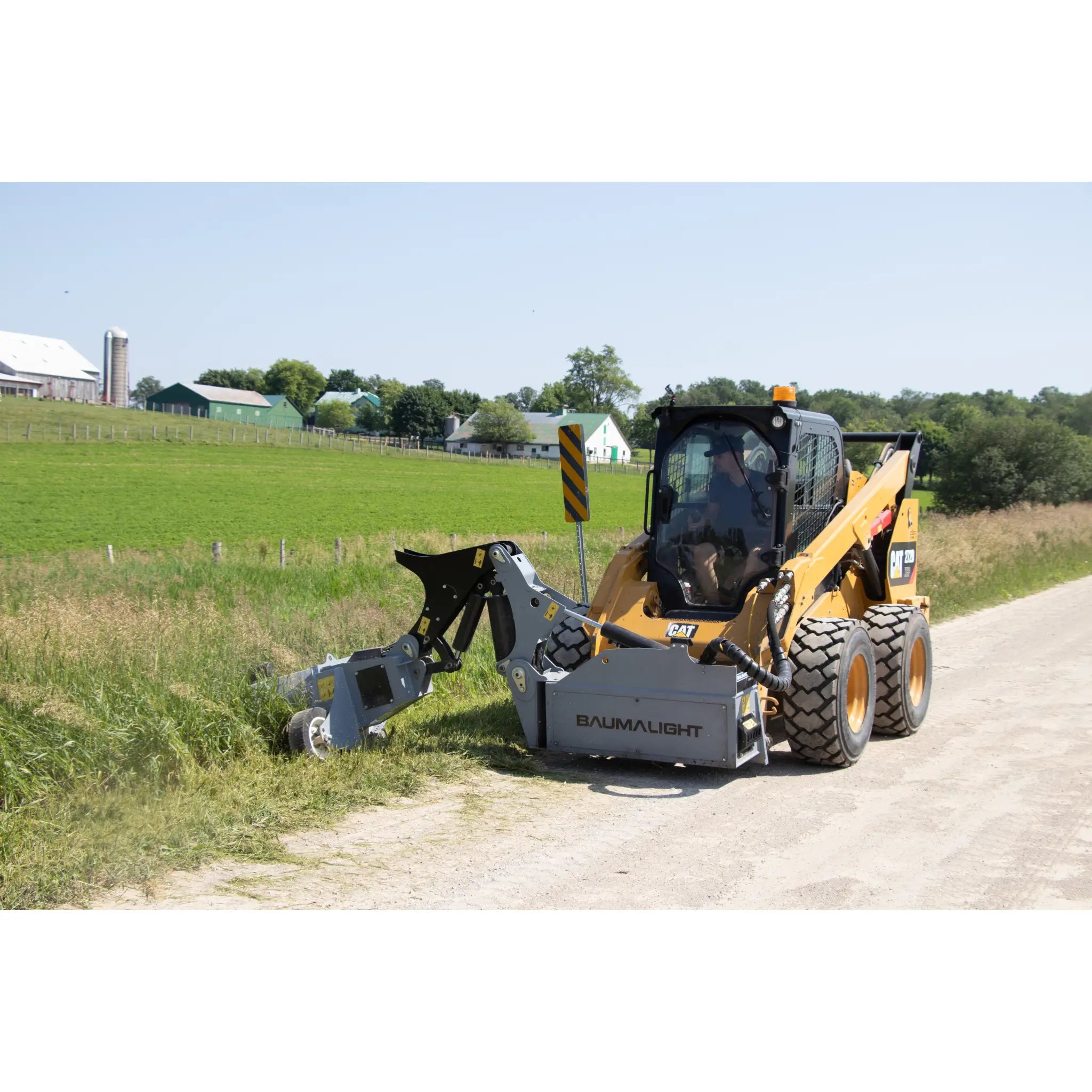

Simplify mowing ditches, roadsides, and fence lines with Baumalight's SWA750 Boom Mower for Skid steers. Featuring rotary cutting blades on a 42" wide adjustable height deck, this heavy-duty mower is designed for carriers weighing at least 8,000 lbs. The 7-foot curved single-arm boom provides easy access and conveniently folds up for better transport clearance.

Specifications

Model No.	SWA540	SWA550	SWA560	SWF560	SWF580	SWA750
Total reach when flat	6 ft	7 ft	10 ft	10 ft	14 ft	7 ft
Cutting Width	48"	60"	60"	48"	48"	42"
Boom Type	Single Arm	Single Arm	Single Arm	Boom & Stick	Boom & Stick	Single Arm
Type of Blades	Flail	Flail	Flail	Flail	Flail	Rotary cutter
Minimum Skidsteer weight Warning; not applicable to wheel loaders	4,500 lbs	5,000 lbs	5,500 lbs	6,000 lbs	8,000 lbs	8,000 lbs
Maximum Skidsteer weight	10,500 lbs	11,000 lbs	12,000 lbs	12,000 lbs	16,000 lbs	12,000 lbs
Hydraulic Hose & Couplers	Hose only	Hose only	Hose only	Hose only	Hose only	Hose only
Max PSI	4,500	4,500	4,500	4,500	4,500	4,500
Motor type	Piston	Piston	Piston	Piston	Piston	Piston
Estimated dealer set-up time	6 hours	6 hours	6 hours	8 hours	9 hours	7 hours
No. of blade clusters F2000(Standard)	38	48	48	38	38	-
No. of blade clusters F3000(Optional)	76	96	96	76	76	-
Shipping weight	1775 lbs	1900 lbs	1750 lbs	1650 lbs	1800 lbs	2050 lbs

Motor options - brush size chart

MOTOR	MOTOR TYPE	CC	CASE DRAIN	IDEAL RPM	PSI	20 GPM	25 GPM	30 GPM	35 GPM	40 GPM
RPM						800	1100	1350
HX550	Piston	64	Critical	1400	3000 3500 4000	3.5" 4" 4.25"	3.75" 4.25" 4.5"	4" 4.5" 4.75"	- -	- -
RPM							850	1000	1200	1450
HX570	Piston	84	Critical	1200	3000 3500 4000	- - -	4" 4.5" 4.75"	4.5" 5" 5.5"	5" 5.5" 6"	5.5" 6" 7"
