BK Resources UBDW-18-IBCP48-8 Bar Equipment - UBDW-18-IBCP48-8
Model UBDW-18-IBCP48-8 • NSF Listed

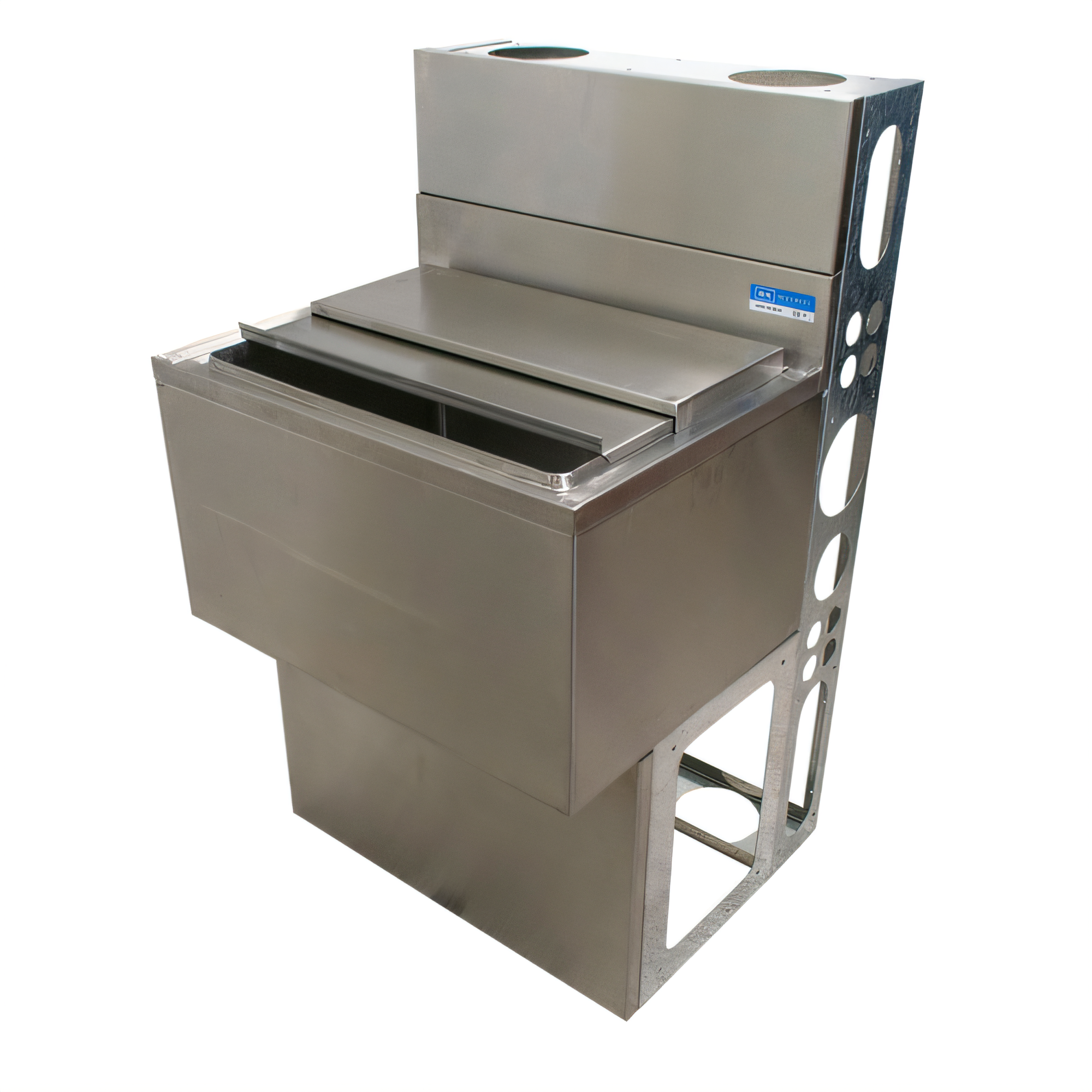

Keep cocktails, soft drinks, and service moving at peak speed. This insulated underbar ice bin pairs a generous 140 lb ice capacity with an integrated 8-circuit aluminum cold plate, so you can chill eight beverage lines while holding plenty of crystal-clear ice for mixing.
Features
-
8-Circuit Cold Plate – Cast aluminum plate keeps up to eight soda or cocktail lines ice-cold, eliminating the need for a separate chiller.
-
Massive 140 lb Capacity – 43" x 15" bin interior with a deep 12-9/16" well stores plenty of ice for busy shifts.
-
18 ga 304 Stainless Steel – Food-grade, corrosion-resistant construction with a #4 polished finish stands up to heavy bar use.
-
4" Backsplash – Helps contain splashes and protects walls from water damage.
-
Stainless Steel Sliding Lids – Keep ice sanitary and accessible.
-
Adjustable Feet – High-impact, corrosion-resistant feet level the unit quickly on uneven floors.
-
Die Wall & Base – Adds structural strength for long-term durability.
-
NSF Certified – Meets strict public-health standards for sanitation.
- Full insulation around the ice well minimizes melt-off and reduces ice purchases.
- Standard 41" overall height with a 30" work height integrates seamlessly with other BK Resources underbar components.
- Seam-welded interior is easy to wipe down and sanitize at closing time.
Specifications
| Part Number |
UBDW-18-IBCP48-8 |
| Ice Bin Capacity |
Approx. 140 lb |
| Cold Plate |
8-Circuit, cast aluminum (integrated) |
| Interior Bin Dimensions |
43" L × 15" W × 12-9/16" D |
| Overall Unit Dimensions |
48" L × 23 3/4" W × 41" H |
| Work Height |
30" |
| Backsplash Height |
4" |
| Construction |
18 ga Type 304 stainless steel with #4 finish |
| Lids |
Stainless steel sliding covers (included) |
| Feet |
(4) adjustable, high-impact, corrosion-resistant |
What our Experts Think
-
High‑Capacity Ice Storage
48″ underbar ice bin holds approximately 140 lb of ice, ideal for busy bars and high-volume beverage service.
-
Integrated Cooling
Features an 8‑circuit aluminum cold plate to chill multiple beverage lines simultaneously, keeping drinks cold and speeding up service.
-
Commercial-Grade Stainless Steel
Made with 18 gauge Type‑304 stainless steel and a polished finish for durability and corrosion resistance in demanding environments.
-
Splash Control & Hygiene
4″ backsplash helps contain splashes; interior design allows for easy cleaning and supports NSF-compliant sanitation.
-
User-Friendly Features
Sliding stainless steel lids maintain ice cleanliness, and adjustable feet provide stability on uneven surfaces.
Q&A
Q: What is the UBDW‑18‑IBCP48‑8?
A: A professional underbar ice bin with an integrated 8‑circuit cold plate for efficient ice storage and chilled beverage service.
Q: Who is this product for?
A: Bar owners, restaurant operators, and hospitality professionals needing reliable, high-capacity ice storage at the bar.
Q: What does the 8‑circuit cold plate do?
A: It keeps ice and drink lines chilled directly, maintaining beverage temperature without a separate refrigeration unit.
Q: How does it improve bar service?
A: Provides immediate access to ice and chilled lines, helping bartenders serve quickly and consistently during busy periods.
Q: Is it suitable for commercial use?
A: Yes — designed for professional bar, restaurant, and catering operations with durable construction.
Q: Where is it installed?
A: Fits beneath bar counters in underbar setups for space-efficient ice access and beverage preparation.
Maintenance Tips
-
Daily cleaning: Wipe surfaces with mild detergent and warm water after each use.
-
Sanitization: Use a food-safe sanitizer regularly to prevent bacteria buildup.
-
Avoid abrasives: Clean with soft cloths or sponges to protect finishes.
-
Inspect components: Check for leaks, loose fittings, or worn parts.
-
Proper storage: Dry thoroughly to prevent corrosion and maintain appearance.
