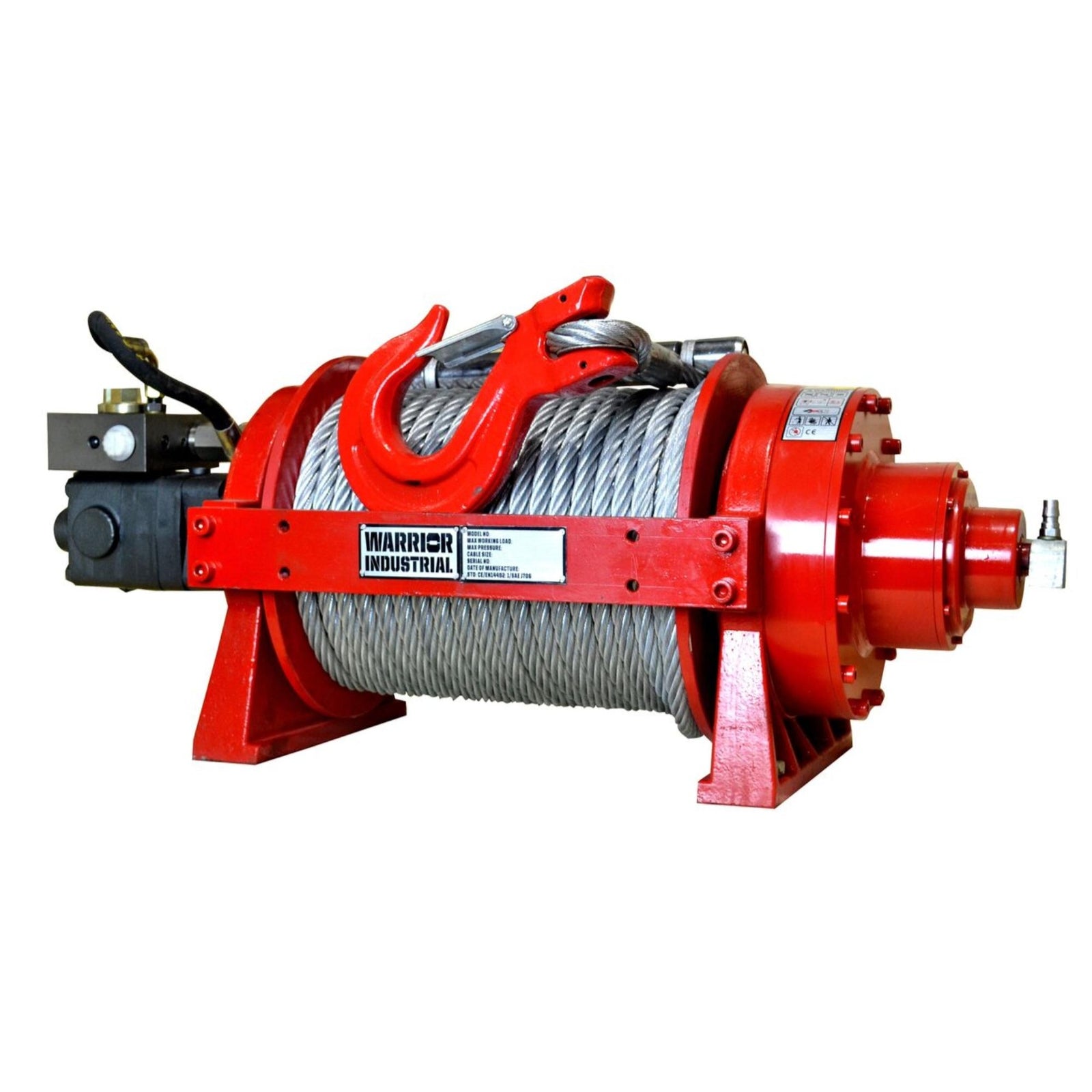

DK2 22,000LB JP Hydraulic Winch

Regular price ~~$4,106.26~~ $3,859.99 Sale

DK2 22,000LB JP HYRDAULIC WINCH

THE JP SERIES WINCHES HAVE BEEN DEVELOPED FOR THE PROFESSIONAL OPERATOR.

BUILT SPECIFICALLY FOR MILITARY USE & ABLE TO WITHSTAND EXTREME CLIMATES AND TEMPERATURES.

These winches have been designed to ensure that as a part of an installation solution they can meet the requirements of EN 14492 : 1. Superb heavy duty winches supplied complete with balance valve, cable and heavy duty tensioner. Standard features include air operated clutch, high precision 2 stage planetary gearing and a rugged high torque motor. The ultimate winch for heavy recovery and commercial applications.

Features

Rugged high torque motor
2 stage planetary gearing
Complete with balance valve
Air operated freespool
Rugged and compact for long life
Heavy duty steel cast frame
Rope and tensioner as standard

Specification

ITEM NUMBER
10TJP

RATED LINE PULL
22000 LBS (10000 KG)

GEARING
39:1

BRAKING ACTION
AUTO HYDRAULIC

DRUM SIZE - DIAMETER x LENGTH
138 x 316mm (5.42 x 12.44')

CABLE - DIAMETER x LENGTH
15mm x 48m (0.59' x 157')

DIMENSIONS
830 x 390 x 320mm (32.6 x 15.3 x 12.6')

MOUNTING PATTERN
431 x 64 / 192mm (16.9 x 2.5 / 7.5')

WEIGHT
165 KG (363 LBS)

CERTIFICATION
CE CERTIFIED




LAYER OF ROPE / CABLE
LINE PULL: LBS (KGS)

1
22046 (10000)

2
16889 (7661)

3
14615 (6630)

4
12881 (5843)




LINE PULL: LBS (KGS)
LINE SPEED FT/MIN (M/MIN)
FLOW L/MIN • PRESSURE MPA

0
5.9 (1.8)
15 • 25

4000 (1814)
11.7 (3.6)
30 • 42

8000 (3629)
19.6 (6.0)
50 • 85

15000 (6804)
23.6 (7.2)
60 • 140

22046 (10000)
29.7 (9.0)
75 • 175

ITEM NUMBER	10TJP
RATED LINE PULL	22000 LBS (10000 KG)
GEARING	39:1
BRAKING ACTION	AUTO HYDRAULIC
DRUM SIZE - DIAMETER x LENGTH	138 x 316mm (5.42 x 12.44')
CABLE - DIAMETER x LENGTH	15mm x 48m (0.59' x 157')
DIMENSIONS	830 x 390 x 320mm (32.6 x 15.3 x 12.6')
MOUNTING PATTERN	431 x 64 / 192mm (16.9 x 2.5 / 7.5')
WEIGHT	165 KG (363 LBS)
CERTIFICATION	CE CERTIFIED

LAYER OF ROPE / CABLE	LINE PULL: LBS (KGS)
1	22046 (10000)
2	16889 (7661)
3	14615 (6630)
4	12881 (5843)

LINE PULL: LBS (KGS)	LINE SPEED FT/MIN (M/MIN)	FLOW L/MIN • PRESSURE MPA
0	5.9 (1.8)	15 • 25
4000 (1814)	11.7 (3.6)	30 • 42
8000 (3629)	19.6 (6.0)	50 • 85
15000 (6804)	23.6 (7.2)	60 • 140
22046 (10000)	29.7 (9.0)	75 • 175

Manual

Manual Instruction

Technical Diagram

Brochure
