DK2 5FT X 7FT Single Axle Utility Trailer Kit - Galvanized

Regular price ~~$1,799.99~~ $1,691.99 Sale

DK2 5FT X 7FT SINGLE AXLE UTILITY TRAILER KIT - GALVANIZED

THE DK2 MMT5X7 GALVANIZED SINGLE AXLE MULTI-UTILITY TRAILER IS ONE OF THE MOST VERSATILE TRAILERS ON THE MARKET.

Sitting on a solid square tube cambered axle with 12 inch. 6 ply bias tires, and a load capacity of 1,639lb. When the front and back load-bearing gates are down, the trailer bed extends to nearly 11.58 ft. Another great feature is the tilt/dump capability that makes it easy to load or unload heavy items. Fabricated from 100% steel, all of the components are reinforced, adjustable, removable and / or interchangeable.

DK2 MANUFACTURES THE MOST IDEAL, EVERYDAY MULTI-UTILITY TRAILERS.

Single axle, multi-utility trailer is one of the most versatile trailers on the market
Sits on a solid square, tube cambered axle with 30.5 cm (12”), 6 ply bias tires
Load capacity of 1,639 lb (743.4 kg)
When the front and back load-bearing gates are down, trailer bed extends to nearly 3.5 m (11.58 ft)

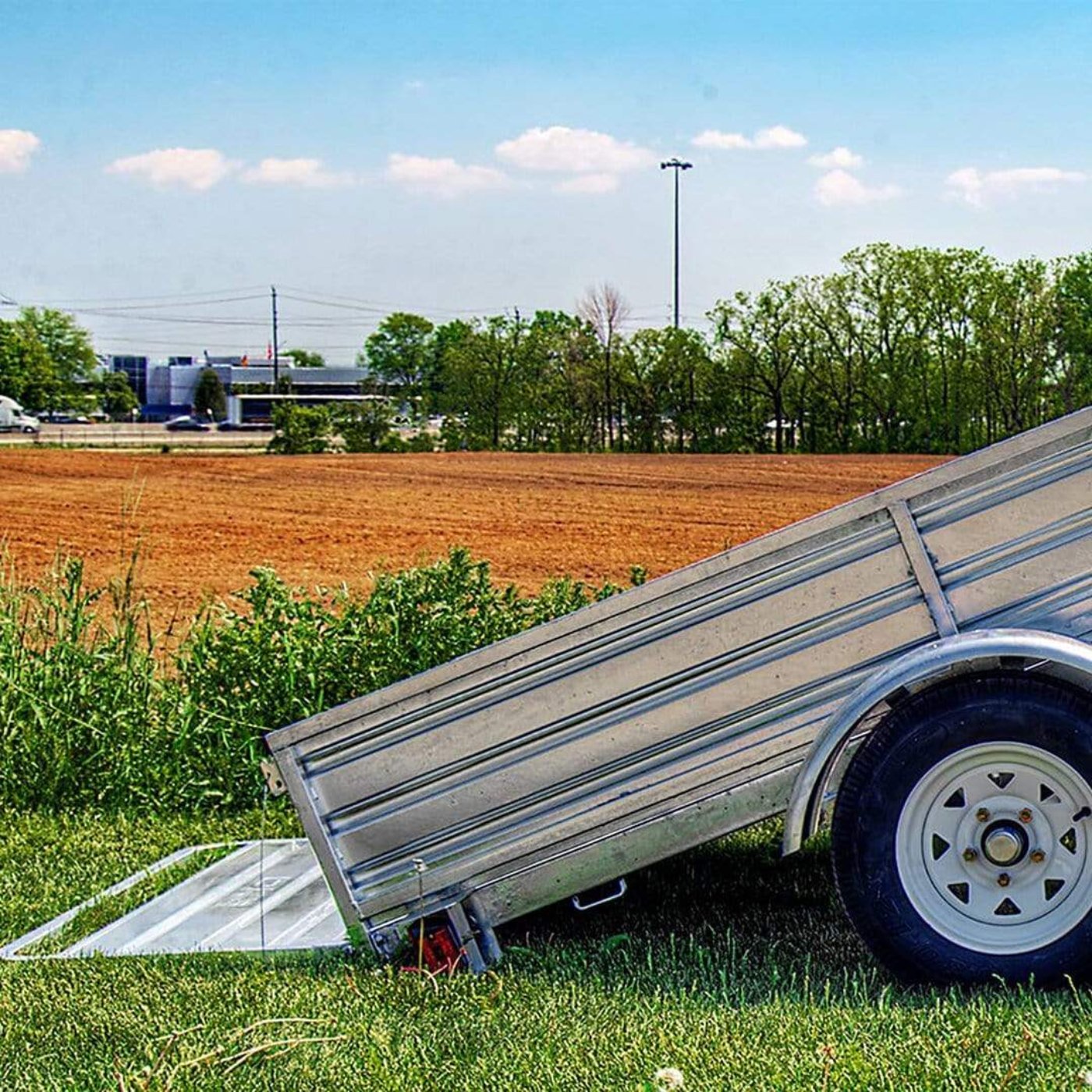

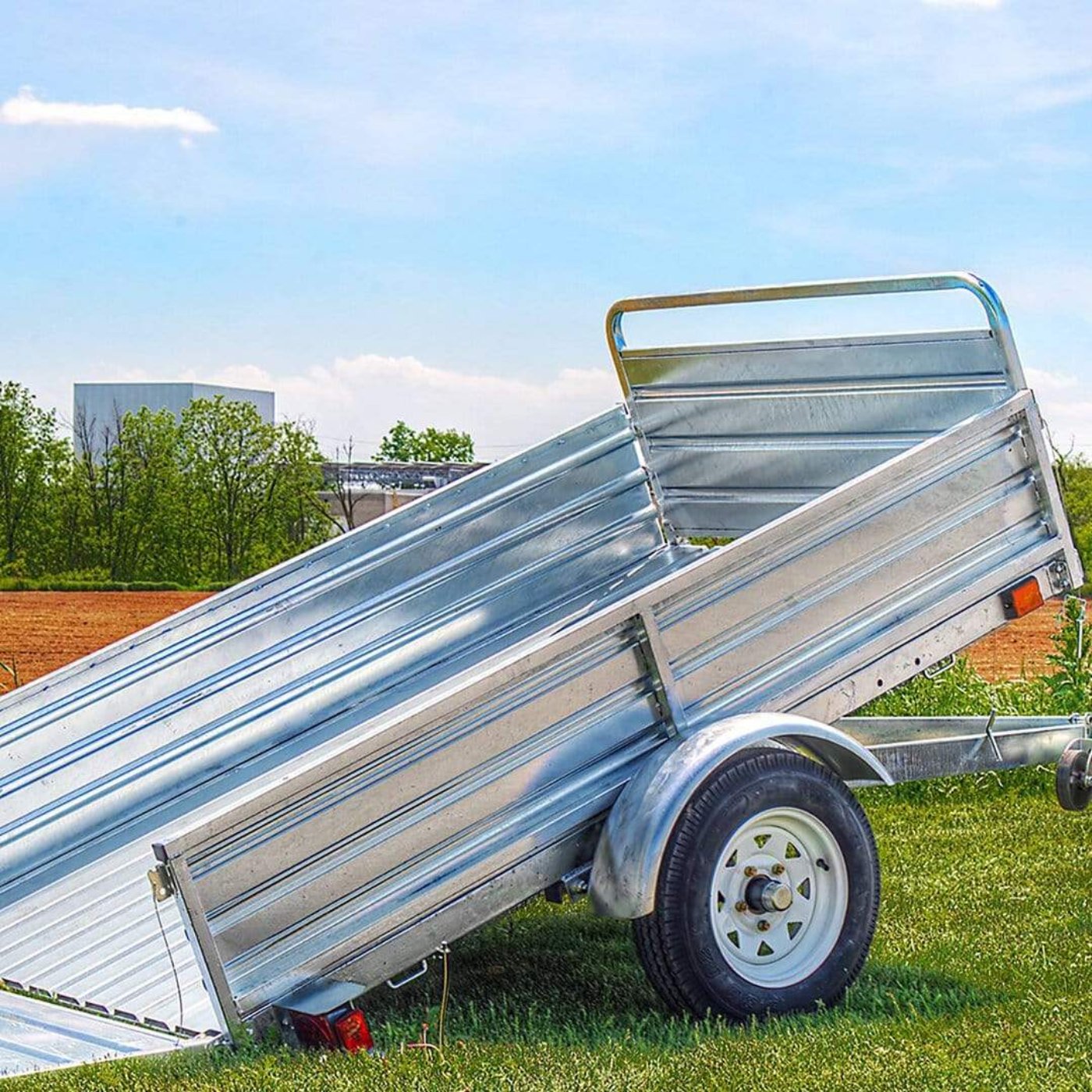

Tilting bed allows for easy dump capability
Fabricated from 100% hot-dipped galvanized steel
All components are reinforced, adjustable, removable and/or interchangeable

Videos

Features

Payload Capacity: 1,639 lbs
Fully welded heavy-duty 'Hot dipped & Flash coated' GALVANIZED entire trailer
Tubular steel frame, 100% steel corrugated floor and solid side and front panels/rails
Removable corrugated steel side panels
Extended bed length: nearly 12 feet / 3.66 metres.
Floor height 20'
Quick release lock pin.
Solid square tube cambered axle.
V shape tongue for added strength
GVWR: 2090 lbs
Quick release lock-pind

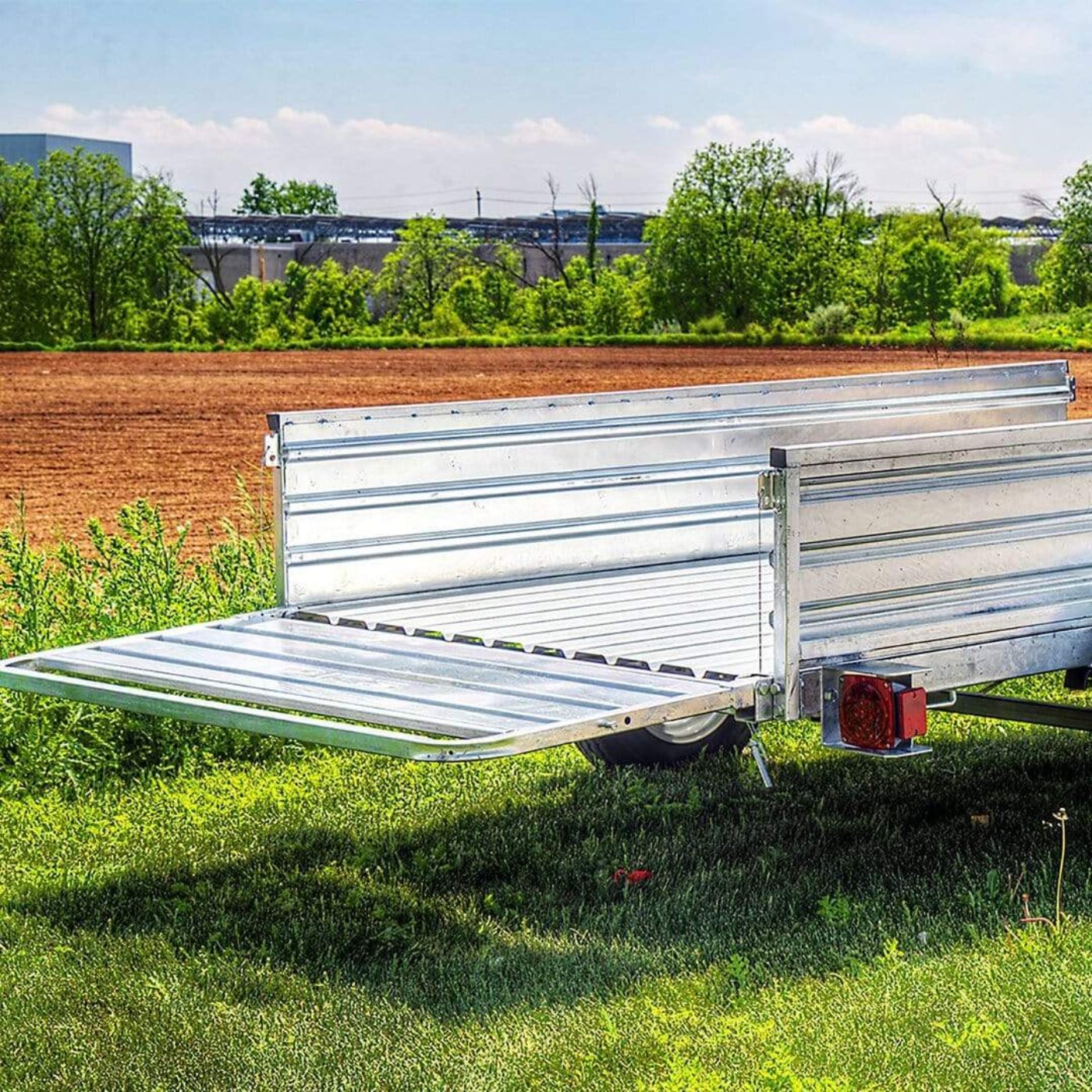

Load-bearing front and back drop gate
2 position dump bed
Trailer fully pre-wired with Plug and Play 4'
Heavy-duty tail light protectors.
Flat connectors to reduce time of assembly
Easy-lube 5 on 4.5 hub assembly.
1 year limited warranty

Includes

2 inch coupler with safety chains
LED Lights
Certificate of origin and all necessary paperwork for registering with local DMV
5.3' x 12' DOT tires (2)
Grease HUB before use

Note: Slight color variations may occur from images shown

Specification

ITEM NUMBER	MMT5X7G
PAYLOAD CAPACITY	1,639 LB (743.4 KG)
GVW	2,090 LB (948 KG)
CURB WEIGHT	451 LB (204.6 KG)
BED DIMENSIONS	52 x 88' → 52 x 136' (1.32 x 2.24 m → 1.32 x 3.45 m)
OVERALL LENGTH	177' (4.5 m) TONGUE EXTENDED
FLOOR HEIGHT	20' (50.8 cm)
CONSTRUCTION	FULLY WELDED HOT-DIPPED GALVANIZED TUBULAR STEEL
SIDE PANELS	14' (35.6 cm) HEIGHT CORRUGATED STEEL
DROP GATES	24' (61 cm) HEIGHT CORRUGATED
LIGHTING	PRE-WIRED, QUICK CONNECT LED LIGHTING, USES D.O.T. STANDARDS
	ADJUSTABLE REAR LIGHT PROTECTORS & PROTECTED SIDE MARKERS
DUMP BED	2 POSITION
HITCH HEIGHT	16' (40.6 cm)
FLOORING	100% WELDED, CORRUGATED & REINFORCED STEEL BED
SHIPPING DIMENSIONS	88.5 x 55 x 8' (224.79 x 139.7 x 20.32 cm)

Manual

Instruction Manual
