Pioneer Dual Split 18000 BTU 1.5-Ton Quantum Ultra Wi-Fi 24 SEER2 Energy-Star Multi (2) Zone Wall Mount Air Conditioner Heat Pump 230-Volt - WYT020GLSI24M2-9W-9W
Pioneer brand multi split heat pump system, complete set. System components include: one multi zone outdoor unit, matching multiple wall mount indoor units, piping and accessory kits and remote controllers. Pioneer Quantum Ultra multi split systems are available in 5 versions; for 2, 3, 4, and 5 zones.
Features
- Ultra-high efficiency inverter++ ductless multi split dual (2) zone heat pump system
- (x2) inside unit cooling capacity: 9,000 BTU/H nominal capacity, condensing system 18,000 BTU/H (Range: 5,100 minimum - 18,700 maximum) with 24 SEER/13.0 EER efficiency
- Heating capacity: 20,000 BTU/H nominal (range 4,900 minimum - 23,000 maximum) with 10 HSPF/3.5 COP efficiency
- Voltage: 208 - 230-Volt, 60 hertz, 1 phase (standard household 2 line power, l1-l2-g)
- Energy-Star Certified and Wi-Fi Enabled

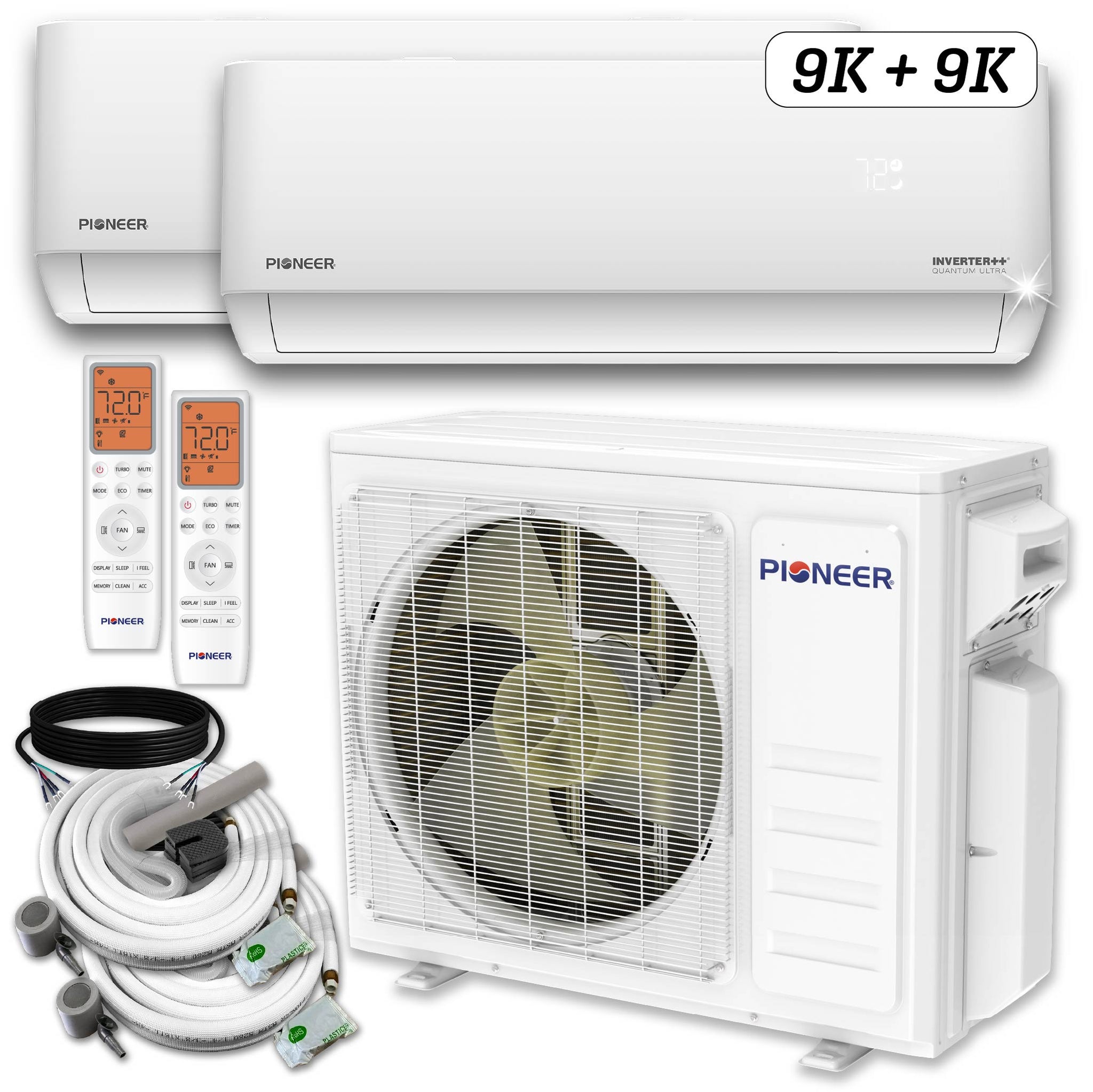

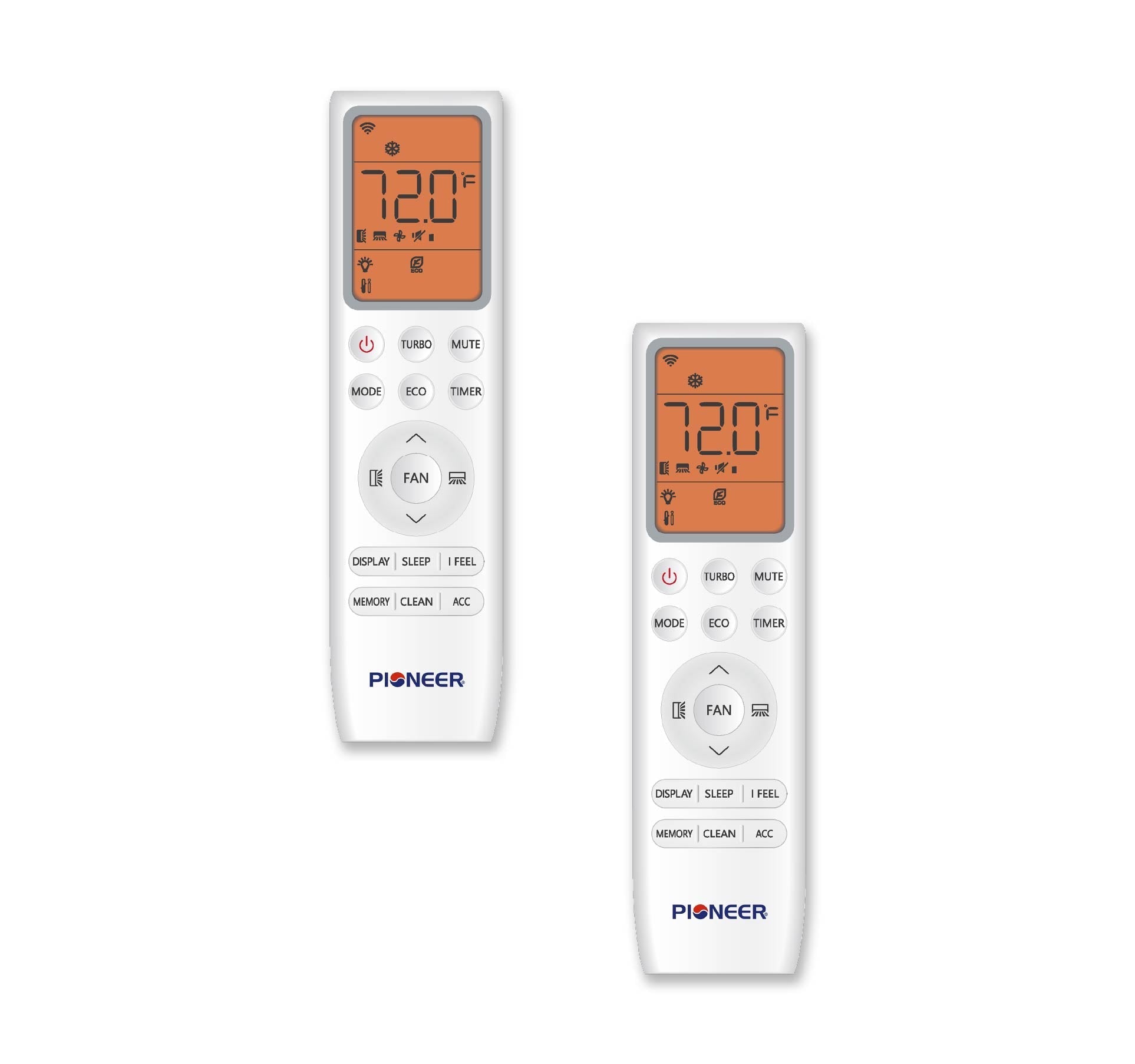

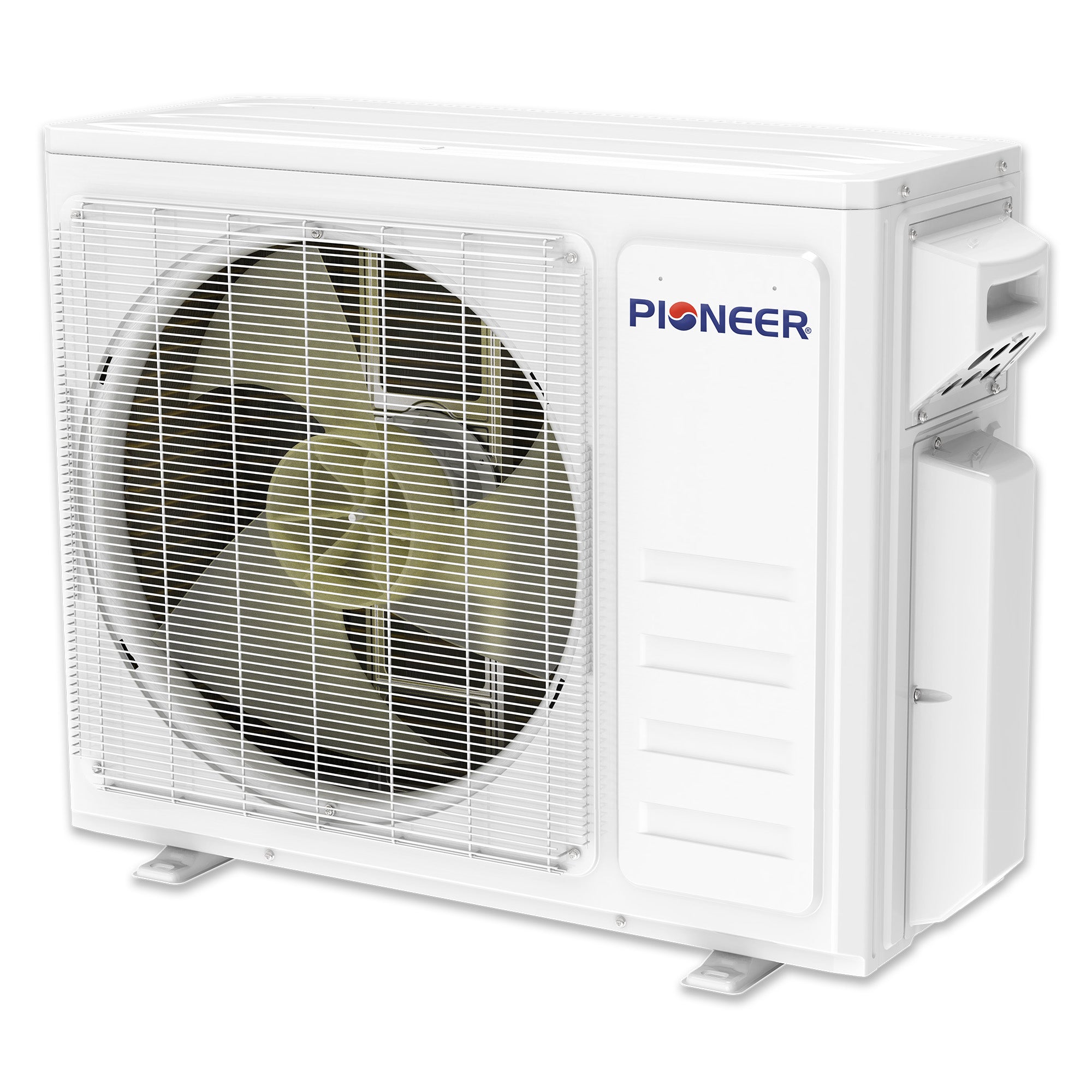

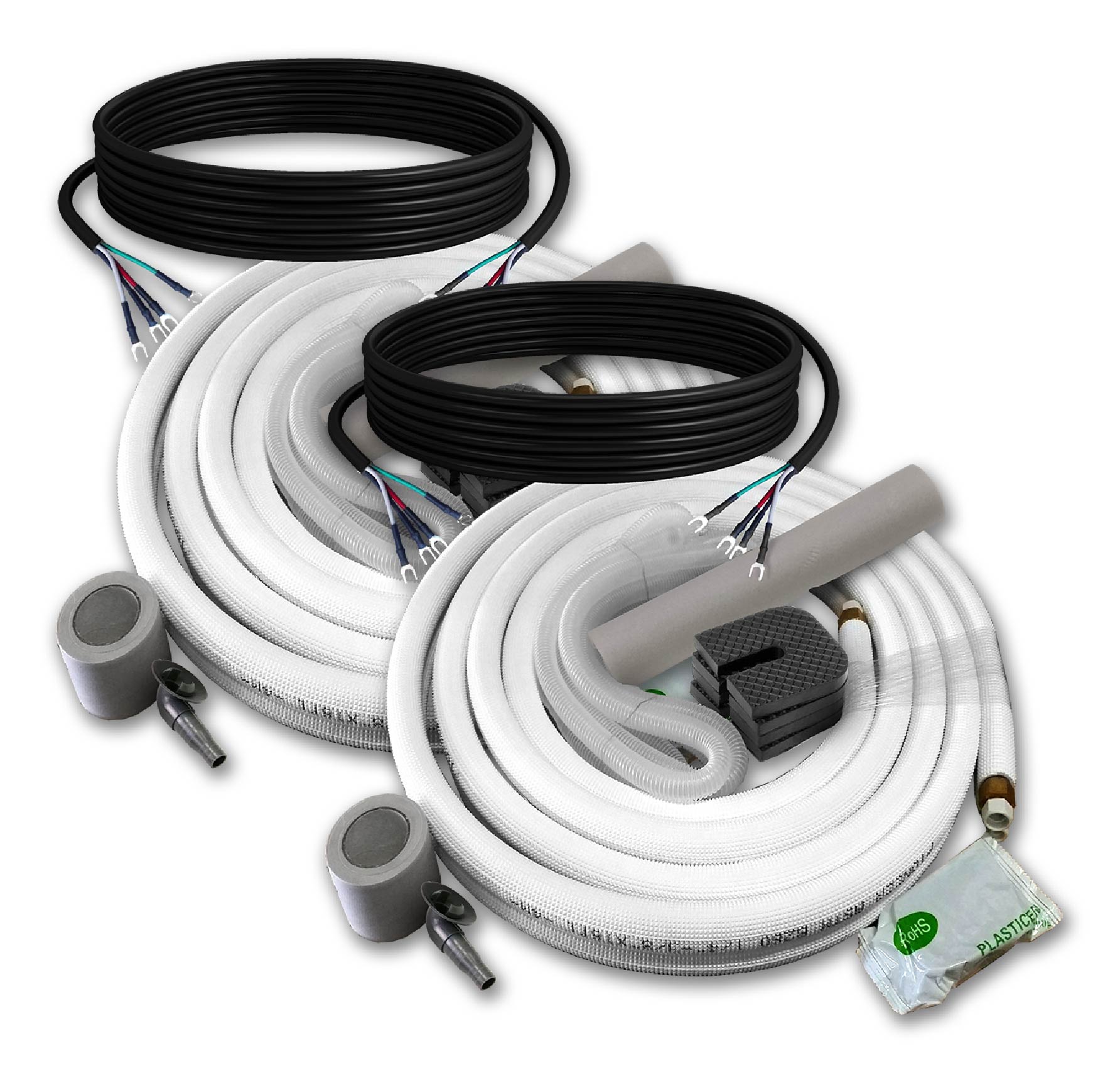

- Complete system set including: indoor (fan coil) section, outdoor (condenser) section, wireless remote controller with wi-fi, insulated flared line set with other installation accessories
- Unsurpassed support hotline covering installation, use, troubleshooting, warranty and parts issues
- Ultra low ambient system can heat with high capacity at -13°F ambient outdoor temperatures
- Pre-charged with eco-friendly R454-B refrigerant to support total combined attached lineset lengths up to 50 ft long
- Pioneer is the best choice for pros and homeowners with the highest ratings for consumer satisfaction
- Certified by: ETL, AHRI, DOE for safety, performance and efficiency
- Built with the latest technologies using pulse width modulation driven DC inverter compressor and variable speed DC inverter fan motors for high performance and low power consumption
Manuals
What our Experts Think
-
Highly efficient dual‑zone climate control: This 24 SEER2 Energy‑Star‑rated dual‑zone Quantum Ultra system delivers strong cooling and heat pump performance while reducing energy costs — ideal for paired spaces like bedrooms, offices, or living/dining areas.
-

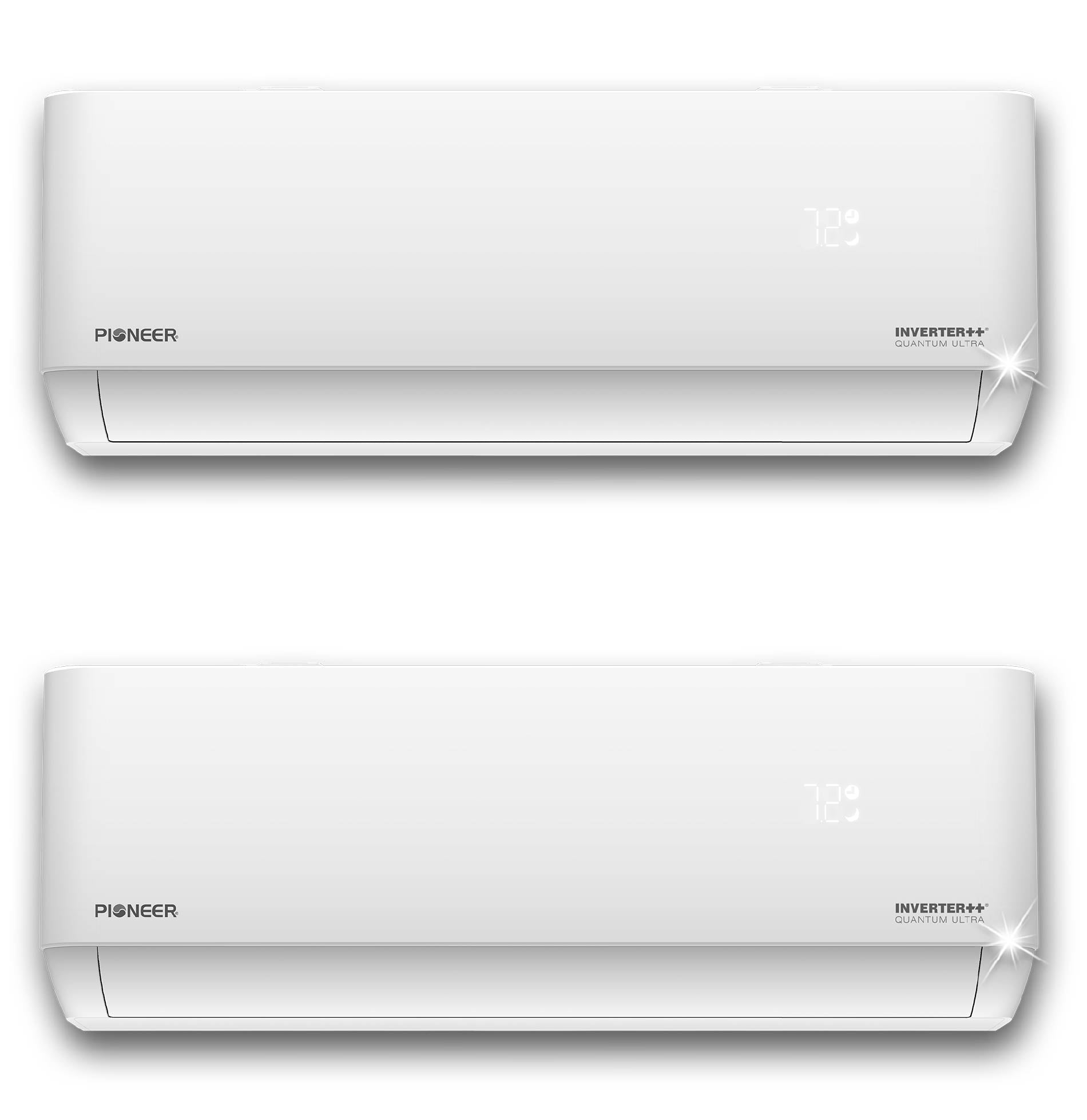

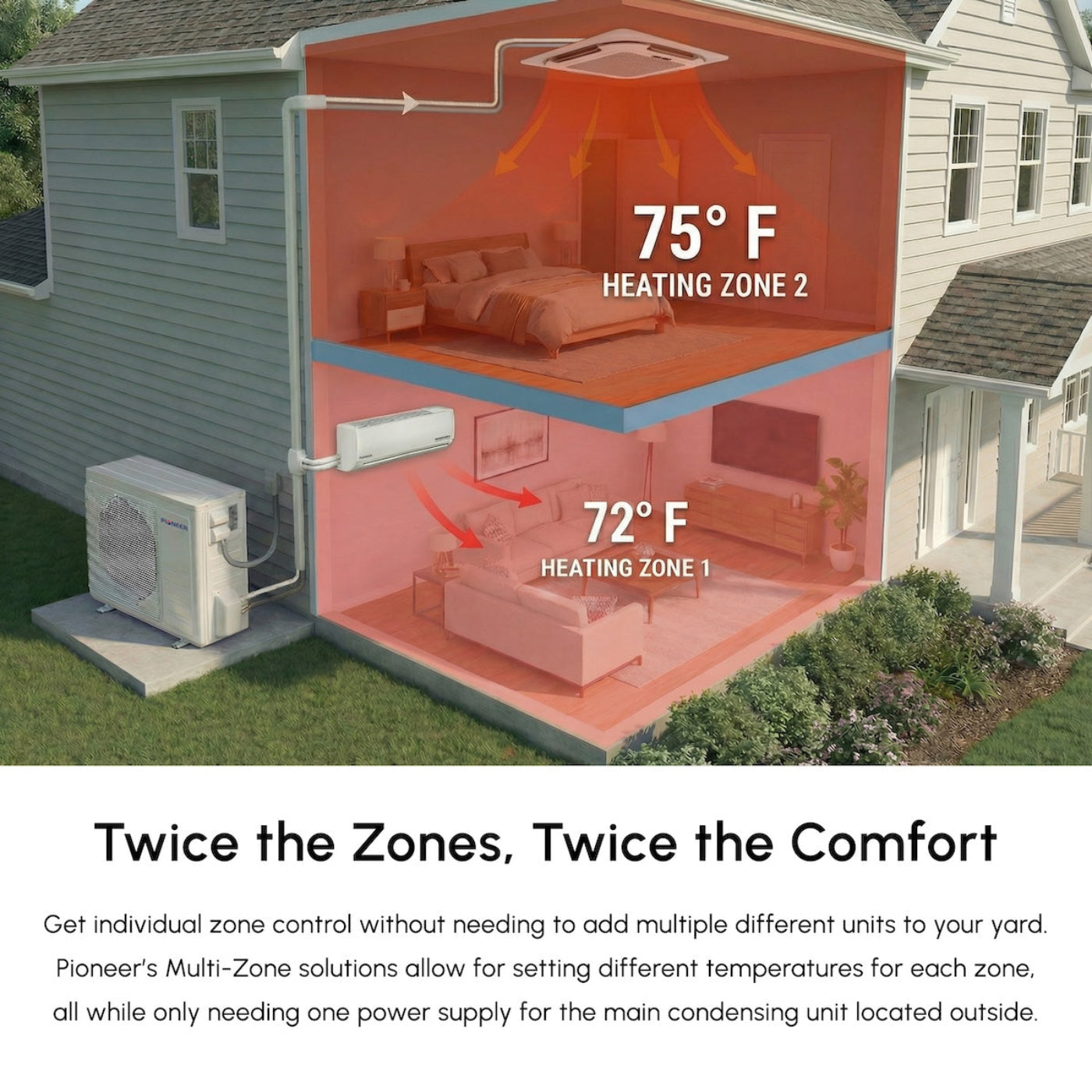

True multi‑zone flexibility: Comes with two wall‑mount indoor units that let you individually control each zone, so one room stays cool while the other can heat or hold a different set point.
-
Smart inverter heat pump tech: Variable‑speed DC inverter operation provides precise temperature modulation, smoother comfort, and quieter running compared with fixed‑speed HVAC systems — enhancing year‑round comfort.
-
Built‑in Wi‑Fi control: Integrated Wi‑Fi lets you adjust settings remotely via the Pioneer Airlink app, giving modern convenience and control from anywhere.
-
Cold‑climate ready: Designed to heat efficiently even in lower outdoor temperatures, ensuring dependable performance in seasonal swings.
-
Complete dual‑system set: Includes outdoor unit, two indoor units, line sets, remotes, and installation hardware — streamlining professional setup and reducing extra part purchases.
Q&A
Q1: What type of system is this Pioneer model?
A: It is a dual-zone wall-mounted mini-split air conditioner with integrated heat pump, designed for efficient climate control in two rooms.
Q2: What cooling and heating capacity does it provide?
A: Provides 18,000 BTU cooling (1.5‑ton) with heat pump heating, ideal for two connected zones.
Q3: How energy-efficient is this unit?
A: Features 24 SEER2 efficiency and Energy-Star rating, offering energy savings and precise temperature control.
Q4: How many zones can it support?
A: Supports two indoor wall-mounted units, each with independent temperature control.
Q5: Does it support smart controls?
A: Yes, includes Wi-Fi connectivity for remote operation via smartphone or smart home integration.
Q6: What electrical requirements does it have?
A: Operates on 230 V single-phase power, compatible with standard residential or light-commercial circuits.
Q7: How does inverter technology improve performance?
A: Variable-speed inverter control provides quiet operation, precise temperature regulation, and energy-efficient performance.
Q8: Can it provide heating in cold climates?
A: Yes, the heat pump supports low-ambient heating, ensuring year-round comfort.
Q9: What indoor unit style is included?
A: Features high-wall mounted units for each zone with optimized airflow and quiet operation.
Q10: What spaces is this system best suited for?
A: Ideal for apartments, dual-bedroom setups, offices, or small multi-zone residential spaces.
Maintenance Tips
-
Clean indoor air filters every 2–4 weeks to maintain airflow, efficiency, and indoor air quality in both zones.
-
Keep the outdoor condenser coil free of dust, leaves, and debris to ensure optimal heat exchange and inverter performance.
-
Inspect condensate drain lines and pans regularly to prevent leaks or water buildup in each zone.
-
Check refrigerant lines, wiring, and unit mounting annually for safe and reliable operation.
-
Use self-clean cycles periodically to reduce moisture buildup and prevent mold or odors.
-
Maintain adequate clearance around indoor and outdoor units for balanced airflow and consistent temperature control.
-
Schedule professional servicing once per year for inverter diagnostics, refrigerant checks, and full system optimization.
