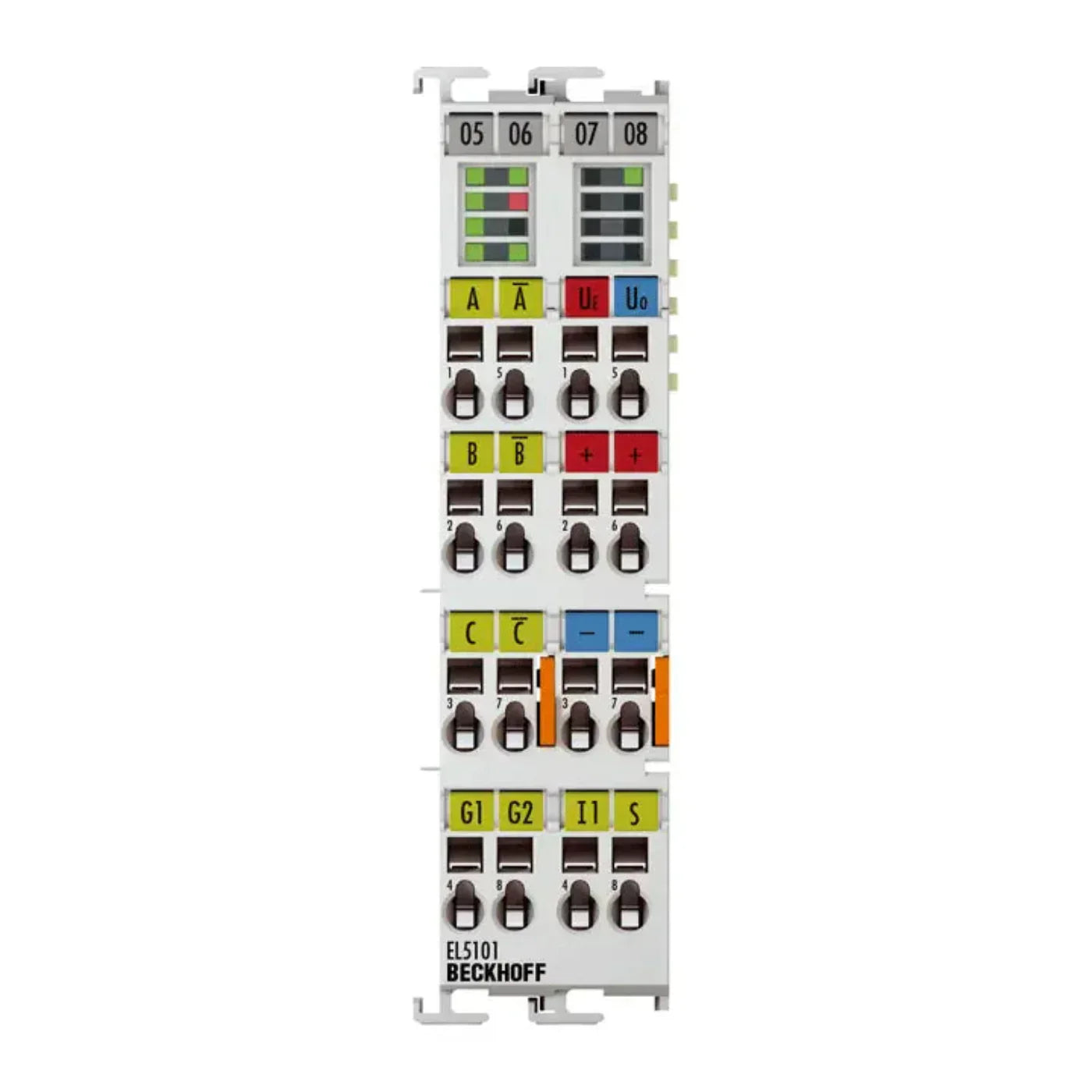

Beckhoff EtherCAT Terminal, 1-Channel Encoder Interface, Incremental, 5 V DC (DIFF RS422, TTL), 1 MHz - EL5101
The EL5101 EtherCAT Terminal is an interface for the direct connection of incremental encoders with differential inputs (RS422). A 32/16 bit counter with a quadrature decoder and a 32/16 bit latch for the zero pulse can be read, set or enabled. Incremental encoders with alarm outputs can be connected at the interface's status input. Interval measurement with a resolution of up to 100 ns is possible. The gate input allows the counter to be halted. The counter state is taken over with a rising edge at the latch input.
Specifications
| Manufacturer |
Beckhoff |
| Part Number |
EL5101 |
| Channels |
1 |
| Counter |
16/32 BIT SWITCHABLE |
| IP Rating |
IP20 |
| Nominal Voltage |
24 VDC |
| Operating Temperature |
-25 TO +60 DEGREE C |
| Product Type |
INCREMENTAL ENCODER INTERFACE |
| Pulse Generator |
Yes |
| Quadrature Decoder |
4-fold evaluation |
