Garland C36-5R Garland Cuisine Gas Ranges - C36-5R
Regular price
$7,640.00
$7,028.99
Sale
Garland C36-5R Garland Cuisine Gas Ranges - C36-5R

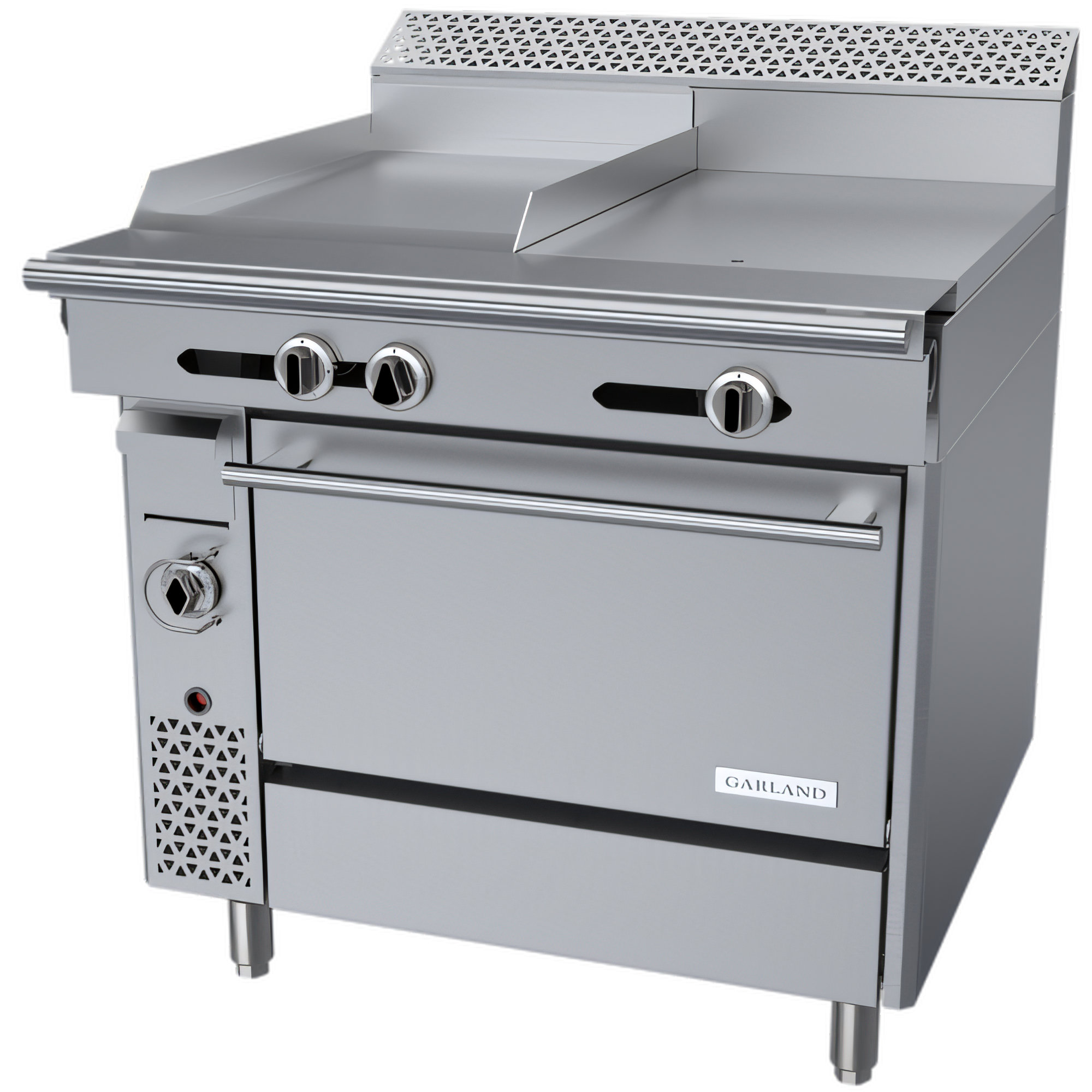

Model C36-5R | 18" Griddle (LH) + 18" Hot Top (RH) | Standard OvenBuilt for high-volume, all-day production, the Garland Cuisine C36-5R packs three unique work stations into just 36 inches of counter space. An ultra-thick griddle, an even-heat hot top, and a powerful standard oven let you sear, sauté, simmer, and bake simultaneously—perfect for busy restaurants, hotels, and institutional kitchens.
Features
- True heavy-duty construction – 1" steel griddle plate, stainless front, sides, plate rail & burner box.
- 18" left-side griddle with Hi-Lo manual valve control; 30,000 BTU “U” burner delivers fast recovery and a 3" wide grease trough for mess-free operation.
- 18" right-side hot top (even heat) rated at 32,500 BTU—ideal for stock pots, sauce pans, or holding pans.
- 40,000 BTU standard oven with 4 rack positions and 1 chrome rack included; 150-500 °F thermostat.
- Compact 7" stainless stub back-guard protects walls without sacrificing visibility.
- 6" adjustable stainless legs for easy leveling or cleaning underneath; optional casters available.
- Front 1-1/4" NPT gas manifold simplifies line-ups or future expansion.
- Independently safety-piloted burners for reliable ignition and continuous operation.
- Certified safe: CSA Flame & Star, NSF.
- Total input: 102,500 BTU/h (Natural Gas)
- Griddle temperature range: low to searing 550 °F ≈ (cook surface)
- Oven thermostat: 150 – 500 °F (66 – 260 °C)
- Manifold pressure: 6" WC (Nat.) | Min. supply: 7" WC (Nat.)
specifications
| Dimensions (W × D × H) | 36" × 34 ⅜" × 37 ¼" (914 × 873 × 947 mm) to cook surface; add 7" / 178 mm for stub back |
|---|---|
| Cooking Surfaces | 18" Griddle (LH) |
| Individual Burner Ratings | Griddle: 30,000 BTU |
| Total Input | 102,500 BTU/h (Natural Gas) |
| Oven Interior (H × W × D) | 13 ½" × 26 ¼" × 29" (343 × 667 × 737 mm) |
| Rack Positions / Supplied | 4 positions / 1 chrome rack |
| Gas Connection | Front 1-1/4" NPT (rear optional) |
| Shipping Weight | ~635 lb (288 kg) |
| Combustible Clearances | Sides: 10" (254 mm) |
Accessories
- Swivel or polyurethane casters with front brakes
- Single / double deck high-shelf or full back riser
- Extra chrome oven racks
- Rear gas connection kit
- Protective control shield
What our Experts Think
-
All‑in‑One 36" Workhorse:
Combines an 18" griddle, an 18" hot top, and a full-size oven — offering sautéing, griddling, simmering, and baking/roasting in a single unit. -
Reliable Heat Distribution & Output:
Griddle features a 1″-thick steel plate for even heat; total output around 102,500 BTU provides consistent performance for continuous cooking. -
Durable, Commercial‑Grade Construction:
Stainless-steel front, sides, plate rail, and burner box resist corrosion and simplify cleaning; 6" adjustable legs and a 7" backguard stabilize the unit. -
Flexible Cooking Layout:
Offers griddle and hot top for versatile cooking — searing, frying, simmering, or keeping items warm without extra appliances. -
Good Fit for Mid‑Scale Kitchens:
36" footprint balances versatility with space efficiency — ideal for cafés, small restaurants, or kitchens with limited space.
Q&A
Q: What is the Garland C36‑5R?
A: It’s a 36-inch commercial gas range from Garland’s Cuisine series, featuring an 18″ griddle, an 18″ even-heat hot top, and a standard oven — designed for versatile cooking in compact kitchens.
Q: What cooking surfaces does it include?
A: An 18″ griddle for flat-top cooking and an 18″ hot top for even-heat simmering, stockpots, or sautéing.
Q: What oven configuration is included?
A: One standard oven with a single rack for baking, roasting, or holding dishes.
Q: What is the heating capacity and build?
A: Total input of approximately 102,500 BTU. Stainless-steel front, sides, plate rail, and burner box; 7″ backguard; and 6″ adjustable legs for stability.
Q: Where is it best used?
A: Ideal for restaurants, catering kitchens, or commercial food-service kitchens where space is limited but versatile cooking options are needed.
Q: Key advantages?
A: Compact 36″ footprint, combination griddle and hot-top cooking, oven capacity, durable stainless-steel construction, adjustable legs, and sufficient BTU output for demanding commercial kitchens.
Maintenance Tips
-
Clean burners, grates, and drip pans after each use with a non‑abrasive cloth or brush to prevent grease buildup and ensure even heat.
-
Wipe down stainless‑steel surfaces with a mild detergent and microfiber cloth to preserve the finish and prevent corrosion.
-
Inspect gas connections and valves regularly for leaks or wear to ensure safe, reliable operation.
-
Clean oven and broiler interiors promptly after spills to avoid flare‑ups and maintain consistent cooking.
-
Check ignition system functionality periodically to ensure reliable lighting and flame control.
-
Ensure ventilation channels are clear to maintain proper airflow and prevent overheating
