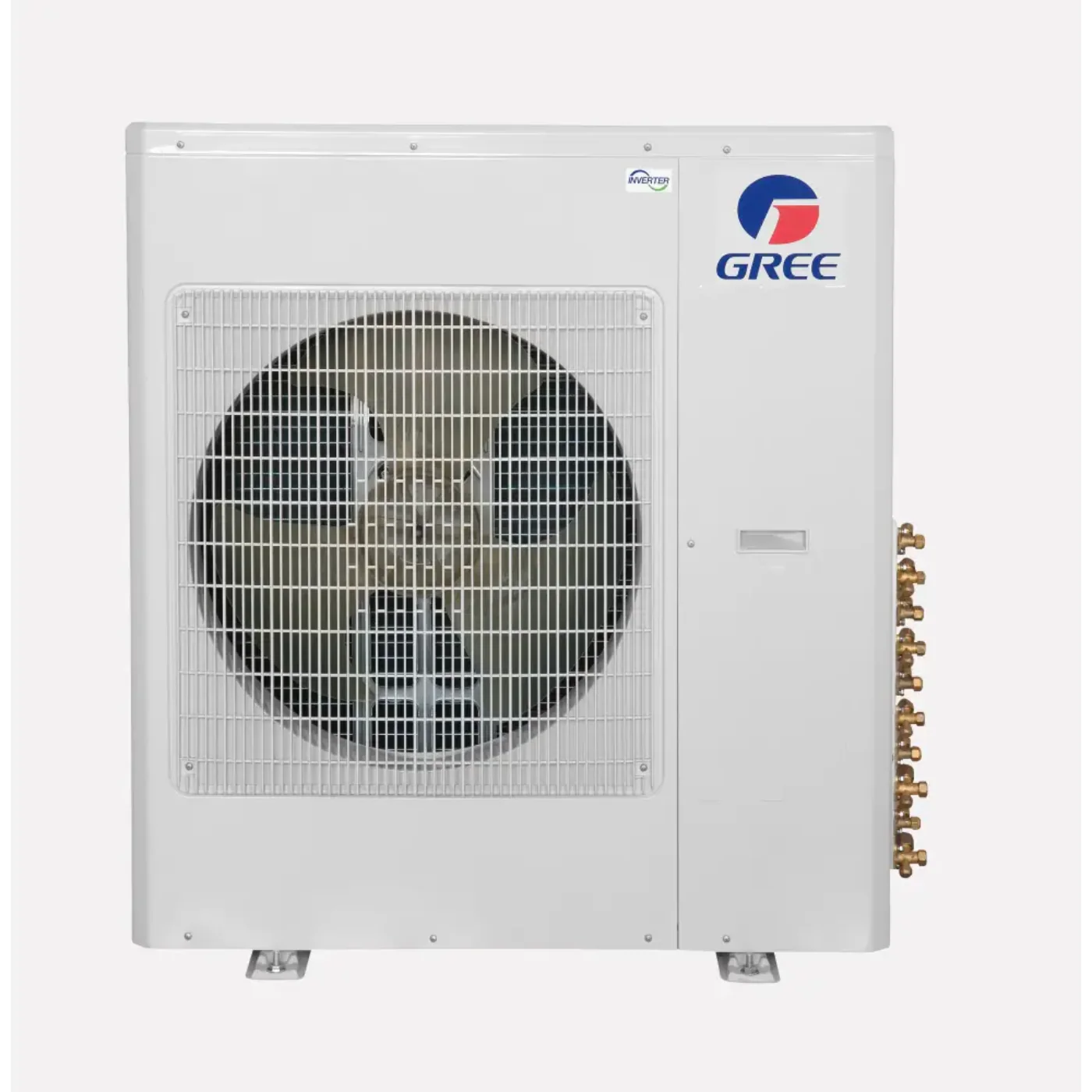

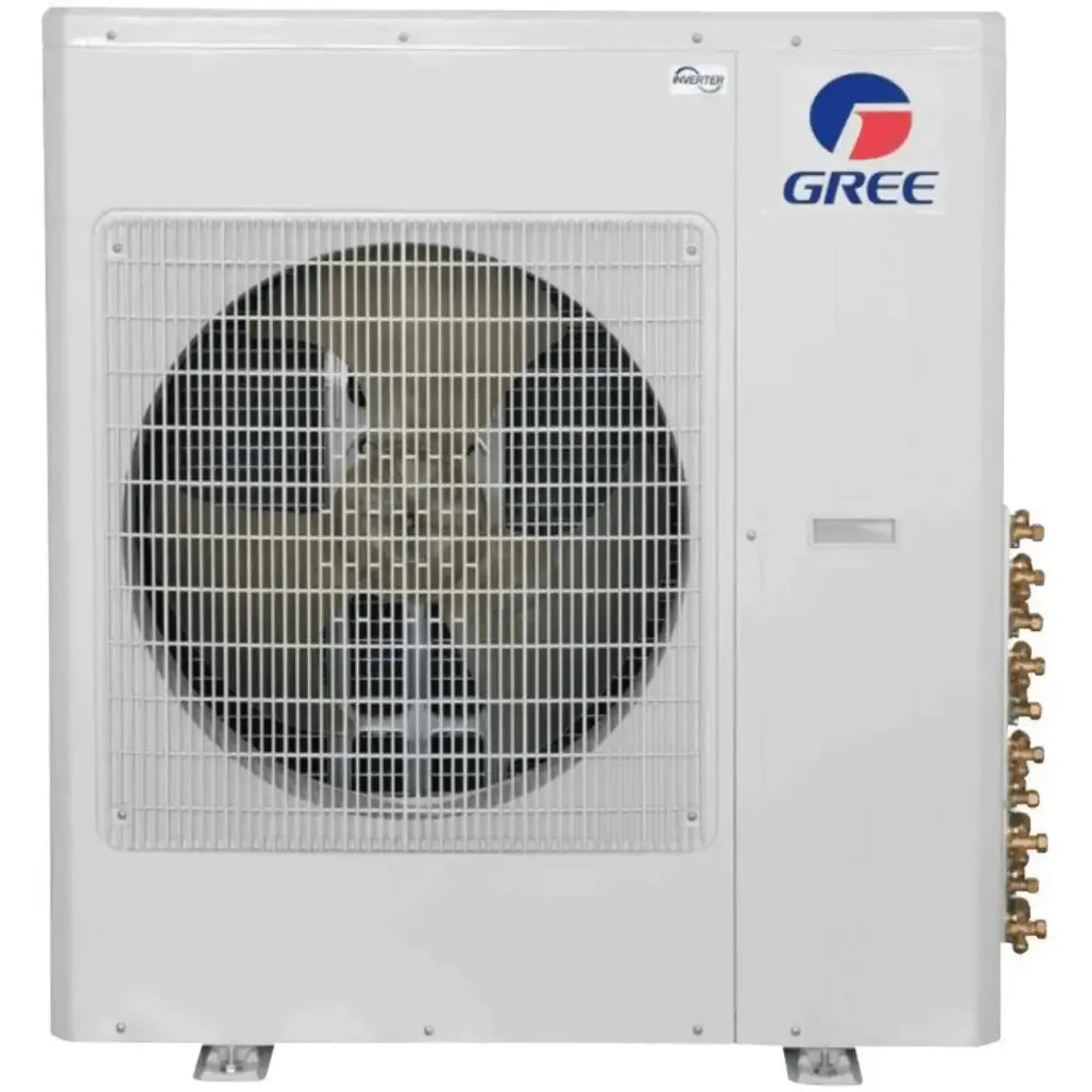

Gree Gen2 42K BTU 21 SEER2 Outdoor Mini-Split Multi-Zone Heat Pump Condenser - MULTI42HP230V1EO | MULTI42HP230V1EO
The Gree MULTI42HP230V1EO is a powerful 42,000 BTU multi-zone heat pump that provides top-notch comfort and efficiency. With its advanced G-10 inverter technology, this unit operates smoothly and can cut your annual energy use by up to 20%. It also runs quieter than other mini-split systems, ensuring a more peaceful environment.
This model uses eco-friendly R-410A refrigerant and includes a fan optimized with an anti-corrosion coating and a brushless motor for added durability. The Gen2 condenser is AHRI Certified and comes with a 5-year limited warranty, offering peace of mind and reliable performance.
Features
- Minimum 1 connected zone
- Maximum 5 connected zones
- No refrigerant branch box required
- Minimum 9,000 BTU connected capacity
- Maximum 51,000 BTU connected capacity
- LIVO GEN3: LIVV09HP230V1AH, LIVV12HP230V1AH, LIVV18HP230V1AH, LIVV24HP230V1AH
- LIVO GEN4: 4LIV05HP230V1AH, 4LIV07HP230V1AH, 4LIV09HP230V1AH, 4LIV12HP230V1AH, 4LIV18HP230V1AH, 4LIV24HP230V1AH
- VIREO GEN3: 3VIR09HP230V1AH & BH, 3VIR12HP230V1AH & BH, 3VIR18HP230V1AH & BH, 3VIR24HP230V1AH & BH
- SAPPHIRE: SAP09HP230V1AH, SAP12HP230V1AH, SAP18HP230V1AH<, SAP24HP230V1AH/li>
- DUCT09HP230V1BD, DUCT12HP230V1BD, DUCT18HP230V1BD, DUCT24HP230V1BD
- CAS12HP230V1BC, CAS18HP230V1BC, CAS24HP230V1BC
- FLR09HP230V1BF, FLR12HP230V1BF, FLR18HP230V1BF, FLR24HP230V1BF
- CONS09HP230V1AF, CONS12HP230V1AF, CONS18HP230V1AF
Specifications
| SKU |
MULTI42HP230V1EO |
| Brand / Manufacturer |
Gree |
| Equipment Type |
Heat Pump |
| Weight |
216 lbs |
| Refrigerant |
R410A |
| Refrigerant Charge |
Pre-charged for 131' |
| AHRI Certificate Number |
210278982, 210278981 |
| Cooling Capacity |
36,000 BTU |
| Heating Capacity |
40,000 BTU |
| BTU / Tonnage |
42,000 BTU / 3.5 Ton |
| Tonnage |
3.5 Ton |
| HSPF |
10 |
| SEER (Efficiency) |
21 |
| Compressor Type |
Rotary |
| Liquid Line Size |
1/4" (5 lines) |
| Suction Line Size |
3/8" (5 lines) |
| Electrical |
208/230V, 1 Phase, 60 Hz |
| Phase |
Single Phase |
| Maximum Breaker Size |
40 A |
| Minimum Breaker Size |
24 A |
| Maximum System Piping |
246' |
| Maximum Line Set Length |
82' |
| Min / Max Outdoor Temp for Heating |
-5°F – 86°F |
| Min / Max Outdoor Temp for Cooling |
0°F – 118°F |
| Decibel Level (Outdoor Unit) |
61 dB(A) |
| Height |
43.4" |
| Width |
40" |
| Depth |
14.8" |
What our Experts Think
-
42K BTU Capacity – Delivers powerful cooling and heating for large spaces or multiple rooms.
-
High 21 SEER2 Efficiency – Optimizes energy use to reduce utility costs.
-
Multi-Zone Support – Connects to several indoor units for personalized comfort.
-
Durable Outdoor Condenser – Engineered to withstand harsh weather and ensure long-term performance.
-
Quiet Operation – Maintains low noise levels for a peaceful indoor environment.
-
Reliable Heat Pump Technology – Consistent year-round heating and cooling with advanced performance.
Q&A
Q: What is the Gree Gen2 42K BTU Multi-Zone Heat Pump Condenser?
A: A high-capacity outdoor condenser delivering 42,000 BTU for multi-zone ductless heating and cooling with 21 SEER2 efficiency.
Q: How many zones can it support?
A: Designed for multi-zone systems, it connects to multiple indoor units for independent temperature control across different areas.
Q: Is it energy-efficient?
A: Yes, the 21 SEER2 rating ensures strong energy savings while maintaining year-round comfort.
Q: How is it installed?
A: Outdoor installation integrates with compatible indoor air handlers for a flexible, ductless system.
Q: Is it suitable for homes and small commercial spaces?
A: Yes, its compact design and reliable operation make it ideal for both residential and light commercial applications.
Maintenance Tips
-
Keep Unit Clear: Remove leaves, dirt, and debris around the condenser for optimal airflow.
-
Clean Coils & Fins: Gently rinse or brush to maintain efficiency and cooling performance.
-
Inspect Refrigerant Lines: Ensure insulation is intact and check for leaks or damage.
-
Clear Condensate Drain: Prevent blockages to avoid water damage and mold growth.
-
Annual Professional Service: Schedule yearly maintenance to ensure peak efficiency and long system life.
