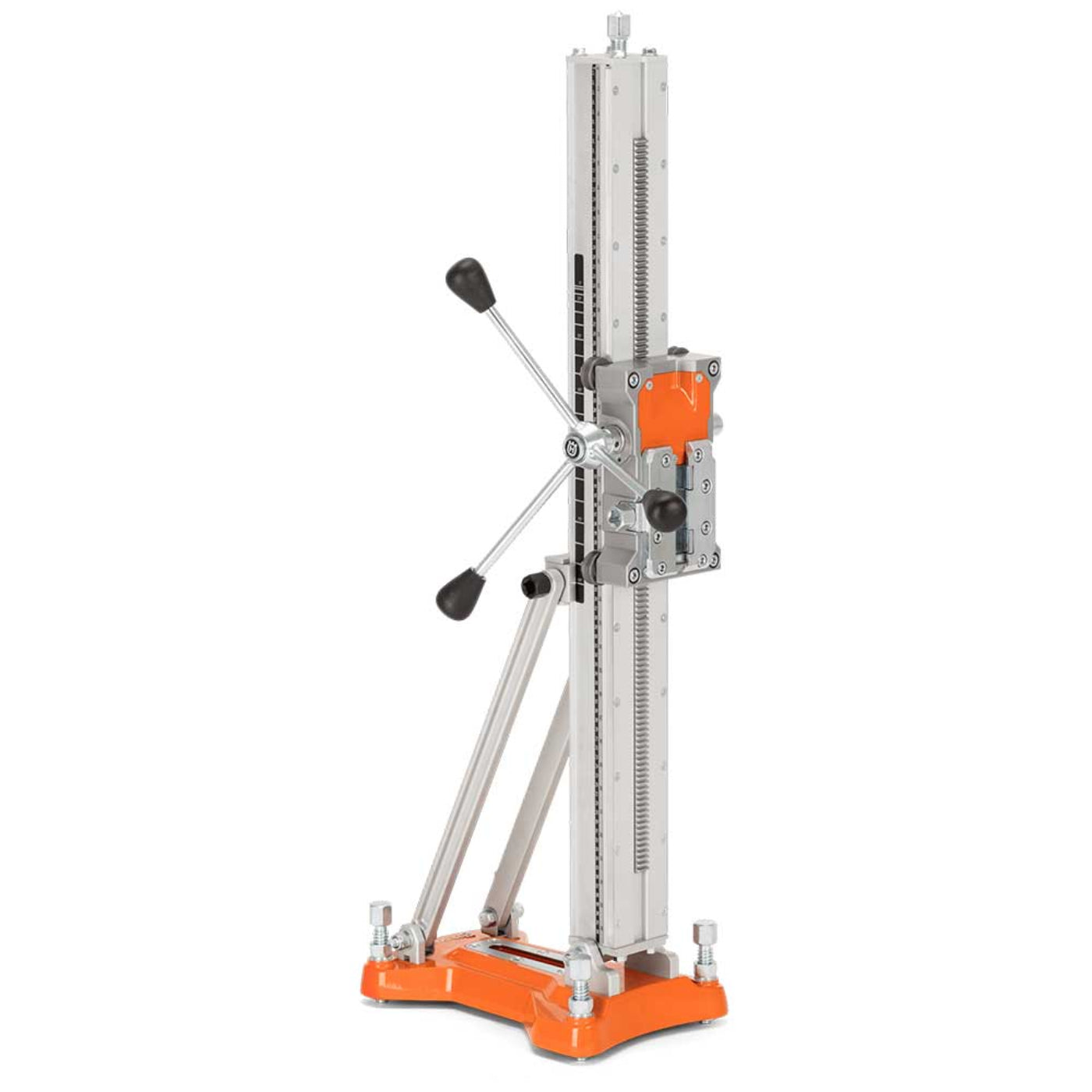

Husqvarna DS 500 Large Core Drill Stand - 967968602

Husqvarna DS 500 Large Core Drill Stand - 967968602

Features

• Medium-size drill stand, suitable for a wide range of professional core drilling operations
• Equipped with a carry handle on the back support and ergonomic 3-spoke handle
• 42" long, precision ground and plated 2-7/8" square column reduces flex for more accurate drilling
• Quick-release coupling for drill motor and easy adjustment of back support angle allow for easy setup and angle drilling
• Combines high stability and sturdiness with surprisingly low weight
• All-metal design with an optimized setup of steel, aluminum and magnesium components ensures stability and durability without adding unnecessary weight
• Excellent power-to-weight ratio and user-friendly setup
• Quick connection features and low weight make handling easy and efficient

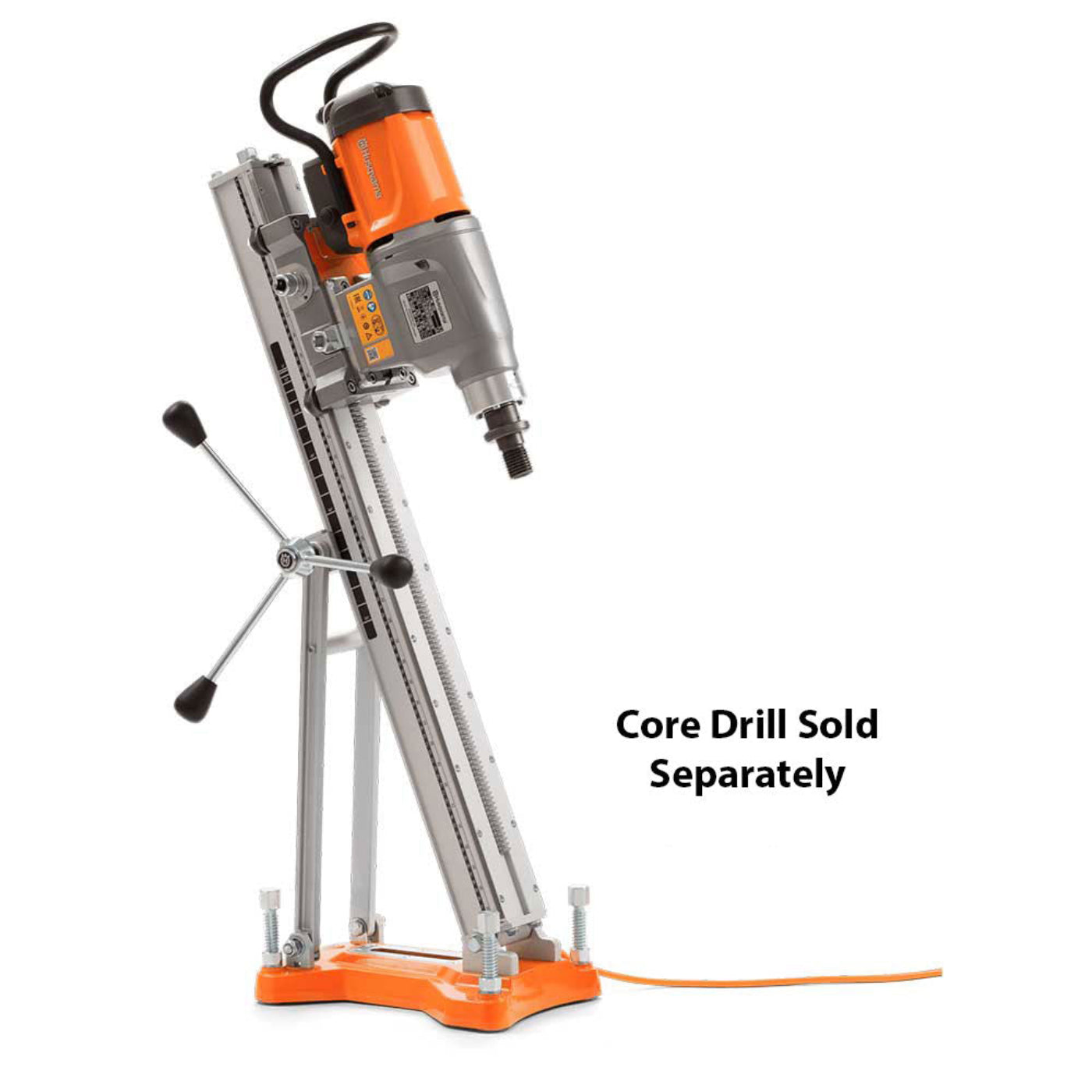

• Core drill motor and bits sold separately

Specifications

What our Experts Think

• Professional‑grade core drilling in a compact package
  Lightweight yet rugged, the DMS 180 offers reliable performance for concrete, masonry and structural penetrations — ideal for plumbing, HVAC, electrical and utility holes up to 6 in (150 mm) diameter.

• Easy setup with accurate alignment
  The V‑groove roller carriage and rigid stand ensure straighter holes with minimal adjustment, while the mechanical clutch and overload protection safeguard the motor — reducing downtime and maintenance.

• Simple, job‑ready power
  Runs on standard 100–120 V single‑phase power with a ~2.3–2.5 hp motor, so it’s plug‑and‑play on most jobsites without special power gear — boosting productivity for contractors and rental pros.

• Angle drilling flexibility
  Stand tilts for angled drilling, expanding its versatility for awkward penetrations and non‑standard positions — a valuable feature on renovation and retrofit projects.

• Portable & user‑friendly design
  At about ~51 lbs total weight, the rig is easy to transport, set up and move between locations, reducing operator fatigue and increasing jobsite flow.

Q&A

Q: What is the Husqvarna DMS 180 Core Drill Rig?
A: A lightweight corded core drill rig designed for professional concrete and masonry drilling with accurate, powerful performance in a compact, easy‑to‑transport package.

Q: What drilling capacity does it offer?
A: It supports core drilling up to 6 in (≈150 mm) diameter and has a 19 in (≈480 mm) drilling stroke, suitable for HVAC, plumbing, electrical holedrilling and general construction tasks.

Q: What power and motor specs does model 966916101 use?
A: Equipped with a 2.3–2.5 hp (~1.8–1.9 kW) electric motor, running on 100–120 V, single‑phase power with ~15 A current and built‑in electronic overload protection.

Q: What design features improve accuracy and safety?
A: A V‑groove roller carriage ensures precise alignment, and a mechanical clutch helps protect the motor from damage during heavy drilling.

Q: How easy is it to use and transport?
A: It’s lightweight (~51 lb / ~23 kg) and compact with an integrated carrier handle and optional vacuum or anchor base for quick setup, making it ideal for rental shops and mobile jobsite use.

Q: Where is this drill best used?
A: Great for concrete core drilling in construction, renovation, utility installation, plumbing, HVAC, and electrical penetration applications where precision and portability are needed

Maintenance Tips

• Inspect bits & tooling before each use; replace worn or damaged core bits.

• Clean dust, slurry & debris from rails, slides, and motor area after every job.

• Check and tighten all fasteners before operation to ensure rig stability.

• Maintain water feed system — flush hoses and nozzles to avoid clogs.

• Lubricate rails, lead screws, and moving parts per manual intervals.

• Monitor electrical cables & connections for wear or damage; repair promptly.

• Verify mounting anchors/bases are secure before drilling starts.

• Inspect and service the drive motor & gearbox at scheduled intervals.

• Store the rig dry and protected to prevent corrosion and electrical issues.

• Follow operator manual service schedule for professional checks and part replacement
