$646.99 $478.95 Sale

Jabsco Low Pressure Cyclone Centrifugal Pump - 24V [50840-0024] - CWR-77156

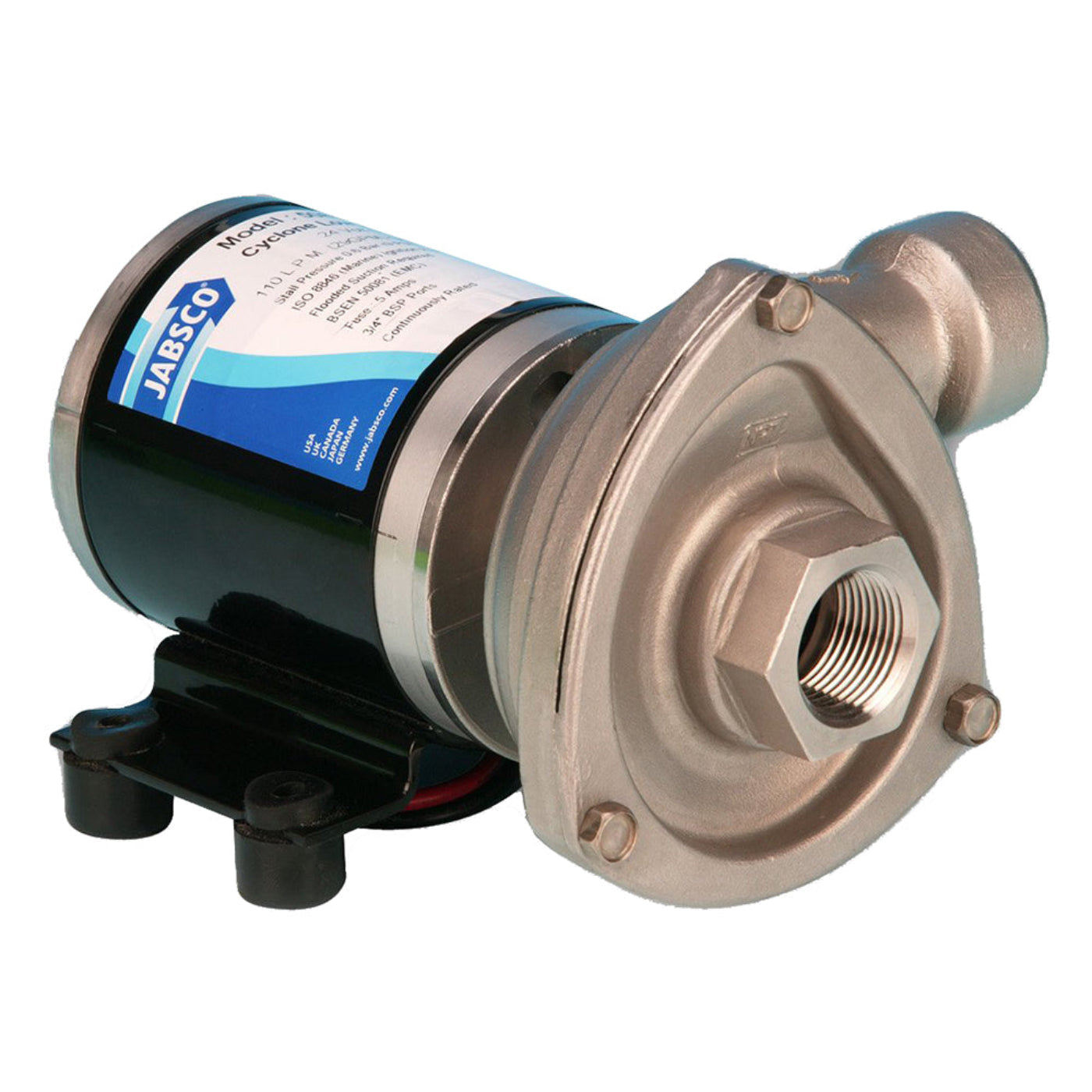

Low Pressure Cyclone Centrifugal Pump - 24V

Silent running. Single tool servicing. 2m (6 foot) suction lift when wet.

A range of Stainless Steel General Purpose Centrifugal pumps designed specifically for the marine and industrial markets. Typical applications would be for circulation applications such as hot water systems, livewell or bait tank installations.

Features
  • Heavy duty robust design
  • Stainless steel construction
  • Long life DC motor
  • Silent running
  • Anti-clog impeller design
  • Long life mechanical seal
  • Single tool servicing
Specifications
Pump Body Stainless Steel
Port Size 3/4" pipe threads (available with NPTF threads)
Flow 110 LPM (29.7 GPM)
Pressure Up to 0.6 bar (8.7 PSI)
Impeller Stainless Steel Anti-Clog Design
Shaft Seal Mechanical
Maximum Current 4.5 A
Fuse Size 7 A
Motor Continuously rated, 3500-hour life
    What our Experts Think

    • Efficient 24V Operation: Delivers strong flow with low energy consumption.

    • Cyclone Centrifugal Design: Reduces clogging and handles debris effectively.

    • Durable Construction: Built to withstand harsh marine and industrial environments.

    • Low Maintenance: Reliable, long-lasting performance with minimal upkeep.

    • Compact & Easy to Install: Space-saving design fits most setups.

    • Quiet & Smooth Operation: Provides consistent performance without excess noise.


    Q&A

    Q: What type of pump is this?
    A: Low-pressure cyclone centrifugal pump, ideal for marine, industrial, and RV water transfer applications.

    Q: What is the power source?
    A: Operates on 24V DC, suitable for boats, RVs, and off-grid systems.

    Q: What are the key features?
    A: Corrosion-resistant construction, high-efficiency low-pressure design, maintenance-free operation, and quiet performance.

    Q: What applications is it suitable for?
    A: Perfect for bilge pumping, water transfer, cooling systems, and general fluid handling.

    Q: Is it easy to install?
    A: Yes — standard mounting and electrical connections allow straightforward installation.

    Q: What condition is the pump in?
    A: Brand new, factory-sealed Jabsco Low Pressure Cyclone Centrifugal Pump 24V [50840-0024] (CWR-77156).


    Maintenance Tips

    • Check electrical connections and ensure secure 24V supply before use

    • Inspect mounting hardware for tightness and proper alignment

    • Ensure suction and discharge lines are clear of debris to prevent damage

    • Operate within recommended voltage and duty cycle to avoid overheating

    • Inspect pump housing, impeller, and seals regularly for wear or corrosion

    • Clean exterior and vents to prevent dust or debris buildup

    • Check hoses and fittings for leaks, cracks, or wear periodically

    • Avoid running the pump dry to protect seals and impeller

    • Store in a dry, protected area when not in use

    • Follow manufacturer maintenance guidelines to maximize pump lifespan
