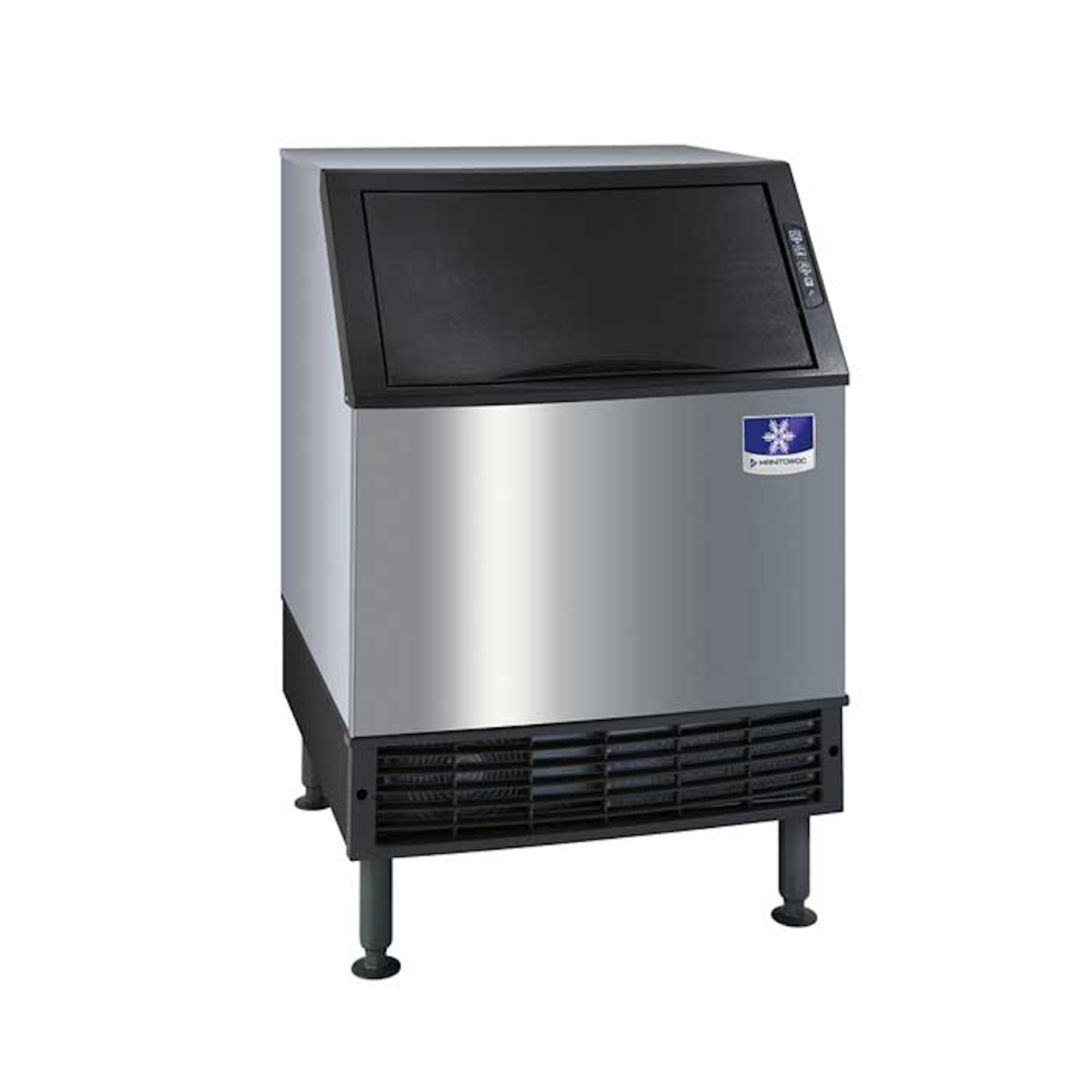

Manitowoc NEO 240 Undercounter Ice Machine - MWUY240
The Manitowoc NEO 240 is an undercounter, air-cooled ice machine. It makes cubed ice. The unit produces up to 215 lbs. of ice daily. It measures 26” w X 38.5” h X 28” d, and has 6” legs. The included ice storage bin holds up to 90 lbs. of ice.
The Manitowoc NEO 240 is an undercounter ice machine. NEO undercounter ice machines are designed to provide ice right where you need it - within reach. Improvements in performance, intelligence, and convenience make your ice machine easy to own and less expensive to operate.
Features
- Product Features:
-
Performance: Greater ice production while using less water and energy. The storage bin provides industry-leading capacity.
-

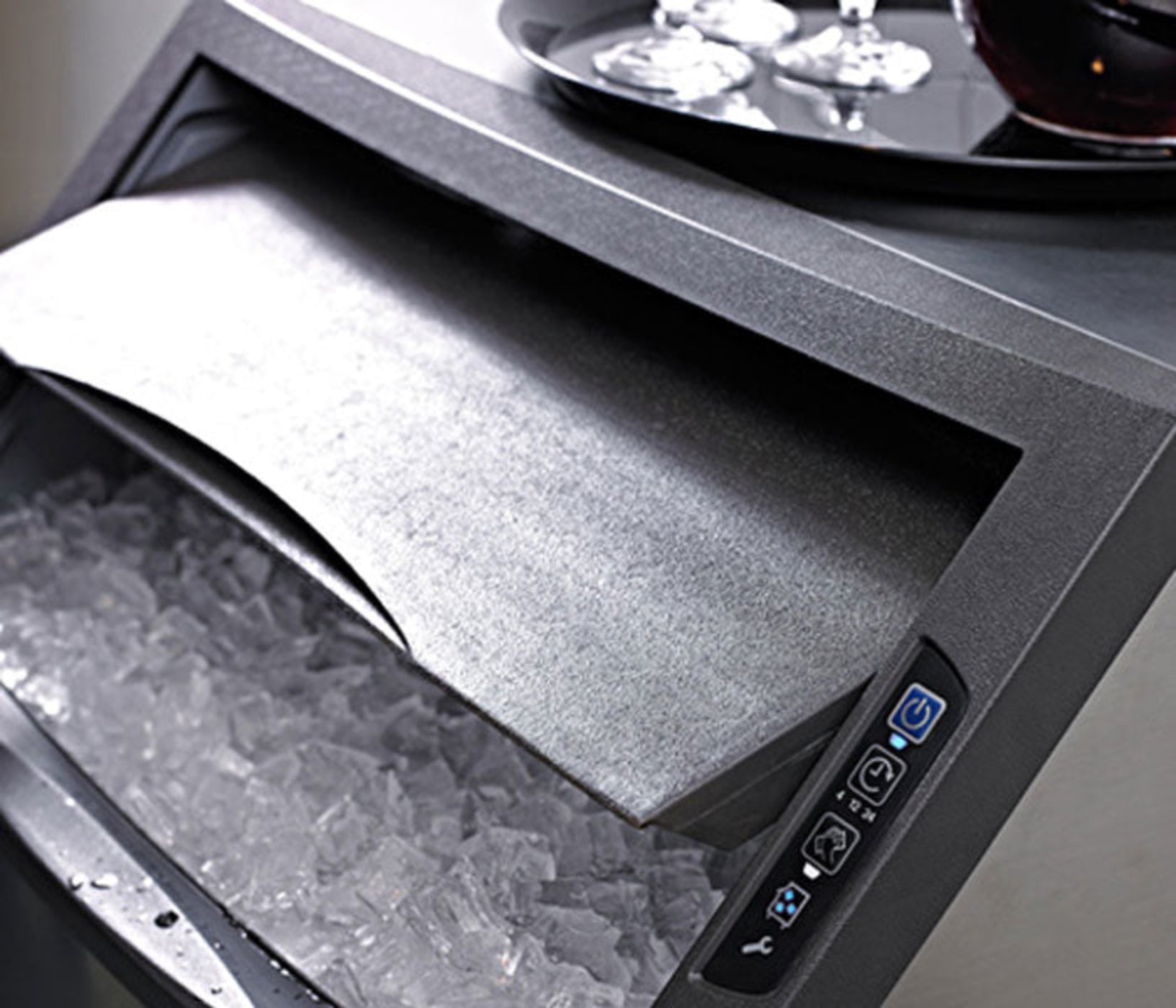

Intelligence: Provides feedback with full bin and service indicators. Delay function allows you to pause your machine for slow periods or days when your closed.
-
Easy to Clean: Smooth sealed food-zone with removable water trough, distribution tube, and damper door for faster cleaning. AlphaSan added to key internal components.
-
Convenience: Forward-sliding storage bin allows for easier, quicker access to refrigeration components without having to move the entire ice machine. Air Filter slides out easily from bottom without tools.
-
LuminIce Growth Inhibitor: Available LuminIce Growth Inhibitor controls the growth of bacteria and yeast within the foodzone. (This is an option, not included)
Specifications
| Model Family |
UY0240A / UYF0240A / UDF0240A (NEO Series) |
| Ice Production (24 hrs) |
Up to ~215 lbs (~98 kg); some half‑dice variants ~219 lbs |
| Ice Storage Capacity |
90 lbs (~40 kg) |
| Ice Type |
Full Dice (UDF) or Half Dice (UYF) cubes |
| Cooling Type |
Air‑cooled (standard) or optional Water‑cooled on some configurations |
| Dimensions (W×D×H) |
26″ × 28.5″ × 38.5″ (on 6″ adjustable legs) |
| Width |
26″ (66 cm) |
| Depth |
28.5″ (72.4 cm) |
| Height |
38.5″ (97.8 cm) |
| Power / Electrical |
Typically 115 V, 60 Hz, single‑phase; Amps vary by model (~6‑7 A) |
| Compressor / Motor |
~1/3 HP refrigeration system |
| Construction |
Stainless steel exterior, self‑contained unit |
| Controls & Indicators |
Full bin, service lights; production delay function |
| Sanitation Features |
Removable water trough, sealed food zone, antimicrobial surfaces |
| Certifications |
NSF, cULus, AHRI (varies by region) |
| Weight |
~157–160 lbs (71–73 kg) depending on version |
| Operating Environment |
Ambient 40–110 °F (4–43 °C), water temp 45–90 °F (7–32 °C) |
What our Experts Think
-
High-output, space-saving solution
Produces up to 215–240 lbs of ice per day while fitting neatly under counters—ideal for bars, cafés, and small commercial kitchens.
-
Built for efficiency & cost control
Optimized to use less water and energy, helping reduce long-term operating costs without sacrificing performance.
-
Smart, user-friendly controls
Features intuitive indicators (full bin, service alerts) and a delay function to pause production during slow hours—great for energy management.
-
Easy maintenance = less downtime
Removable components, sealed food zone, and tool-free air filter access make cleaning quick and hassle-free.
-
Excellent hygiene protection
Includes antimicrobial components and optional LuminIce® technology to inhibit bacteria and yeast growth inside the machine.
-
Convenience-focused design

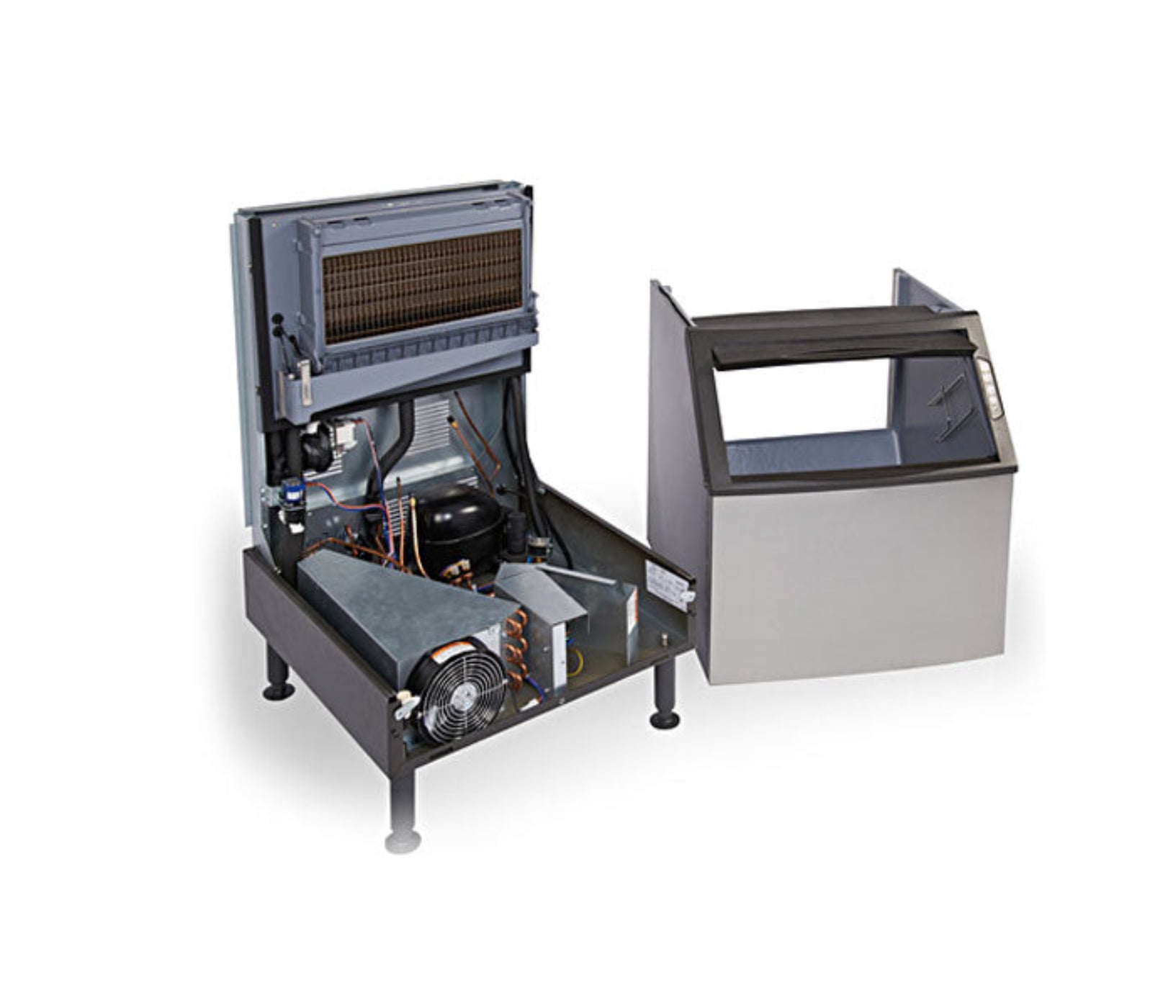

The forward-sliding bin allows fast access to internal parts—no need to move the unit for servicing.
-
Reliable storage capacity
Holds up to 90 lbs of ice, ensuring consistent availability during peak demand.
Q&A
Q: How much ice does the Manitowoc NEO 240 produce daily?
A: It produces up to 215–220 lbs of ice per day, ideal for small restaurants, cafés, and bars.
Q: What is the ice storage capacity?
A: The built-in bin stores up to 90 lbs of ice, reducing refill frequency.

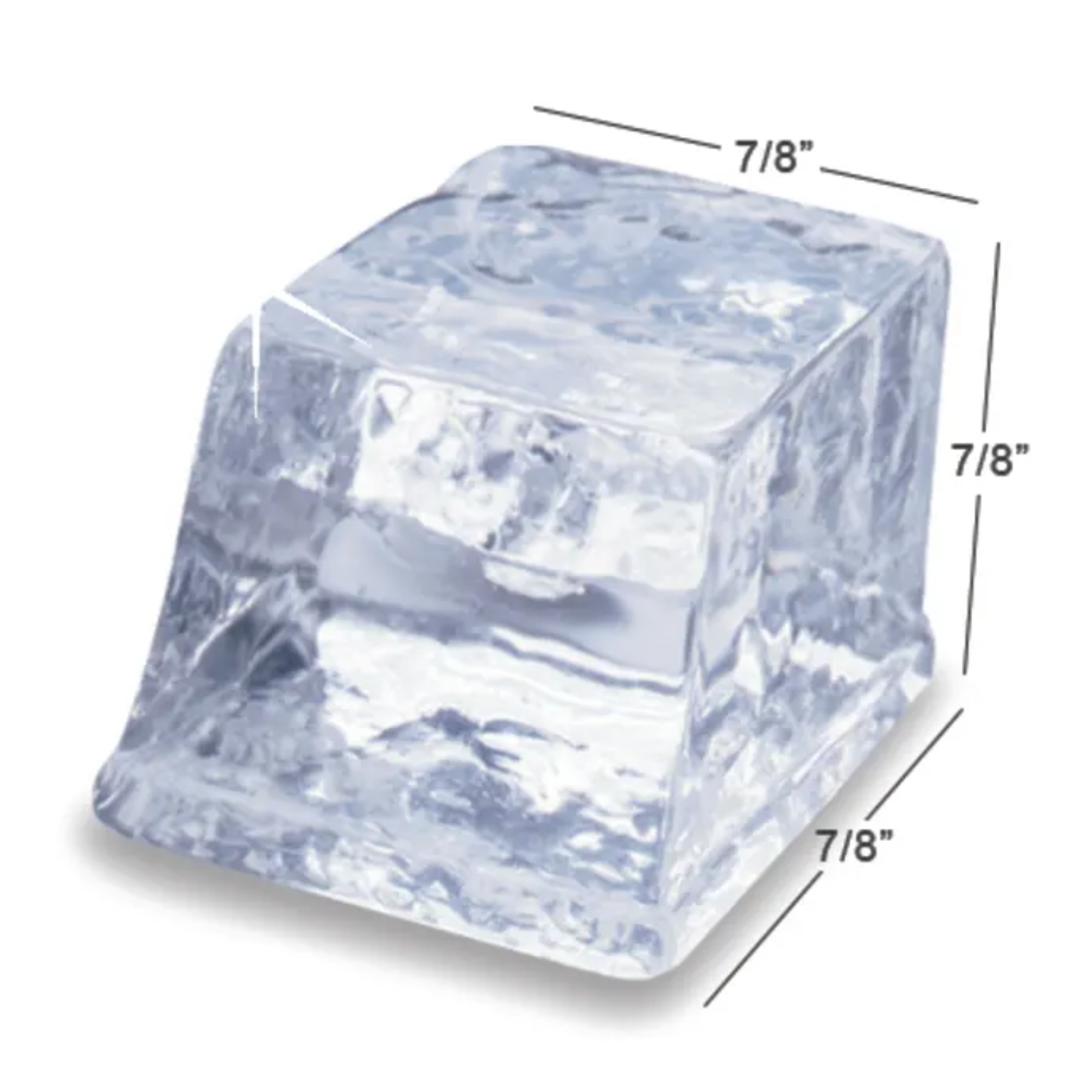

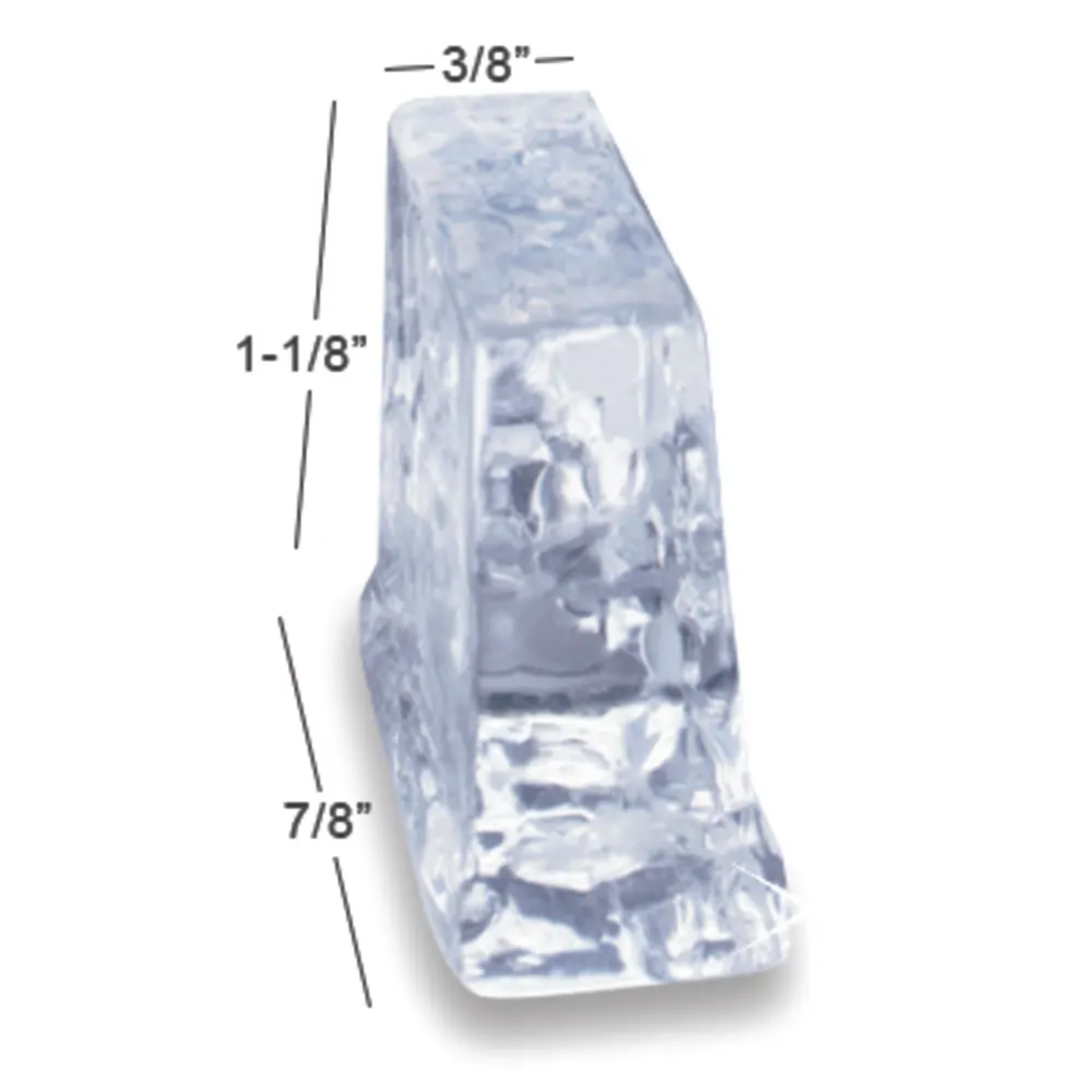

Q: What type of ice does it make?
A: It produces dice or half-dice ice, perfect for beverages and food service applications.
Q: Is this ice machine energy efficient?
A: Yes, it is Energy Star qualified and designed to use less water and energy, lowering operating costs.
Q: What are the dimensions of the unit?
A: Compact size: 26" W x 28.5" D x 38.5" H, making it ideal for undercounter installation.
Q: Is it easy to clean and maintain?
A: Yes, it features a sealed food zone, removable components, and a slide-out bin for quick cleaning and servicing.
Q: Does it include antimicrobial protection?
A: Yes, it uses AlphaSan® and optional LuminIce® technology to help control bacteria, mold, and yeast.
Q: What smart features does it offer?
A: It includes full-bin alerts, service indicators, and a delay function for efficient operation.
Q: Is this unit suitable for commercial use?
A: Absolutely—it's built for commercial environments with durable construction and strong warranty coverage.
Maintenance Tips
-
Clean & sanitize every 6 months to prevent scale, bacteria, and performance loss. Use only approved cleaner and run the built-in clean cycle.
-
Wash air filter every 2–4 weeks to maintain airflow and energy efficiency.
-
Descale regularly (more often in hard water areas) to avoid mineral buildup and खराब ice quality.
-
Clean condenser coils (every 6 months) to prevent overheating and reduced ice production.
-
Inspect water lines & fittings for leaks and proper pressure; use a filter to improve ice clarity.
-
Keep front airflow unobstructed for optimal cooling and consistent output.
-
Wipe interior & bin regularly to maintain hygiene and food-safe ice.
-
Replace worn parts (filters, seals) every 6–12 months for reliability.
-
Ensure unit is level to avoid uneven ice formation and harvesting issues
