Marhsall I Full-HD PTZ Camera (Black) - CV620-ND

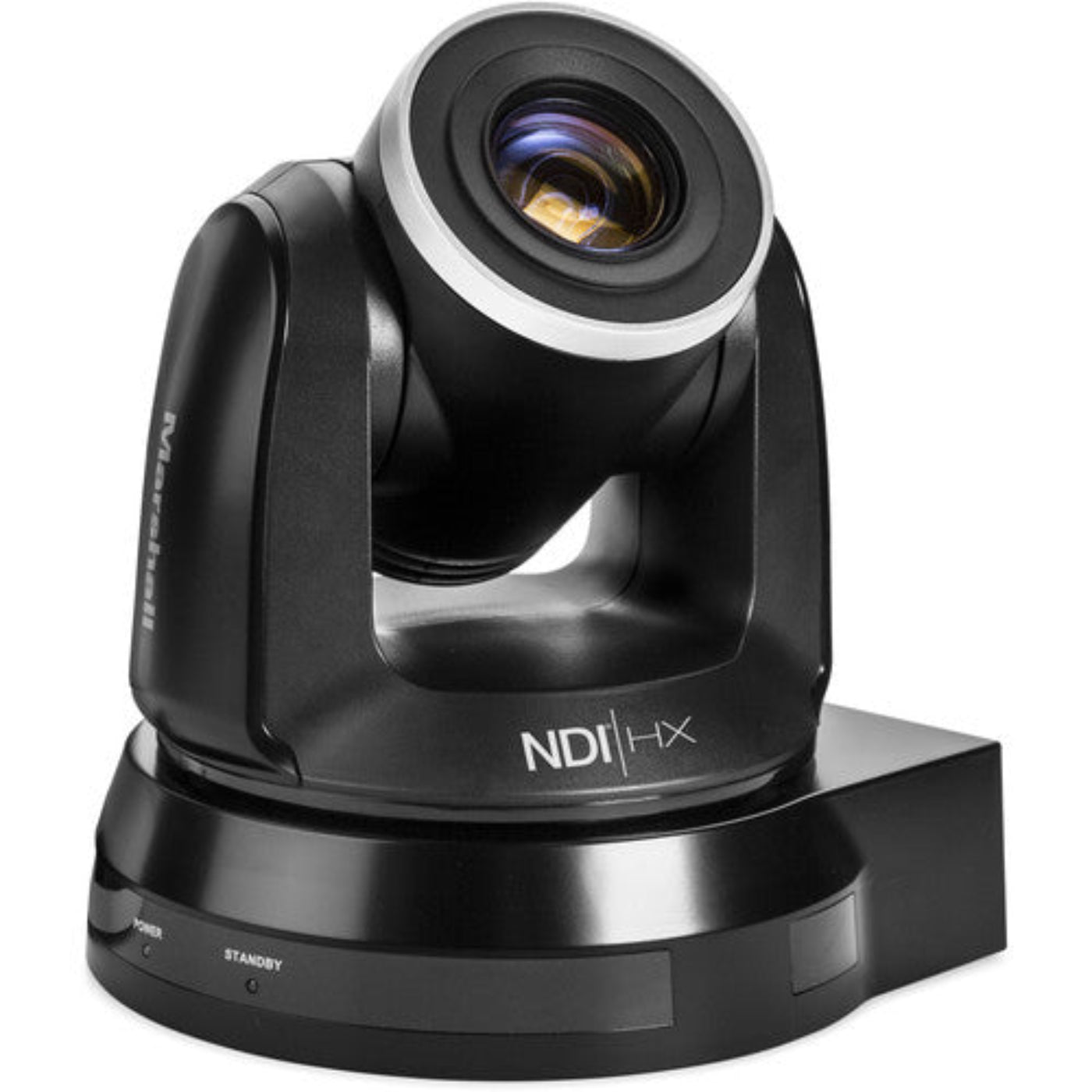

The Marshall CV620-NDI Full-HD PTZ Camera combines the performance and versatility of the popular Marshall CV620 PTZ Camera with NewTek's NDI|HX technology for use with NDI compatible systems. The CV620-NDI is built around a professional grade 2-Megapixel 1/2.8-inch sensor with 20x optical zoom, 340-degree horizontal pan, and 120-degree vertical tilt for complete crisp video coverage of meeting rooms, connected classrooms, control rooms, live events, and more.
In addition to 3G/HD-SDI and HDMI outputs, the CV620-NDI's NDI capability enables this camera to be easily integrated, controlled, and managed using a range of NDI-enabled equipment for seamless IP-based workflows.
Features
- 1080p/i & 720p Resolution up to 60 fps
- 4.7-94mm Lens, 20x Optical Zoom
- 2MP 1/2.8" Sensor

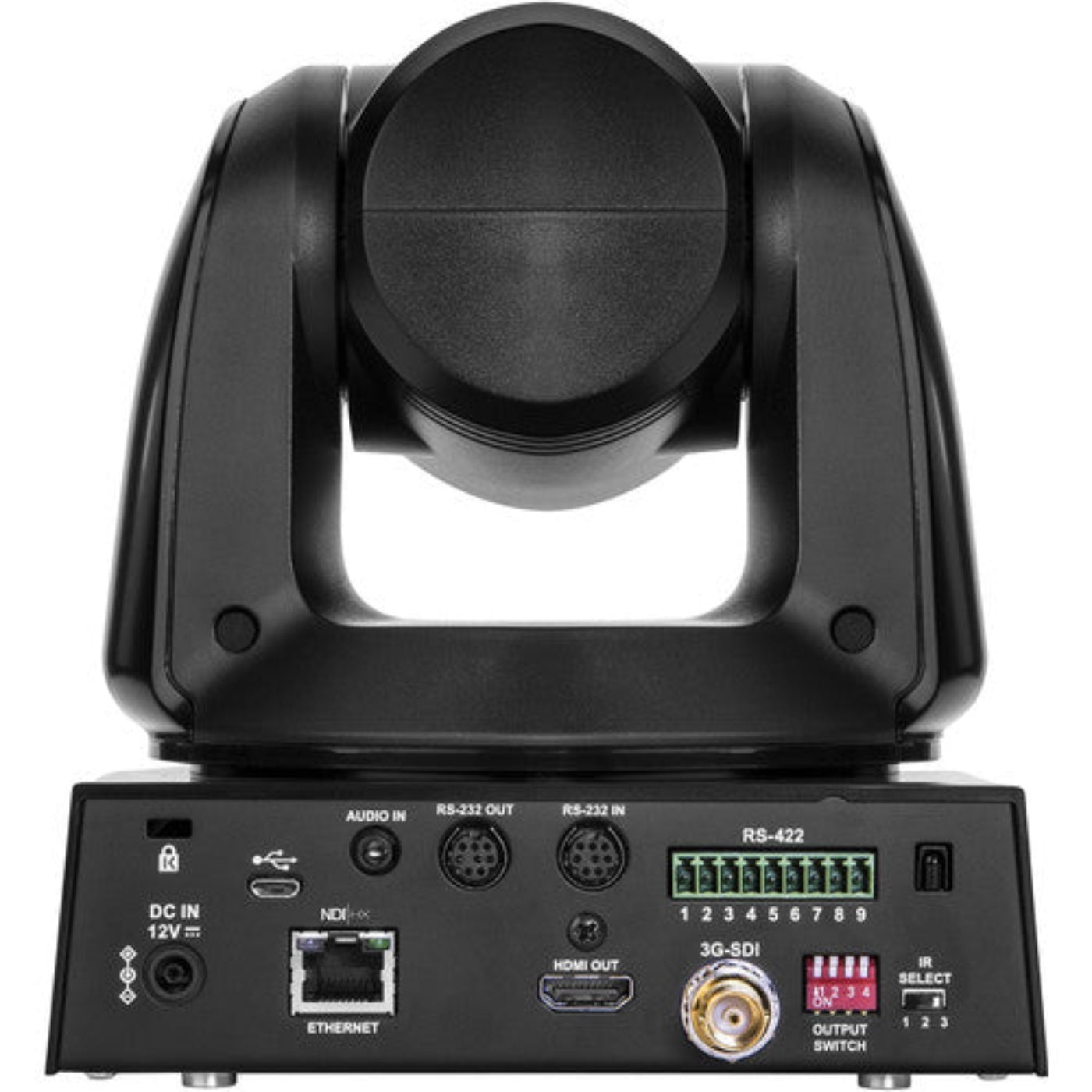

- 3G/HD-SDI, HDMI, and NDI Outputs
- 2-Megapixel 1/2.8-inch Sensor
- Full-HD: 1920x1080i, 1920x1080p, 1280x720p
- High Speed: 60, 59.94, 50, 30, 29.97, 25 fps
- 20X Optical Zoom 4.7~94mm (F1.6~3.5) with 12x Digital
- Wide Pan-Tilt Range: 340-degree Horizontal Pan - 120-degree Vertical Tilt
- TRS Audio Line/Mic level select (2.5V to mic)
- Quiet, smooth, stable, synchronous PAN-TILT-ZOOM motor
- Mountable via table, wall or ceiling. Ceiling mount included in box; wall mounts CV6XX-WM (Black) or CV6XX-WMW (White) sold separately.
- 3G/HD-SDI, HDMI, and NDI simultaneous outputs with support for
- PoE+ (802.3af) Power over Ethernet
- RS422/RS232 Remote Control Interface at High Comm Speeds
- Mountable via table, wall, ceiling mounts included for use with built-in image flip setting
- Compatible with integrated video conferencing systems and NDI-enabled networks
What our Experts Think
-
Full-HD Resolution: Delivers clear, professional-quality video for live production and streaming.
-
PTZ Functionality: Smooth pan, tilt, and zoom for precise framing and dynamic shots.
-
NDI|HX Compatible: Easy IP workflow integration for low-latency network streaming.
-
Compact, Professional Design: Black finish fits studios, conference rooms, and event spaces.
-
Reliable Performance: Built for consistent operation in demanding professional environments.
Q&A
Q: What video quality does the CV620‑ND deliver?
A: Professional Full HD 1080p/1080i and 720p capture up to 60 fps from a 2 MP 1/2.8″ sensor for clear broadcast‑grade video.
Q: How strong is the zoom and movement?
A: Features 20× optical zoom (with additional digital zoom) and smooth 340° pan / 120° tilt movement for versatile framing.
Q: Which outputs and connectivity are supported?
A: Offers 3G/HD‑SDI, HDMI, and IP/NDI outputs simultaneously plus PoE+ support for simplified cabling.
Q: Can the camera be remotely controlled?
A: Yes — supports RS‑232/RS‑422 control plus network/NDI control for PTZ and settings integration.
Q: What audio and power features are included?
A: Includes an analog TRS audio input and supports Power over Ethernet (PoE+) for one‑cable deployment.
Q: What installations is it ideal for?
A: Great for conferencing, broadcast, corporate AV, education, houses of worship, and live production environments needing flexible HD PTZ coverage.
Maintenance Tips
-
Clean the lens & housing with a soft microfiber cloth and approved cleaner to maintain sharp Full‑HD video.
-
Secure all connections (NDI/PoE, power) to prevent signal interruptions and ensure reliable control.
-
Update firmware regularly to improve performance, stability, and compatibility with NDI workflows.
-
Check PTZ mechanics often for smooth pan/tilt/zoom movement without noise or sticking.
-
Ensure good airflow around the unit; avoid blocked vents and excessive heat to extend lifespan.
-
Use surge protection/UPS to safeguard against power spikes and network disruptions.
-
Monitor network stability for consistent high‑quality streaming and remote operation.
