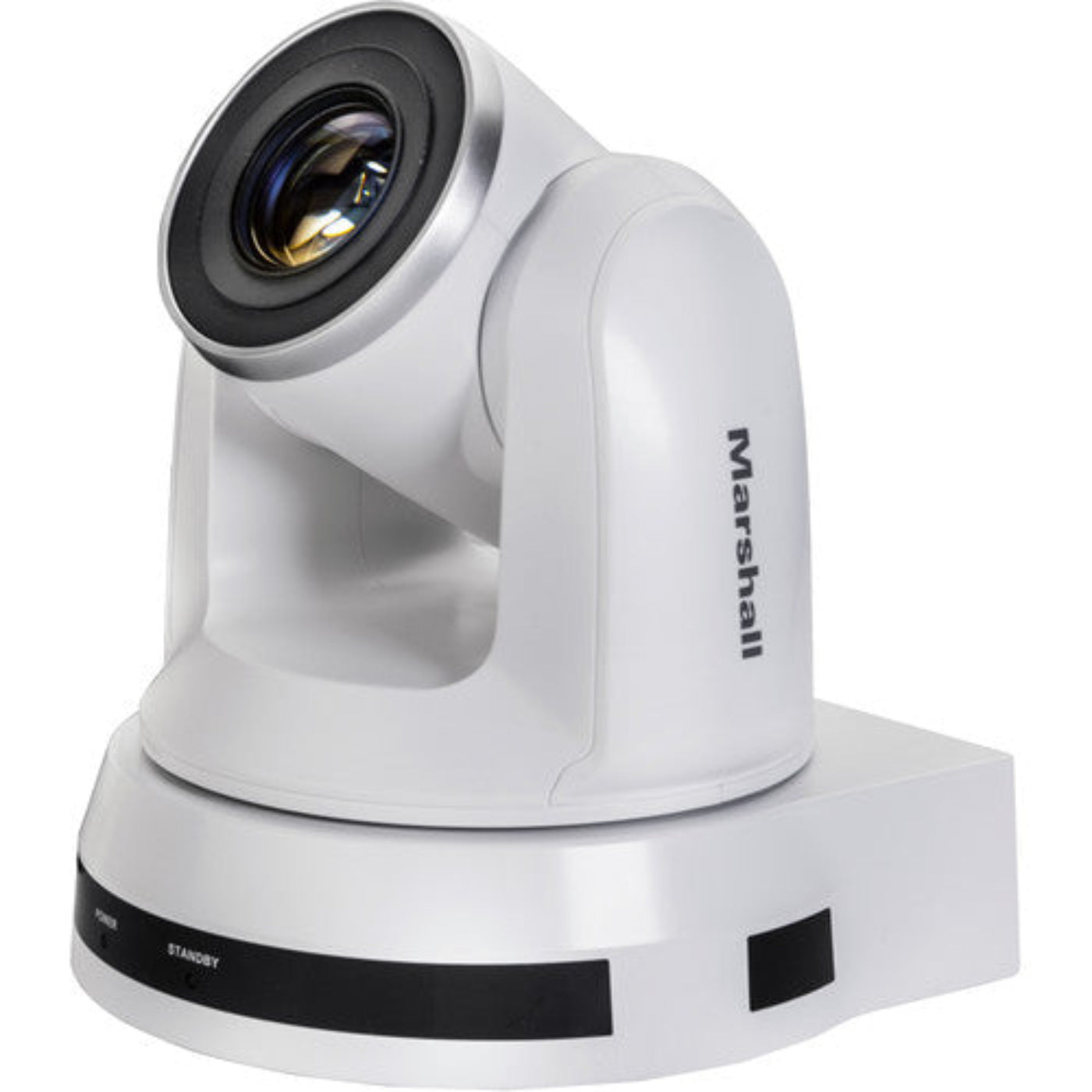

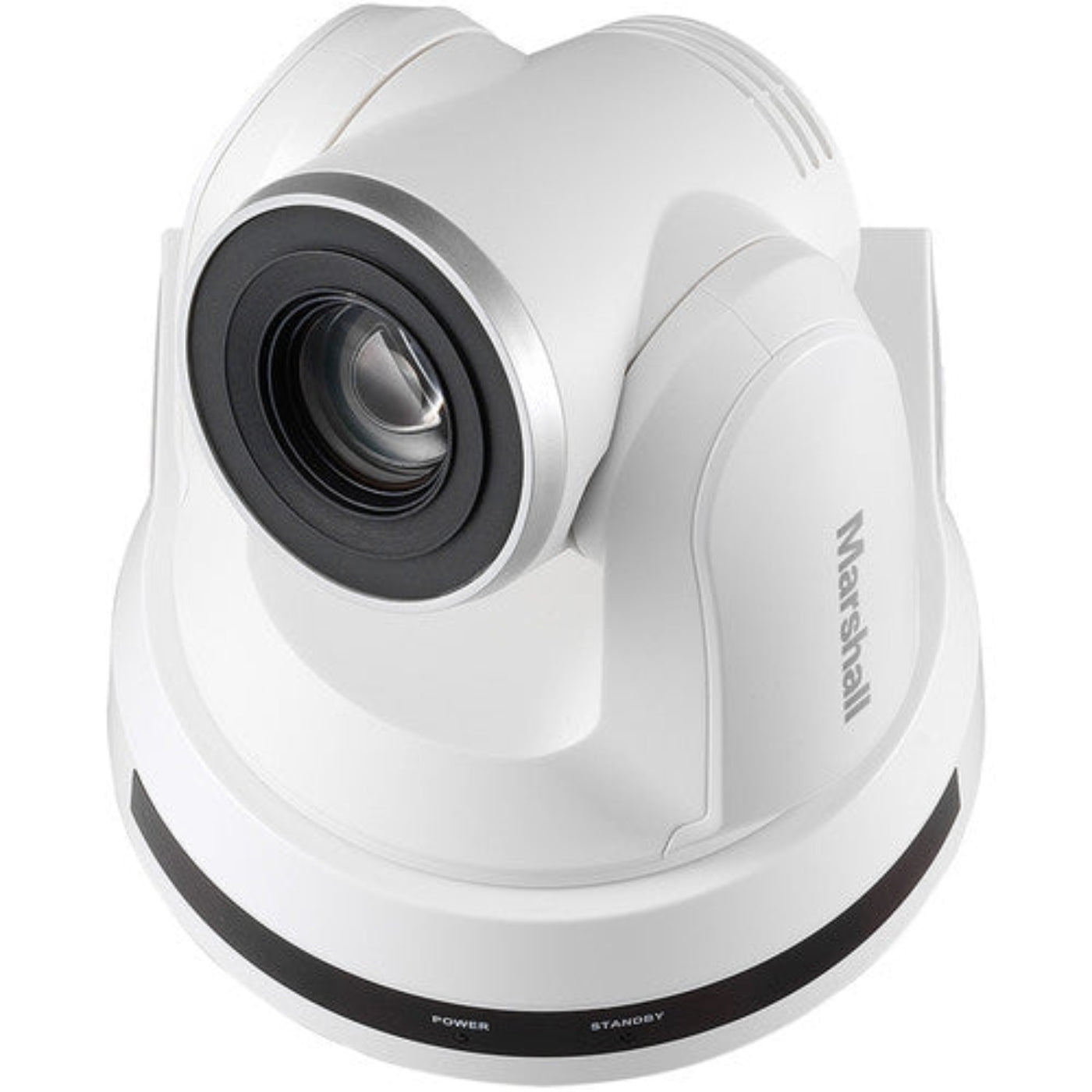

Marshall HD PTZ Camera with IP, 3G/HD-SDI, HDMI (White) - CV620-IPW
Marshall Electronics Broadcast ProAV PTZ Camera is built around a professional grade 2 Megapixel 1/2.8-inch sensor with a smooth 20x Optical Zoom (4.7~94mm) block. Versatile outputs such as 3G/HD-SDI, HDMI Type-A, and IP (H.264) which allows for one Ethernet cable to contain compressed H.264 Video, PoE (48V) and IP Control. Remote operation and control via VMS (Video Management Software), Web Browser GUI, or RS232/RS422 using common protocols make it compatible with most integrated control systems. Broadcast adjustable settings such as White Balance, Exposure, Iris, Gamma, Gain, Black Level and other operational adjustments create tremendous flexibility of use. Applications served would include Remote Confidence Monitoring, Corporate, Broadcast, Education, Worship, Healthcare, Medical, Government, Courtroom, Entertainment, Music and a variety of Broadcast ProAV studio workflows using IP, 3G/HD-SDI, or HDMI.
Features
- RS422/RS232 Remote Control Interface
- 20x optical zoom
- 1080p, 1080i, and 720p modes
- 1/2.8" sensor captures clear images
- 2 Megapixel 1/2.8-inch Sensor
- Full-HD: 1920x1080i, 1920x1080p, 1280x720p
- High Speed: 60, 59.94, 50, 30, 29.97, 25 fps
- 20X Optical Zoom 4.7~94mm (F1.6~3.5) with 12x Digital
- Wide Pan-Tilt Range: 340 degree Horizontal Pan - 120 degree Vertical Tilt
- Quiet, smooth, stable, synchronous PAN-TILT-ZOOM motor allows for quality transitions
- TRS Audio Line/Mic level select (2.5V to mic)

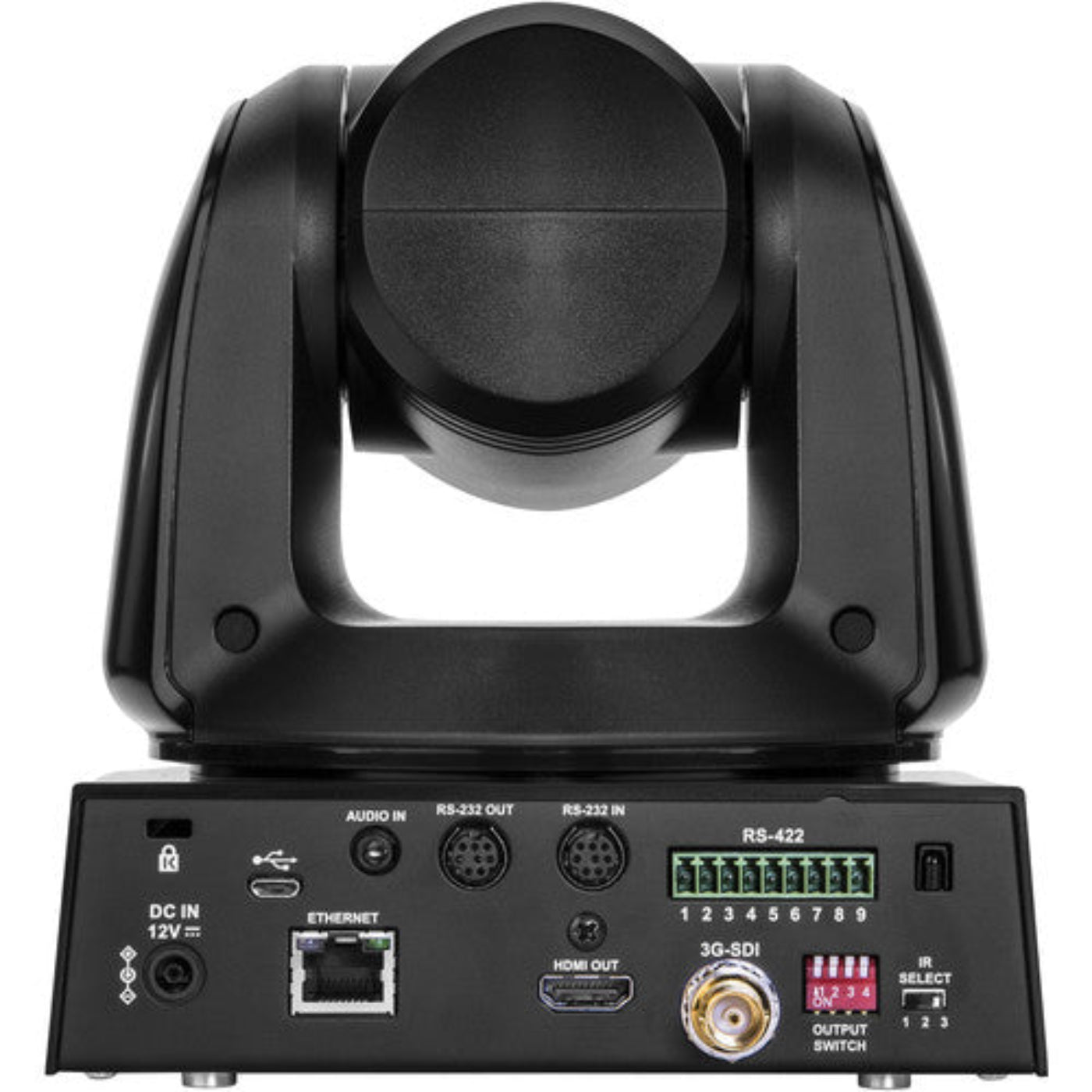

- IP (H.264), 3G/HD-SDI and HDMI simultaneous outputs
- RS422/RS232 Remote Control Interface at High Comm Speeds
- Mountable via table, wall or ceiling. Ceiling mount included in box; wall mounts CV6XX-WM (Black) or CV6XX-WMW (White) sold separately.
- Compatible with integrated video conferencing systems
- (1) Ethernet (Cat) connection allows for H.264 video, PoE+ (power), and Control over one Cat cable.
What our Experts Think
-
Reliable Full HD Image Quality
Equipped with a 2MP 1/2.8" sensor, delivering sharp 1080p video at up to 60fps—ideal for professional AV and live streaming setups.
-
Strong 20X Optical Zoom Performance
Capture detailed shots from a distance with 20X optical zoom + 12X digital zoom, making it perfect for medium-to-large venues.
-
Flexible Multi-Output Connectivity
Simultaneous IP (H.264), 3G-SDI, and HDMI outputs ensure seamless integration into broadcast, streaming, and conferencing workflows.
-
Smooth & Silent PTZ Operation
Wide 340° pan and 120° tilt range with quiet motors allows fluid camera movement—ideal for live productions and events.
-
Single-Cable Efficiency (PoE+)
Power, control, and video over one Ethernet cable simplifies installation and reduces cable clutter.
-
Advanced Control & Integration
Supports RS-232, RS-422, and IP control protocols, making it compatible with most professional AV control systems.
-
Versatile Mounting & Use Cases
Suitable for wall, ceiling, or desk mounting, widely used in corporate, education, worship, and broadcast environments.
Q&A
Q1: What video resolution does the Marshall CV620-IPW support?
A: It delivers Full HD 1920×1080 resolution up to 60fps, ensuring smooth and professional-quality video output.
Q2: Does this PTZ camera offer optical zoom?
A: Yes, it features 20x optical zoom, ideal for capturing detailed close-ups in large spaces.
Q3: What output and connectivity options are available?
A: Includes IP streaming, 3G/HD-SDI, and HDMI outputs, providing flexible integration for broadcast and AV systems.
Q4: Can it stream over a network?
A: Yes, it supports IP streaming with H.264/H.265 compression and protocols like RTSP, RTMP, and ONVIF.
Q5: Does the camera support Power over Ethernet (PoE)?
A: Yes, PoE+ support allows power, video, and control via a single Ethernet cable for easy installation.
Q6: How is the PTZ performance?
A: It offers smooth, quiet pan-tilt-zoom movement, making it perfect for live productions and automated tracking.
Q7: What control options are supported?
A: Compatible with VISCA, Pelco, ONVIF, RS-232, RS-422, and IP control, ensuring seamless integration with control systems.
Q8: Does it support audio input?
A: Yes, it includes audio embedding for synchronized video and audio streaming.
Maintenance Tips
-
Clean Lens for Sharp Full HD Output
Maintain the 2MP sensor clarity (1080p) by gently cleaning the lens with a microfiber cloth.
-
Ensure Stable Network & PoE Connection
Since IP, control, and power run over a single Ethernet (PoE+) cable, regularly check network stability to avoid signal drops.
-
Inspect HDMI & 3G-SDI Outputs
Verify all video outputs (HDMI, SDI, IP) are securely connected for uninterrupted multi-output streaming.
-
Test PTZ Movement & Presets
Periodically check smooth pan (±170°), tilt, and 20x optical zoom to prevent motor or preset issues.
-
Update Firmware Regularly
Use the USB or network interface to keep firmware updated for better performance and compatibility (RTSP, ONVIF, etc.).
-
Maintain Proper Ventilation (0–40°C)
Avoid overheating by ensuring airflow—critical for long-duration conferencing or broadcast use.
-
Secure Mounting (Wall/Ceiling/Desktop)
Check mounts and brackets to prevent vibration affecting image stability and PTZ accuracy.
-
Optimize Image Settings Periodically
Recalibrate white balance, exposure, and gain for consistent video quality across environments.
