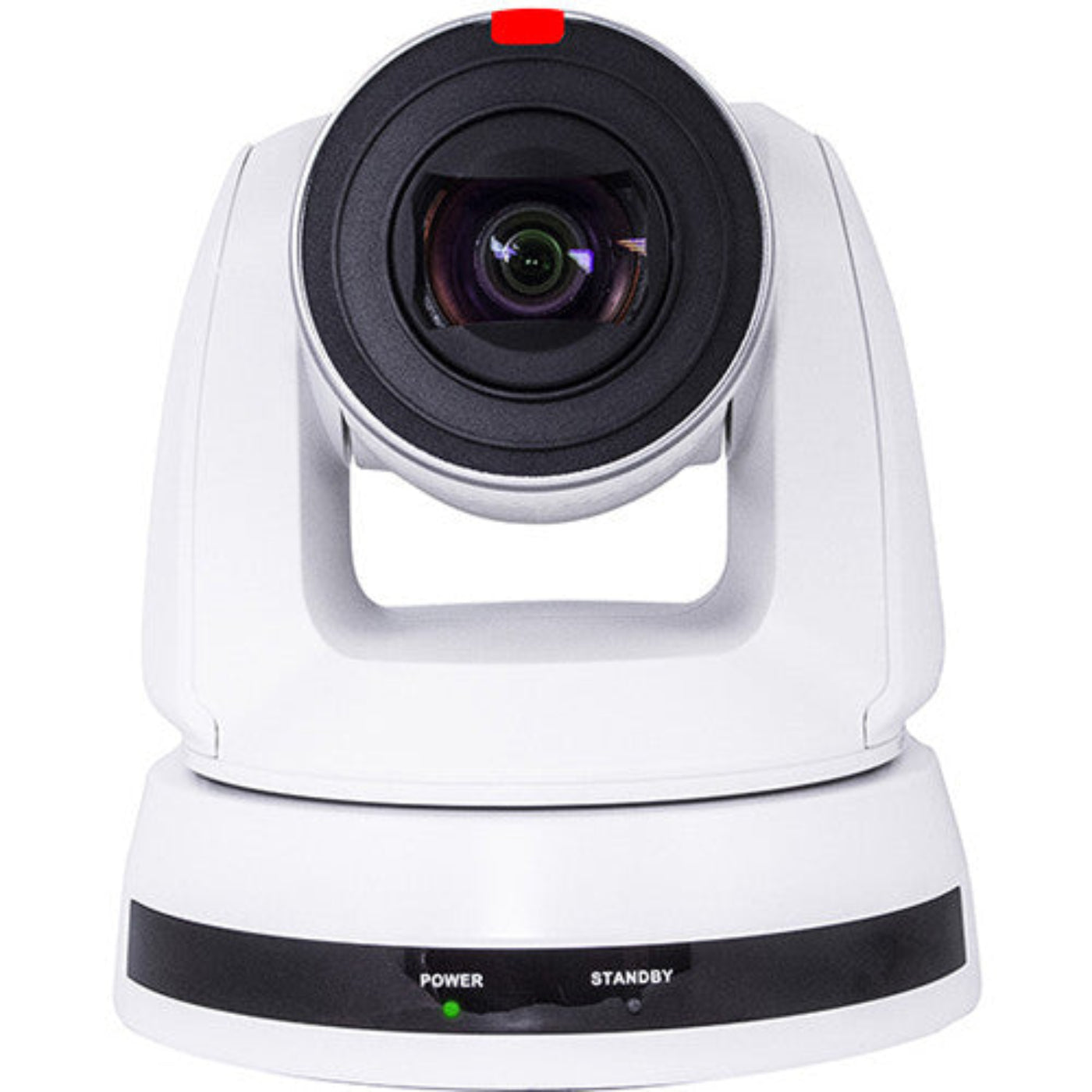

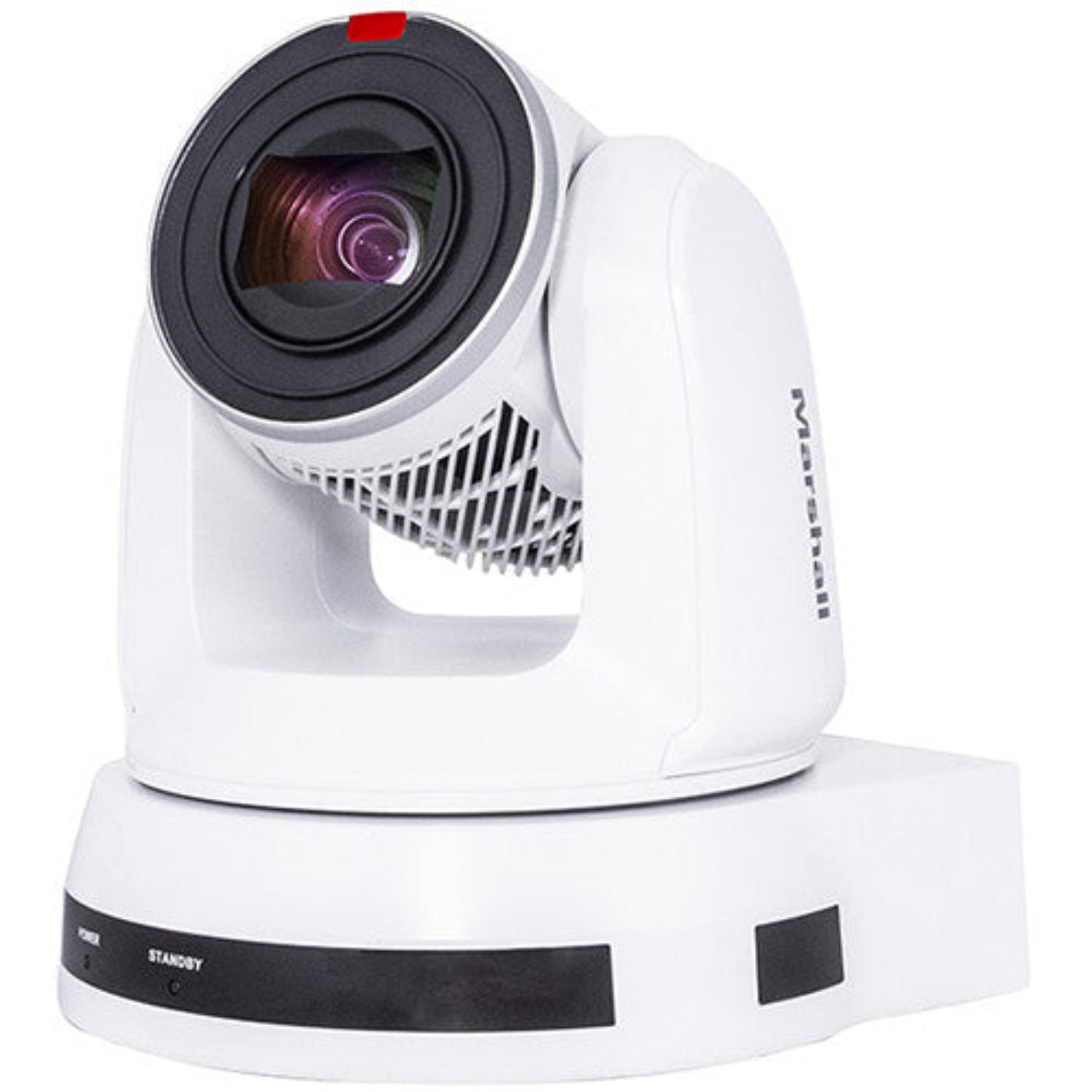

Marshall30X IP PTZ UHD Camera (White) - CV630-IPW
High Performance Video Output
At its core, the CV630-IP packs a powerful 8-megapixel 1/2.5" sensor capturing up to Ultra-HD 3840x2160p video, with support for HD 1920x1080p, and 1280x720p.
Versatile Camera Positioning
The CV630-IP is equipped with synchronous pan, tilt, and zoom motors for smooth and silent camera movements during operation. A 30X optical zoom block provides flexibility from 4.6mm to 135mm, with a nearly 70-degree angle-of-view at its widest.
Simultaneous Networked and Streaming Outputs

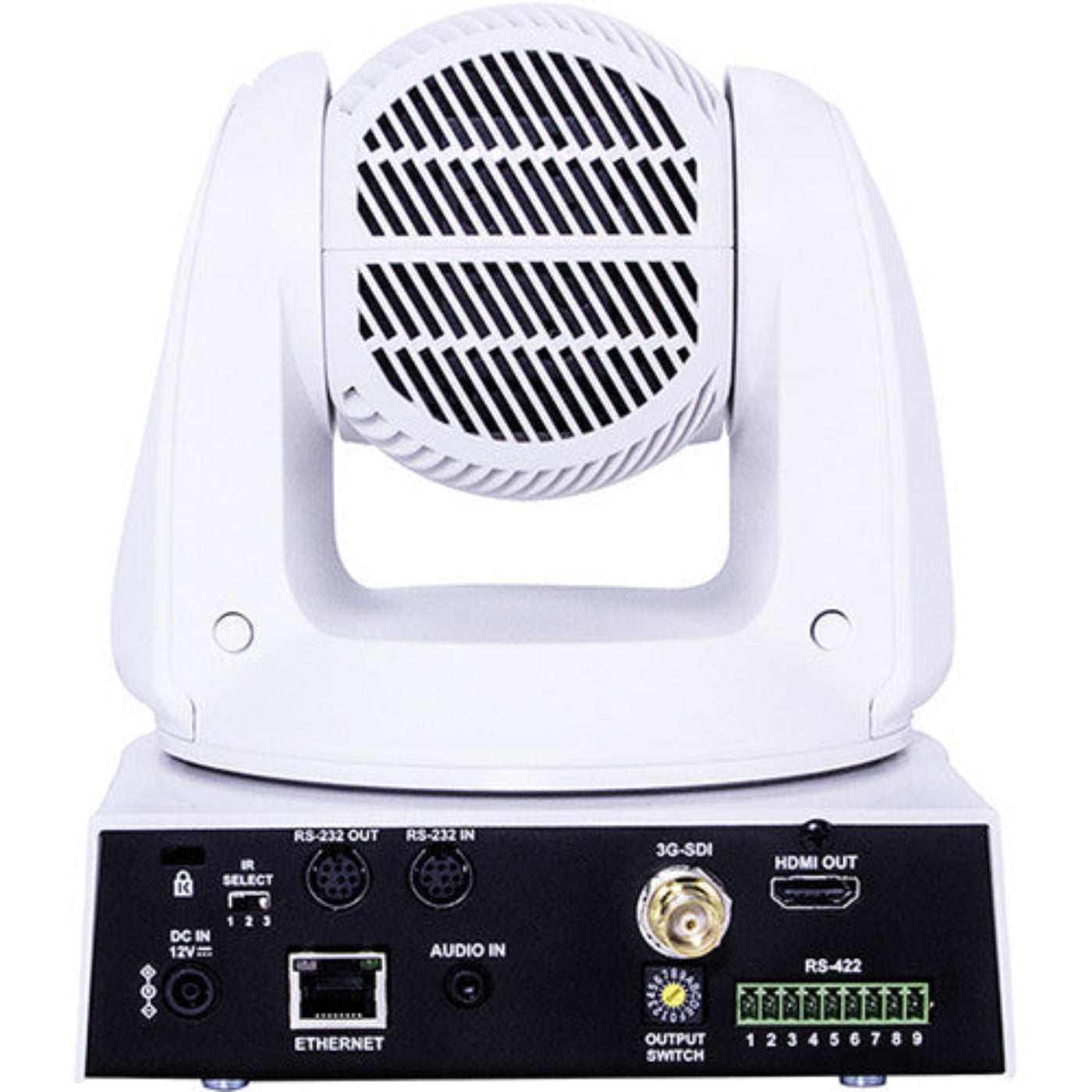

Multiple simultaneous video streams are available over HDMI, 3G-SDI, and triple-stream IP (H.265/H.264) with stereo audio input embeddable on all available outputs. PoE+ (power-over-Ethernet) provides an economical and easy solution for integrators during installation.
Flexible Control Options
The CV630-IP offers easy control over iris, shutter, white balance, focus, pan/tilt speeds, and more, controllable by IR remote, networked video management software (VMS) or RS-232/ RS-422 with support for Visca, Visca over IP, Pelco, and Onvif platforms.
Additionally, the CV630-IP is compatible with Marshall's VS-PTC-IP PTZ Camera Controller, providing intuitive adjustment of pan/tilt/zoom, pan/tilt speeds, white balance, and more with with one button dials and rocker control.
The CV630-IP is suitable for use in live broadcast production, newscast, concerts, reality television, corporate communications, government, courtroom, house of worship, education, and many more broadcast and Professional AV applications
Features
- Ethernet, 3G/HD-SDI, and HDMI Outputs
- 30x Optical Zoom
- 8MP 1/2.5" Sensor
- Up to UHD 4K Resolution
- 8MP 1/2.5" sensor
- 30x Optical Zoom (4.6~135mm) near 70-degrees AOV at widest
- 3GSDI, HDMI, and IP simultaneous outputs
- Simultaneous pan, tilt, and zoom
- H.265 (HEVC) and H.264 (triple-stream) networked outputs
- RTSP / RTMP / MPEG-TS / Haivision SRT
- 3840x2160p, 1920x1080p, and 1280x720p
- Stereo audio input (mic or line level) embedding
- PoE+ (IEEE802.3at), video, and control over a single Ethernet cable
- 340° pan, 120° tilt, and 30X zoom range
- Front tally light
What our Experts Think
-
Professional-grade monitoring: Dual 7″ 4K LCDs deliver crisp and accurate image quality ideal for live production, broadcast trucks, and post-production workflows.
-
12G-SDI simplicity: Single-cable 12G-SDI inputs reduce cabling complexity while supporting up to 4Kp60 workflows.
-
Rackmount efficiency: Space-saving 1RU form factor maximizes rack utility without sacrificing screen real estate.
-
Flexible routing & display: Independent inputs and output routing let you monitor two sources simultaneously or expand to larger displays.
-
Reliable performance: Built-in calibration tools, waveform, vectorscope, and flexible mounting options support demanding professional environments.
-
Great value: Combines rugged build quality, advanced features, and industry-standard connectivity at a competitive price point.
Q&A
Q: What is the Marshall Electronics V-702W-12G-V2?
A: A professional dual 7" 4K-ready 3RU rackmount monitor for broadcast, studio, control room, and remote production applications.
Q: What display quality does it offer?
A: Two 7" LCD panels with 1920×1200 resolution, 450 cd/m² brightness, and 1200:1 contrast for clear, accurate monitoring.
Q: What video inputs/outputs are supported?
A: Dual 12G-SDI and HDMI inputs with loop-through outputs supporting DCI 4K60 and UHD 4K60 video signals.
Q: What professional monitoring tools are included?
A: Focus peaking, false color, waveform, histogram, freeze, markers, multiple color temps, and four user-assignable function buttons.
Q: Can it integrate into existing workflows?
A: Yes — tally input, USB-A for LUT uploads, remote Ethernet control, and flexible power options make integration seamless.
Q: Is the monitor suitable for 4K broadcast environments?
A: Absolutely — robust 12G-SDI connectivity and advanced monitoring functions meet professional broadcast and live-production needs.
Q: What form factor and installation flexibility does it have?
A: Compact 3RU rackmount with tilting mount and wide 160° viewing angles for optimal set-ups.
Maintenance Tips
-
Lens Cleaning – Use a microfiber cloth to keep the lens clear for sharp UHD video.
-
PTZ Operation Check – Regularly test pan, tilt, and 30x optical zoom for smooth motion.
-
Firmware Updates – Keep IP camera firmware current for stable streaming and feature improvements.
-
Network & Connection Check – Ensure LAN/Wi-Fi and power cables are secure and dust-free.
-
Environmental Care – Avoid moisture, direct sunlight, and extreme temperatures to extend lifespan.
