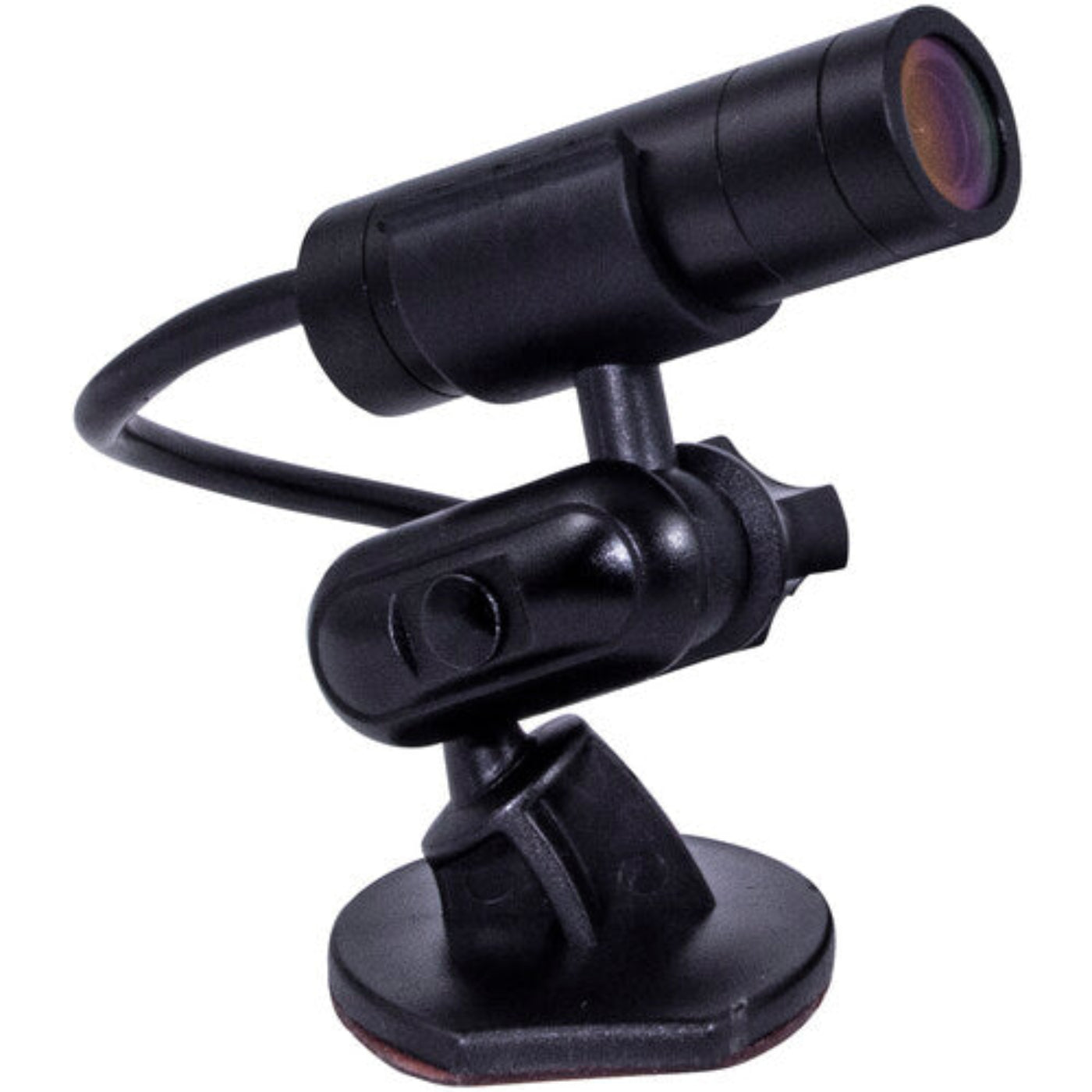

Marshall Electronics All-Weather 3G/HD-SDI HD Lipstick Camera - CV228
What our Experts Think
-
Rugged All‑Weather Design – IP67 weatherproof housing withstands dust, rain, mud, and even temporary water immersion, making it ideal for outdoor, sports, and industrial use.
-
Professional 3G/HD‑SDI Output – Full‑sized BNC SDI output delivers reliable, broadcast‑ready video up to 1080p60 with clean signal transmission.
-
High‑Resolution 2.5 MP Sensor – Advanced 1/2.8″ CMOS sensor with 4:2:2 color yields crisp, accurate HD images with excellent low‑light performance.
-
Versatile Frame Rates & Resolutions – Supports full HD progressive and interlaced formats at a wide range of frame rates (25–60 fps), perfect for live production workflows.
-
Flexible Control & Adjustments – Remote RS‑485 VISCA control and onboard OSD joystick let you fine‑tune settings like white balance, color, gain, exposure, and gamma.
-
Compact Yet Durable – Slim “lipstick” form factor with a 10‑ft breakout cable and 1/4″‑20 mount fits discreet locations while staying rugged for field use.
Q&A
Q: What video quality does the CV228 deliver?
A: Full‑HD video with up to 1920×1080p60 output over full‑size 3G/HD‑SDI (BNC) for crisp, broadcast‑ready imaging.
Q: Is this camera weatherproof?
A: Yes — it has an IP67‑rated all‑weather housing that stands up to dust, rain, mud, snow, and even temporary submersion.
Q: Does it come with a lens?
A: Yes — includes an interchangeable M12 4.0 mm lens (~85° field of view) with an IP67 cap.
Q: What kind of cable and connectors?
A: It features a 3 m breakout cable with 3G/HD‑SDI video output, RS‑485 control, and a locking 12 V power connector.
Q: Can I adjust settings remotely?
A: Yes — remote control via RS‑485 (VISCA) or the onboard OSD menu joystick lets you tweak picture settings and frame rates.
Q: Where is this camera best used?
A: Ideal for outdoor POV, live events, sports, and broadcast installations needing rugged, professional SDI capture.
Q: What’s a key benefit?
A: Combines weatherproof durability, professional 3G/HD‑SDI output, and flexible control in a compact lipstick form factor.
Maintenance Tips
-
Clean Lens Gently – Use a soft, lint-free cloth to maintain clear HD images.
-
Check Weatherproof Seals – Ensure IP-rated seals are intact to prevent water or dust ingress.
-
Avoid Prolonged Sun Exposure – Protect the sensor from overheating and glare.
-
Secure Mounting – Confirm brackets and screws are tight for proper camera alignment.
-
Stable Power Supply – Use recommended voltage to safeguard electronics.
-
Cable Management – Prevent sharp bends or tension on SDI and power cables.
-
Inspect Regularly – Check lens, housing, and connectors for wear or damage.
-
Store Properly – Keep in a dry, dust-free environment when not in use.
