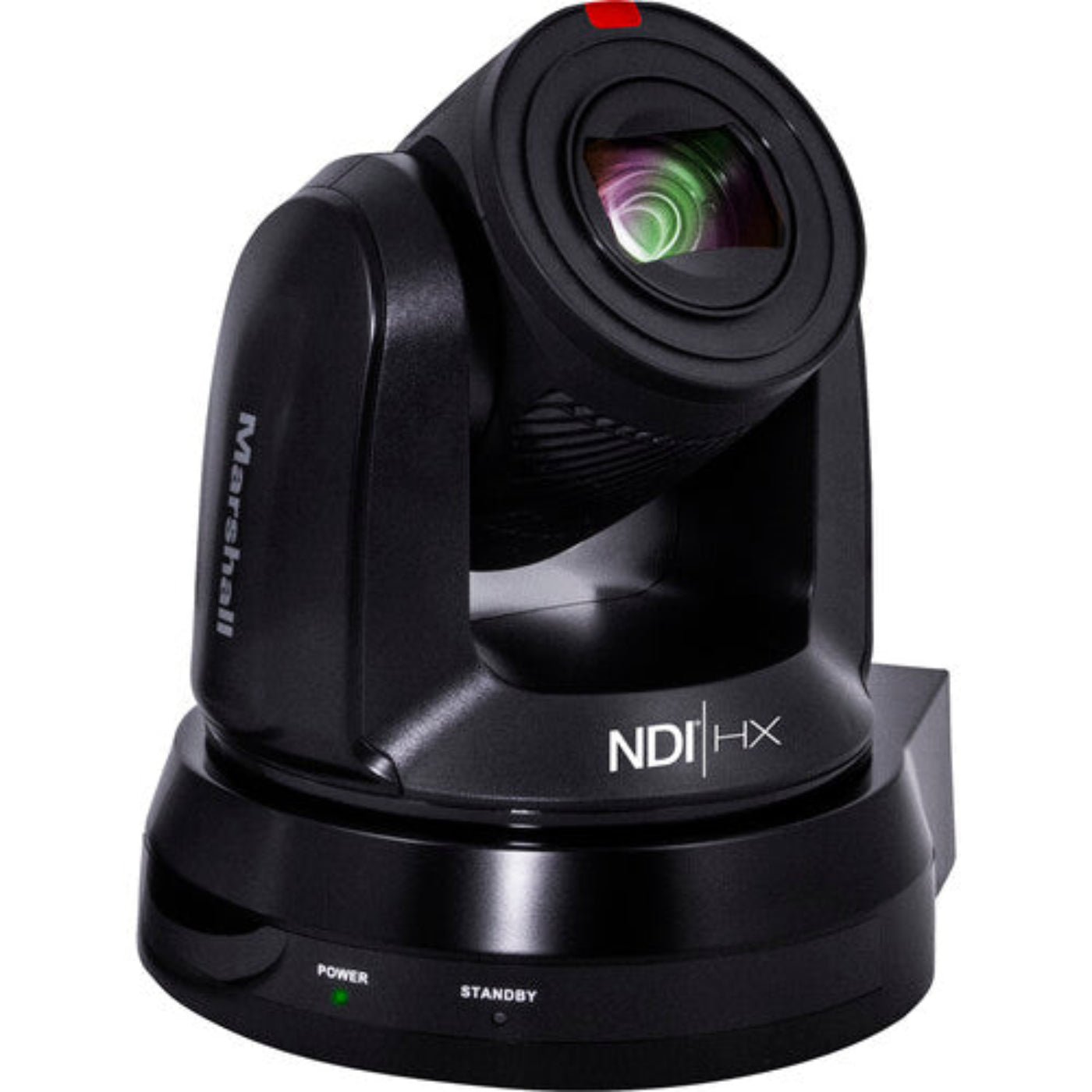

Marshall Electronics UHD 4K30 NDI|HX PTZ Camera (Black) - CV630-NDI

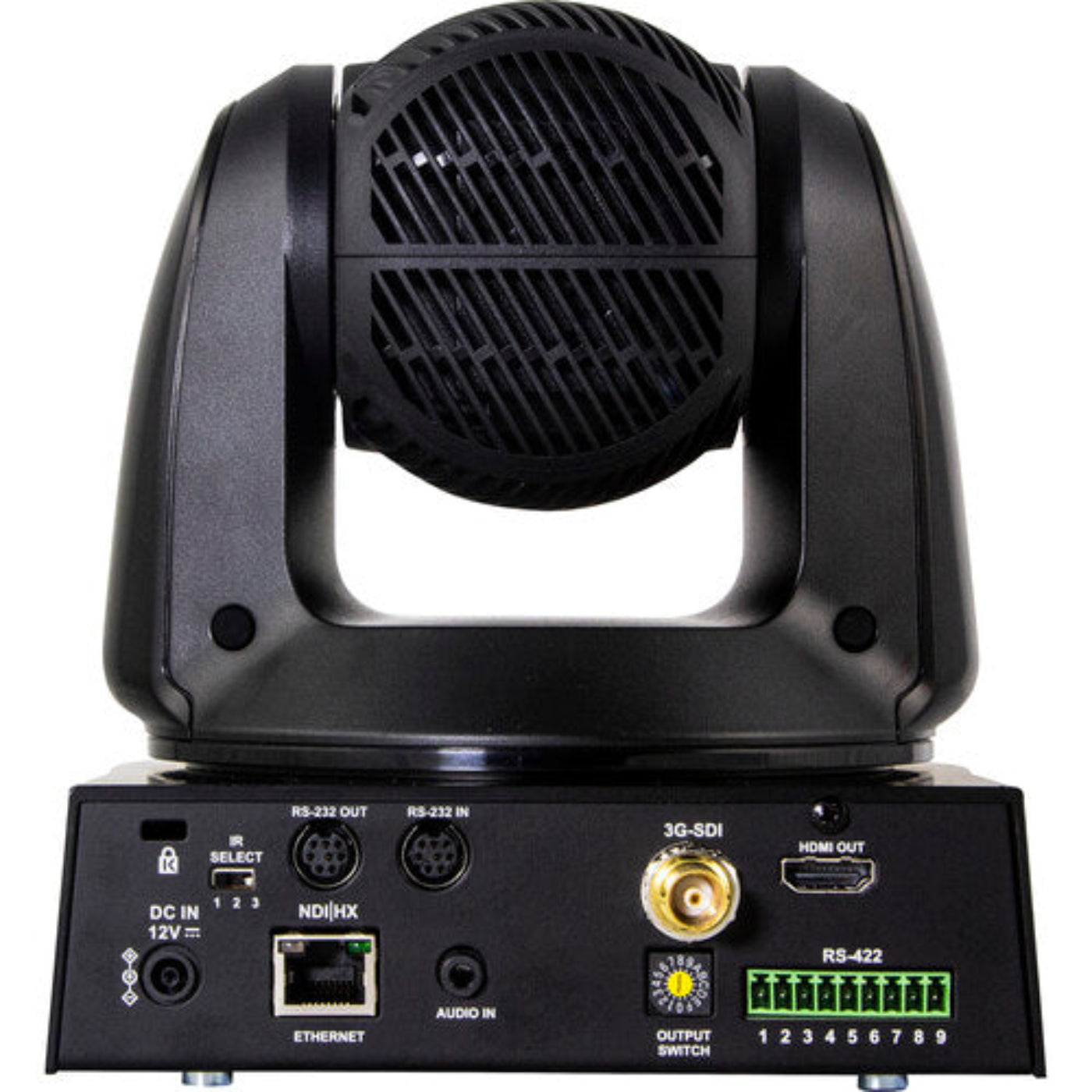

The black CV630-NDI UHD 4K30 NDI|HX PTZ Camera from Marshall Electronics is designed for professional conferencing applications. Its 8MP sensor captures up to 3840 x 2160p UHD 4K30 resolution with a lens with 30x optical zoom from 4.6 to 135mm and a 70° angle of view. Connectivity features include 3G-SDI, HDMI, and NDI|HX over RJ45 LAN output as well as RS-232 and RS-422 serial control. The RJ45 port also supports PoE+ (Power-over-Ethernet) so you can power the camera on a PoE+ supported LAN without additional power cables.
Stream video using H.265 and H.264 compression over IP for high-quality streaming with the RJ45 Ethernet port, and control the unit using IP, RS-232, or RS-422 with VISCA, Pelco, and ONVIF support. The camera is built with smooth and quiet 340° pan, 120° tilt, and it offers simultaneous PTZ and focus control for advanced transitions.
Features
- Up to UHD 4K Resolution, NDI|HX Support
- 8MP 1/2.5" Sensor
- 30x Optical Zoom, 70° Angle of View
- 3G/HD-SDI, HDMI, and NDI|HX Output
- 35mm Equivalent 4.6 to 135mm Lens
- IR Remote Select
What our Experts Think
-
UHD 4K30 Resolution: Delivers crisp, professional-quality video for broadcast and streaming.
-
NDI|HX Connectivity: Seamless IP workflow for low-latency network streaming.
-
Precision PTZ Control: Smooth pan, tilt, and zoom for dynamic shots and automated operation.
-
Compact & Durable Design: Black finish fits studios, corporate setups, and live events.
-
Reliable Performance: Built for consistent professional use in demanding environments.
Q&A
Q: What video quality does the CV630‑NDI PTZ camera deliver?
A: Captures sharp UHD 4K (3840×2160) at 30 fps plus HD and SD resolutions from its professional 8 MP 1/2.5″ sensor.
Q: How strong is the zoom and field of view?
A: Features a 30× optical zoom (4.6 – 135 mm) with a wide ~70° horizontal view for versatile close‑ups and wide shots.
Q: What outputs and connectivity are supported?
A: Simultaneous NDI|HX2 over Ethernet, HDMI, and 3G‑SDI video outputs plus PoE+ support for simplified cabling.
Q: Can it be remotely controlled and integrated?
A: Yes — supports NDI Tools, RS‑232/RS‑422, Visca over IP, Pelco, and ONVIF protocols for PTZ control and integration into workflows.
Q: What PTZ capabilities does it offer?
A: Smooth, quiet 340° pan and 120° tilt, with up to 256 preset positions and four‑dimension control including focus.
Q: What environments is it ideal for?
A: Great for live production, broadcast, conferencing, education, worship, government, and courtroom installs needing 4K NDI streaming.
Q: Does it include audio and power features?
A: Yes — one stereo audio input and video, audio, control, tally, and power over a single PoE+ Ethernet cable.
Maintenance Tips
-
Clean the lens & housing gently with a microfiber cloth and approved optical solution to preserve crisp 4K30 image quality.
-
Verify and secure all connections (NDI/PoE, HDMI/SDI if used) to avoid dropouts and ensure stable streaming.
-
Update firmware routinely for improved NDI|HX performance and camera feature enhancements.
-
Check PTZ mechanics regularly to ensure smooth pan/tilt/zoom movement with no binding or noise.
-
Maintain good airflow around the camera; avoid restricted vents and prolonged heat exposure.
-
Use surge protection/UPS to safeguard electronics against power spikes and network interruptions.
-
Monitor network stability to support consistent high‑bandwidth NDI|HX streams.
