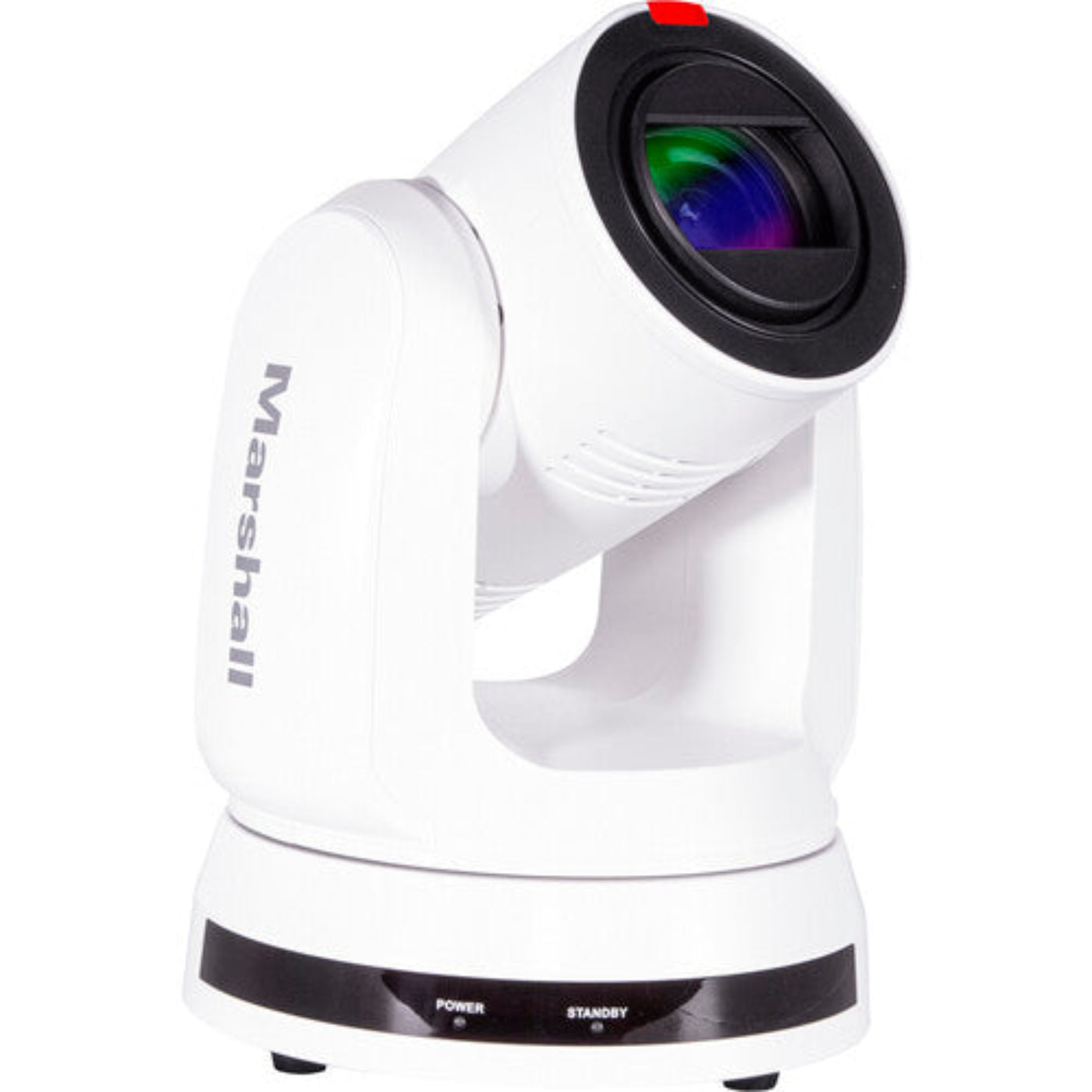

Marshall's CV730 UHD 4K60 IP PTZ Camera, in white, is an indoor camera with a 30x optical zoom lens suitable for everything from small meeting rooms to large event spaces such as auditoriums. A tally lamp is built in right above the lens for applications requiring tally for your talent. Featuring an 8.5MP 1/1.8" sensor, the CV730 captures up to UHD 4K/59.94 resolution video and provides simultaneous 12G-SDI, HDMI, and IP outputs.
While a power supply is included, a single Ethernet cable, sold separately, can be used for power, control, video, and audio, or for just power and control while the video signal is sent via the other outputs. Via RS-232 input and output ports or an RS-422 port, up to seven cameras can be linked up in a serial connection, and you can remotely adjust and match settings such as iris, pan, tilt, zoom, white balance, exposure, pedestal, and many more over long distances or during setup. Auto settings can also be set up to track environmental fluctuations. Alternatively, an included IR remote control can be used to adjust settings, including selecting presets.
Features
Up to UHD 4K resolution capture and output at up to 59.94 fps
Simultaneous 12G/6G/3G-SDI, HDMI 2.0, and IP (HEVC/H.265) outputs
30x optical zoom (6.5 to 202mm), starting at 65° horizontal FOV
3.5mm TRS stereo audio mic/line input

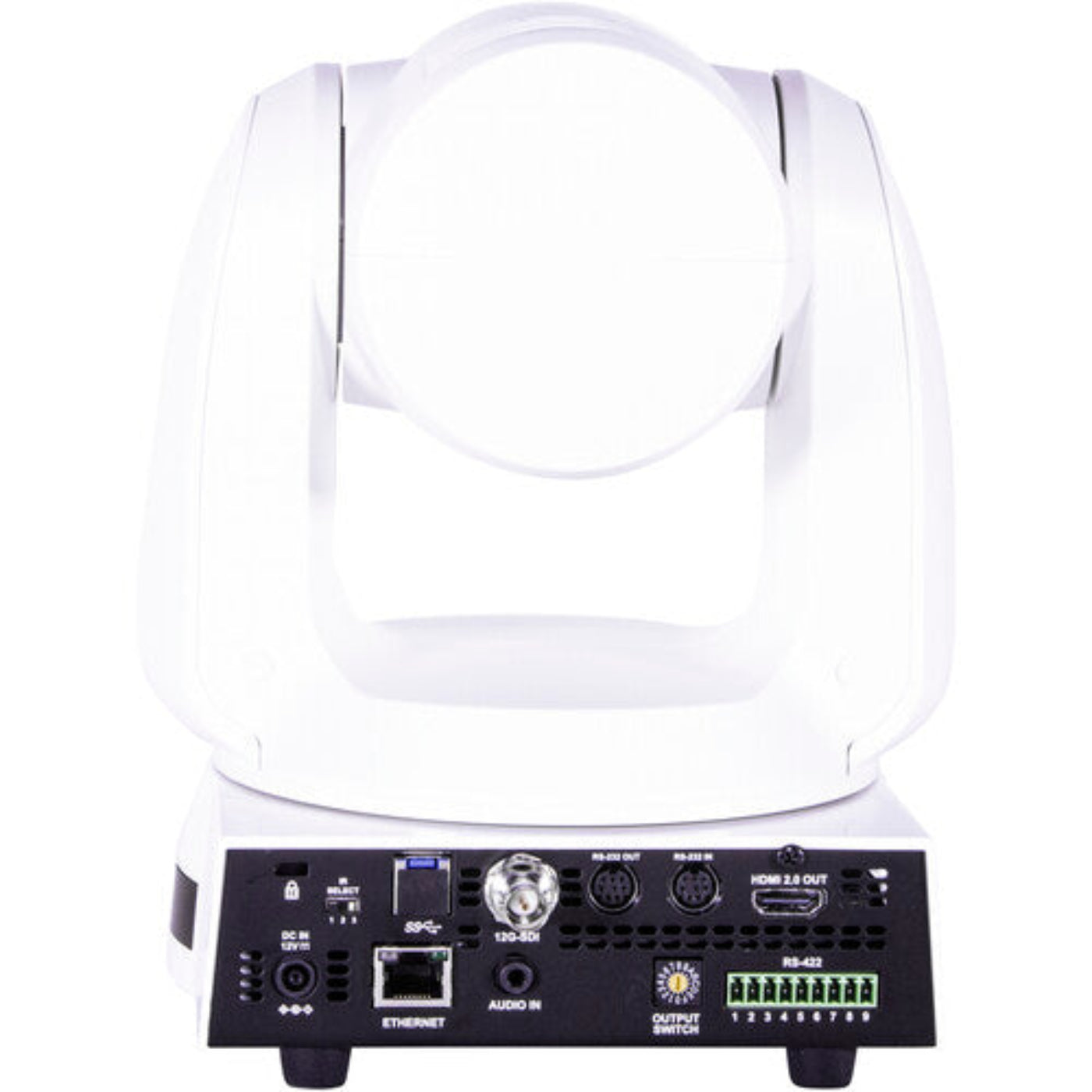

RS-232 and RS-422 ports for controlling up to seven cameras
340° pan and 120° tilt range
USB 3.0 port for connecting to your computer for USB signal image
Dip switch on the rear
What our Experts Think
-
UHD 4K60 Resolution: Captures ultra-sharp, professional-quality video for live streaming and broadcast.
-
30x Optical Zoom: Provides precise close-ups and flexible framing without losing detail.
-
IP PTZ Control: Smooth pan, tilt, and zoom with seamless network integration.
-
HEVC & Low-Latency Streaming: Efficient compression for high-quality video over IP.
-
Durable White Design: Sleek and professional, ideal for studios, corporate events, and live productions
Q&A
Q: What video quality does the CV730‑WH deliver?
A: Captures crisp UHD 4K (3840×2160) at up to 60 fps with an 8.5 MP 1/1.8″ sensor for professional‑grade video.
Q: How powerful is the zoom and field of view?
A: 30× optical zoom (6.5–202 mm) with a wide horizontal field‑of‑view (~65°) for detailed close‑ups and flexible framing.
Q: Which outputs and connectivity are supported?
A: Simultaneous 12G‑SDI, HDMI 2.0, and IP outputs with HEVC/H.265 streaming plus PoE++ support for simplified cabling.
Q: What PTZ and control features does it offer?
A: Smooth 340° pan & 120° tilt movement with presets, plus remote control via RS‑232, RS‑422, and IP protocols.
Q: Does it support audio input?
A: Includes a 3.5 mm TRS stereo mic/line input embedded on video outputs.
Q: What environments is it ideal for?
A: Suited for broadcast, live production, corporate AV, houses of worship, education, and event spaces needing high‑quality 4K video.
Maintenance Tips
-
Clean the lens & housing with a soft, lint‑free microfiber cloth and approved optical cleaner to preserve UHD 4K60 clarity.
-
Check and secure all connections (Ethernet/PoE, power) to prevent video dropouts and ensure stable IP control.
-
Update firmware regularly for optimal performance, security, and compatibility with network systems.
-
Inspect PTZ mechanics often to ensure smooth, quiet pan/tilt/zoom operation with 30x optical zoom.
-
Maintain proper ventilation; avoid blocked vents and excessive heat to extend internal component life.
-
Use surge protection/UPS to protect against power spikes and network interruptions.
-
Monitor network health to support uninterrupted high‑bandwidth UHD 4K60 streaming and remote management.
