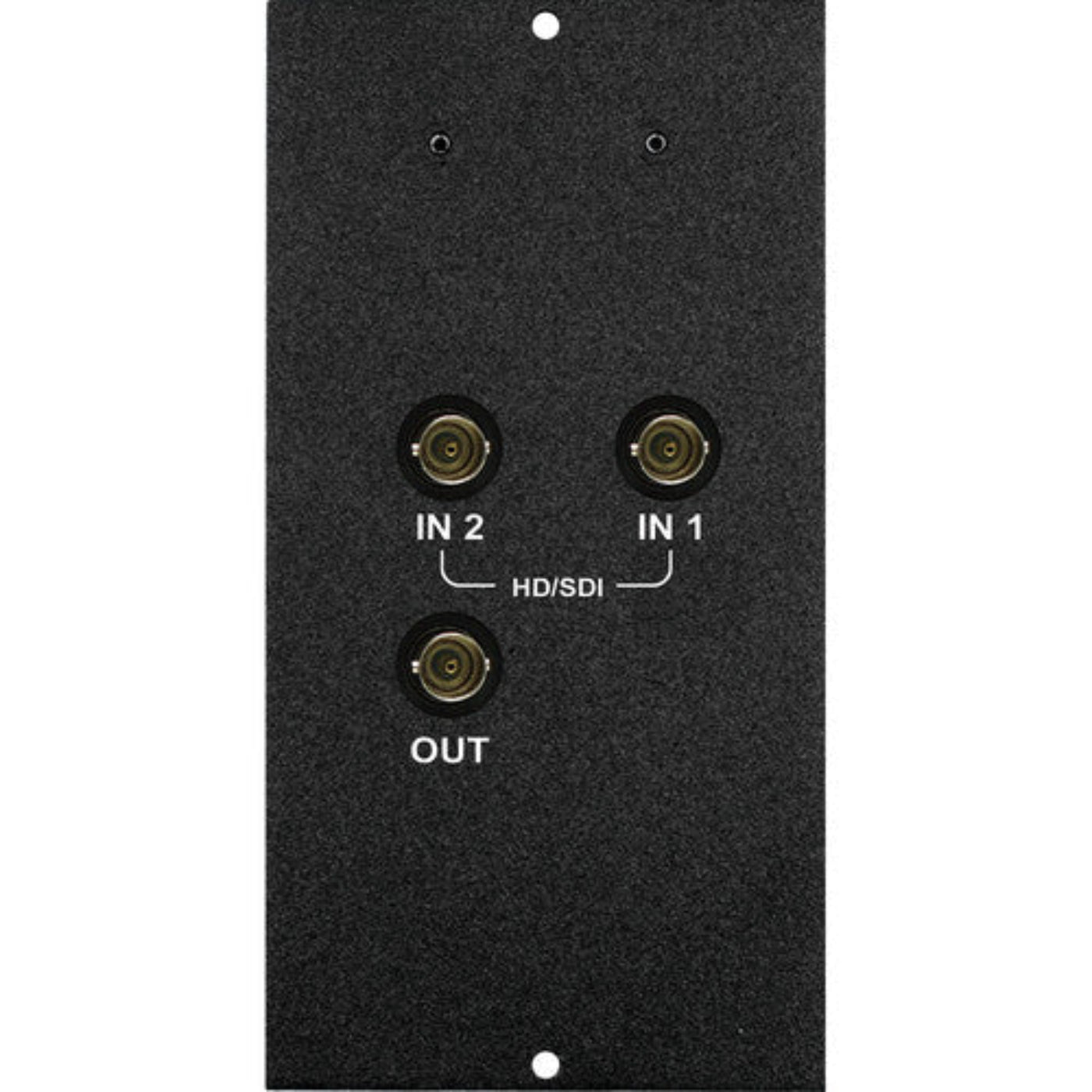

Marshall Electronics Dual HD-SDI Input Module ('B'-type) - MDHDSDIX2A
What our Experts Think
-
Professional Dual HD‑SDI Inputs – Adds two HD‑SDI input channels to compatible MD‑series rack monitors for versatile source connectivity. Supports standard high‑definition feeds used in broadcast and pro video workflows.
-
Loop‑Through Output – Includes a loop‑through output so you can daisy‑chain the SDI signal to another display or recorder without signal loss.
-
Modular & Swappable – Designed to fit the ’B’‑type expansion slot on Marshall MD series monitors, making upgrades simple and adaptable to changing production needs.
-
Compatible with MD434 & VMD503 – Works seamlessly with popular modular rack monitors to expand input options in studios, OB vans, and AV setups.
-
Durable & Reliable – Built for continuous, professional use with trusted Marshall Electronics quality and backed by a manufacturer warranty.
-
Expert‑Recommended – Ideal for multi‑camera environments and professional video monitoring where flexible SDI input options are essential.
Q&A
Q: What does the MDHDSDIx2A module do?
A: Adds two HD‑SDI inputs to compatible Marshall monitors, letting you switch or view dual SDI sources without external converters.
Q: Which monitors is it compatible with?
A: Designed for Marshall MD‑series monitors with modular expansion slots (check your model’s compatibility list first).
Q: What signal formats are supported?
A: Supports HD‑SDI video (1080i/p and 720p) for professional broadcast gear.
Q: Can I loop signals through?
A: Yes — each SDI input includes a loop‑through output for passing the signal to another device.
Q: How is installation?
A: Plug‑and‑play modular design installs directly into your monitor’s expansion bay.
Q: Who is this module for?
A: Ideal for broadcast engineers, videographers, and AV professionals needing dual SDI source monitoring without extra converters.
Q: What’s a key benefit?
A: Clean integration of dual HD‑SDI inputs in one module, saving space and simplifying multi‑camera workflows.
Maintenance Tips
-
Keep BNC Connectors Clean – Use compressed air or a soft brush to remove dust.
-
Avoid Cable Strain – Do not bend or pull SDI cables sharply; use strain relief.
-
Ensure Secure Installation – Confirm module is firmly seated in the monitor slot.
-
Use Certified HD-SDI Cables – Maintain optimal signal quality and reduce dropouts.
-
Power Off Before Handling – Prevent damage when installing or removing the module.
-
Inspect Regularly – Check ports and cables for wear or loose connections.
-
Protect from Moisture & Dust – Store in a clean, dry environment when not in use.
-
Check Signal Integrity – Test loop-out and inputs periodically to ensure stable performance.
