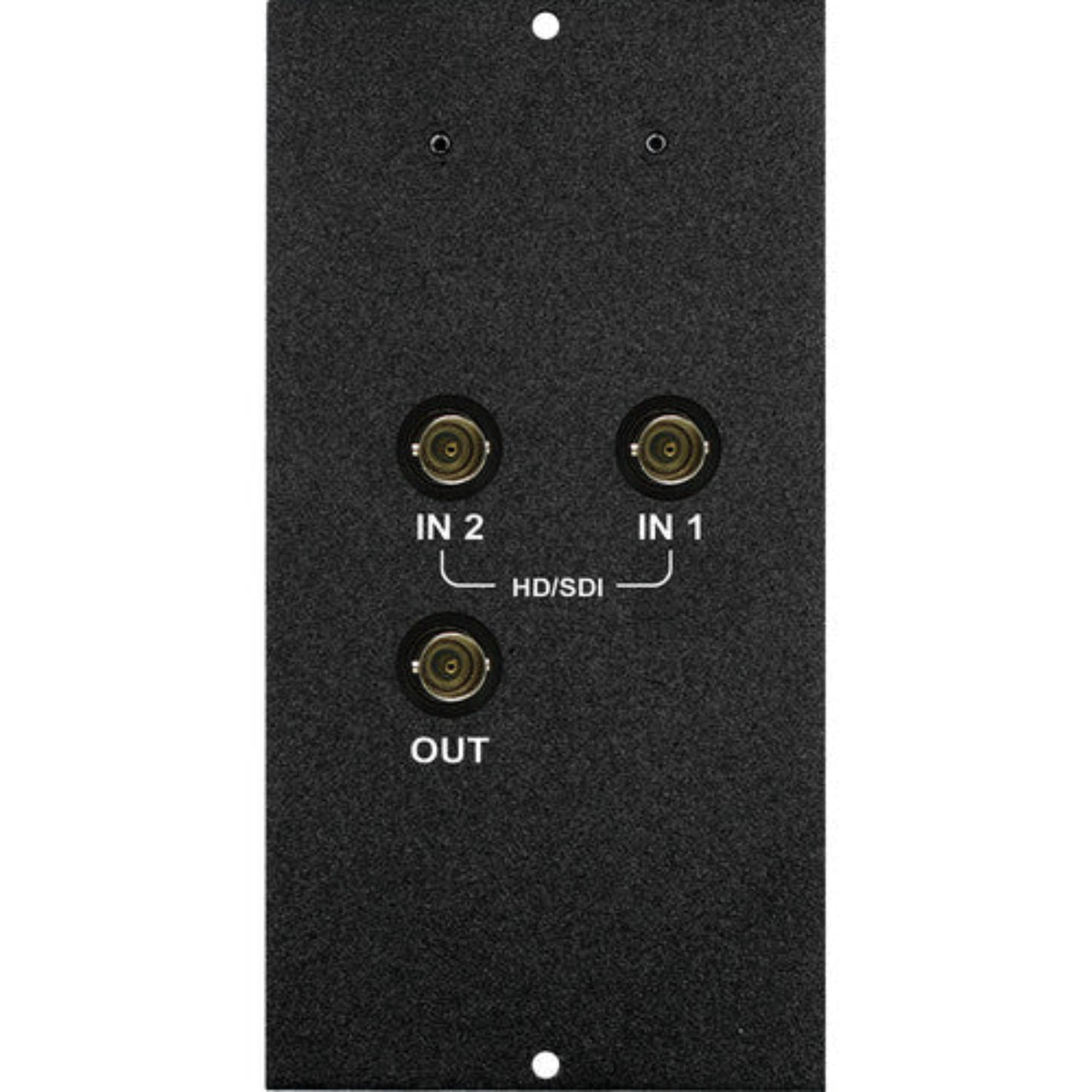

Marshall Electronics Dual HD-SDI Input Module ('B'-type) - MDHDSDIX2B
What our Experts Think
-
Dual HD‑SDI Input Expansion – Adds two HD‑SDI input channels to compatible Marshall MD-series rack monitors for flexible multi‑source workflows.
-
Loop‑Through Output – Built‑in loop output lets you feed the same HD‑SDI signal onward to another device without loss, ideal for chaining monitors or recorders.
-
’B‑Type’ Modular Design – Specifically fits MD series monitors with ‘B’‑type expansion slots (e.g., MD434, VMD503), making it quick to install or swap modules.
-
Broad HD Support – Handles high‑definition SDI signals for crisp 1080p monitoring.
-
Professional Reliability – Rugged, industry‑proven construction built for studios, field production, and broadcast environments.
-
Expert‑Recommended – Great choice for expanding SDI connectivity in professional video workflows with minimal footprint.
Q&A
Q: What does this module do?
A: Adds two HD‑SDI input channels with a loop‑through output to compatible Marshall MD‑series rack monitors.
Q: Which monitors is it compatible with?
A: Designed for MD Series Monitors with ‘B’‑type slots (for example V‑MD434 and V‑MD503 models).
Q: What signal formats are supported?
A: Handles HD‑SDI video signals including 1080i/p and 720p high‑definition feeds.
Q: What is a loop‑through output?
A: A loop‑through lets you pass the same video signal onward to other equipment (like recorders or additional displays) without degrading quality.
Q: Is installation easy?
A: Yes — it’s a modular plug‑in card that installs directly into your monitor’s expansion bay for quick setup.
Q: Who should use this module?
A: Ideal for broadcast engineers, production crews, and AV professionals needing reliable dual HD‑SDI inputs on MD‑series monitors.
Q: Key advantage?
A: Simplifies multi‑camera and dual‑source workflows by integrating two HD‑SDI inputs with loop‑through into your display system.
Maintenance Tips
-
Keep BNC Connectors Clean – Use compressed air or a soft brush to remove dust.
-
Avoid Cable Strain – Do not bend or pull SDI cables sharply; use proper cable management.
-
Ensure Secure Installation – Firmly seat the module in the monitor slot.
-
Use Certified HD-SDI Cables – Maintain optimal signal quality and reduce dropouts.
-
Power Off Before Handling – Prevent damage when installing or removing the module.
-
Inspect Regularly – Check ports and cables for wear, looseness, or signal issues.
-
Protect from Dust & Moisture – Store in a clean, dry environment when not in use.
-
Test Signal Integrity – Periodically verify both inputs for stable HD-SDI performance.
