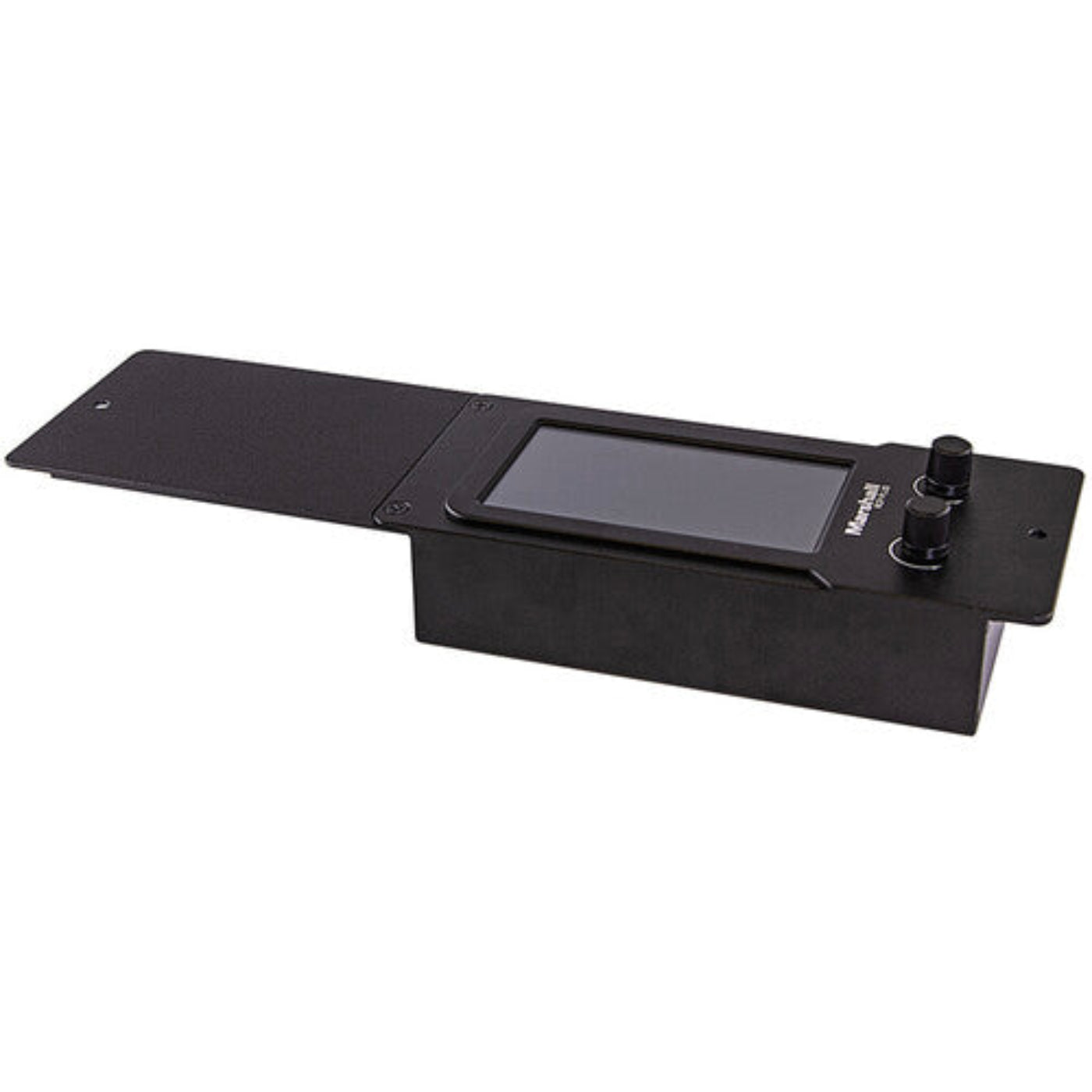

Q1: What is the RCP-PLUS used for?
A: It’s a professional multi-camera control panel used in broadcast, live production, and studio environments to remotely adjust and manage multiple cameras from one interface.
Q2: What does the touchscreen do?
A: The 5-inch touchscreen provides an intuitive interface to access camera settings quickly, while fine-tune dials allow precise adjustments on the fly.
Q3: How many cameras can it control?
A: It can control up to 7 cameras via RS-485 and up to 100 cameras using VISCA over IP, depending on the setup.
Q4: What connection types does it support?
A: It supports VISCA over IP, RS-485, PoE, and 3-pin XLR control connections, allowing flexible integration into different systems.
Q5: Can I control Marshall cameras specifically?
A: Yes, it comes pre-programmed with control protocols for Marshall cameras, including POV, PTZ, and box cameras.
Q6: What camera settings can be adjusted?
A: You can adjust white balance, gain, iris, exposure, gamma, black level, shutter, zoom, focus, and more—individually or across multiple cameras.
Q7: Can I adjust settings without affecting the video feed?
A: Yes, adjustments can be made without showing any on-screen menu (OSD), keeping your video output clean.
Q8: What is the control distance?
A: It supports control distances up to 300 meters (1,000 feet) using standard 3-pin XLR cabling.
Q9: Can I save settings or presets?
A: Yes, it includes favorites and preset saving features, allowing quick recall of frequently used configurations.
Q10: Who should use the RCP-PLUS?
A: It’s ideal for broadcasters, live event producers, AV professionals, and studios needing centralized, precise multi-camera control.
