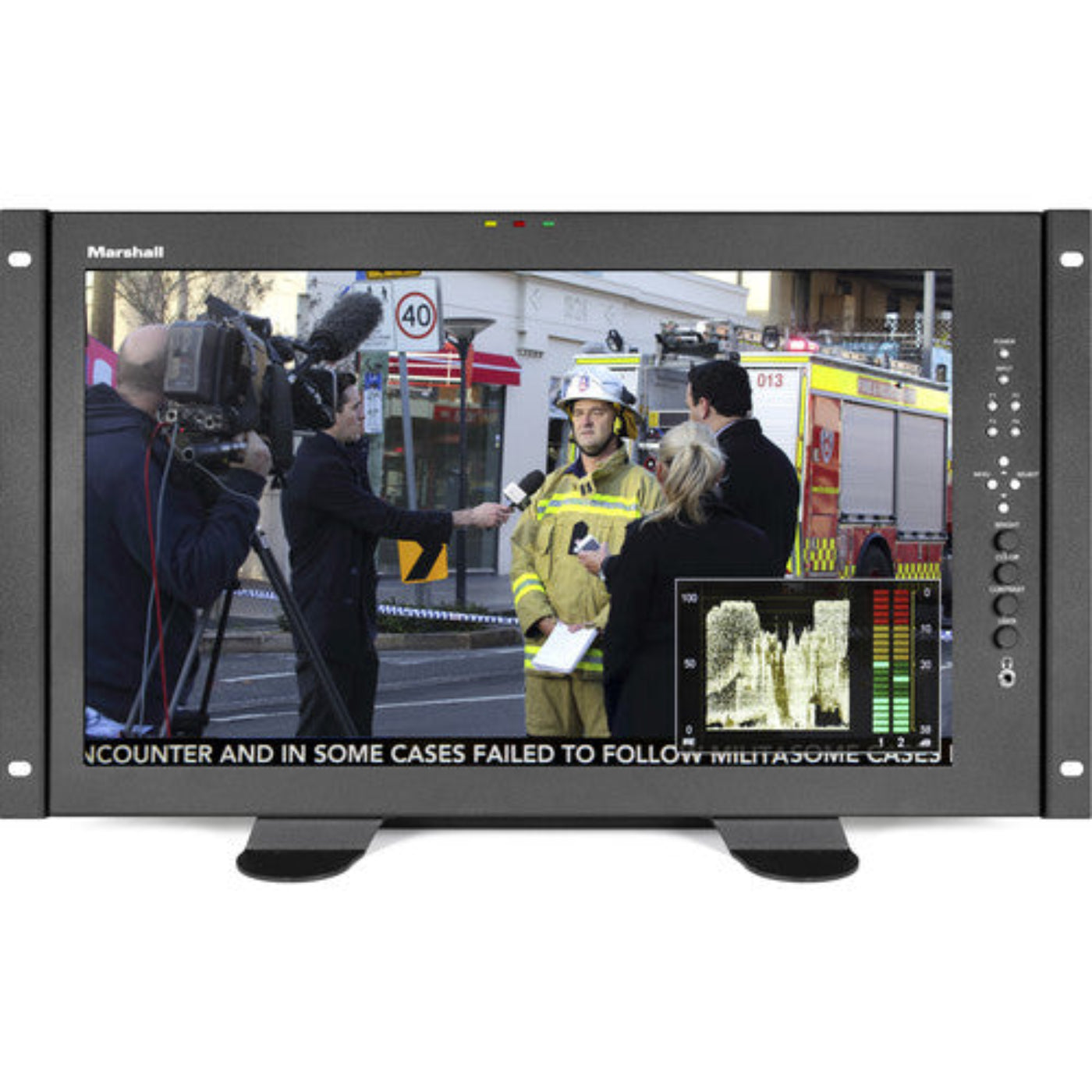

Marshall 17" LCD rack mount monitor with HDMI Input Waveform monitor and audio display w/ Stand - V-LCD171MD-3G-DT
Marshall V-LCD171MD monitor provides excellent features in a popular 17-inch size. Straight-forward design with the most-used features built-in including waveform and audio bar overlays, loud speakers, programmable function buttons, three-color tally lights and tilting mount design for easy viewing. Great for use in news vans, satellite trucks and central equipment rooms. The V-LCD171MD base unit comes with no preinstalled module.The V-LCD171MD-3G option includes the base unit with a preinstalled MD-3GE module providing an additional 3G/HD/SD-SDI input with loop-through.Marshall True 4K60 Compact Camera - CV420-CS
Features
- Full HD 1920 x 1080 display
- HDMI input / output standard
- Built-in speakers and headphone jack
- 400 cd/m² Brightness
- Full HD 1920 x 1080 display
- HDMI input / output standard
- Modular design. Allows addition of 3GSDI input
- Waveform monitor at the push of a button
- Audio meter bars overlay
- Built-in speakers and headphone jack
- Rugged 4-pin XLR power connector
- Three color (Red, Yellow, Green) LED tally lights
What our Experts Think
-
Professional Full HD 17.3″ Rack/Desk Monitor
Large 1920×1080 LCD with 400 cd/m² brightness and 600:1 contrast gives crisp, accurate confidence monitoring for broadcast and pro AV.
-
Waveform & Audio Tools Built‑In
One‑touch waveform overlay and audio meter bars help ensure correct exposure and embedded audio levels without external scopes.
-
Flexible HDMI Workflow
HDMI input and loop‑through output support easy routing to recorders or larger displays, ideal for trucks, studios, and live events.
-
Rugged & Practical Design
Built‑in speakers, headphone jack, three‑color tally lights, and programmable function buttons improve usability on set or in control rooms.
-
Desktop & Rack‑Mount Versatility
Stand included plus rack mount capability makes installation simple whether on desktop or in equipment racks.
-
Advanced Image Controls
Adjustable backlight, screen markers, false color/peaking filters, and customizable presets let pros optimize picture evaluation fast.
-
Reliable Power & Build
Rugged 4‑pin XLR power connector and solid construction suit daily use in production vans, studios, and central equipment rooms.
-
Expert Verdict
A high‑performance 17″ HD monitor that blends accurate display, essential waveform/audio tools, and flexible mounting — perfect for broadcast, live production, and professional AV confidence monitoring.
Q&A
Q1: What is the screen size and resolution of the V-LCD171MD-3G-DT?
A: It features a 17-inch Full HD LCD display (1920×1080) for sharp, professional-quality monitoring.
Q2: What video inputs are supported?
A: Supports HDMI input, compatible with modern broadcast, production, and AV systems.
Q3: Does it include waveform and vectorscope monitoring?
A: Yes, it provides waveform, vectorscope, and audio level meters for precise signal and audio analysis.
Q4: Can it be rack-mounted or desk-mounted?
A: Yes, it supports rack-mounting and includes a desktop stand, offering flexibility in different production setups.
Q5: Is it suitable for color-critical applications?
A: Yes, it provides accurate color reproduction and professional calibration tools.
Q6: Does it support audio monitoring?
A: Yes, it includes on-screen audio meters to monitor embedded audio levels.
Q7: What are typical use cases?
A: Ideal for broadcast studios, live events, post-production, and professional AV monitoring.
Q8: Are there professional monitoring tools included?
A: Yes, features include focus assist, peaking, false color, and exposure tools for accurate video assessment.
Q9: Can it handle HDMI 2.0 or higher formats?
A: Yes, it supports modern HDMI formats for Full HD video input.
Q10: Why choose the V-LCD171MD-3G-DT?
A: It delivers versatile 17-inch Full HD monitoring with waveform and audio display, plus flexible rack or desktop use, making it ideal for professional AV workflows.
Maintenance Tip
-
Clean Display Gently
Use a soft, dry microfiber cloth to wipe the 17.3″ Full HD LCD panel; avoid harsh chemicals to prevent scratches and preserve accurate waveform and audio overlays.
-
Keep Ventilation Clear
Ensure rack space and vents stay unobstructed to avoid heat buildup and maintain stable performance during prolonged use.
-
Secure Video & Power Connections
Check HDMI and optional 3G‑SDI module connections periodically and ensure the rugged 4‑pin XLR power connector is firm to prevent signal drops.
-
Stable Power & Surge Protection
Use a regulated 12 V DC supply and a surge protector or UPS to safeguard internal electronics from voltage spikes.
-
Monitor Button Functions
Keep front‑panel function buttons and programmable presets clean and responsive for quick access to waveform, markers, false color, and peaking filters.
-
Avoid Static Images for Long Periods
Reduce brightness or use motion content when idle to help extend LED backlight life.
-
Verify Audio & Overlay Tools
Periodically test audio meters, headphone output, and waveform overlays to ensure accurate monitoring and signal analysis.
-
Secure Mounting & Tilt Adjustment
Confirm rack mounts and tilt stand are tight to avoid vibration and maintain optimal viewing angle
