Marshall 24" LCD Desk rack mount with HDMI Input Waveform monitor and audio display - V-LCD241MD

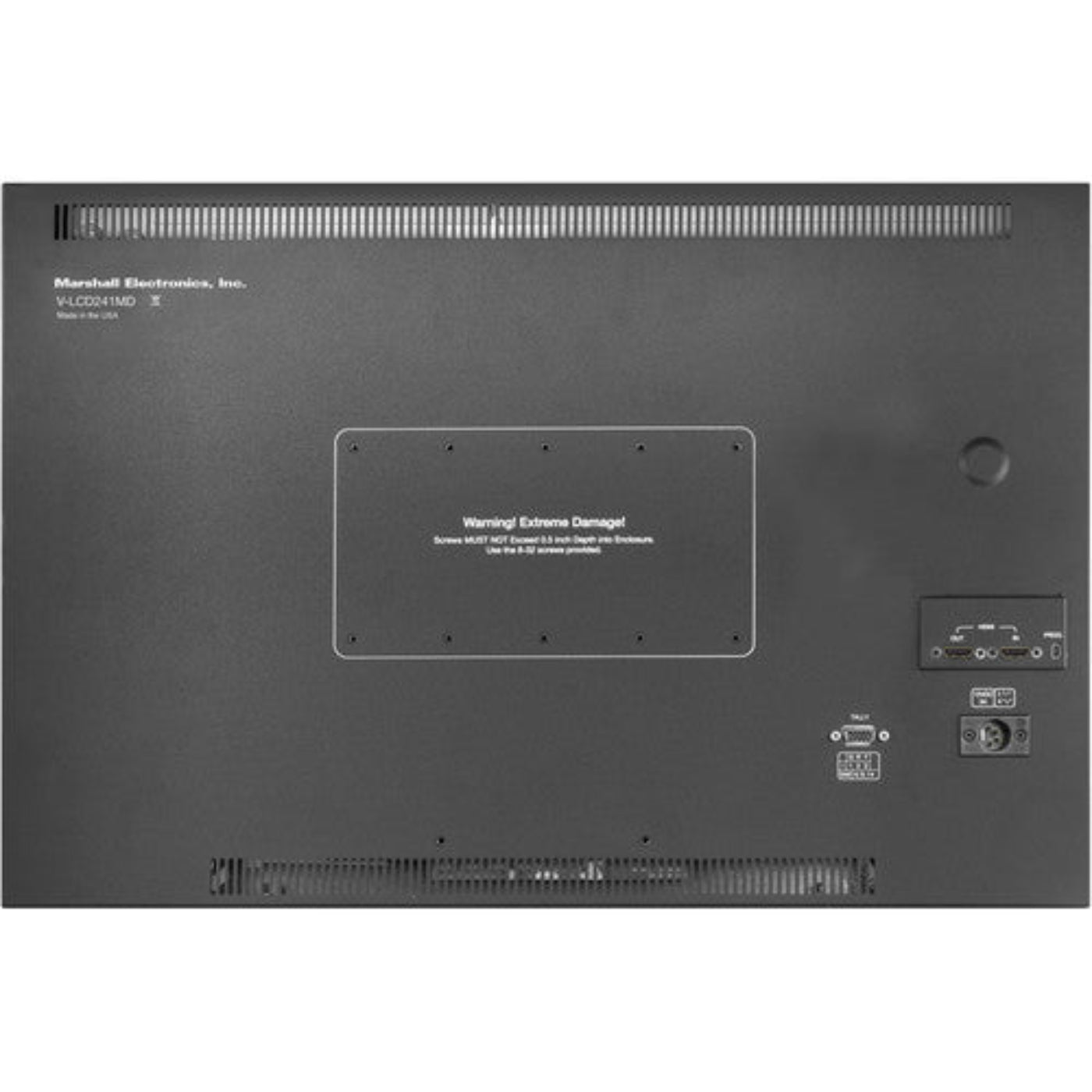

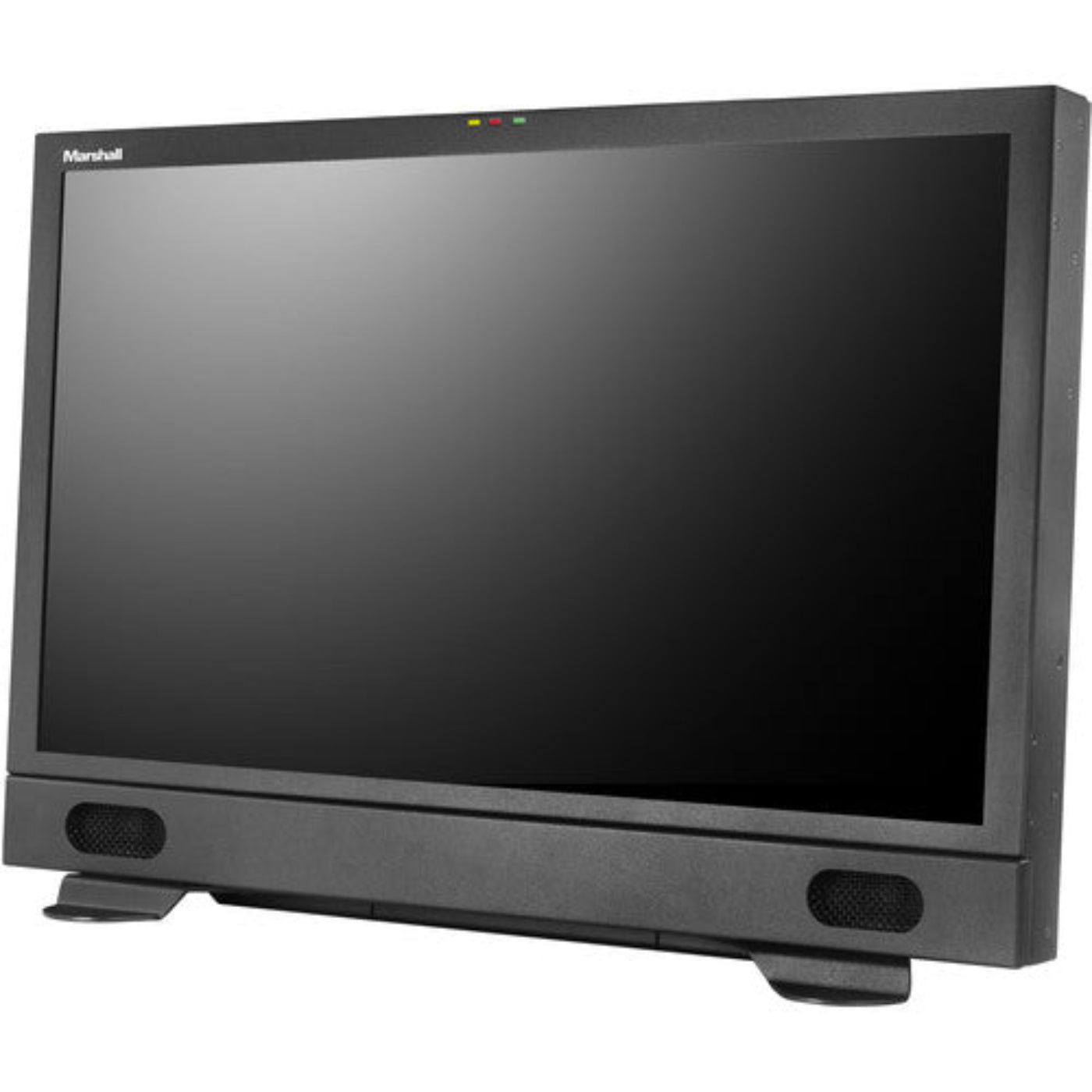

Desktop Stand IncludedMarshall V-LCD241MD monitor provides excellent features in a 24-inch size. Straight-forward design with the most-used features built-in including waveform and audio bar overlays, loud speakers, programmable function buttons, three-color tally lights. Use on desktops or utilize a standard VESA mount. The V-LCD241MD base unit comes with no pre-installed module, HDMI input only.
The V-LCD241MD-3G option includes the base unit with a pre-installed MD-3GE module providing an additional 3G/HD/SD-SDI input with loop-through.
* The V-LCD241MD is compatible with MD-3GE Module only.
Features
- Full HD 1920 x 1080 display
- HDMI input / output standard

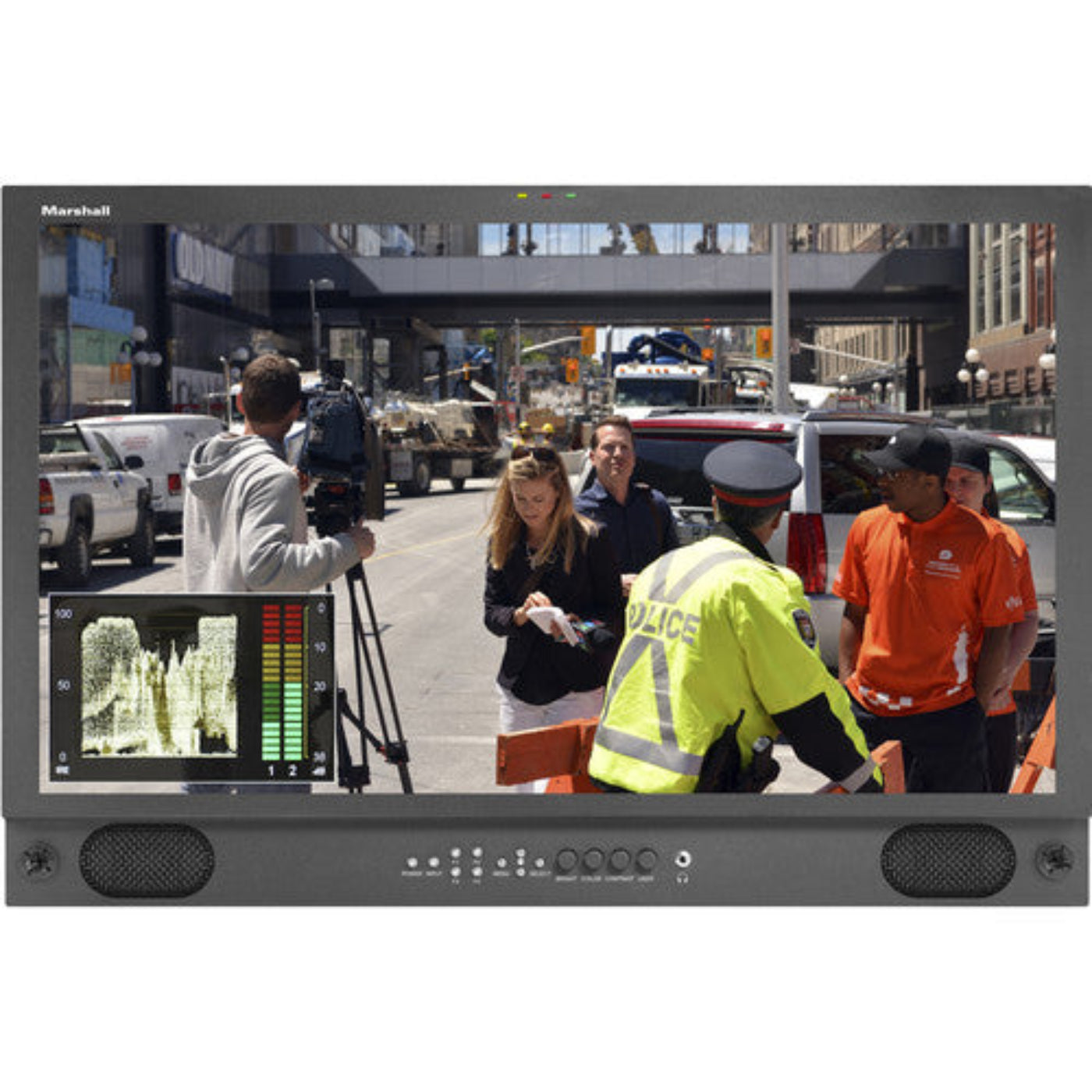

- Waveform monitor at the push of a button
- Audio meter bars overlay
- Full HD 1920 x 1080 display
- HDMI input / output standard
- Modular design. Allows addition of 3GSDI input
- Waveform monitor at the push of a button
- Audio meter bars overlay
- Built-in speakers and headphone jack
- Rugged 4-pin XLR power connector
- Three color (Red, Yellow, Green) Tally LED's
What our Experts Think
-
Full HD 24″ Professional Monitoring
The 24″ 1920×1080 LCD delivers detailed, accurate visuals for broadcast, live production, and critical monitoring tasks.
-
Built‑In Waveform & Audio Display Tools
One‑touch waveform overlay and audio bar meters let operators quickly assess video exposure levels and embedded audio without external scopes.
-
Simple HDMI Workflow
Standard HDMI input and active loop‑through simplifies signal routing with minimal gear—great for HDMI‑centric setups.
-
Modular Expandability
The modular design lets you add a 3G‑SDI input slot later, future‑proofing the monitor for hybrid HD workflows.
-
Operator‑Focused Features
Front‑panel controls, user‑definable buttons, false color/peaking filters, and pixel‑to‑pixel mode speed up setup and critical image evaluation.
-
Audio‑Ready Monitoring
Built‑in speakers plus a headphone jack make audio monitoring convenient right from the unit.
-
Sturdy Pro‑AV Build
Rugged 4‑pin XLR power and three‑color tally LEDs ensure reliability and clear status indication in broadcast and live environments.
-
Expert Verdict
A professional‑grade desk/rack monitor combining accurate full HD display, on‑screen waveform/audio tools, and expandable inputs—ideal for broadcast trucks, studios, and live production workflows.
Q&A
Q1: What is the screen size and resolution of the V-LCD241MD?
A: It features a 24-inch Full HD LCD display (1920×1080), providing sharp and accurate visuals for professional monitoring.
Q2: What video inputs are supported?
A: Supports HDMI input, ideal for modern broadcast, production, and AV setups.
Q3: Does it include waveform and vectorscope monitoring?
A: Yes, it provides waveform, vectorscope, and audio level meters for precise signal analysis.
Q4: Can it be desk-mounted or rack-mounted?
A: Yes, it supports both desk and rack installation, offering flexibility in studios, control rooms, and OB vans.
Q5: Is it suitable for color-critical applications?
A: Yes, the monitor provides accurate color reproduction and professional calibration tools.
Q6: Does it support audio monitoring?
A: Yes, it includes on-screen audio meters to monitor embedded audio levels.
Q7: What are typical use cases?
A: Ideal for broadcast studios, live events, post-production, and professional video monitoring.
Q8: Can it handle HDMI 2.0 or higher formats?
A: Yes, it supports modern HDMI formats for Full HD video.
Q9: Are there professional monitoring tools included?
A: Yes, features include focus assist, peaking, false color, and exposure tools for accurate monitoring.
Q10: Why choose the V-LCD241MD?
A: It delivers large-screen Full HD monitoring with waveform and audio display, making it a reliable tool for professional AV workflows.
Maintenance Tips
-
Clean Display Safely
Use a soft, dry microfiber cloth to gently remove dust and fingerprints from the 24″ Full HD screen—preserves accurate waveform and color tools without scratching.
-
Ventilation & Heat Management
Keep vents and surrounding space clear to prevent overheating during long monitoring sessions.
-
Check HDMI & Power Connections
Ensure HDMI and power cables are securely seated to maintain uninterrupted video and audio displays.
-
Use Stable Power & Surge Protection
Connect to a reliable power source or UPS to protect internal components from spikes or drops.
-
Adjust Backlight Appropriately
Set brightness/contrast to match ambient lighting—reduces eye strain and extends panel life.
-
Inspect Buttons & Controls
Clean front panel buttons/function keys to maintain smooth access to waveform and audio meters.
-
Avoid Static Images When Idle
Reduce screen burn‑in risk by using screen savers or lowering brightness when idle for long periods.
