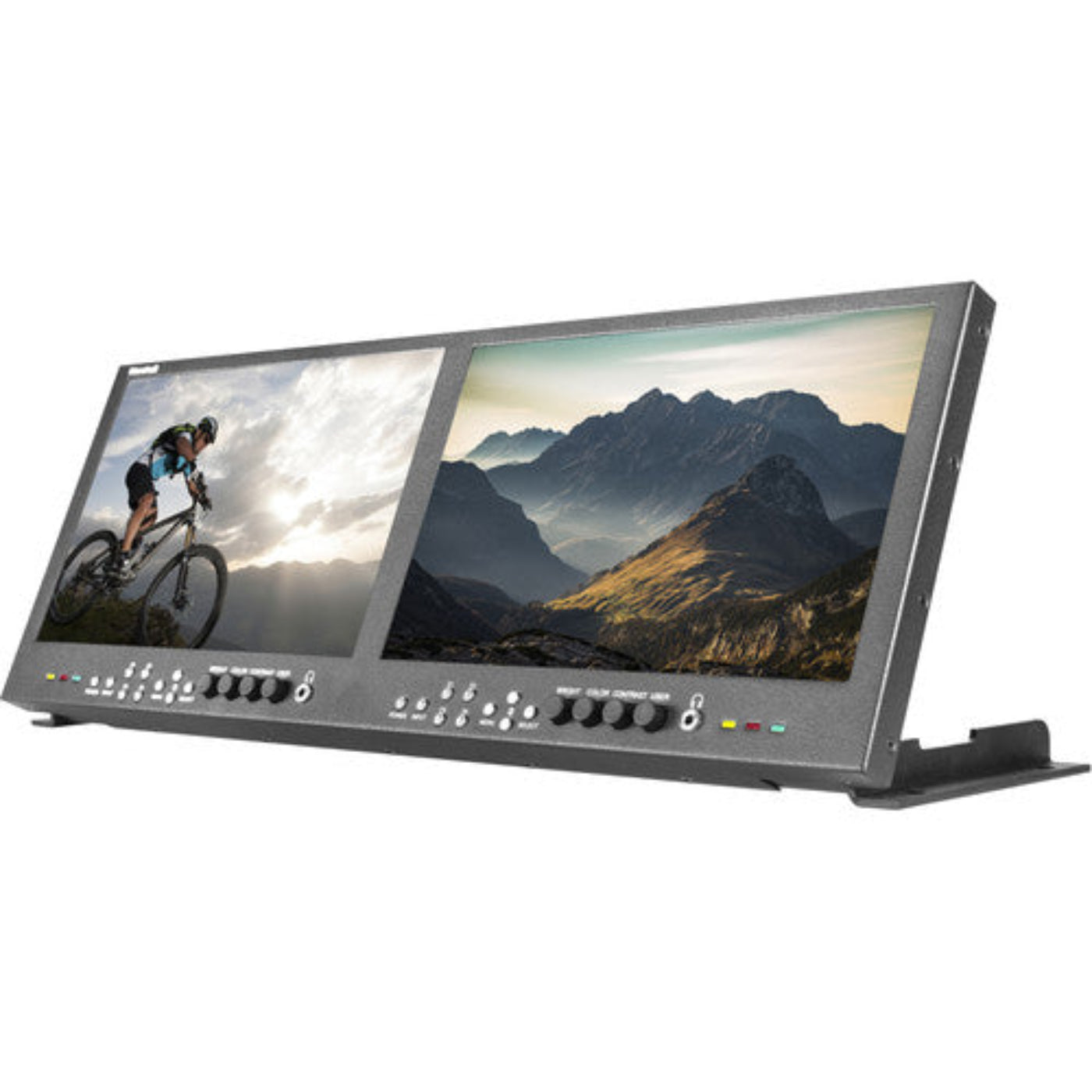

Marshall Dual modular 10.0" LCD Rack Monitor - V-MD1012
The Marshall Electronics V-MD1012 features two 10.1-inch LED high resolution (1920 x 1200) displays in a rack-mounted design with easily accessible back panels and swappable input modules. The dual independent displays include fully-adjustable crop, aspect ratio, and markers to dial in any kind of desired framing, as well as an
easy-to-use graphical user interface.
The V-MD1012 can monitor two independent channels simultaneously, providing accurate details on false color, peaking, audio clipping, color temperature, and more, and includes four user-programmable preset buttons to take you immediately to any monitoring function.

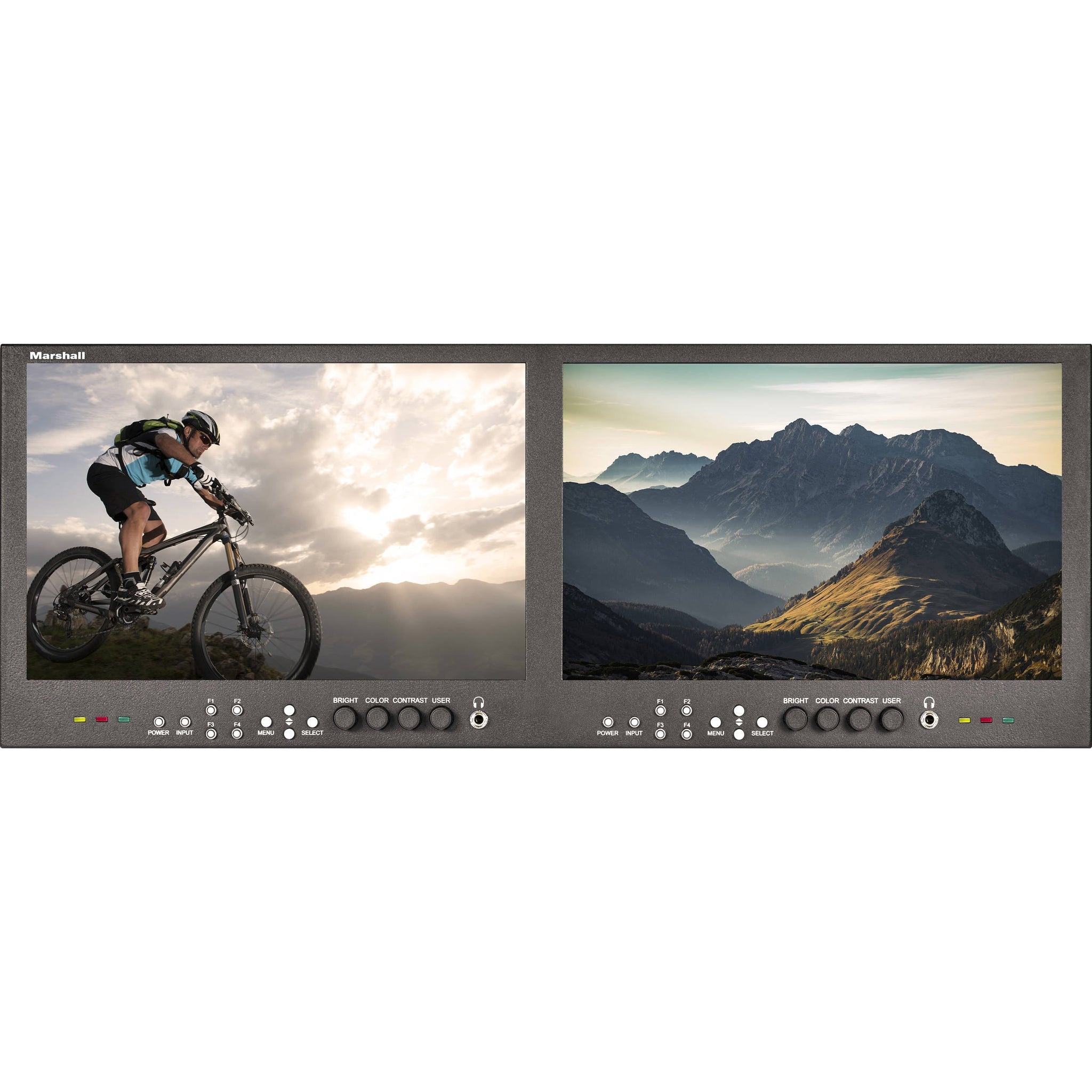

- Dual 10.1" 1920 x 1200 LCD Displays
- Supports up to 1080p60 Video
- 2 x HDMI Inputs, 2 x HDMI Loop-Outs
- Use with Separately Available Modules
- Modular 3G-SDI, HDMI, and DVI (optional) inputs and outputs for
- "future proofing" and compatibility with legacy systems

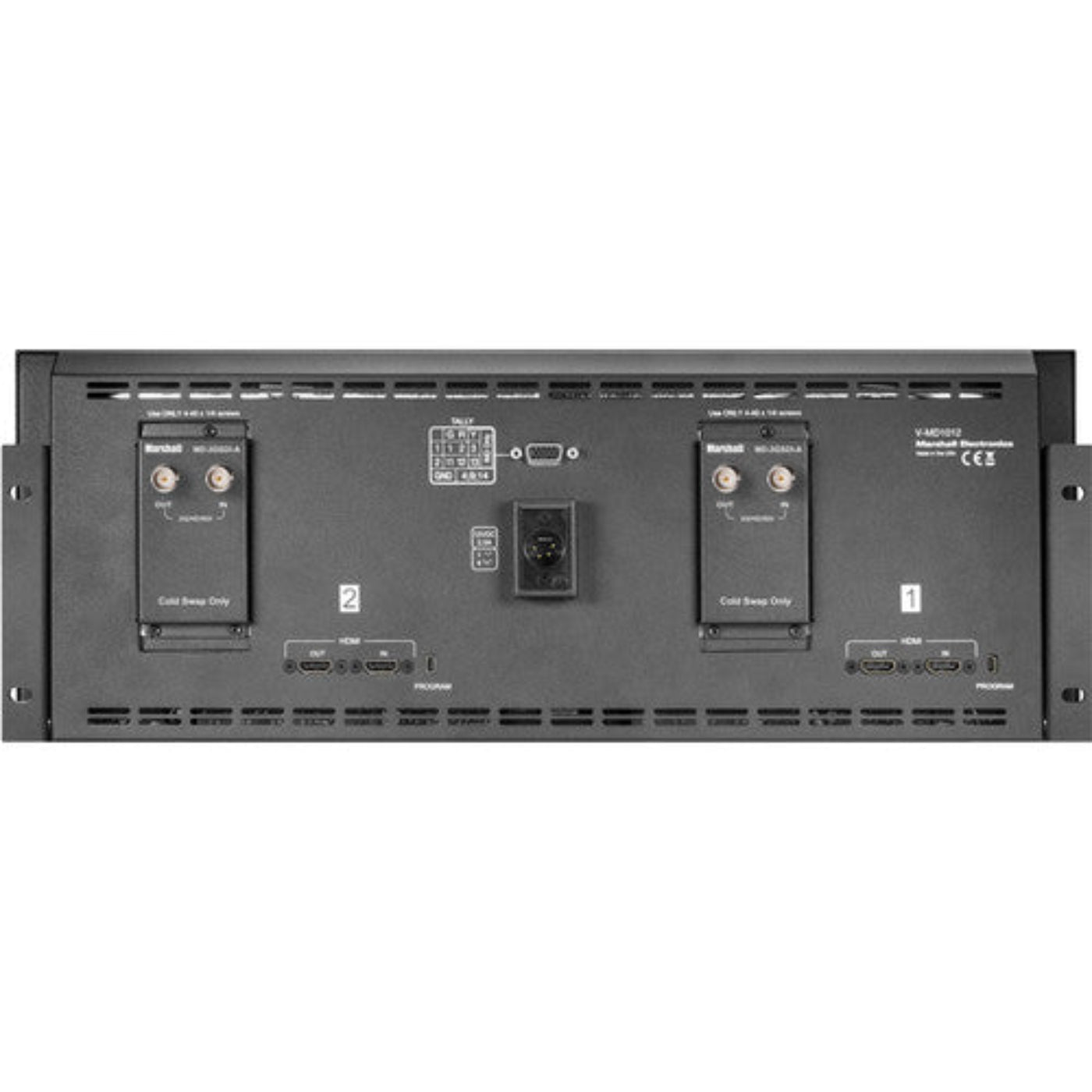

- Hinged mount for easy access to back panel
- Loop-through functionality for confidence monitoring
- Two-channel audio analysis window with up to 16 channels
- of audio monitoring
- Fully-adjustable, customizable aspect ratio markers
- Expanded crop and scaling functions to select any portion of image
- Easy-to-use graphical interface
What our Experts Think
-
Dual-screen efficiency for professional workflows
Features two independent 10.1" displays, allowing simultaneous monitoring of multiple video feeds—ideal for broadcast control rooms and live production setups.
-
Crisp, full-resolution image quality
With 1920×1200 resolution on each panel, operators get sharp detail and accurate framing for critical monitoring tasks.
-
Modular & future-proof design
Supports interchangeable input modules (3G-SDI, HDMI, DVI), making it adaptable to evolving video standards and legacy systems.
-
Advanced monitoring tools built-in
Includes essential pro features like false color, focus peaking, pixel-to-pixel zoom, and waveform-style analysis, ensuring precise image evaluation.
-
Optimized for rack-mounted environments
Compact 3RU rack design saves space while delivering powerful dual monitoring—perfect for OB vans, studios, and server racks.
-
Enhanced audio and signal control
Supports multi-channel audio monitoring (up to 16 channels) with loop-through outputs for reliable signal distribution.
Q&A
Q1: What is the Marshall V-MD1012?
A professional dual 10.1-inch LCD rack-mounted monitor designed for broadcast, production studios, and video control rooms.
Q2: How many screens does it have?
It features two independent 10.1" displays, allowing simultaneous monitoring of two video sources.
Q3: What is the display resolution?
Each screen offers full HD 1920 × 1200 resolution for sharp and accurate image monitoring.
Q4: What inputs does it support?
It supports modular inputs including 3G-SDI, HDMI, and DVI (via optional modules), ensuring flexible system integration.
Q5: Is the monitor suitable for professional broadcast use?
Yes, it includes advanced tools like false color, peaking, waveform-style monitoring, and audio metering for precise video analysis.
Q6: Can it monitor audio signals?
Yes, it supports up to 16 channels of embedded audio monitoring with visual audio meters.
Q7: Does it support loop-through output?
Yes, loop-through functionality allows seamless signal distribution for confidence monitoring.
Q8: Is it rack-mountable?
Yes, it fits a standard 3RU rack, making it ideal for studio and broadcast rack systems
Maintenance Tips
-
Routine Screen Cleaning
Use a microfiber cloth to remove dust and fingerprints, ensuring clear dual-display visibility.
-
Ventilation & Cooling
Maintain proper airflow in the rack to prevent overheating during continuous operation.
-
Check Modular Connections
Inspect and secure all module slots and input connections regularly to avoid signal interruptions.
-
Power Stability
Use a reliable power source or UPS to protect against voltage fluctuations and downtime.
-
Firmware Updates
Keep software up to date for improved compatibility with SDI/HD video sources.
-
Cable Management
Organize SDI and power cables to reduce wear, interference, and accidental disconnections.
-
Periodic Calibration
Adjust brightness, contrast, and color settings for accurate monitoring across both screens.
-
Safe Rack Installation
Ensure proper mounting to avoid vibration damage and maintain long-term durability.
