$3,861.25 Sale

Marshall  Four 4.3" Wide Screen Rack Unit with 4 x 3GSDI Input Modules Installed - V-MD434-3GSDI

Marshall Electronics proudly presents the MD series of rack mount monitors that offer a flexible modular solution to system integration. These new rack-mountable monitors can be configured with a variety of video inputs that can be "swapped" or interchanged in the field based on your evolving needs and requirements. This eliminates the need to upgrade or replace equipment when a different input or application is required. This "future proof" solution provides flexibility and reassurance when necessary, especially in multi-monitor rack mount units.

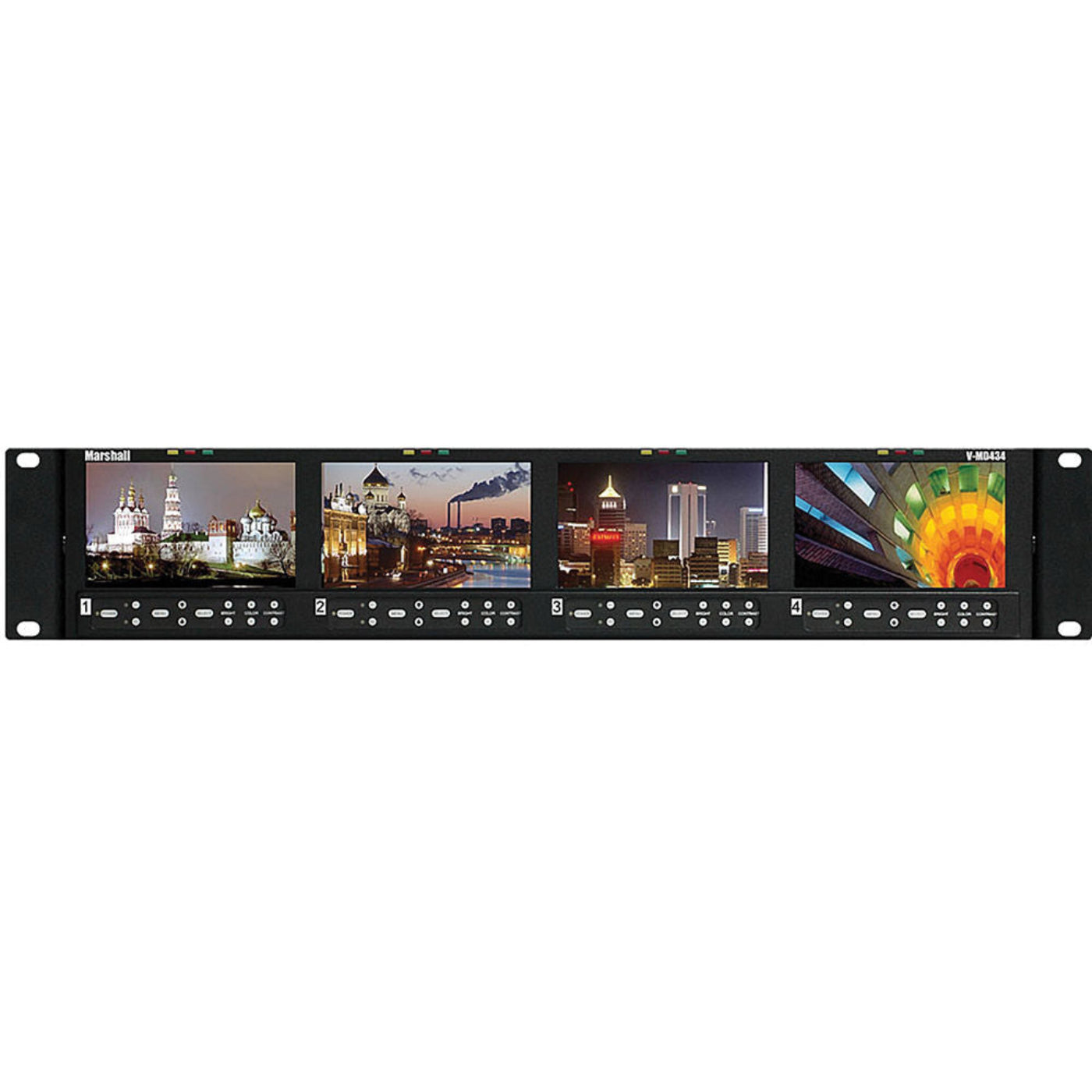

The V-MD434-3GSDI offers four 800 x 480 LCDs in one single configuration, along with excellent viewing angles. The V-MD434 includes four 3G-SDI modules with loop-through, Status Display, False Color Filter, Markers, Freeze Function, Color Temperature Presets, RGB Gain / Bias Adjust, Pixel-to-Pixel, Blue Gun, Hard Tally, two user-definable function buttons, and more. A variety of optional input/output modules will be offered.

Marshall's MD monitors can integrate Telecast Fiber System's TeleCube™ Fiber-Optic HD/SDI transmission input/output modules. These new fiber modules deliver the industry's broadest range of digital rates while maintaining pristine signal quality that broadcasters and integrators demand.

  • 400:1
  • 200cd/m²
  • (4) 800 x 480
  • 3G/HD/SDI Input
What our Experts Think

  • Highly capable quad‑monitor solution for pro racks
    The Marshall Electronics V‑MD434‑3GSDI delivers four 4.3″ LCD panels (800×480 each) in a slim 2RU rack chassis, giving operators simultaneous monitoring of multiple 3G/HD/SDI feeds with clear, easy‑to‑read screens — ideal for broadcast, control rooms, and OB vans.

  • Built‑in broadcast features improve workflow
    Professional monitoring tools like Status Display, False Color, Markers, Freeze, Pixel‑to‑Pixel, and Hard Tally are integrated, helping engineers quickly evaluate signal integrity and exposure without extra gear.

  • Reliable 3G‑SDI connectivity with loop‑through

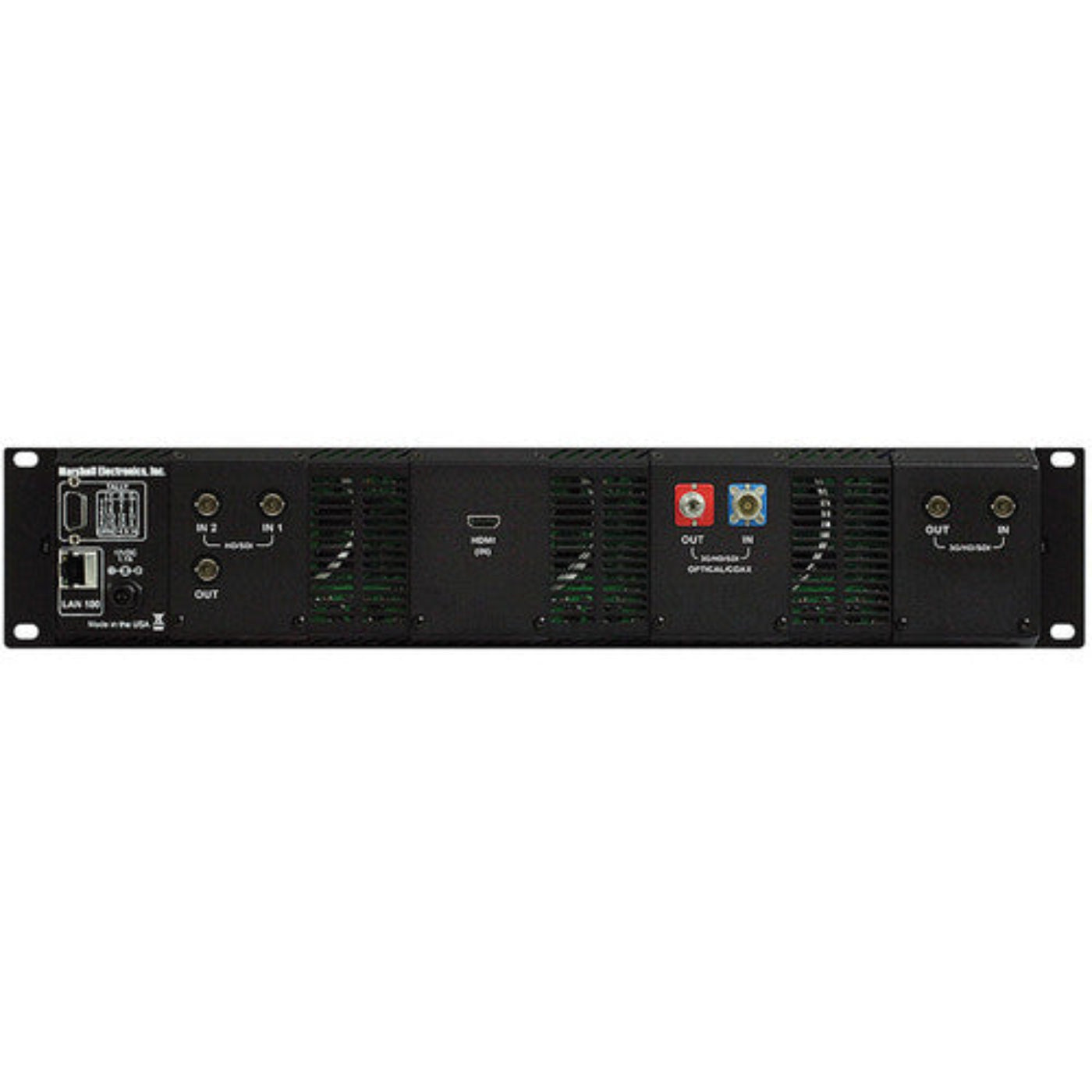

    Includes four 3G‑SDI modules with loop‑through, enabling seamless signal routing and distribution in multi‑monitor environments.

  • Modular and future‑proof design
    Each LCD has a separate module slot that allows flexible input configurations — you can swap in other signal types later, helping protect your investment as tech needs evolve.

  • Compact, rack‑ready reliability
    The robust build, efficient 2RU footprint, and consistent performance make this unit suitable for 24/7 broadcast and production systems where uptime matters.


Q&A

Q1: What is the Marshall Electronics V‑MD434‑3GSDI?
A professional 2RU rack‑mount monitor with four individual 4.3″ LCD panels and dedicated 3G‑SDI input modules for multi‑source video monitoring.

Q2: How big are the screens and what is the resolution?
It features four 4.3″ LCD panels, each with an 800×480 resolution for clear, compact monitoring.

Q3: What video inputs are included?
Includes four 3G‑SDI modules with loop‑through outputs, ideal for broadcast‑grade SDI workflows.

Q4: What professional monitoring features are built in?
Offers status display, false color filter, pixel‑to‑pixel mode, freeze, color temperature presets, RGB gain/bias adjust, markers, hard tally, and IMD tools.

Q5: Does it support network control?
Yes — LAN control lets you manage and monitor functions remotely.

Q6: Is the unit modular or upgradeable?
Each panel supports a modular input slot, allowing future expansion with optional input formats.

Q7: What environments is it suited for?
Perfect for broadcast control rooms, OB vans, live production, post‑production monitoring, and multi‑camera systems.


Maintenance Tips

  • Clean Screens Safely
    Use a microfiber cloth to remove dust and fingerprints from all four 4.3" displays.

  • Inspect 3G-SDI Connections
    Regularly check input modules and SDI cables for secure connections to prevent signal loss.

  • Ensure Proper Ventilation
    Maintain airflow in the rack to avoid overheating during continuous multi-channel operation.

  • Firmware Updates
    Apply updates to ensure compatibility with cameras and improve overall system performance.

  • Power Stability
    Use a UPS or surge protector to prevent damage from power fluctuations.

  • Cable Organization
    Route SDI and power cables neatly to reduce strain and accidental disconnections.

  • Calibrate Displays
    Periodically adjust brightness, contrast, and color for accurate multi-camera monitoring.

  • Secure Rack Mounting
    Ensure the unit is firmly installed to protect against vibration or impact damage.
