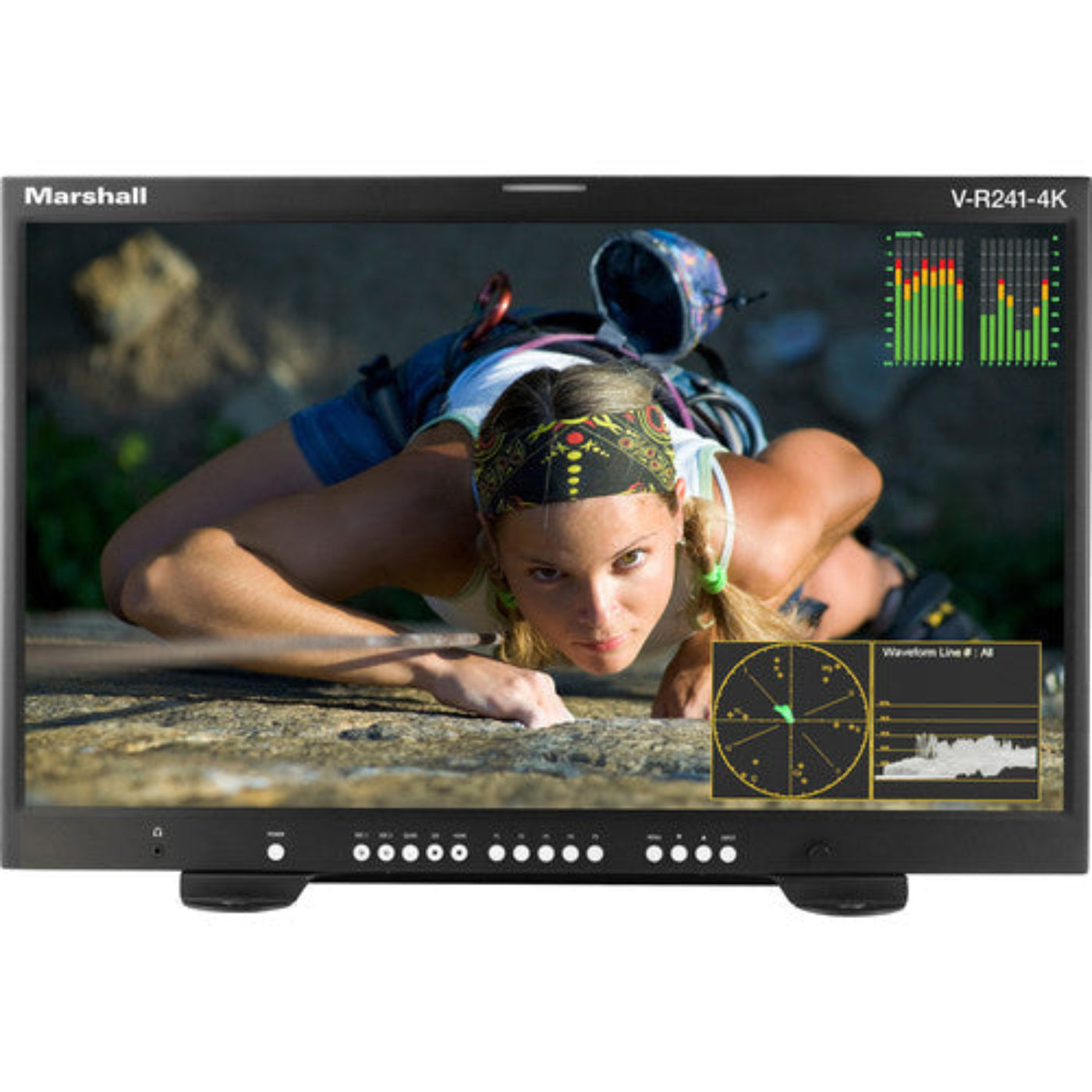

Marshall 24" UHD 4K 3G-SDI HDR Monitor - VR2414K

Marshall  24" UHD 4K 3G-SDI HDR Monitor - VR2414K

The V-R241-4K 24" UHD 4K 3G-SDI Confidence Monitor from Marshall is a UHD 4K-compatible monitor designed for use as a master confidence monitor for studio, post-production, or remote location use. View both your SDI and HDMI inputs in stunning HDR with support for HLG and SMPTE 2084 HDR. Color space presets include both Rec 709 and DCI P3 Cinema. Use the four SDI inputs for UHD 4K, quad-view, or multiview configurations. Input video via the V-R241-4K's two 12G-SDI, two 3G-SDI, and one HDMI inputs. SDI inputs 1 and 2 support single-cable 12G-SDI UHD 4K, and the HDMI input supports up to UHD 4K signals. Each SDI input has a loop-through output, and IMD/UMD content is input/output via RS-422 ports.

The V-R241-4K offers 350 cd/m² of brightness and a contrast ratio of 1000:1. Monitor features include tally and text display, timecode overlay, and 16-channel audio metering. This confidence monitor's display tools include fully adjustable on-screen markers, a waveform monitor, vectorscope, false color, LED tally lights, embedded LTC or VITC timecode overlay, and a 16-channel audio meter.

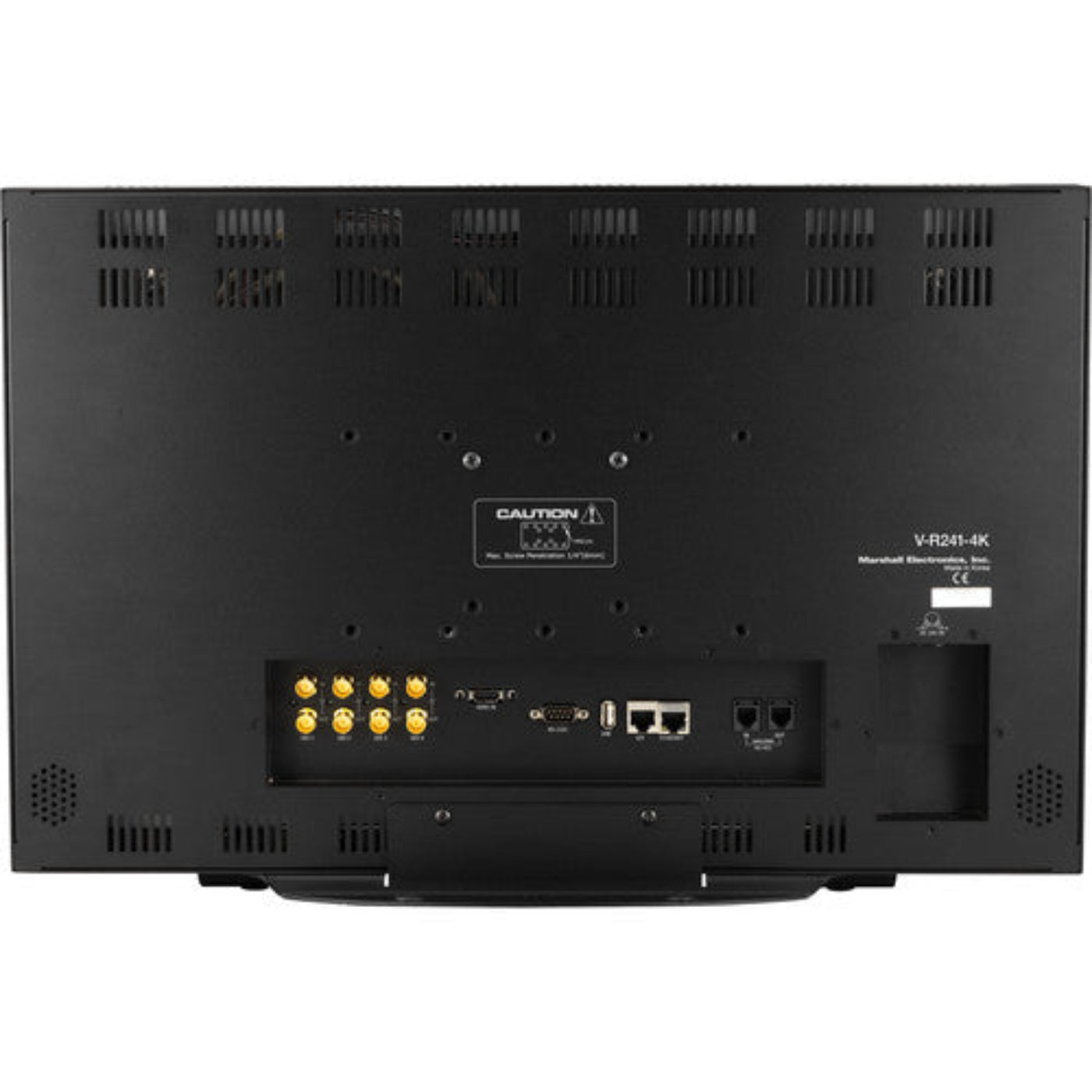

Control options include five user-programmable buttons, five input selection buttons, and remote control via Ethernet, RS-232, and GPI interfaces. The V-R241-4K can be powered using 110 to 240 VAC, or via a 5-pin XLR 24 VDC input. Display options include VESA 100mm mounting points, an included desktop stand, and wall- or rack-mounting using separately available components.

• 24" Display 3840 x 2160, LCD
• Supports HLG & SMPTE 2084 HDR
• Supports up to UHD 4K60 SDI, 2160p HDMI
• 2 x 12G-SDI, 2 x 3G-SDI, 1 x HDMI Input

Features

• 24" monitor with native 3840 x 2160 LCD panel
• Dual 12G-SDI, dual 3G-SDI, and single HDMI inputs; four SDI loop-through outs
• Supports HD/SD-SDI video resolutions up to 3840 x 2160 and HDMI input up to 2160p
• Supports HLG and SMPTE 2084 HDR
• Rec 709 and DCI P3 Cinema color gamut presets
• Brightness of 300 cd/m² and contrast ratio of 1000:1
• Adjustable onscreen markers, waveform monitor, vectorscope, false color mapping
• LED tally, embedded LTC or VITC timecode overlay
• Five input-selection buttons and five user-programmable buttons
• Ethernet, RS-232, and GPI interface remote control
• 16 audio meter overlay
• Desktop, wall-mountable, or rack-mountable (with optional kit)

What our Experts Think

• True 4K HDR confidence monitoring
  Features a 24" UHD (3840×2160) panel with HLG & SMPTE 2084 HDR, delivering accurate brightness and contrast for professional evaluation.

• Built for broadcast-grade signal workflows
  Equipped with 12G-SDI, 3G-SDI, and HDMI inputs, supporting 4K60 over SDI and HDMI—ideal for modern production pipelines.

• Advanced monitoring tools for precision control
  Includes waveform, vectorscope, false color, and audio meters, giving engineers and colorists full technical insight on set or in studio.

• Multi-camera & quad-view flexibility
  Multiple SDI inputs with loop-through enable multi-view and quad-view monitoring, perfect for live production environments.

• Accurate color reproduction for post-production
  Supports Rec.709 and DCI-P3 color spaces, ensuring reliable color grading and broadcast compliance.

• Professional control & integration options
  Remote control via Ethernet, RS-232, and GPI makes it easy to integrate into complex broadcast systems.

• Designed for real production environments
  Features like tally lights, timecode overlay, IMD/UMD support, and audio monitoring make it a true confidence monitor for studios and OB setups

Q&A

Q1: What is the VR2414K monitor used for?
A: It’s a professional broadcast confidence monitor designed for studios, live production, post-production, and video monitoring on set.

Q2: What resolution does it support?
A: It features a 24-inch UHD 4K (3840×2160) display, delivering sharp, high-detail visuals for professional workflows.

Q3: Does it support HDR?
A: Yes, it supports HLG and SMPTE 2084 HDR, ensuring accurate color and dynamic range for modern video production.

Q4: What input options are available?
A: It includes 12G-SDI, 3G-SDI, and HDMI 2.0 inputs, allowing flexible integration into broadcast and AV systems.

Q5: Can it handle 4K60 signals?
A: Yes, it supports UHD 4K up to 60fps via SDI and HDMI, ideal for high-frame-rate productions.

Q6: Does it include professional monitoring tools?
A: Yes, it features waveform, vectorscope, false color, and on-screen markers for precise video analysis.

Q7: How many audio channels can it monitor?
A: It supports up to 16 channels of embedded audio metering, making it suitable for broadcast environments.

Maintenance Tips

• Clean Screen Properly: Use a microfiber cloth to keep the 24" UHD 4K HDR display clear and free from dust or fingerprints.

• Avoid Screen Pressure: Do not press the panel—protects color accuracy and panel longevity.

• Ensure Proper Ventilation: Maintain airflow around the monitor to prevent overheating during long production sessions.

• Use Stable Power Supply: Connect to a reliable power source to avoid flickering or hardware damage.

• Calibrate Display Regularly: Maintain accurate HDR color performance and brightness levels for professional monitoring.

• Check SDI/HDMI Connections: Inspect 3G-SDI and HDMI cables to ensure stable signal and avoid video dropouts.

• Update Firmware: Keep software updated for improved compatibility and performance.

• Protect from Dust & Moisture: Use in controlled studio environments to extend lifespan.

• Use Screen Protection When Transporting: Prevent scratches and damage during field production use.

• Power Down Safely: Turn off properly after use to avoid long-term panel stress.
