$1,749.00 $1,228.00 Sale

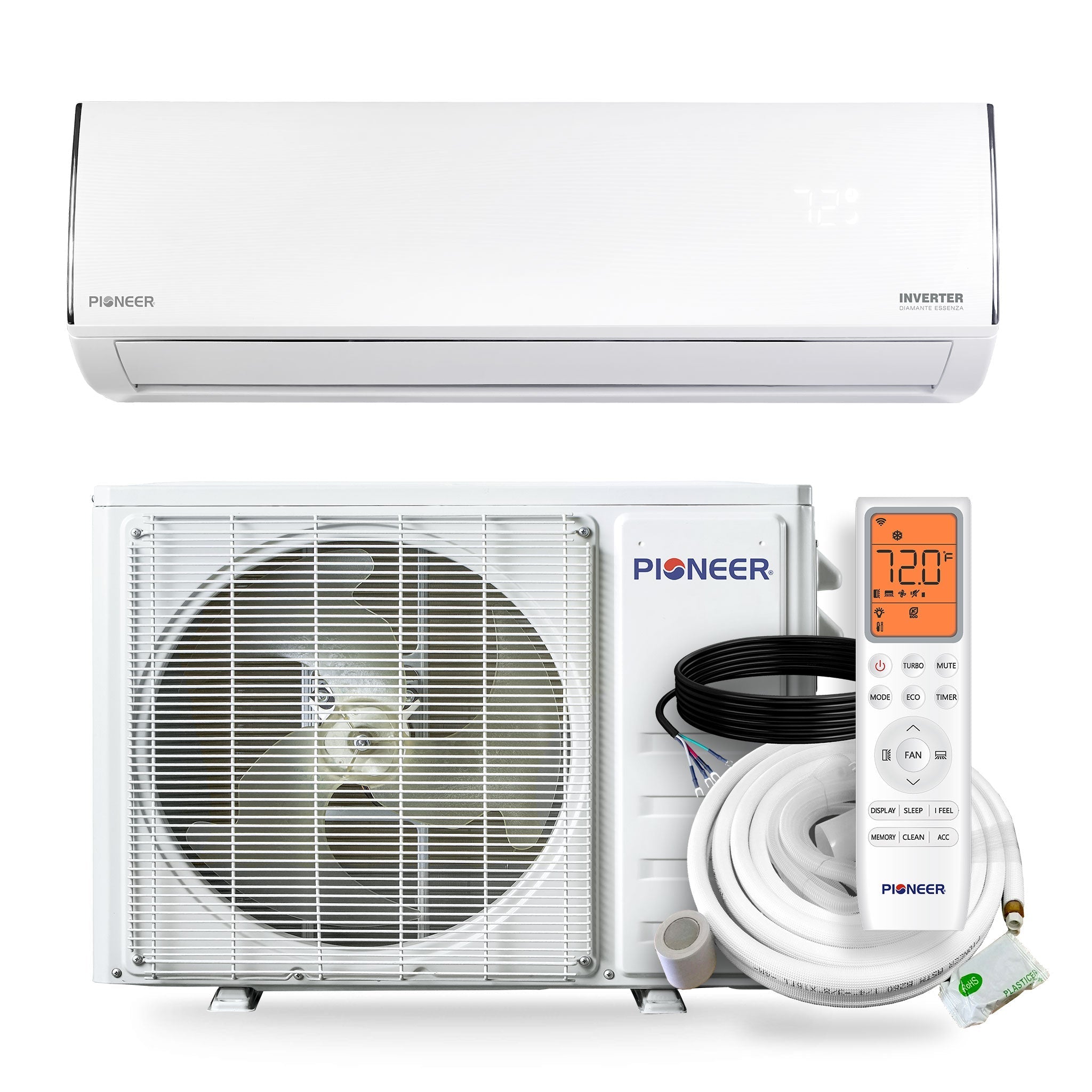

Pioneer Diamante Essenza 23,000 BTU 17 SEER2 230V High-Wall Ductless Mini-Split Air Conditioner Inverter Heat Pump with 16 Ft. Kit - WYT024GLUI17RL

  • Standard Efficiency Diamante Essenza Ductless Mini Split Heat Pump System
  • Cooling capacity: 23,000 BTU/H with 17 SEER2 / 9.5 EER2 efficiency
  • Heating capacity: 22,400 BTU/H with 9.5 HSPF2 / 3.3 COP2 efficiency
  • Voltage: 208/230V, 60Hz, 1Ph
  • High Wall-Mounted Ductless Air Conditioning & Heating System
  • Variable-Speed DC Inverter Driven Performance

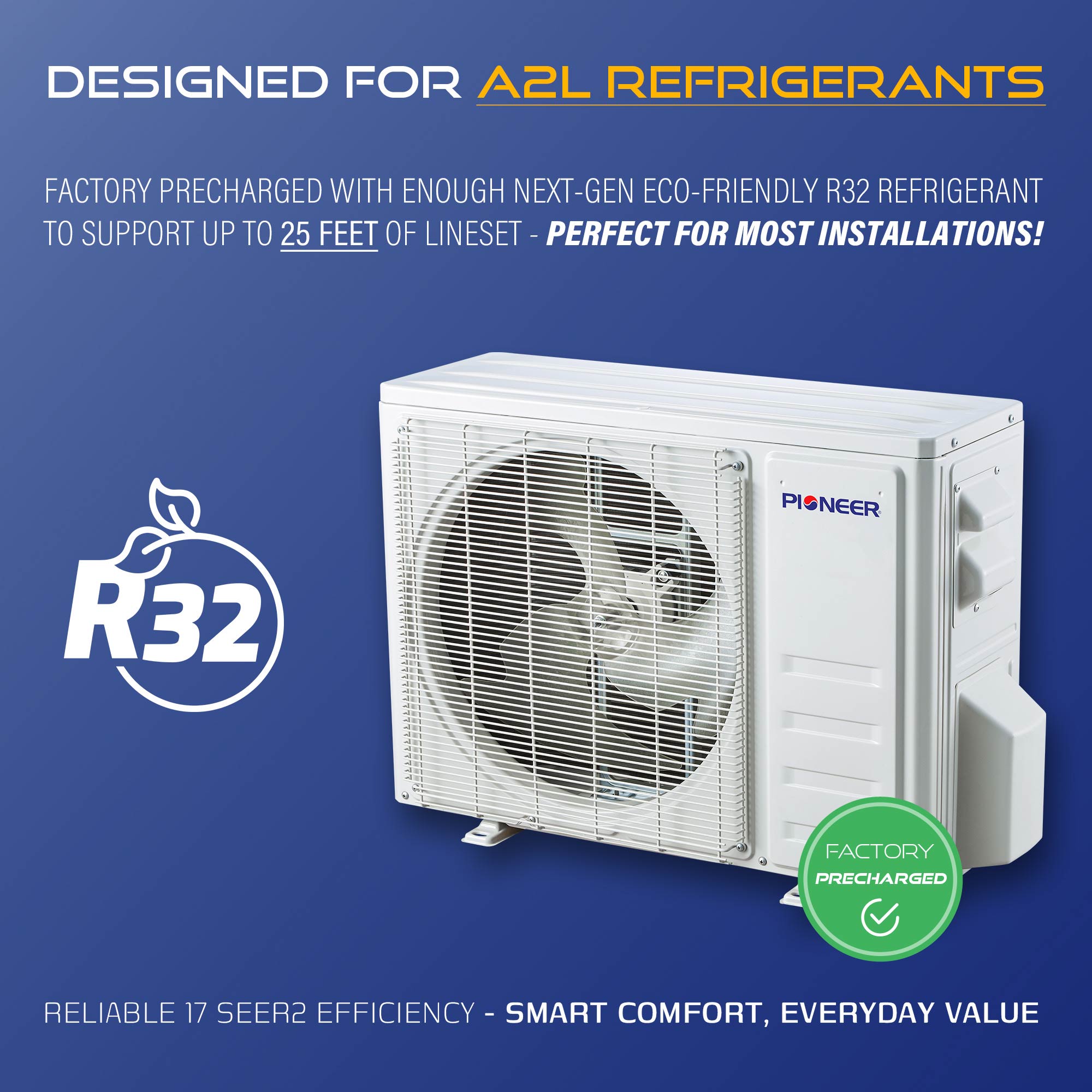

  • Factory-Precharged with Environmentally Friendly R-32 Refrigerant
  • Standard Ambient Range Operation (As low as 5°F in Heating / As high as 122°F in Cooling)
Features
  • Heat Pump with Cooling, Heating, Dry, and Ventilation Modes
  • Dual-Drainage Ports
  • Washable, Reusable Air Filters
  • Dual-Axis Airflow (Motorized Up-Down and Left-Right Louvers)
  • Functional Remote with:
  • ECO and SLEEP Modes, for Energy-Conservation
  • Timer On/Off Control
  • TURBO, for Times of High-Demand
  • Self-Clean Cycle
  • MEMORY, to Recall Favorite Settings
  • IFEEL, to Detect and Adjust to Local Temperature
What our Experts Think

  • Strong mid‑range performance: With 23,000 BTU capacity and a 17 SEER2 rating, this unit delivers reliable cooling and heating for medium‑to‑large rooms without overcomplicating installation or operation.

  • Balanced comfort & efficiency: The inverter heat pump design helps maintain stable indoor temperatures and reduces energy use compared with non‑inverter systems — ideal for living rooms, open floor plans, and larger bedrooms.

  • Year‑round HVAC solution: Provides dependable cooling in summer and heating in cooler months, making it versatile for climates with variable seasonal demands.

  • Standard 230 V residential compatibility: Designed for 208–230 V electrical service, supporting straightforward installation in most homes with professional HVAC setup.

  • Quiet indoor operation: Low sound levels help preserve a peaceful environment for living spaces, studies, or entertainment areas.

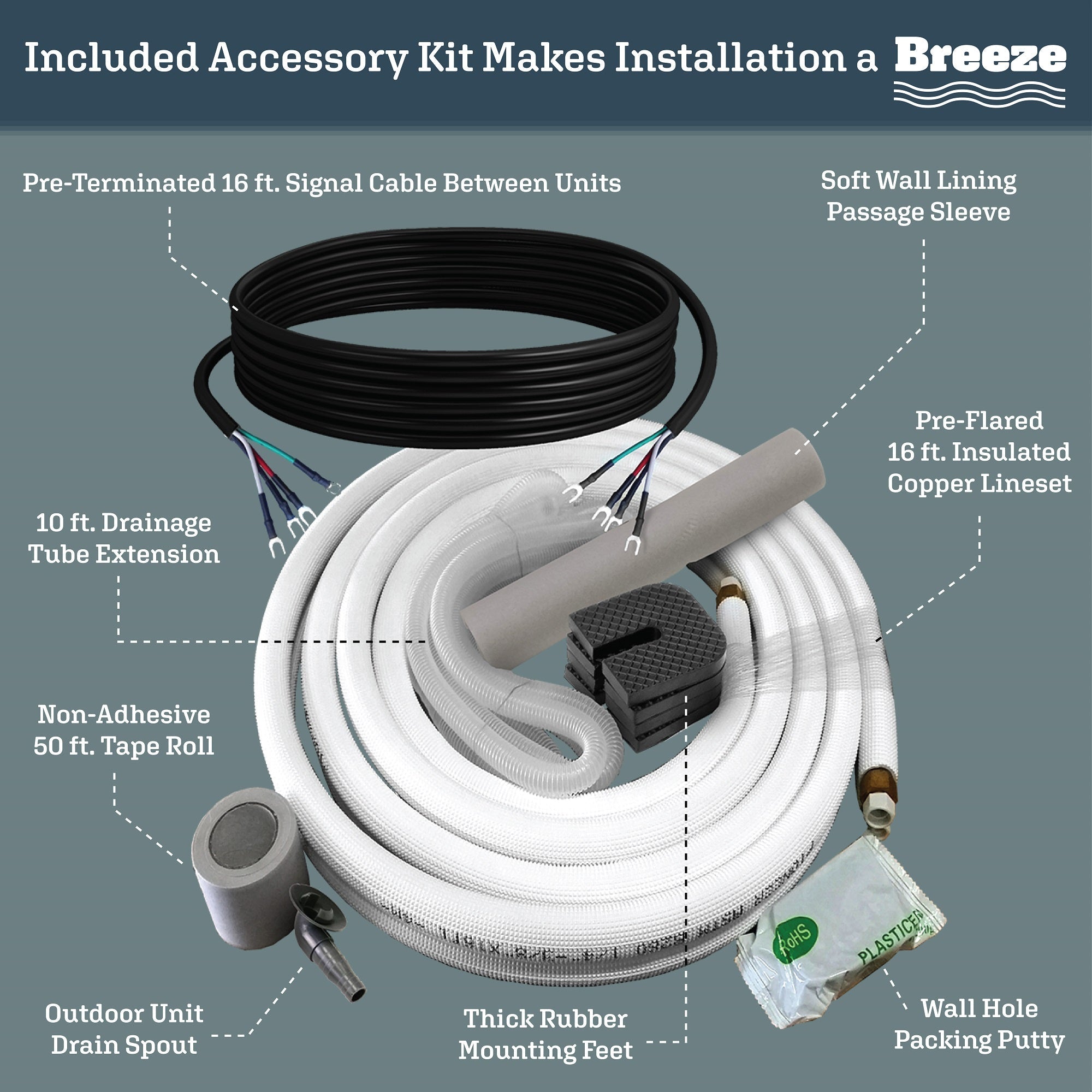

  • Installation convenience: Comes with a 16 ft pre‑charged line set kit, reducing installation time and complexity.


Q&A

Q1: What type of system is this Pioneer model?
A: It is a high-wall ductless mini-split air conditioner with integrated heat pump, designed for efficient single-zone cooling and heating.

Q2: What cooling and heating capacity does it provide?
A: Delivers 23,000 BTU cooling with reliable heat pump heating, suitable for medium to large rooms.

Q3: How energy-efficient is this unit?
A: Features 17 SEER2 efficiency, helping reduce electricity costs while providing consistent comfort.

Q4: What room size is this mini-split suitable for?
A: Recommended for 700 – 1,000 sq ft, depending on insulation, layout, and climate.

Q5: Does it include installation accessories?
A: Yes, includes a 16 ft installation kit with pre-insulated copper line set and necessary hardware.

Q6: What electrical requirements does it have?
A: Operates on 230 V single-phase power, suitable for standard residential or light-commercial circuits.

Q7: How does inverter technology improve performance?
A: Variable-speed inverter control ensures precise temperature, quieter operation, and energy efficiency.

Q8: Can it provide heating in colder climates?
A: Yes, the heat pump supports low-ambient heating for year-round comfort.

Q9: What indoor unit style is included?
A: Features a high-wall mounted air handler with optimized airflow and quiet operation.

Q10: Is this system suitable for residential or light-commercial use?
A: Yes, ideal for living rooms, bedrooms, offices, or small commercial spaces.


Maintenance Tips

  • Clean indoor air filters every 2–4 weeks to maintain airflow, system efficiency, and indoor air quality.

  • Keep the outdoor condenser coil free of dust, leaves, and debris to ensure proper heat transfer and inverter performance.

  • Inspect condensate drain lines and ports regularly to prevent water leaks and system interruptions.

  • Check refrigerant line insulation and electrical connections annually for safe and efficient operation.

  • Use the self-clean function periodically to reduce moisture buildup and prevent mold or odors.

  • Maintain adequate clearance around indoor and outdoor units for consistent airflow and reliable comfort.

  • Schedule yearly professional servicing for inverter diagnostics, refrigerant checks, and system optimization.
