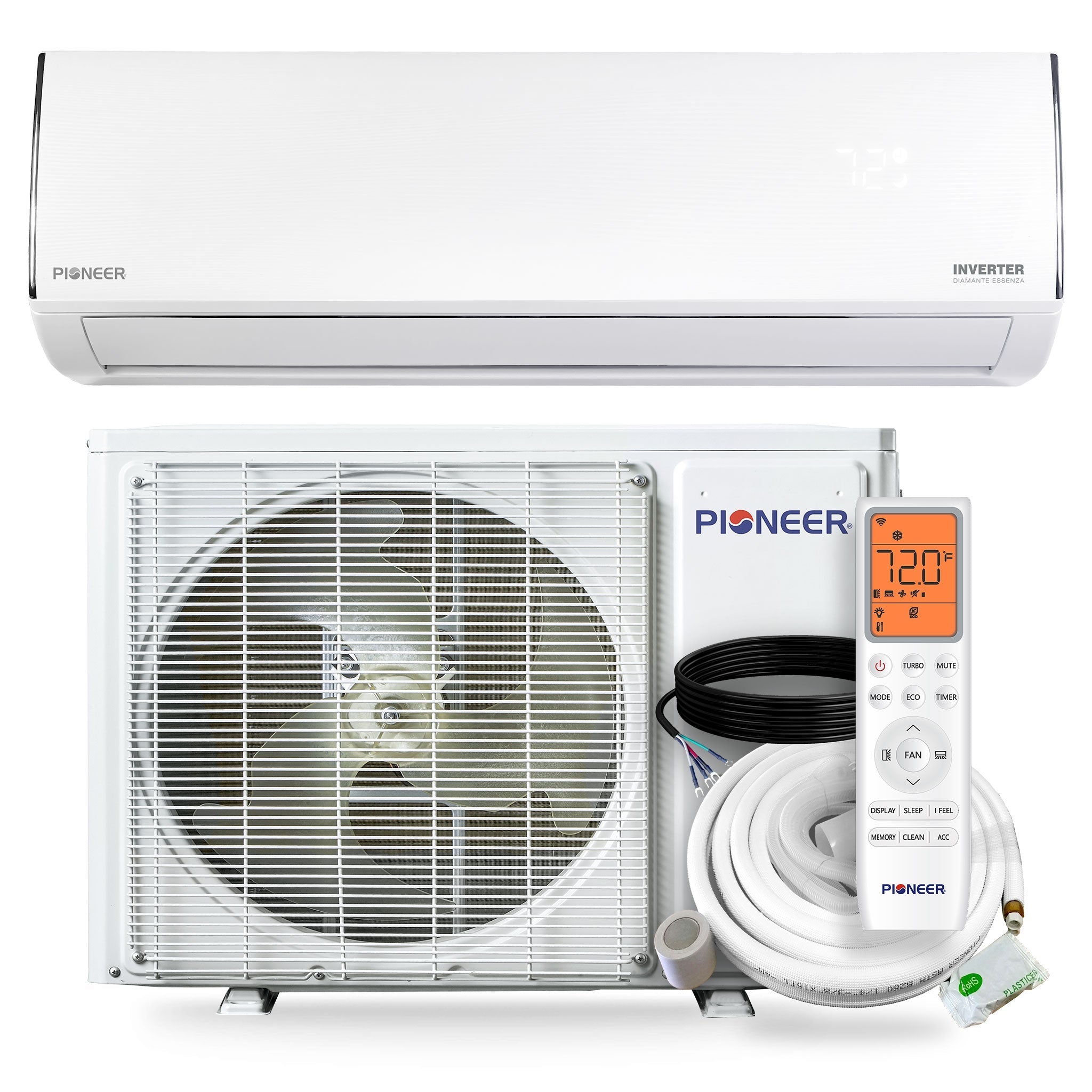

Pioneer Diamante Essenza 35,000 BTU 17 SEER2 230V High-Wall Ductless Mini-Split Air Conditioner Inverter Heat Pump with 16 Ft. Kit - WYT036GLUI17RL
Pioneer Diamante Essenza 35,000 BTU 17 SEER2 230V High-Wall Ductless Mini-Split Air Conditioner Inverter Heat Pump with 16 Ft. Kit - WYT036GLUI17RL
Pioneer Diamante Essenza 35,000 BTU 17 SEER2 230V High-Wall Ductless Mini-Split Air Conditioner Inverter Heat Pump with 16 Ft. Kit - WYT036GLUI17RL
Pioneer Diamante Essenza 35,000 BTU 17 SEER2 230V High-Wall Ductless Mini-Split Air Conditioner Inverter Heat Pump with 16 Ft. Kit - WYT036GLUI17RL
Pioneer Diamante Essenza 35,000 BTU 17 SEER2 230V High-Wall Ductless Mini-Split Air Conditioner Inverter Heat Pump with 16 Ft. Kit - WYT036GLUI17RL
Pioneer Diamante Essenza 35,000 BTU 17 SEER2 230V High-Wall Ductless Mini-Split Air Conditioner Inverter Heat Pump with 16 Ft. Kit - WYT036GLUI17RL
Pioneer Diamante Essenza 35,000 BTU 17 SEER2 230V High-Wall Ductless Mini-Split Air Conditioner Inverter Heat Pump with 16 Ft. Kit - WYT036GLUI17RL
Pioneer Diamante Essenza 35,000 BTU 17 SEER2 230V High-Wall Ductless Mini-Split Air Conditioner Inverter Heat Pump with 16 Ft. Kit - WYT036GLUI17RL
Pioneer Diamante Essenza 35,000 BTU 17 SEER2 230V High-Wall Ductless Mini-Split Air Conditioner Inverter Heat Pump with 16 Ft. Kit - WYT036GLUI17RL
Pioneer Diamante Essenza 35,000 BTU 17 SEER2 230V High-Wall Ductless Mini-Split Air Conditioner Inverter Heat Pump with 16 Ft. Kit - WYT036GLUI17RL

Pioneer Diamante Essenza 35,000 BTU 17 SEER2 230V High-Wall Ductless Mini-Split Air Conditioner Inverter Heat Pump with 16 Ft. Kit - WYT036GLUI17RL

$2,699.00 $1,888.00 Sale

Pioneer Diamante Essenza 35,000 BTU 17 SEER2 230V High-Wall Ductless Mini-Split Air Conditioner Inverter Heat Pump with 16 Ft. Kit - WYT036GLUI17RL

  • Standard Efficiency Diamante Essenza Ductless Mini Split Heat Pump System
  • Cooling capacity: 35,000 BTU/H with 17 SEER2 / 9.5 EER2 efficiency
  • Heating capacity: 35,400 BTU/H with 8.5 HSPF2 / 3.2 COP2 efficiency
  • Voltage: 208/230V, 60Hz, 1Ph
  • High Wall-Mounted Ductless Air Conditioning & Heating System
  • Variable-Speed DC Inverter Driven Performance

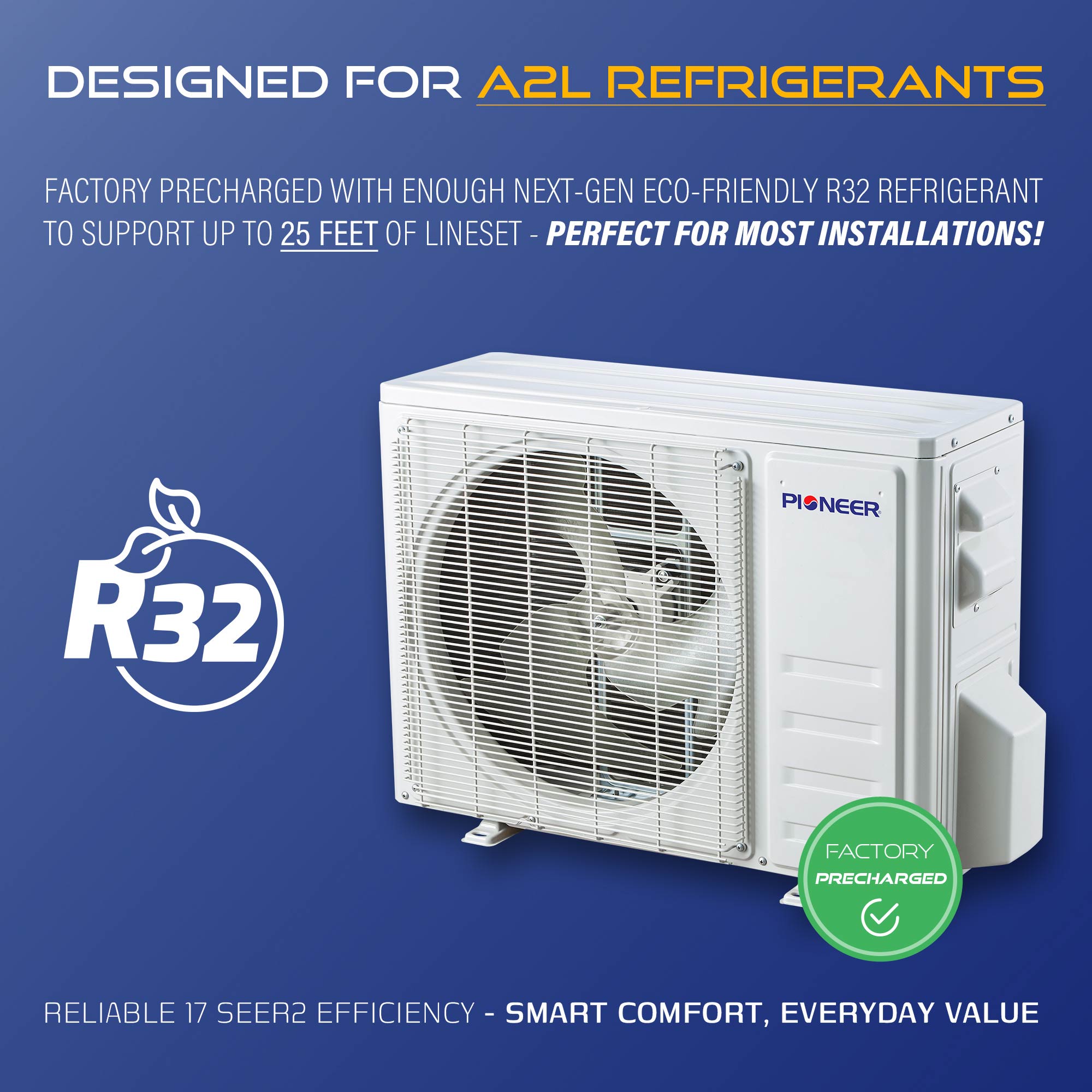

  • Factory-Precharged with Environmentally Friendly R-32 Refrigerant
  • Standard Ambient Range Operation (As low as 5°F in Heating / As high as 122°F in Cooling)
Features
  • Heat Pump with Cooling, Heating, Dry, and Ventilation Modes
  • Dual-Drainage Ports
  • Washable, Reusable Air Filters
  • Dual-Axis Airflow (Motorized Up-Down and Left-Right Louvers)
  • Functional Remote with:
  • ECO and SLEEP Modes, for Energy-Conservation
  • Timer On/Off Control
  • TURBO, for Times of High-Demand
  • Self-Clean Cycle
  • MEMORY, to Recall Favorite Settings
  • IFEEL, to Detect and Adjust to Local Temperature
What our Experts Think

  • High‑capacity climate control: With 35,000 BTU cooling and ~35,400 BTU heating, this ductless system is built for large open areas (~800–1,350 sq ft), making it a strong choice for homes, large living rooms, and commercial spaces needing robust year‑round comfort.

  • Balanced efficiency & performance: Featuring a 17 SEER2 rating and 9.5 EER2 cooling efficiency, it delivers solid seasonal savings and responsive temperature control compared to non‑inverter units.

  • All‑season heat pump capability: Provides effective cooling in hot weather and dependable heating down to as low as ~5 °F, offering versatile performance across seasons.

  • User‑friendly operation: Includes a handheld remote, multiple modes (Cool, Heat, Dry, Fan), ECO/SLEEP settings, and self‑clean features — enhancing control, comfort, and maintenance ease.

  • Quiet, sleek indoor unit: Whisper‑quiet indoor sound levels help maintain peaceful indoor environments while delivering strong airflow and comfort in larger spaces.

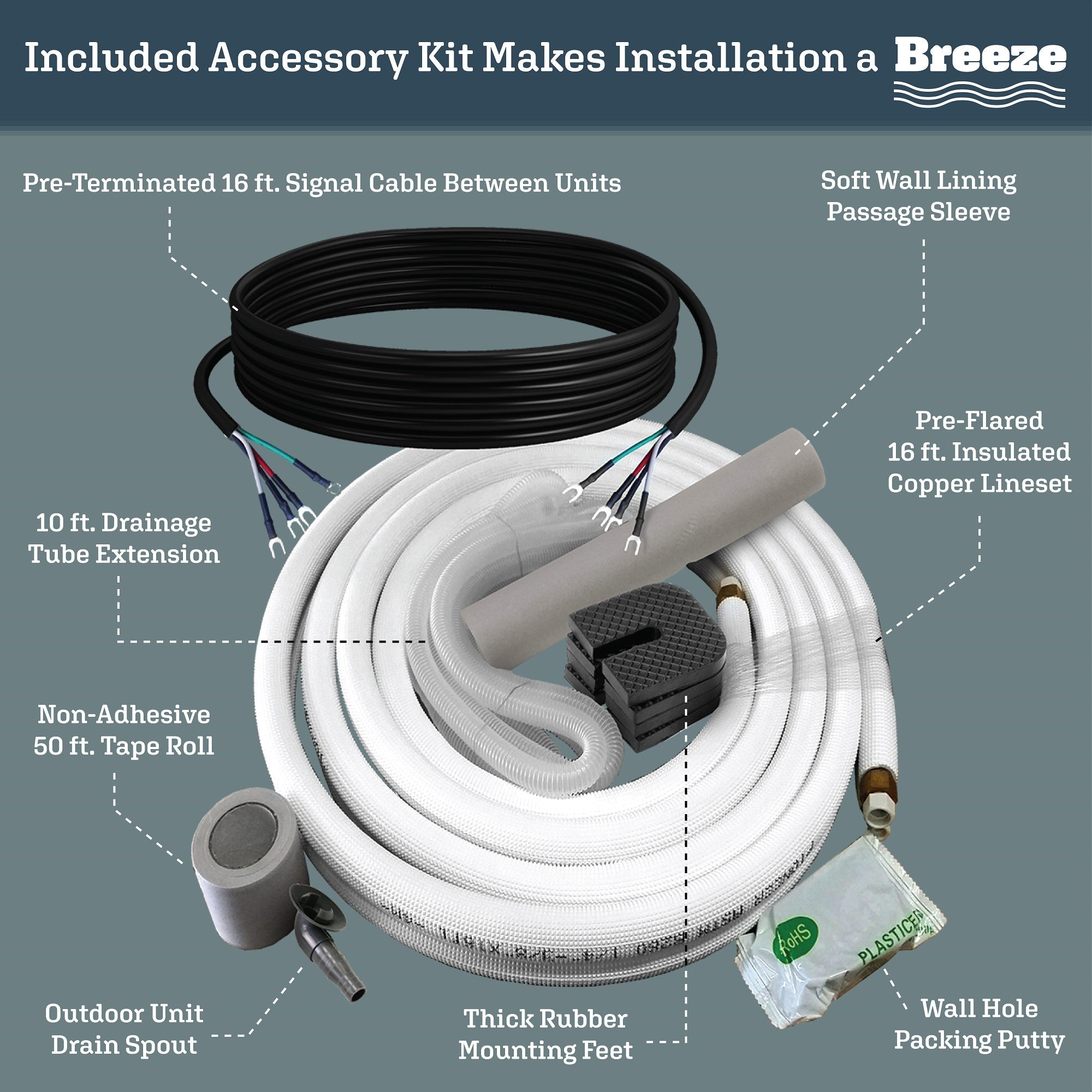

  • Installation ready: Comes with a 16 ft pre‑charged lineset, wiring, and drain hose, simplifying installation and saving time for professionals.


Q&A

Q1: What type of system is this Pioneer model?
A: It is a high-wall ductless mini-split air conditioner with integrated heat pump, designed for single-zone large-room or small commercial applications.

Q2: What cooling and heating capacity does it provide?
A: Delivers 35,000 BTU cooling with reliable heat pump heating, suitable for larger spaces.

Q3: How energy-efficient is this unit?
A: Features 17 SEER2 efficiency, providing consistent comfort while reducing electricity costs.

Q4: What room size is this mini-split suitable for?
A: Recommended for 1,200 – 1,500 sq ft, depending on insulation, layout, and ceiling height.

Q5: Does it include installation accessories?
A: Yes, includes a 16 ft installation kit with pre-insulated copper line set and essential mounting hardware.

Q6: What electrical requirements does it have?
A: Operates on 230 V single-phase power, compatible with standard residential or light-commercial circuits.

Q7: How does inverter technology improve performance?
A: Variable-speed inverter control ensures precise temperature, quiet operation, and energy efficiency.

Q8: Can it provide heating in cold climates?
A: Yes, the heat pump supports low-ambient heating, allowing year-round comfort.

Q9: What indoor unit style is included?
A: Features a high-wall mounted air handler with optimized airflow and quiet operation.

Q10: Is this system suitable for residential or light-commercial use?
A: Yes, ideal for large living rooms, open-concept homes, or small commercial spaces.


Maintenance Tips

  • Clean indoor air filters every 2–4 weeks to maintain airflow, efficiency, and indoor air quality.

  • Keep the outdoor condenser coil free of dust, leaves, and debris to ensure optimal heat transfer and inverter performance.

  • Inspect condensate drain lines and ports regularly to prevent leaks or water buildup.

  • Check refrigerant line insulation and electrical connections annually for safe, reliable operation.

  • Use the self-clean cycle periodically to reduce moisture buildup and prevent mold or odors.

  • Maintain sufficient clearance around indoor and outdoor units for consistent airflow and comfort.

  • Schedule professional servicing yearly for inverter diagnostics, refrigerant checks, and system optimization.
