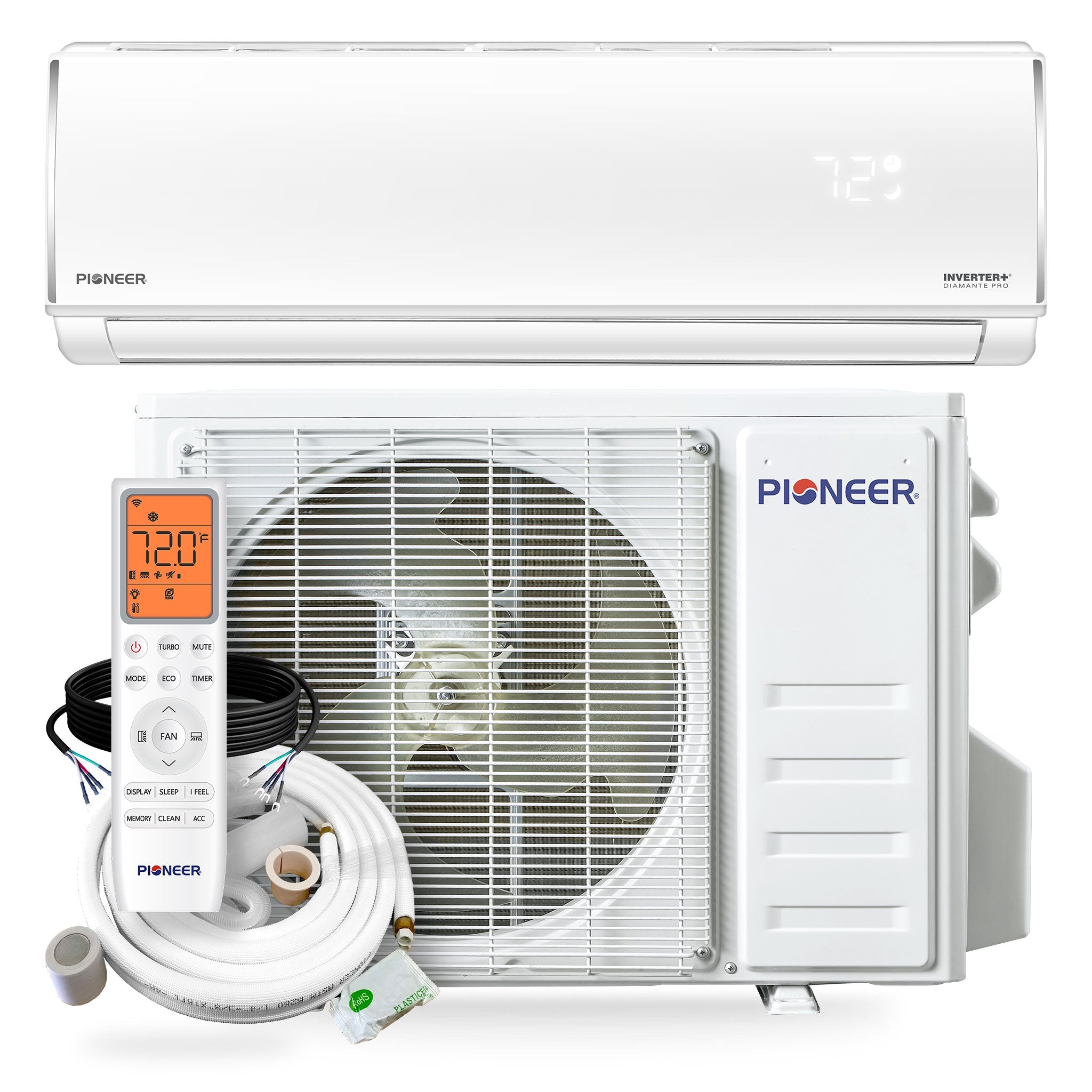

Pioneer Diamante Pro 31,500 BTU 19 SEER2 230V High-Wall Ductless Mini-Split Air Conditioner Inverter Heat Pump with 16 Ft. Kit - WYT030GLSI20RL
- High Efficiency Diamante Pro Ductless Mini Split Heat Pump System
- Cooling capacity: 31,500 BTU/H with 19 SEER2 / 9 EER2 efficiency
- Heating capacity: 33,000 BTU/H with 9 HSPF2 / 3.15 COP2 efficiency
- Voltage: 208/230V, 60Hz, 1Ph
- High Wall-Mounted Ductless Air Conditioning & Heating System
- Variable-Speed DC Inverter Driven Performance
- Factory-Precharged with Environmentally Friendly R454b Refrigerant
-
Low Ambient Range Operation (As low as -4°F in Heating / As high as 122°F in Cooling)
Features
- Heat Pump with Cooling, Heating, Dry, and Ventilation Modes
- Dual-Drainage Ports
- Washable, Reusable Air Filters
- Dual-Axis Airflow (Motorized Up-Down and Left-Right Louvers)
- Functional Remote with:
- ECO and SLEEP Modes, for Energy-Conservation
- Timer On/Off Control
- TURBO, for Times of High-Demand
- Self-Clean Cycle
- MEMORY, to Recall Favorite Settings
- IFEEL, to Detect and Adjust to Local Temperature
What our Experts Think
-
Large‑space floor/ceiling comfort (36,000 BTU)
This floor/ceiling mini‑split full set delivers powerful cooling and heating for ≈900–1,350 sq ft spaces—ideal for large living areas, open plans, workshops, or commercial zones.
-
High seasonal efficiency (19 SEER2)
19 SEER2 efficiency helps reduce energy use compared with older HVAC units, balancing performance with operating cost savings for year‑round comfort.
-
Inverter+ DC technology for precise control
Variable‑speed DC inverter operation maintains stable temperatures with quieter cycling and faster comfort recovery than traditional fixed‑speed compressors.
-
All‑season heat pump system
Combines cooling and heating in one full‑set solution, with ~38,000 BTU heating capacity and strong HSPF2 performance for comfortable winters without separate heating.
-
Flexible floor/ceiling installation
Designed for floor or ceiling mounting, this unit fits a variety of room layouts while providing focused air delivery and unobtrusive presence.
-
Smart comfort features
Functions like “Follow Me” temperature sensing optimize comfort by adjusting output based on remote‑controller readings.
Q&A
Q: What room size is this 36,000 BTU floor/ceiling mini split ideal for?
A: Perfect for large rooms or open spaces (approx. 1,200–1,800 sq. ft.), including living areas, offices, or commercial spaces.
Q: Does it provide both cooling and heating?
A: Yes, this inverter+ heat pump delivers efficient year-round cooling and heating.
Q: How energy-efficient is the 19 SEER2 rating?
A: With 19 SEER2, it offers strong energy efficiency while lowering electricity costs.
Q: What type of indoor unit does this system use?
A: Floor/ceiling mount indoor unit provides flexible installation and even airflow throughout the space.
Q: What voltage does it require?
A: Designed for 208–230V single-phase power.
Q: What is included in the full set?
A: Includes floor/ceiling indoor unit, outdoor condenser, and pre-charged installation kit for convenient setup.
Q: Does it support Wi-Fi or smart control?
A: Wi-Fi support may be available with compatible modules for remote operation and scheduling.
Q: How quiet is the indoor unit?
A: Operates quietly, typically 35–45 dB, ideal for offices, living spaces, or commercial areas.
Q: What comfort and usability features are included?
A: Turbo mode, ECO mode, sleep mode, self-cleaning, auto restart, timer, and multi-directional airflow for optimal comfort.
Q: Is professional installation required?
A: Yes, professional installation is recommended; proper floor/ceiling mounting, refrigerant connections, and electrical setup are required.
Maintenance Tips
-
Clean washable air filters every 2–4 weeks – Maintains optimal airflow and 19 SEER2 efficiency for 1,000–1,200 sq ft areas
-
Run self-clean function regularly – Prevents mold, bacteria, and odor buildup inside the floor/ceiling unit
-
Keep indoor & outdoor units free of dust and debris – Ensures consistent airflow and peak heat exchange
-
Check and clear condensate drain line – Prevents leaks and floor/ceiling damage
-
Maintain 2–3 ft clearance around outdoor unit – Supports efficient cooling/heating performance
-
Inspect refrigerant lines annually – Ensures leak-free operation and reliable capacity
-
Use ECO, Sleep & Wi-Fi smart modes – Reduces compressor wear and lowers energy consumption
-
Schedule yearly professional servicing – Maximizes inverter efficiency and extends system lifespan
