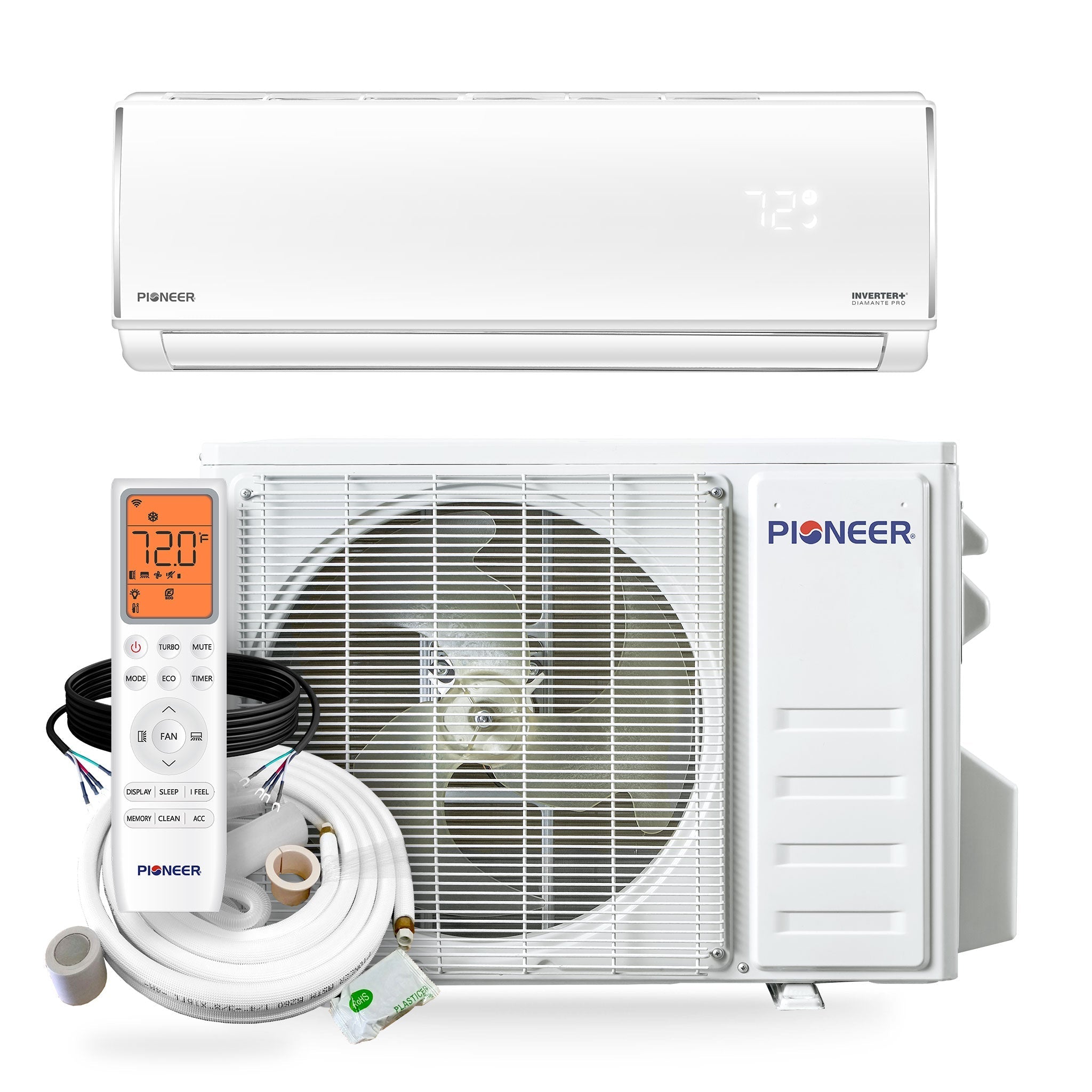

Pioneer Diamante Pro 9,000 BTU 20 SEER2 230V High-Wall Ductless Energy-Star Mini-Split Air Conditioner Inverter Heat Pump with 16 Ft. Kit - WYT009GLSI20RL
- High Efficiency Diamante Pro Ductless Mini Split Heat Pump System
- Cooling capacity: 9,000 BTU/H with 20 SEER2 / 12 EER2 efficiency
- Heating capacity: 10,000 BTU/H with 10 HSPF2 / 3.81 COP2 efficiency
- Voltage: 208/230V, 60Hz, 1Ph
- High Wall-Mounted Ductless Air Conditioning & Heating System
- Variable-Speed DC Inverter Driven Performance
- Factory-Precharged with Environmentally Friendly R454b Refrigerant
-
Standard Ambient Range Operation (As low as -4°F in Heating / As high as 122°F in Cooling)
Features
- Heat Pump with Cooling, Heating, Dry, and Ventilation Modes
- Dual-Drainage Ports
- Washable, Reusable Air Filters
- Dual-Axis Airflow (Motorized Up-Down and Left-Right Louvers)

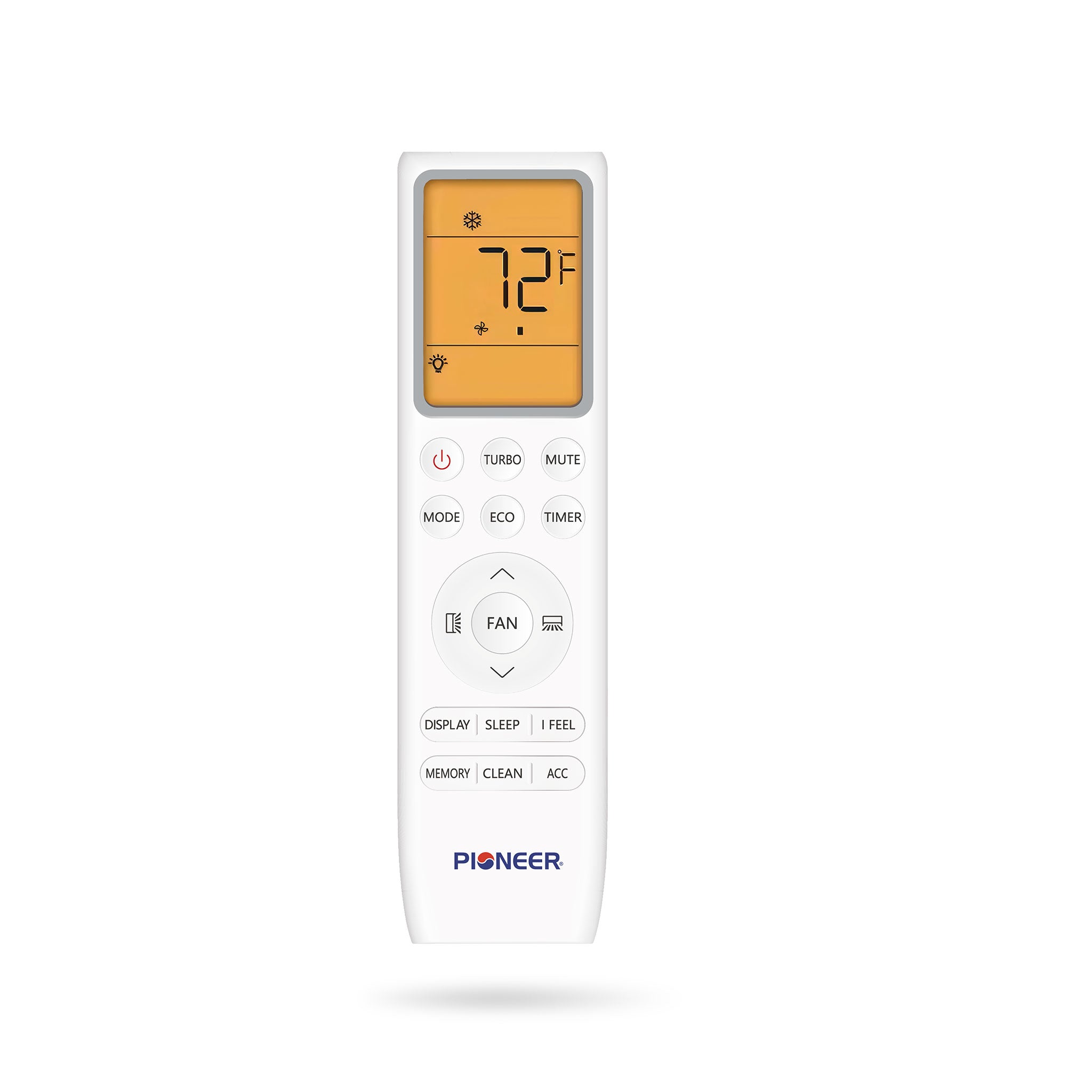

- Functional Remote with:
- ECO and SLEEP Modes, for Energy-Conservation
- Timer On/Off Control
- TURBO, for Times of High-Demand
- Self-Clean Cycle
- MEMORY, to Recall Favorite Settings
- IFEEL, to Detect and Adjust to Local Temperature
What our Experts Think
-
Premium ceiling‑cassette performance: This Pioneer Quantum Ultra 23,000 BTU 22.5 SEER2 ductless ceiling cassette mini‑split delivers omni‑directional 8‑way airflow for uniform comfort across larger rooms — great for offices, living areas, retail spaces, and more.
-
High efficiency & year‑round comfort: With 22.5 SEER2 cooling efficiency and robust heat pump heating (25,000 BTU), it balances strong seasonal energy savings with reliable performance in diverse climates.
-
Smart airflow & indoor air quality: Advanced dual‑axis louvers, fresh‑air intake option, and washable/reusable filters help improve comfort and air freshness while reducing maintenance needs.
-
Built‑in condensate management: Integrated drain pump (up to ~30 in. lift) simplifies installation and helps avoid water issues in ceiling applications.
-
Quiet, customizable operation: Multi‑speed airflow and low sound levels help maintain a peaceful environment — ideal for bedrooms, classrooms, or shared spaces.
-
App & control flexibility: Compatible with the free Pioneer Airlink app, handheld remote, wired controllers, and voice platforms like Alexa/Google Assistant (where supported), giving you smart control options.
-
Suitable coverage & installation: Designed for ~750–1,000 sq ft areas and includes a full kit (indoor/outdoor units, panel, remote, line sets, and installation essentials) to streamline professional setup.
Q&A
Q1: What type of system is this Pioneer model?
A: It is a high-wall ductless mini-split air conditioner with integrated heat pump, designed for single-zone cooling and heating.
Q2: What cooling and heating capacity does it provide?
A: Provides 9,000 BTU cooling with reliable heat pump heating, ideal for small rooms or offices.
Q3: How energy-efficient is this unit?
A: Features 20 SEER2 efficiency and Energy-Star rating, reducing electricity use while maintaining comfort.
Q4: What room size is this mini-split suitable for?
A: Recommended for 250 – 400 sq ft, depending on insulation and ceiling height.
Q5: Does it include installation accessories?

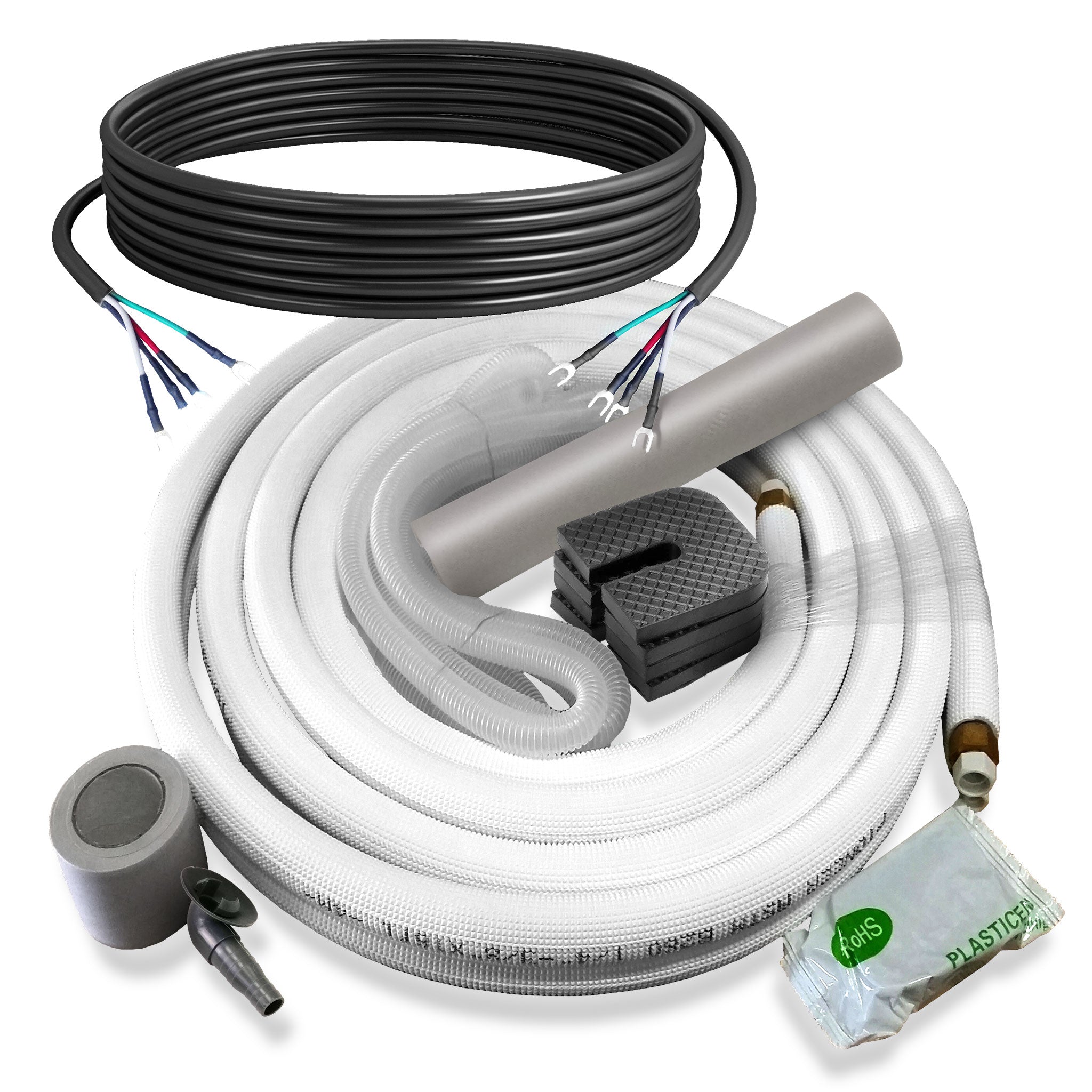

A: Yes, comes with a 16 ft installation kit including pre-insulated copper line set and mounting hardware.
Q6: What electrical requirements does it have?
A: Operates on 230 V single-phase power, compatible with standard residential circuits.
Q7: How does inverter technology improve performance?
A: Variable-speed inverter control ensures quiet operation, precise temperature, and energy savings.
Q8: Can it provide heating in cold climates?
A: Yes, the heat pump supports low-ambient heating, ensuring year-round comfort.

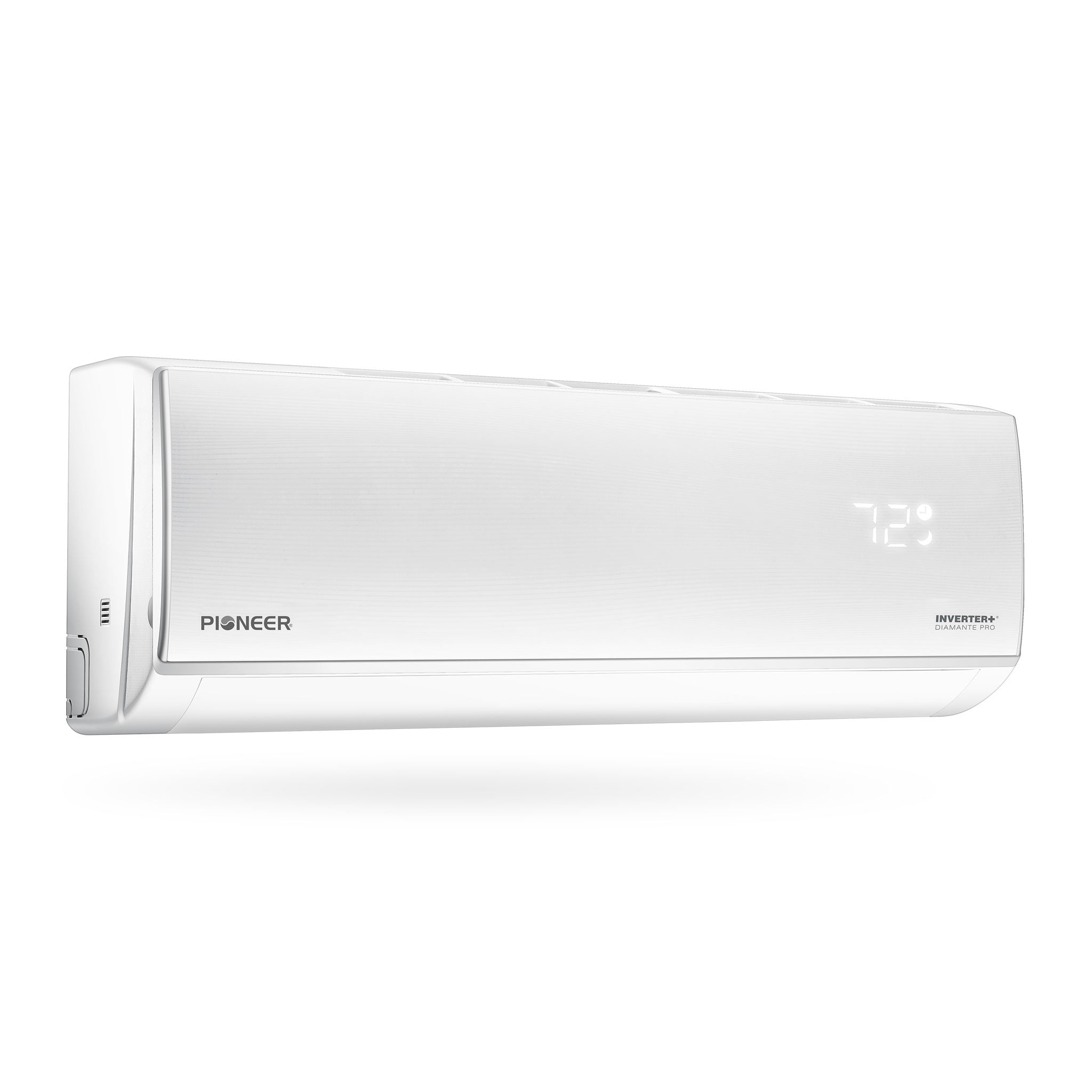

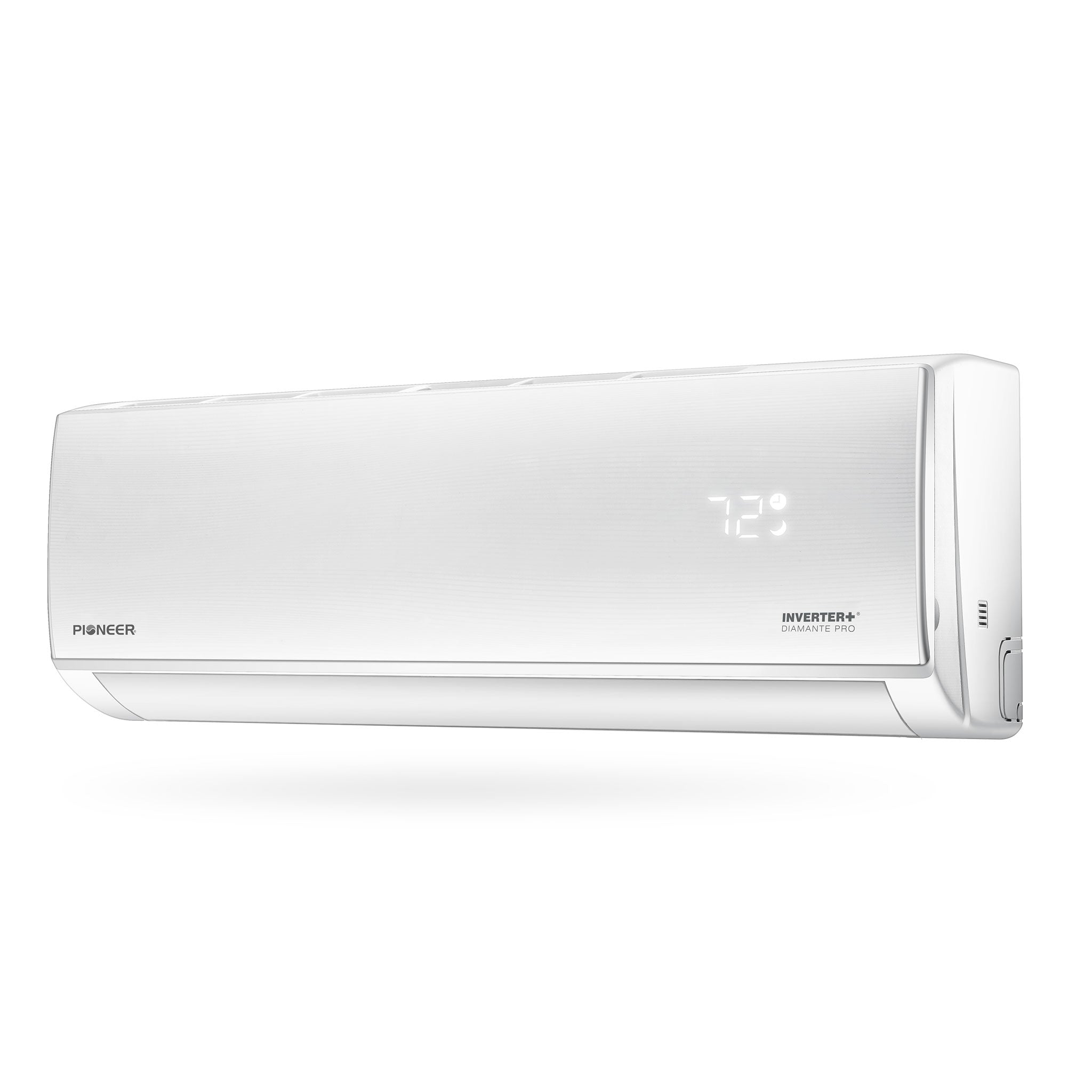

Q9: What indoor unit style is included?
A: Features a high-wall mounted air handler with optimized airflow and quiet operation.
Q10: Is this system suitable for residential or light-commercial use?
A: Yes, ideal for bedrooms, small offices, or compact living areas.
Maintenance Tips
-
Clean indoor air filters every 2–4 weeks to maintain airflow, system efficiency, and indoor air quality.
-

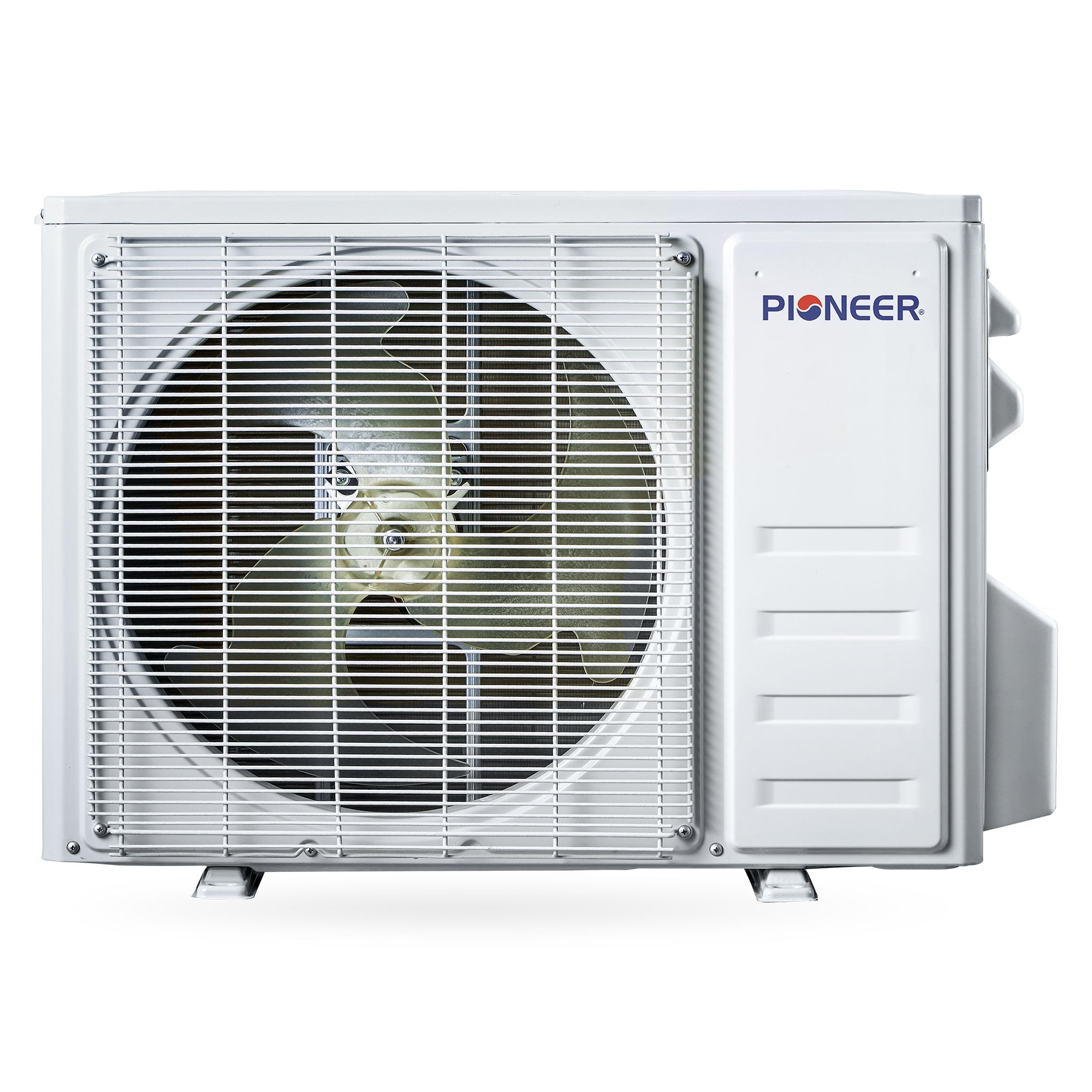

Keep the outdoor condenser coil free of dust, leaves, and debris to ensure optimal heat exchange and inverter performance.
-
Inspect condensate drain lines regularly to prevent water leaks or buildup.
-
Check refrigerant line insulation and electrical connections annually for safe, reliable operation.
-
Use the self-clean cycle periodically to reduce moisture buildup and prevent mold or odors.
-
Maintain adequate clearance around indoor and outdoor units for consistent airflow and comfort.
-
Schedule annual professional servicing for inverter diagnostics, refrigerant checks, and system optimization.
