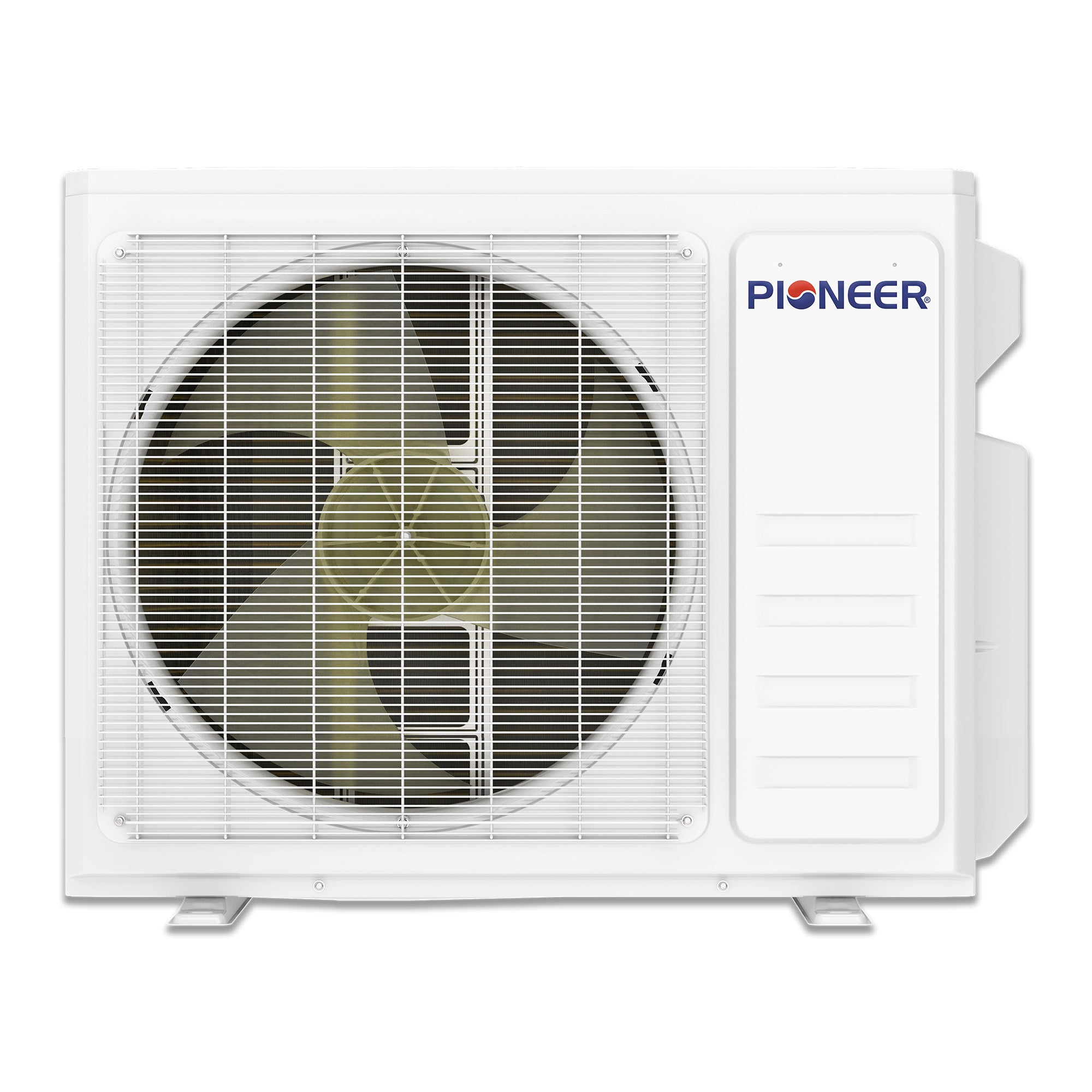

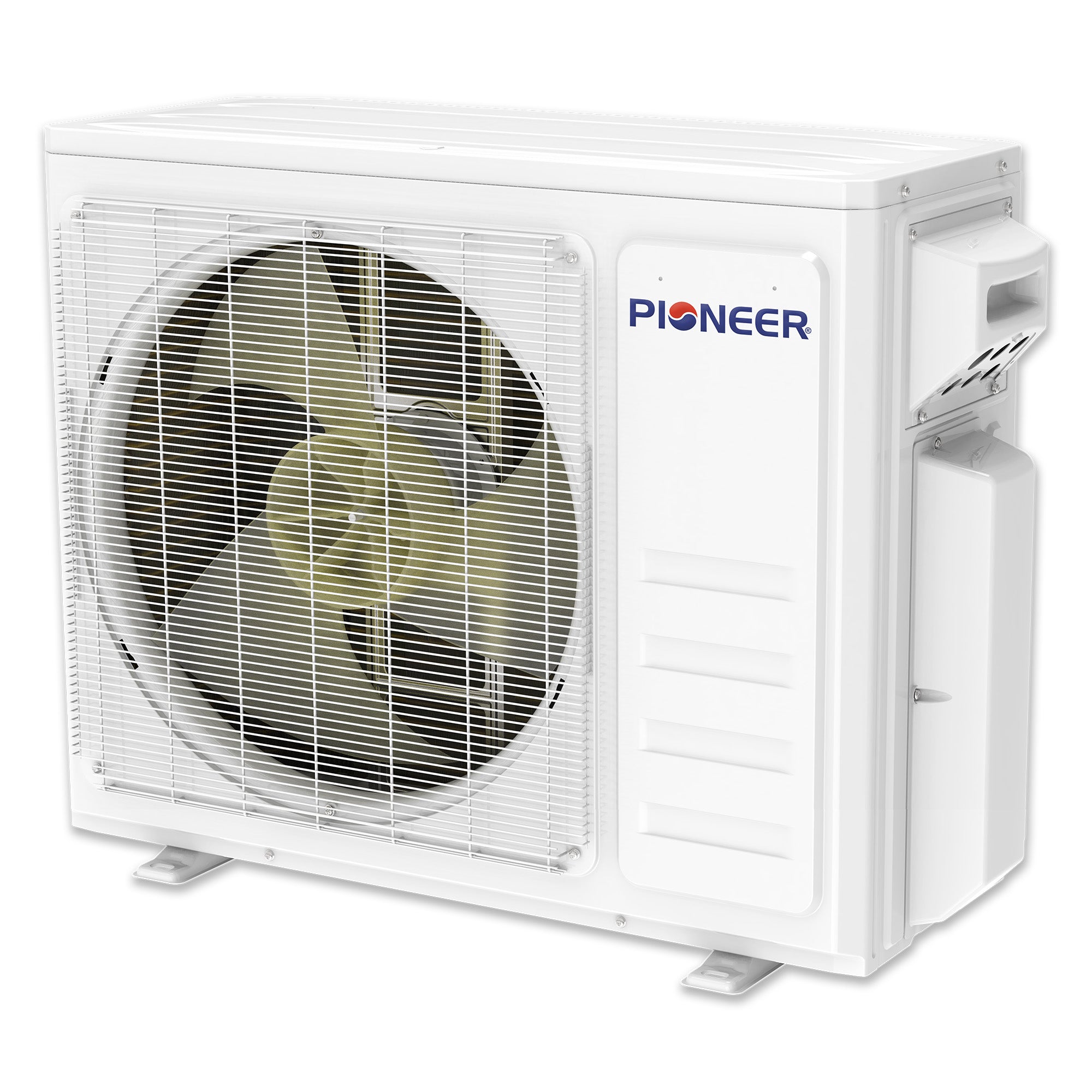

Pioneer Multi (2) Circuit Quantum Ultra Series 24 SEER2 Dual Zone Outdoor Section Inverter++ Energy-Star Air Conditioner Heat Pump 230V - YN020GLSI24M2G
-
Ultra High Efficiency Dual Zone (2 Circuit) Outdoor Condensing System
- Cooling Capacity: 18,000 BTU with 24 SEER2 / 13 EER2 efficiency
- Heating Capacity: 20,000 BTU with 10.5 HSP2 / 3.5 COP2 efficiency
-
Energy-Star and Energy-Star Cold-Climate Designated Performance
-
Wide Ambient Operation Range (As low as -13°F in Heating / As high as 131°F in Cooling)
-
Factory Precharged to Cover Up to 50 Ft. of Total Combined Attached Lineset Length
-
Power Supply: 208~230V, 60Hz, 1Ph
-
Communication Protocol: Current Loop
-
Min-Max Load Attached: 12,000~27,000 BTU/h
-
Cooling Rated Capacity (Ductless): 18,000 BTU/h
-
Cooling Rated Capacity (Ducted): 17,000 BTU/h
-
Cooling SEER2 (Ductless): 24.0 BTU/W.h
-
Cooling SEER2 (Ducted): 21.0 BTU/W.h
-
Cooling EER2 (Ductless): 13.0 BTU/W.h
-
Cooling EER2 (Ducted): 12.0 BTU/W.h
-
Heating Rated Capacity (Ductless): 20,000 BTU/h
-
Heating Rated Capacity (Ducted): 19,000 BTU/h
-
Heating HSPF2 Region IV/V (Ductless): 10.5 / 9.5 BTU/W.h
-
Heating HSPF2 Region IV/V (Ducted): 9.5 / 8.2 BTU/W.h
- Heating C.O.P.2 47°F/5°F (Ductless): 3.5 / 2.0 W/W
-
Heating C.O.P.2 47°F/5°F (Ducted): 3.5 / 1.9 W/W
-
Refrigerant Type: R454B
-
Suitable Area: 300~750 sq ft
-
Sound Level: 58 dB(A)
-
Circuit Breaker Utilized: 25A (double-pole)
-
Net Dimensions (WDH): 36"-1/2 x 15" x 27"-1/2 Inches
-
Carton Dimensions (WDH): 37"-3/4 x 16"-7/8 x 28"-3/4 Inches
-
Net / Gross Weight: 92.6 / 99.2 lbs
-
AHRI Reference: 217048768 (Ductless) / 217048772 (Ducted)
Manuals
What our Experts Think
-
Energy‑efficient dual‑zone performance: Engineered with 24 SEER2 inverter technology and ENERGY‑STAR certification, this outdoor unit delivers strong cooling efficiency for dual‑zone comfort while reducing electricity costs.
-
Balanced cool & heat output: Rated at around 18,000 BTU cooling and 20,000 BTU heating, it offers reliable year‑round comfort for paired indoor units without overworking the system.
-

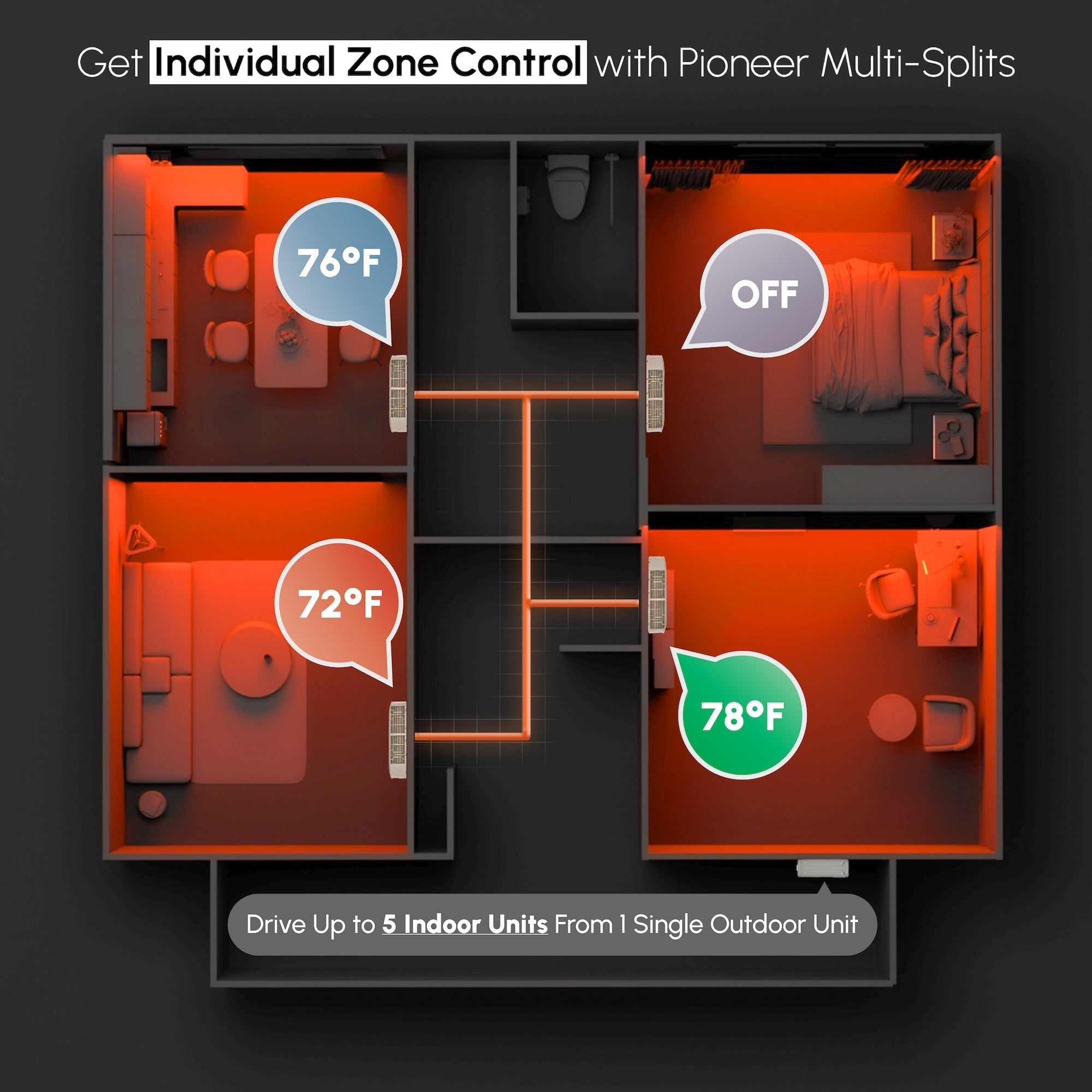

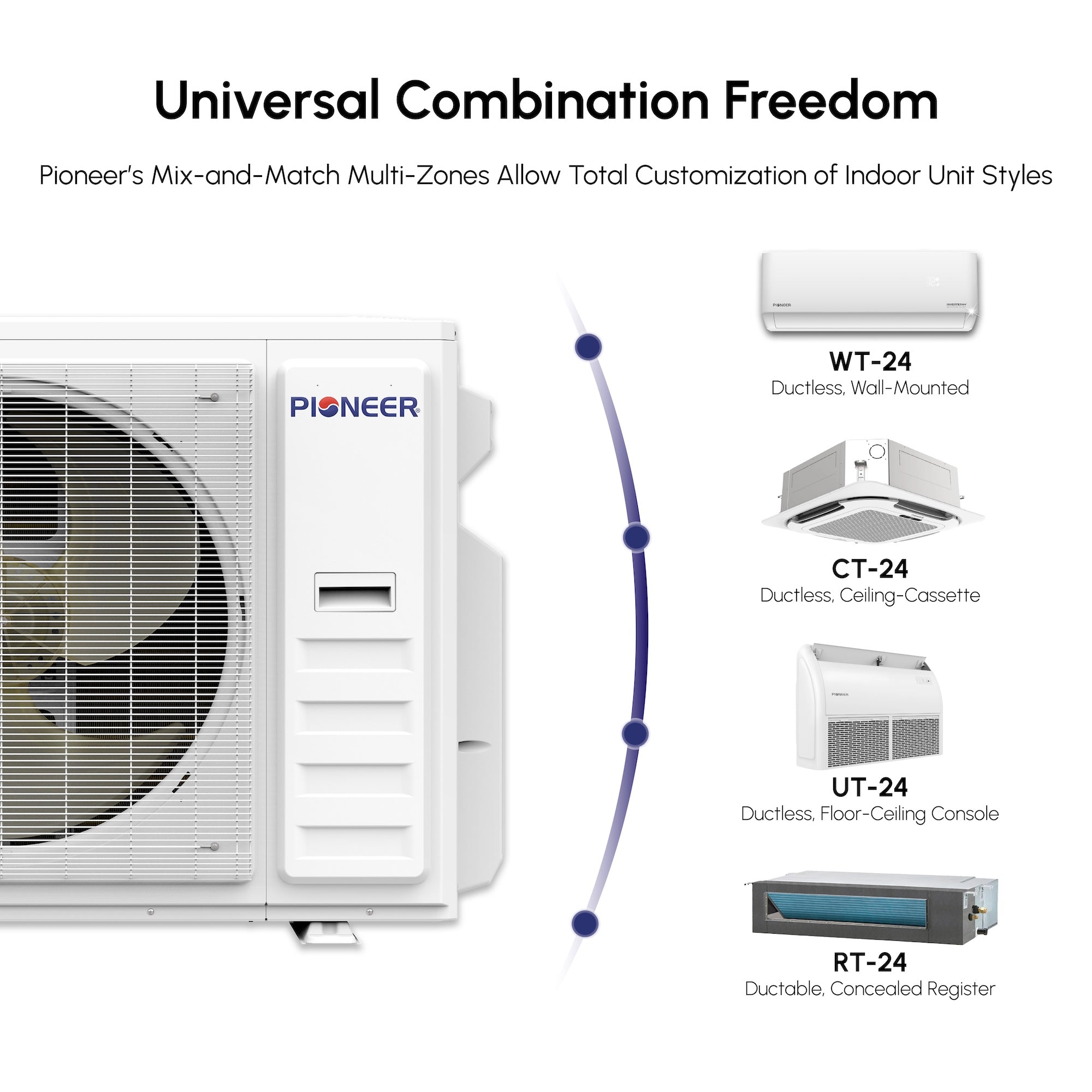

True dual‑zone flexibility: Supports two separate indoor units (wall‑mount, cassette, concealed, or flex types), letting you tailor temperature by room or zone.
-
Cold‑climate capable: Operates efficiently in temperatures as low as ‑13 °F (heating) and up to 131 °F (cooling), making it suitable for diverse climates and seasonal extremes.
-
Easy install & compatibility: Standard 208–230 V, single‑phase power, factory precharged refrigerant for up to 50 ft total line set, and common communication protocol help streamline installation for HVAC pros.
-
Quiet design & practical capacity: With modest sound levels (~58 dB) and coverage suited for ~300–750 sq ft, it’s ideal for medium room pairs like living/kitchen, bedroom/bath, or office combos.
Q&A
Q1: What type of system is this Pioneer model?
A: It is a dual-zone ductless mini-split outdoor condenser with integrated heat pump, ideal for multi-room comfort.
Q2: What cooling and heating capacity does it provide?
A: Delivers approximately 20,000 BTU cooling and 21,000 BTU heating, suitable for medium-sized homes or apartments.
Q3: How energy-efficient is this unit?
A: Features 24 SEER2 cooling efficiency with Energy-Star rating, reducing energy usage and costs.
Q4: How many indoor units can be connected?
A: Supports up to two indoor zones, allowing flexible configurations for bedrooms or living areas.
Q5: What electrical requirements does it have?
A: Operates on 208–230 V single-phase power, compatible with standard residential circuits.
Q6: Can it operate in extreme temperatures?
A: Yes, it works in a wide ambient range, heating down to about −13 °F and cooling up to 131 °F.
Q7: Is the outdoor unit pre-charged with refrigerant?
A: Yes, it comes factory-precharged, supporting line lengths up to 100 ft and simplifying installation.
Q8: What refrigerant does it use?
A: Uses eco-friendly R454B refrigerant, offering efficient performance and reduced environmental impact.
Q9: How does inverter++ technology improve performance?
A: Variable-speed inverter++ control ensures precise temperature, quiet operation, and energy savings across all zones.
Maintenance Tips
-
Clean indoor air filters every 2–4 weeks to maintain airflow, indoor air quality, and peak cooling/heating efficiency.
-
Keep the outdoor condenser coil free of debris, leaves, and dust to ensure optimal heat exchange and energy savings.
-
Check condensate drains and lines periodically to prevent water buildup and potential system interruptions.
-
Inspect refrigerant piping, electrical connections, and unit mounting annually to avoid capacity loss or safety hazards.
-
Maintain clear airflow around the outdoor unit for consistent dual-zone temperature control.
-
Schedule professional servicing once per year for inverter optimization, refrigerant checks, and system diagnostics.
