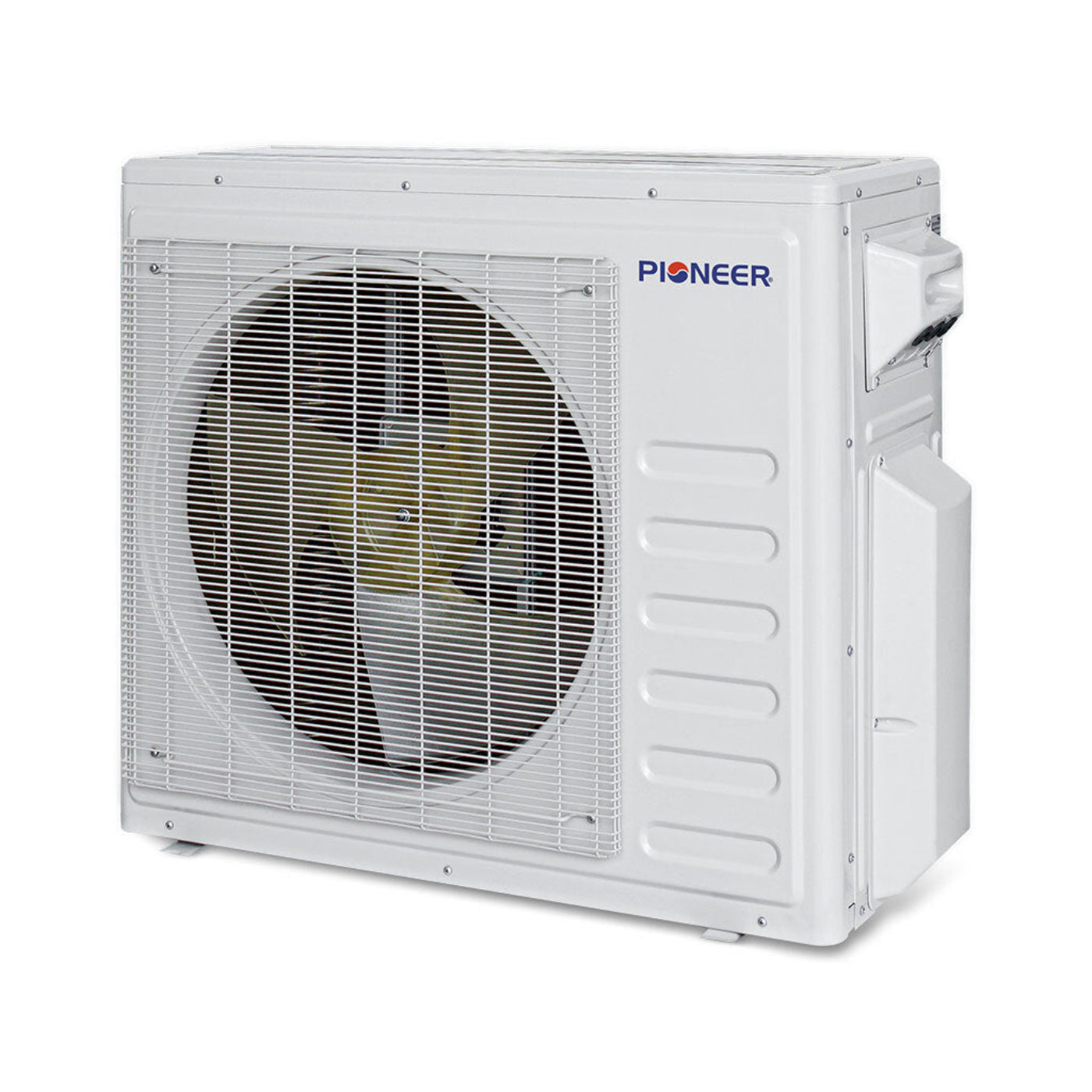

Pioneer Multi (3) Circuit Diamante Ultra Series 22 SEER2 Triple Zone Outdoor Section Inverter++ Energy-Star Air Conditioner Heat Pump 230V - YN030GLFI22M3D
-
Power Supply: 208~230V, 60Hz, 1Ph
-
Communication Protocol: Current Loop
-
Min-Max Load Attached: 18,000~36,000 BTU/h
-
Cooling Rated Capacity: 24,000 BTU/h
-
Cooling SEER2 (Ductless): 22.0 BTU/W.h
-
Cooling EER2 (Ductless): 12.0 BTU/W.h
-
Heating Rated Capacity: 26,000 BTU/h
-
Heating HSPF2 (Ductless): 9.0 BTU/W.h
- Heating C.O.P.2 (47°F/5°F): 3.54 / 2.27 W/W
-
Refrigerant Type: R410a
-
Suitable Area: 400~1,000 Sq.F
-
Sound Level: 58.0 dB(A)
-
Circuit Breaker Utilized: 20A (double-pole)
-
Net Dimensions (WDH): 35"-1/8 x 14" x 31"-3/8
-
Carton Dimensions (WDH): 40"-1/2 x 18" x 34"
-
Net / Gross Weight: 123.2 / 133.1 Lbs
Manuals
What our Experts Think
-
Balanced triple‑zone performance (24,000 BTU cooling, 26,000 BTU heating)
This Pioneer Multi (3) Circuit Diamante Ultra Series 22 SEER2 outdoor section delivers reliable cooling and heating for up to ≈1,000 sq ft across three zones, supporting flexible zone combinations of indoor units.
-
Energy‑Star certified & 22 SEER2 efficiency
High seasonal efficiency helps reduce electricity costs compared with older or lower‑SEER outdoor condensers, while Energy‑Star recognition signals strong real‑world performance.
-
Inverter++ technology for responsive climate control
Advanced variable‑speed inverter compressor modulates power based on demand from each zone, delivering precise comfort, quieter operation, and fewer temperature swings than fixed‑speed systems.
-
Triple‑zone versatility
Designed for three indoor units (e.g., any mix of 9k, 12k, or 18k units), letting you tailor individual zone comfort for living rooms, bedrooms, offices, or dens from a single outdoor condenser.
-
All‑season heat pump performance
Efficient heat pump operation provides dependable heating and cooling year‑round without needing separate systems for each season.
-
R410A refrigerant & proven durability
Uses R410A refrigerant with a design optimized for reliable service; built‑in compressor protections help safeguard performance over time.
-
Quiet outdoor operation (~58 dB)
Engineered to minimize outdoor noise, making it suitable for residential and mixed‑use installations.
Q&A
Q: What is the purpose of this Pioneer outdoor condenser?
A: Designed for triple-zone mini-split systems, it provides efficient cooling and heating for three indoor zones simultaneously.
Q: How many zones does this system support?
A: Supports three indoor units with independent temperature control for each zone.
Q: Is this unit Energy Star certified?
A: Yes, it is Energy Star certified for high efficiency and lower operating costs.
Q: How energy-efficient is the 22 SEER2 rating?
A: With 22 SEER2, it offers excellent energy savings while maintaining consistent comfort across all zones.
Q: What voltage does it require?
A: Designed for 208–230V single-phase power.
Q: Is this inverter++ technology?
A: Yes, the inverter++ compressor adjusts speed continuously for precise temperature control and maximum efficiency.
Q: What spaces is it suitable for?
A: Ideal for homes, offices, or small commercial applications requiring multi-zone temperature control.
Q: What is included with the condenser?
A: Outdoor triple-zone condenser unit; professional installation and compatible indoor units are required.
Q: How quiet is the system?
A: Engineered for quiet operation relative to its size, typically 35–45 dB depending on load.
Q: What are the main benefits of using this unit?
A: Energy savings, precise multi-zone climate control, inverter++ efficiency, and reliable year-round heating and cooling.
Maintenance Tips
-
Keep condenser coils clean – Remove dust, leaves, and debris monthly to maintain 22 SEER2 Energy Star efficiency
-
Ensure proper airflow around the unit – Maintain at least 2–3 ft clearance on all sides
-
Inspect refrigerant lines annually – Prevent leaks and ensure optimal triple-zone cooling/heating
-
Check electrical connections periodically – Prevents shorts or power issues
-
Clean fan blades and motor housing – Supports efficient airflow and prolongs compressor life
-
Monitor for unusual noises or vibrations – Early detection prevents costly repairs
-
Check and clear condensate drain lines – Prevents water backup and damage
-
Schedule professional servicing yearly – Maintains Energy Star performance and extends system lifespan
