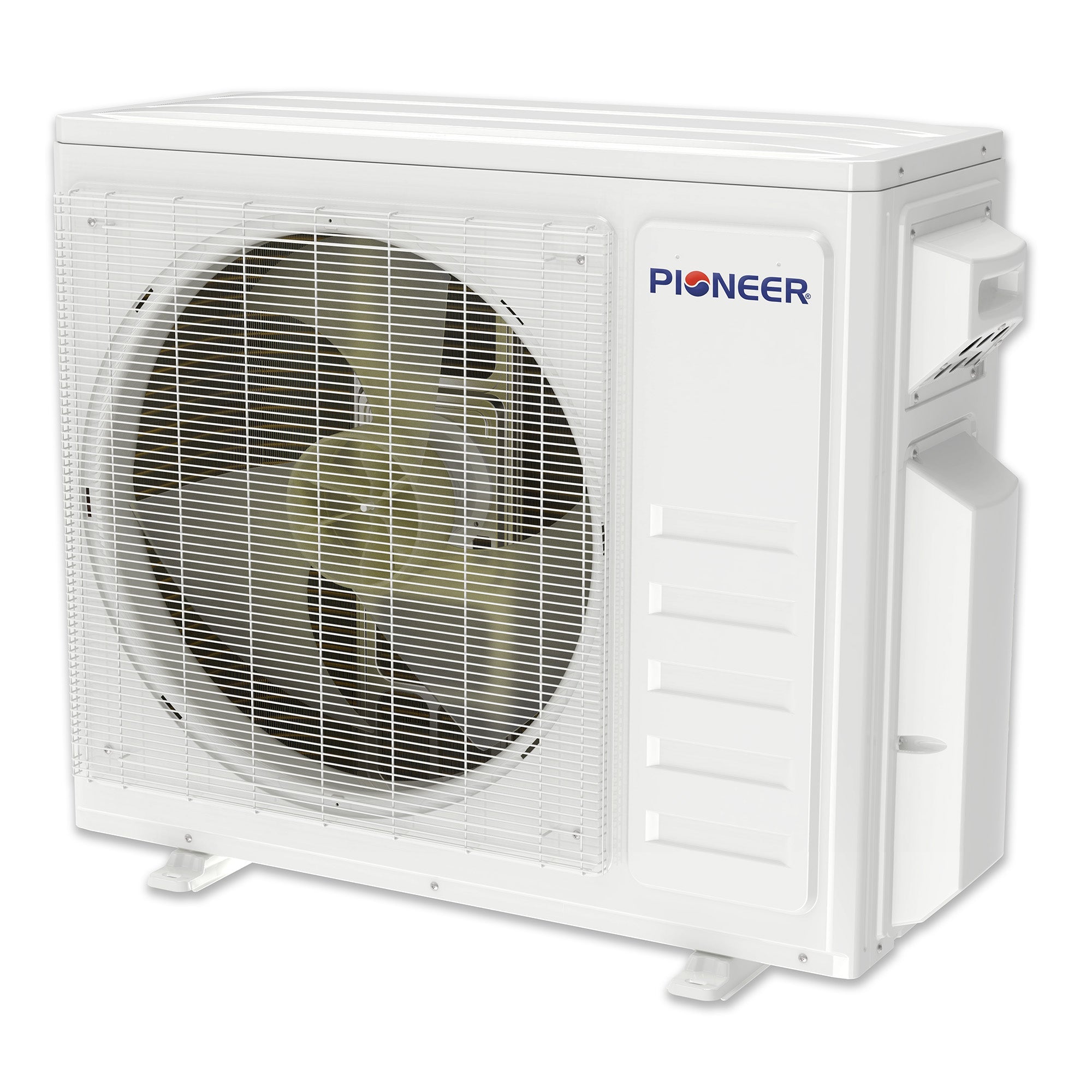

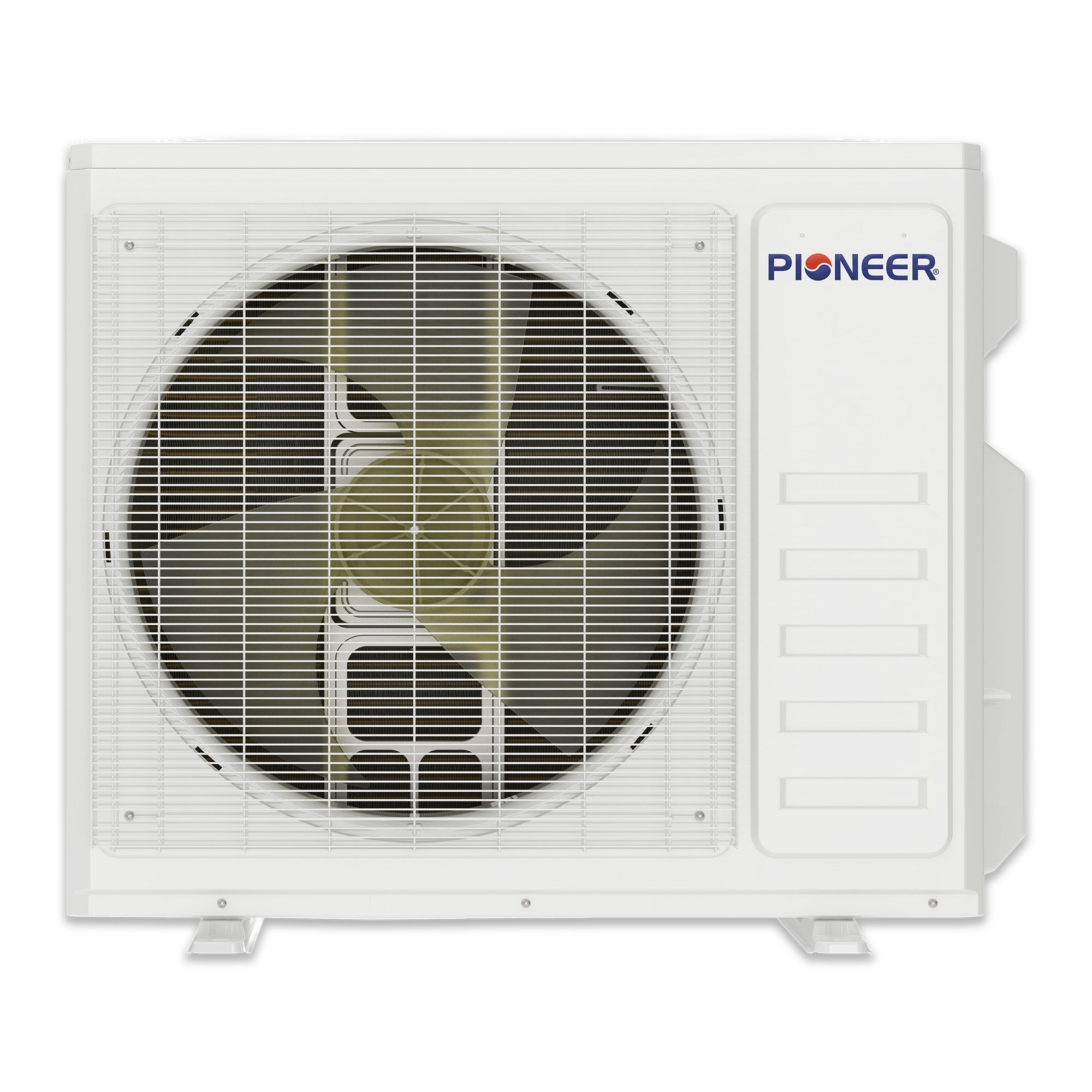

Pioneer Multi (3) Circuit Quantum Ultra Series 24 SEER2 Triple Zone Outdoor Section Inverter++ Energy-Star Air Conditioner Heat Pump 230V - YN030GLSI24M3G
-
Ultra High Efficiency Triple Zone (3 Circuit) Outdoor Condensing System
- Cooling Capacity: 27,000 BTU with 24 SEER2 / 12 EER2 efficiency
- Heating Capacity: 28,000 BTU with 10.5 HSP2 / 3.5 COP2 efficiency
-
Energy-Star and Energy-Star Cold-Climate Designated Performance
-
Wide Ambient Operation Range (As low as -13°F in Heating / As high as 131°F in Cooling)
-
Factory Precharged to Cover Up to 75 Ft. of Total Combined Attached Lineset Length
- Can be Utilized as a Stronger Dual-Zone System by Leaving 3rd Zone Closed
-
Power Supply: 208~230V, 60Hz, 1Ph
-
Communication Protocol: Current Loop
-
Min-Max Load Attached: 18,000~39,000 BTU/h
-
Cooling Rated Capacity (Ductless): 27,000 BTU/h
-
Cooling Rated Capacity (Ducted): 27,000 BTU/h
-
Cooling SEER2 (Ductless): 24.0 BTU/W.h
-
Cooling SEER2 (Ducted): 21.0 BTU/W.h
-
Cooling EER2 (Ductless): 12.0 BTU/W.h
-
Cooling EER2 (Ducted): 12.0 BTU/W.h
-
Heating Rated Capacity (Ductless): 28,000 BTU/h
-
Heating Rated Capacity (Ducted): 27,000 BTU/h
-
Heating HSPF2 Region IV/V (Ductless): 10.5 / 8.8 BTU/W.h
-
Heating HSPF2 Region IV/V (Ducted): 9.0 / 7.8 BTU/W.h
- Heating C.O.P.2 47°F/5°F (Ductless): 3.5 / 2.0 W/W
-
Heating C.O.P.2 47°F/5°F (Ducted): 3.4 / 1.9 W/W
-
Refrigerant Type: R454B
-
Suitable Area: 400~1050 sq ft
-
Sound Level: 62 dB(A)
-
Circuit Breaker Utilized: 30A (double-pole)
-
Net Dimensions (WDH): 38"-1/2 x 16"-1/2 x 31"-5/8 Inches
-
Carton Dimensions (WDH): 40"-1/2 x 18"-7/8 x 32"-7/8 Inches
-
Net / Gross Weight: 119.0 / 127.9 lbs
-
AHRI Reference: 217048769 (Ductless) / 217048773 (Ducted)
Manuals
What our Experts Think
-
High‑efficiency multi‑zone performance: Featuring 24 SEER2 inverter technology, this triple‑zone outdoor unit delivers strong cooling and heating efficiency for combined spaces while reducing energy costs and load cycling.
-

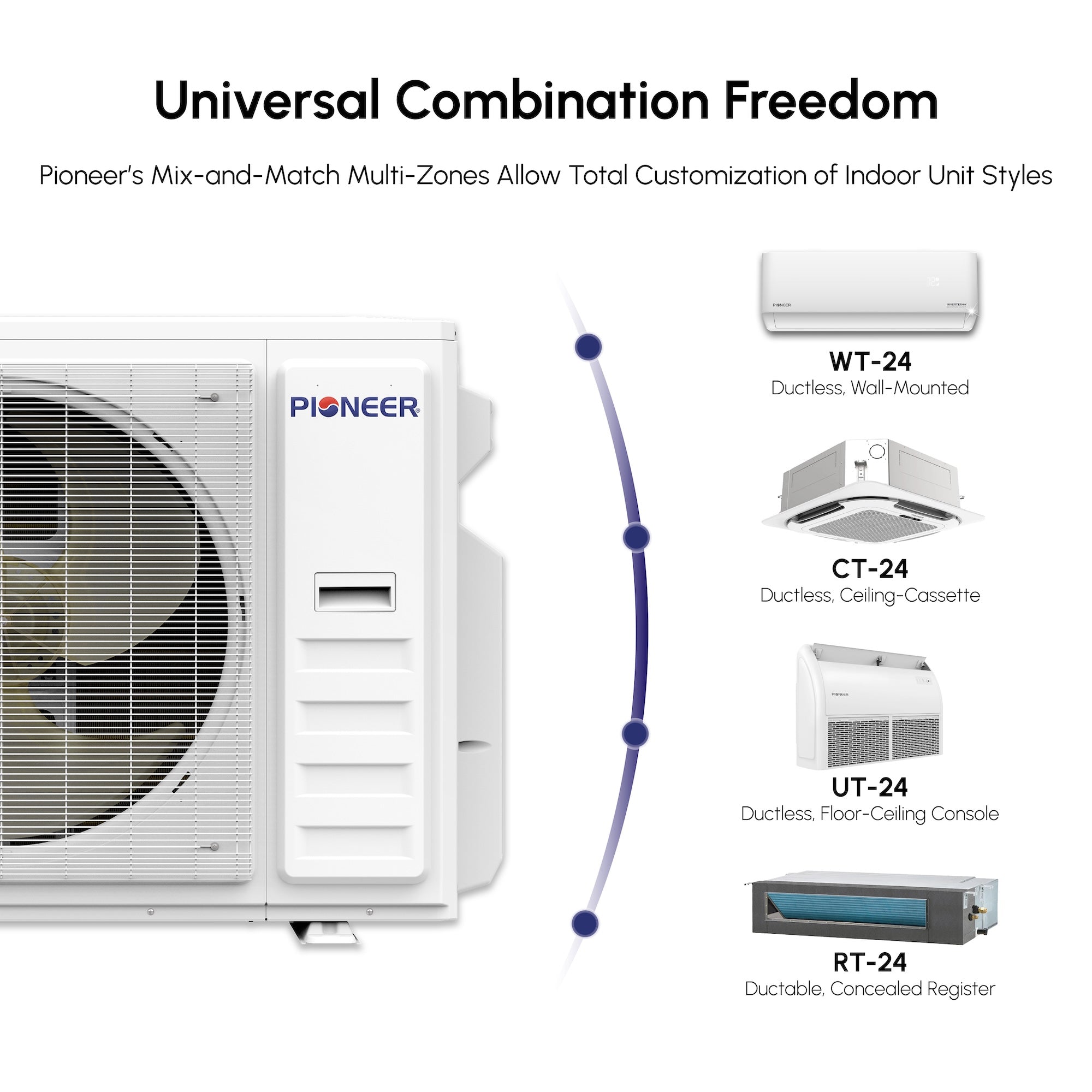

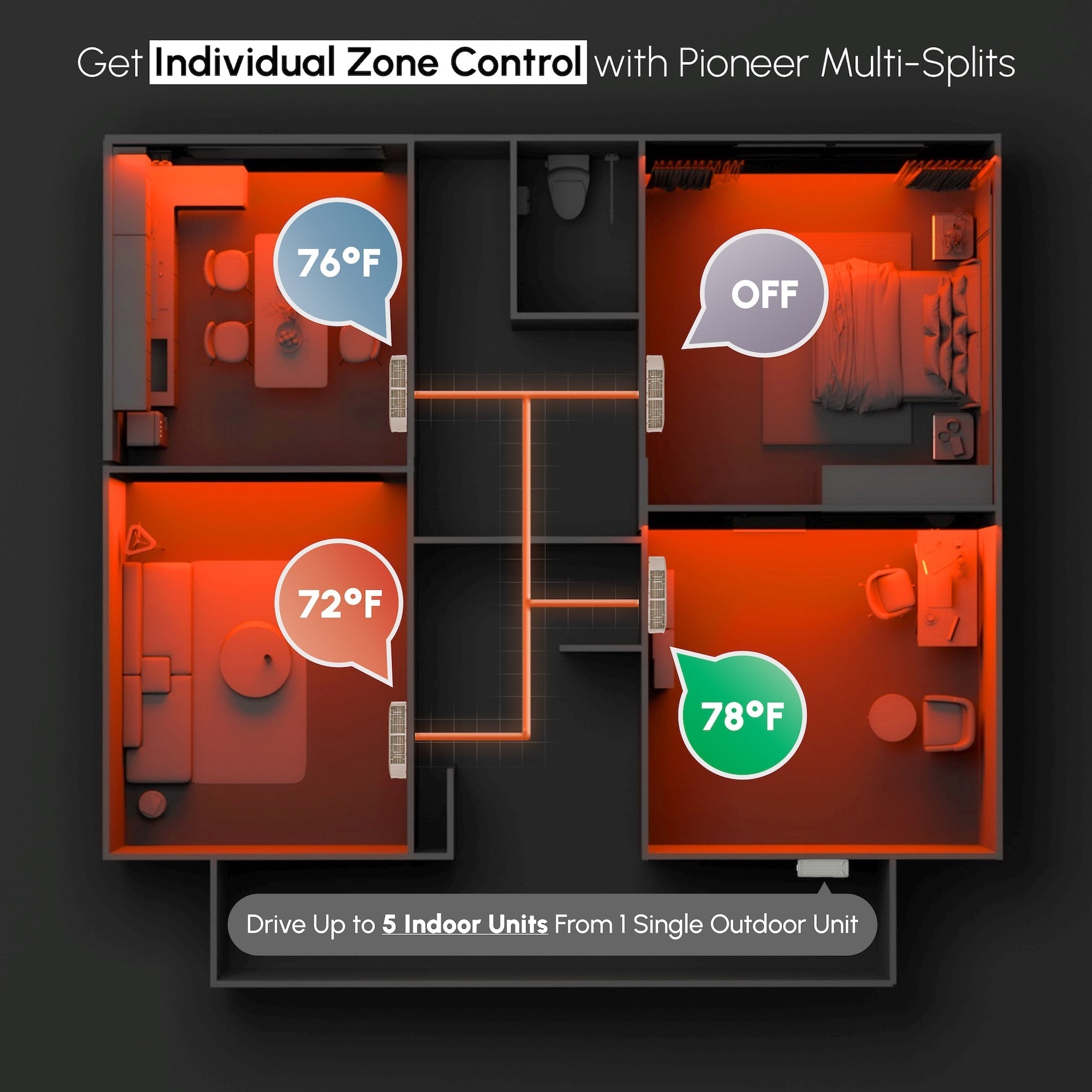

Flexible triple‑zone comfort: Designed to support three independent indoor units, offering personalized climate control for bedrooms, living areas, offices, or guest suites — ideal for zoned comfort solutions.
-
Energy‑Star certified savings: ENERGY‑STAR alignment ensures lower operating costs and enhanced efficiency compared with standard non‑inverter systems, making it a smart choice for eco‑conscious homeowners and light commercial installations.
-
Balanced heating & cooling: Offers reliable heat pump performance for both cooling and heating seasons with reduced compressor wear and smoother temperature transitions.
-
Broad operating temperature range: Engineered to maintain efficient climate control in varied conditions, including cold‑weather heating capacity and high‑heat cooling.
-
Simplified install & power compatibility: Standard 230 V single‑phase electrical requirement and included refrigerant pre‑charge help streamline setup for HVAC professionals.
-
Versatile space coverage: Recommended for aggregated coverage around 700–1,100 sq ft depending on indoor unit selection, making it ideal for zoned multi‑room homes, condos, or offices.
Q&A
Q1: What type of system is this Pioneer model?
A: It is a triple‑zone ductless mini‑split outdoor condenser with integrated heat pump, designed for multi-room climate control.
Q2: What cooling and heating capacity does it provide?
A: The system delivers approximately 30,000 BTU cooling and 31,000 BTU heating, ideal for medium-sized homes or multi-room setups.
Q3: How energy-efficient is this unit?
A: Features 24 SEER2 cooling efficiency and Energy-Star rating, reducing electricity costs while providing reliable performance.
Q4: How many indoor units can be connected?
A: Supports up to three indoor zones with flexible configurations for bedrooms, living areas, or small offices.
Q5: What electrical requirements does it have?
A: Operates on 208–230 V single-phase power, compatible with standard residential or light-commercial circuits.
Q6: Does the system support extreme temperature operation?
A: Yes, it performs efficiently in a wide ambient range, providing heating down to about −13 °F and cooling up to 131 °F.
Q7: Is the outdoor unit pre-charged with refrigerant?
A: Yes, it comes factory-precharged, simplifying installation and supporting line lengths up to 100 ft.
Maintenance Tips
-
Clean indoor air filters every 2–4 weeks to maintain airflow, system efficiency, and air quality.
-
Keep the outdoor condenser coil free of debris, leaves, and dirt for optimal heat exchange and energy savings.
-
Inspect condensate lines and drainage periodically to prevent water buildup and system interruptions.
-
Check refrigerant lines, wiring connections, and unit mounting annually to avoid performance loss or electrical issues.
-
Ensure sufficient clearance around the outdoor unit to allow proper ventilation and consistent triple-zone cooling/heating.
-
Schedule professional HVAC service yearly for inverter optimization, refrigerant checks, and overall system diagnostics.
