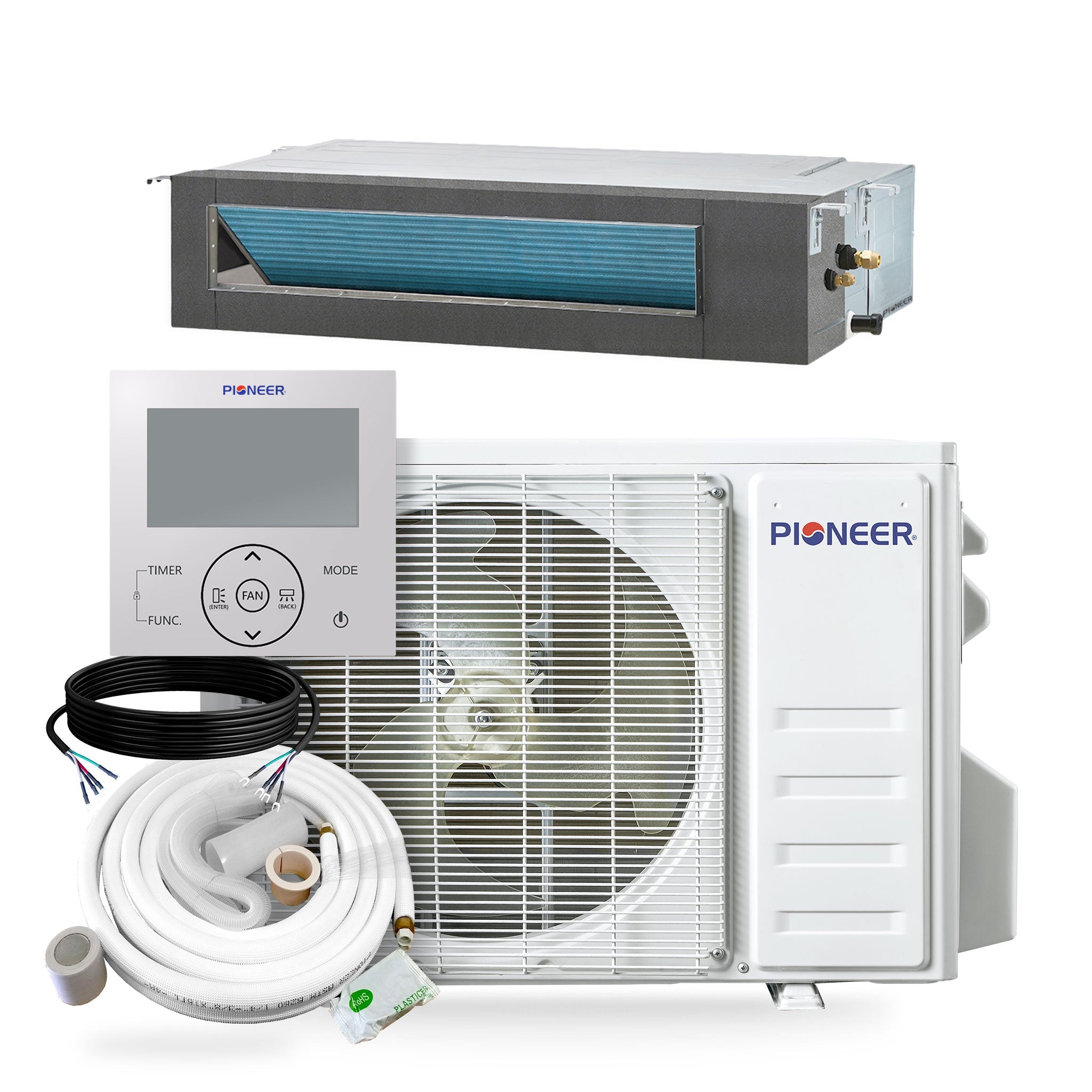

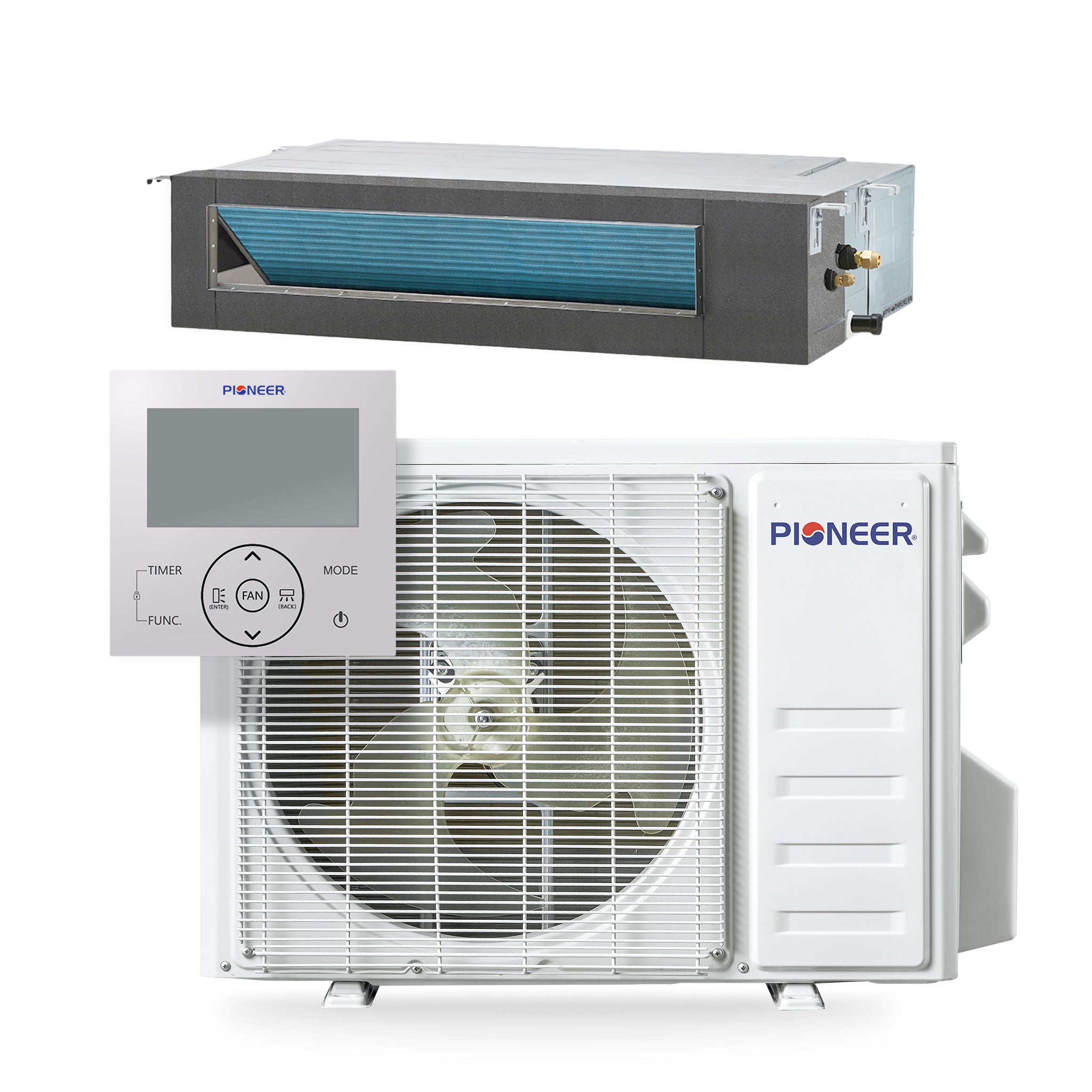

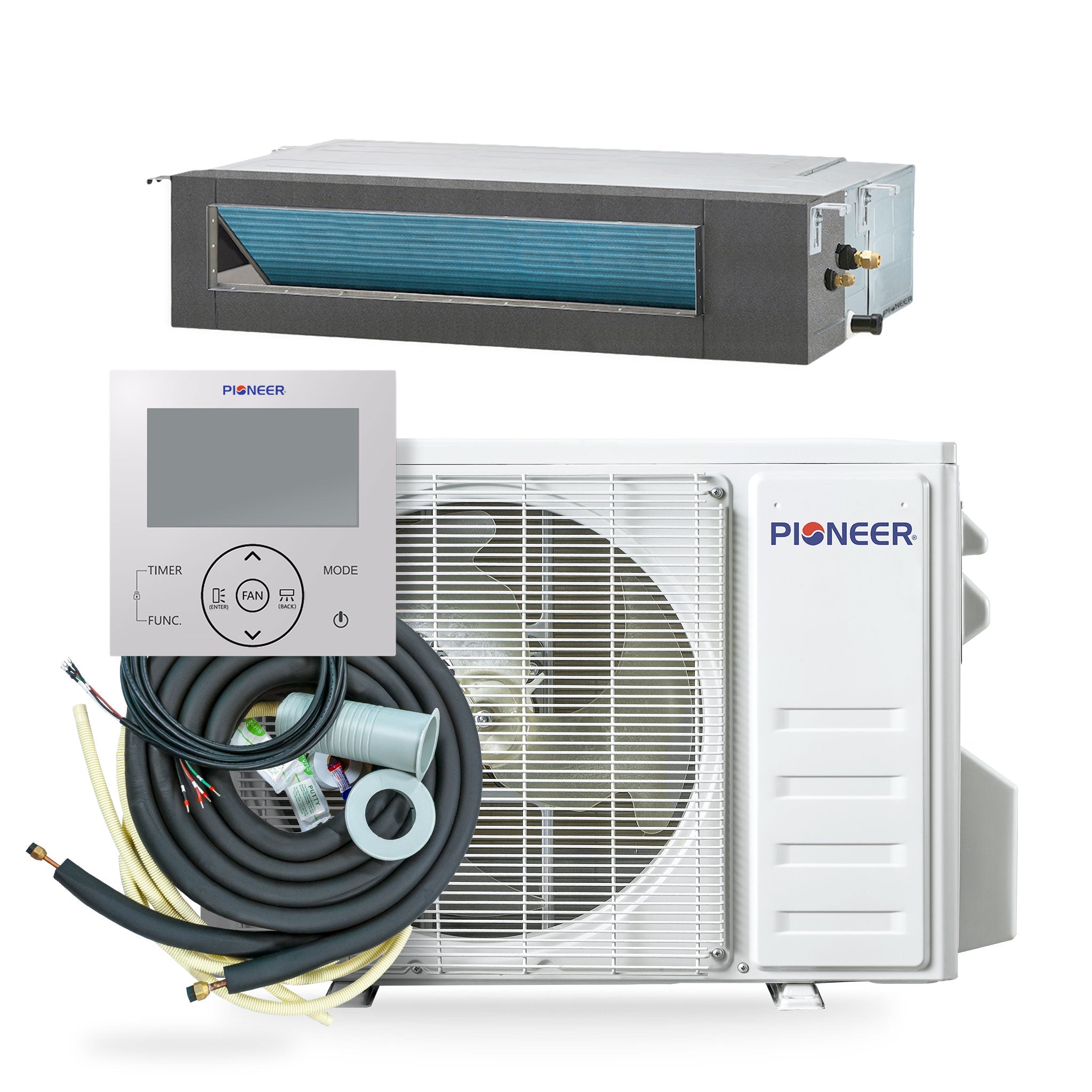

Pioneer Quantum Ultra 9,500 BTU 19.6 SEER2 230V Ceiling Concealed Ducted Mini-Split Air Conditioner Inverter Heat Pump Full Set - RYT009GLSI24RL-10S
- High Efficiency Quantum Ultra Ceiling Concealed Ducted Split Heat Pump System
- Cooling capacity: 9,500 BTU/H with 19.6 SEER2 / 12 EER2 efficiency
- Heating capacity: 9,500 BTU/H with 10 HSPF2 / 3.5 COP2 efficiency
- Voltage: 208/230V, 60Hz, 1Ph
-
Ceiling Concealed Mounted Ducted Air Conditioning & Heating System
- Variable-Speed DC Inverter Driven Performance
- Factory-Precharged with Environmentally Friendly R454b Refrigerant
-
Ultra Low Ambient Range Operation (As low as -13°F in Heating / As high as 131°F in Cooling)
Features
- Heat Pump with Cooling, Heating, Dry, and Ventilation Modes
- Dual-Drainage Ports
- Washable, Reusable Air Filters
- Dual-Axis Airflow (Motorized Up-Down and Left-Right Louvers

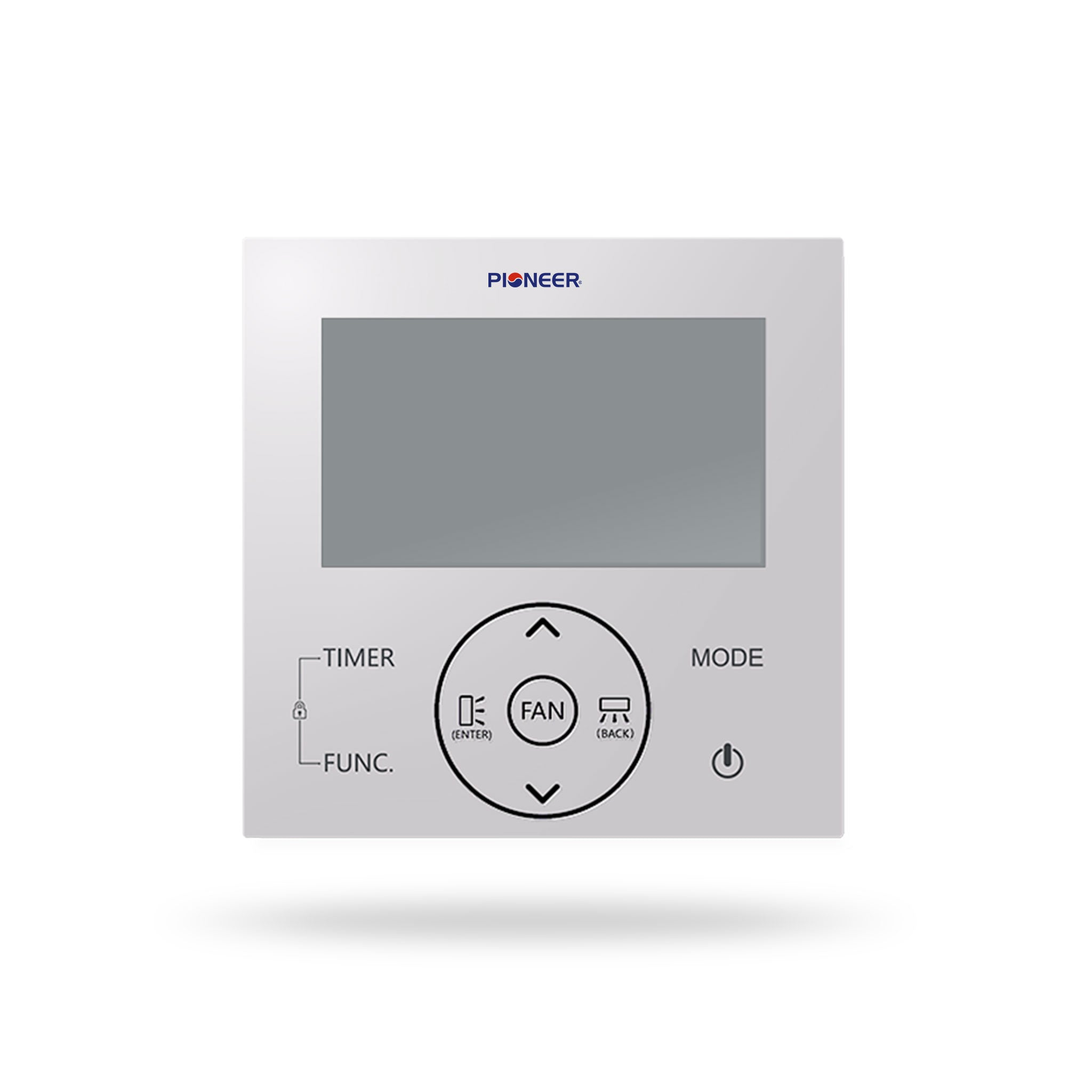

- Functional Remote with:
- ECO and SLEEP Modes, for Energy-Conservation
- Timer On/Off Control
- TURBO, for Times of High-Demand
- Self-Clean Cycle
- MEMORY, to Recall Favorite Settings
- IFEEL, to Detect and Adjust to Local Temperature
What our Experts Think
-
Ideal for small to medium ducted spaces
With 9,500 BTU cooling capacity, this concealed‐ducted mini‑split is perfect for rooms ~300–450 sq ft that require hidden ducted conditioning for clean aesthetics.
-
Very good efficiency (19.6 SEER2)
Offers above‑average seasonal efficiency, helping lower energy use and monthly utility costs compared with older or non‑inverter systems.
-
Inverter heat pump for precise comfort
DC inverter technology ensures smooth temperature control, quieter cycling, and faster comfort recovery than fixed‑speed units.
-
Full ducted integration
Designed for concealed ceiling/floor/attic duct runs, making it a solid choice where visible wall units aren’t wanted.
-
All‑season performance
Provides cooling, heating, dry, and ventilation modes, ensuring year‑round comfort without separate systems.
-
Smart control ready
Compatible with Wi‑Fi control (via optional Wi‑Fi kit) so you can schedule and adjust comfort from your smartphone.
-
Quiet, unobtrusive operation
Concealed design plus low‑noise performance keeps indoor living areas comfortable without fan noise disruptions.
Q&A
Q: What room size is this 9,500 BTU ducted mini split ideal for?
A: Best for small to medium rooms (approx. 250–350 sq. ft), including offices, bedrooms, or compact living areas.
Q: Does it provide both cooling and heating?
A: Yes, this inverter heat pump delivers efficient year-round cooling and heating.
Q: What type of system is this?
A: Ceiling concealed ducted design, ideal for hidden installation with ducted airflow to multiple zones.
Q: How energy-efficient is the 19.6 SEER2 rating?
A: With 19.6 SEER2, it provides high efficiency, reducing energy costs while maintaining comfort.
Q: What is included in the full set?

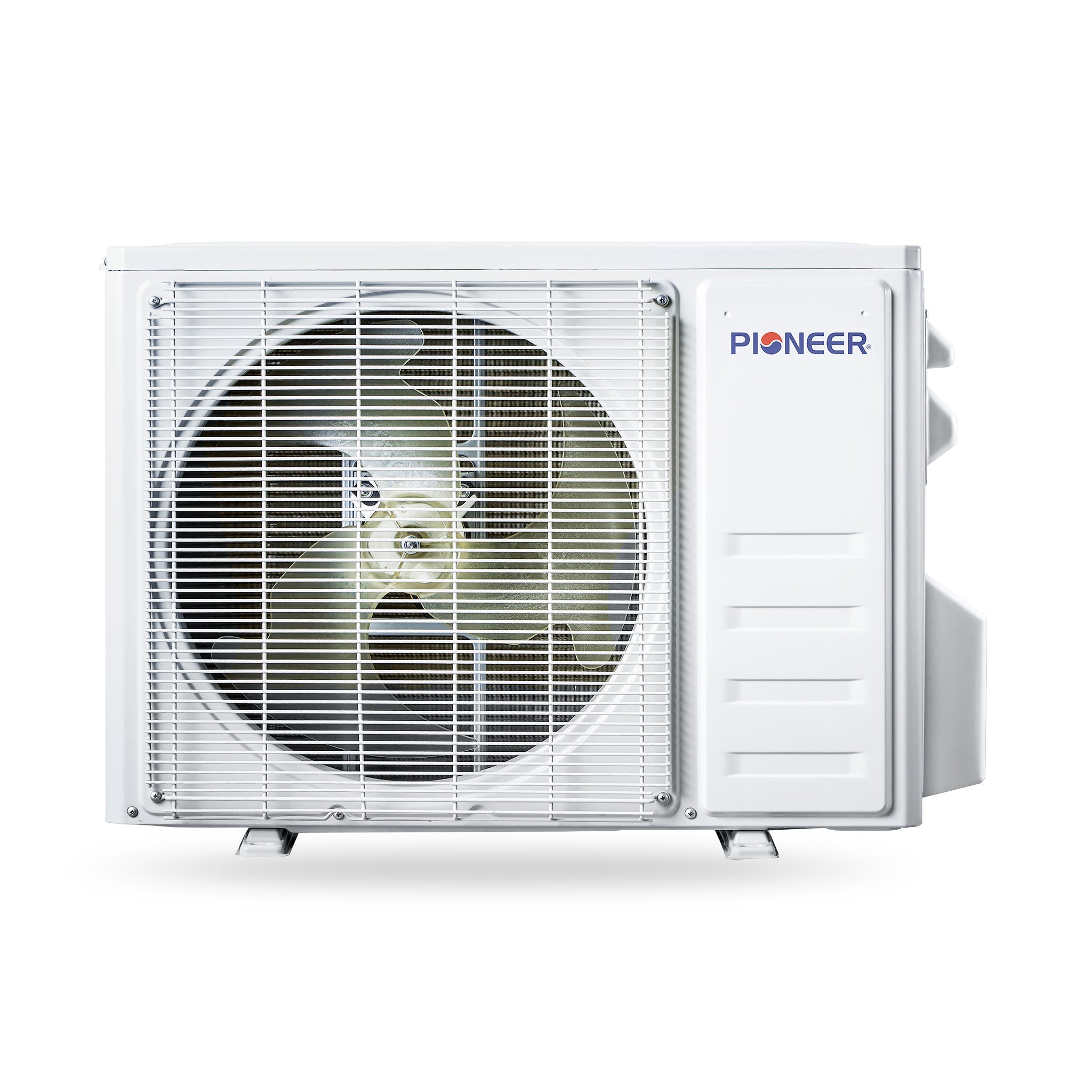

A: Includes indoor ducted unit, outdoor condenser, and pre-charged installation kit for easy setup.
Q: Does it support Wi-Fi or smart control?
A: Yes, compatible with Wi-Fi modules for remote operation, scheduling, and monitoring via smartphone.
Q: How quiet is the indoor unit?
A: Operates quietly, typically around 30–35 dB, suitable for offices, bedrooms, and living spaces.
Q: What voltage does it require?
A: Designed for 208–230V single-phase power.
Q: What comfort and usability features are included?
A: Turbo mode, ECO mode, sleep mode, self-cleaning, auto restart, timer, and multi-directional airflow for even temperature distribution.
Q: Is this unit suitable for multi-room setups?
A: Yes, the ducted design can supply conditioned air to multiple zones via ductwork, providing flexible installation options.
Maintenance Tips
-
Clean washable air filters every 2–4 weeks – Maintains optimal airflow and 19.6 SEER2 efficiency for 250–350 sq ft spaces
-
Run self-clean function regularly – Prevents mold, bacteria, and odor buildup inside the ceiling-concealed unit
-
Keep indoor & outdoor units dust- and debris-free – Ensures consistent airflow and peak heat exchange
-
Check and clear condensate drain line – Prevents leaks and ceiling damage
-
Maintain 2–3 ft clearance around outdoor unit – Supports efficient cooling/heating performance
-
Inspect refrigerant lines annually – Ensures leak-free operation and reliable capacity
-
Use ECO, Sleep & Wi-Fi smart modes – Reduces compressor wear and energy consumption
-
Schedule yearly professional servicing – Maximizes inverter efficiency and extends system lifespan
