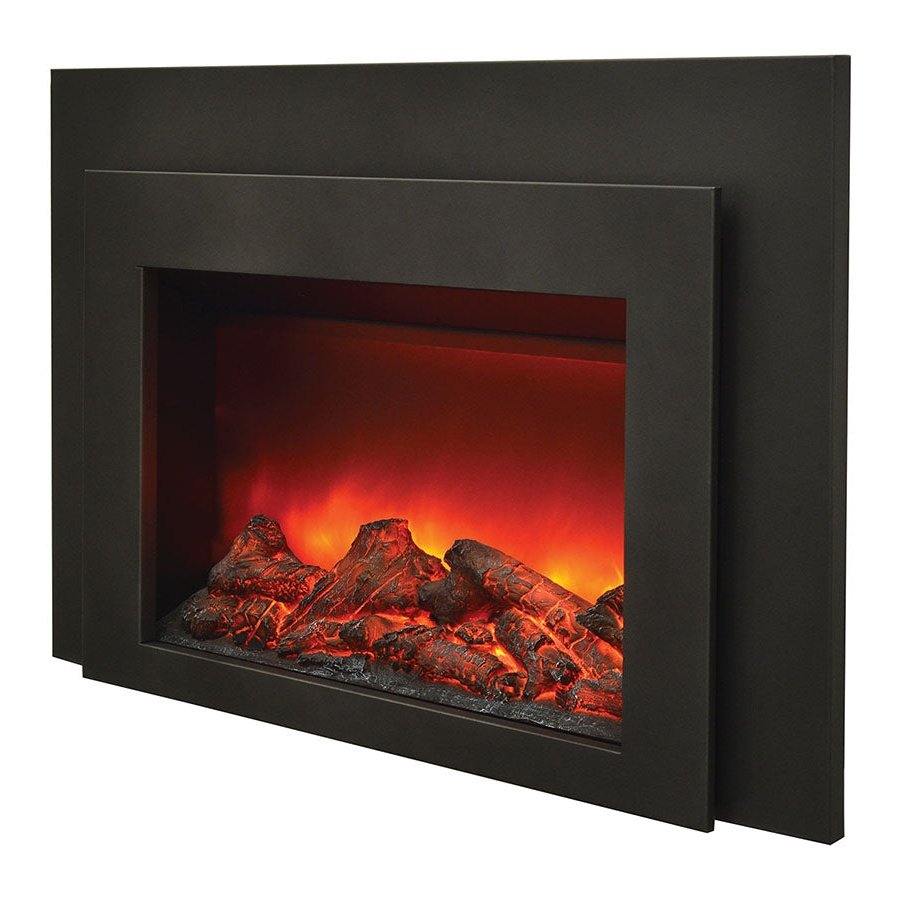

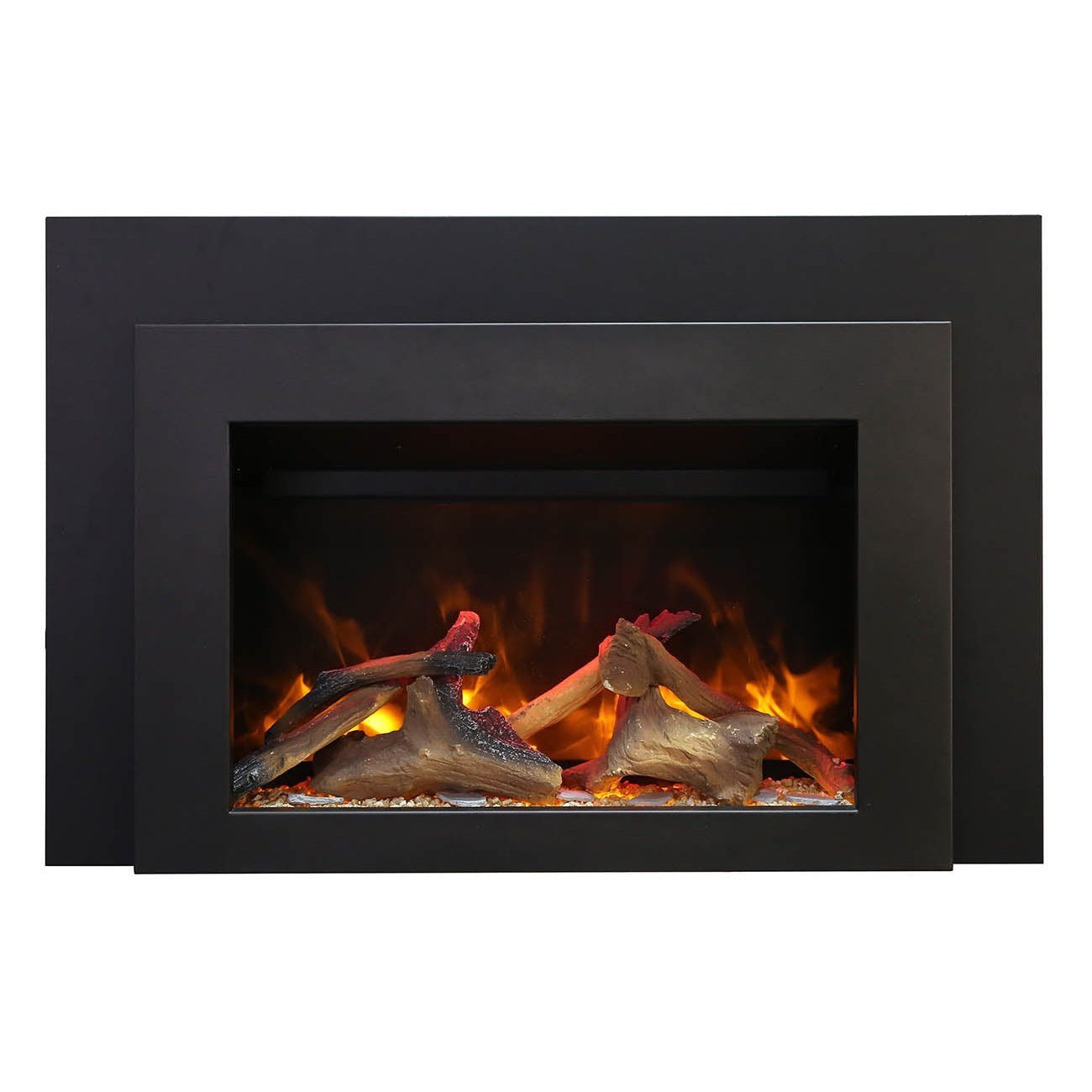

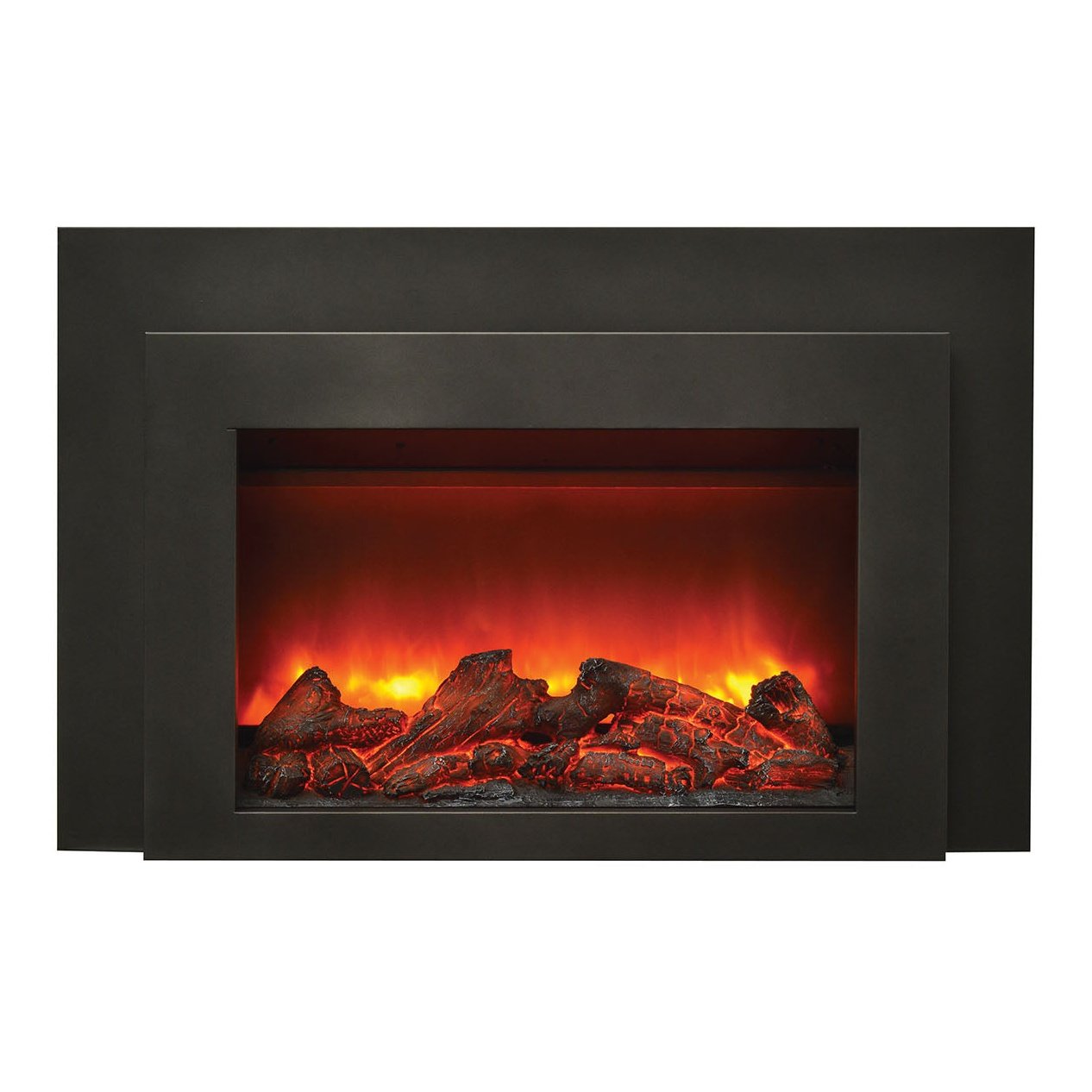

Add new life to an existing wood or masonry fireplace with Sierra Flame’s stylish Flush Mount INS-FM Electric Insert.
The stunning and life-like ‘gradient’ flame is intensified by the visually impressive traditional log set, included with your insert. Finished with a black steel surround, the versatile design of this insert will work with any décor style.
Conveniently control the flame height and intensity of the natural-looking flame with the included remote control.
Ideal for zone heating, this electric insert easily heats a space of 400 to 500 sq ft in size.
The INS-FM electric insert comes standard with a black overlay.
Included Accessories
- The INS-FM comes with a log set, a sable, and a remote.
Product Features
- Great alternative for wood or gas inserts
- Perfect for renovations or retrofits
- 2 popular sizes
- Heat is vented upwards
- Hardwire ready
- Stunning ‘Gradient’ Flame
- Black Steel surround
- No grills
- 4 stage front and 4 stages internal backlighting
- Latest LED light technology
- Front and rear control for flame and heater included
- Can produce up to 5000 BTU of heat, enough to heat up to 500 sq feet
- Plug on the left side
- Flame operates with or without heat
- Remote control for flame and heater
- 4 leveling legs on the underside
Product Information
30" Specifications
| Volts |
120 |
| Amps |
12.5 |
| Watts |
1500 |
| Heater |
High: 1500 Watts Low: 750 Watts |
| No Heater |
19 watts |
| LED Lamps |
22 Watts |
| Rotor Motor |
1 at 5 watts |
| Dimensions (in.) |
19 H x 29 3/8 W x 8 1/2 D |
| Glass Viewing Opening (in.) |
15 3/8 x 23 1/12 |
| Surround Size (in.) |
24 7/8” x 38 |
| Shipping Size (in.) |
27 3/4 x 41 1/2 x 12 3/4 |
| Shipping Weight (Glass Front Included) |
64 lbs |
| Plug Location |
Left Side |
| Cord Length |
74” |
| Approx. Heating Area |
400 sq ft |
34" Specifications
| Volts |
120 |
| Amps |
12.5 |
| Watts |
1500 |
| Heater |
High: 1500 Watts Low: 750 Watts |
| No Heater |
19 watts |
| LED Lamps |
22 Watts |
| Rotor Motor |
1 at 5 watts |
| Dimensions (in.) |
23 1/8 H x 33 1/8 W x 8 1/2 D |
| Glass Viewing Opening (in.) |
17 3/8 x 27 5/8 |
| Surround Size (in.) |
24 7/8” x 38 |
| Shipping Size (in.) |
32 3/4 x 45 1/8 x 12 3/4 |
| Shipping Weight (Glass Front Included) |
73 lbs |
| Plug Location |
Left Side |
| Cord Length |
74” |
| Approx. Heating Area |
400 sq ft |
