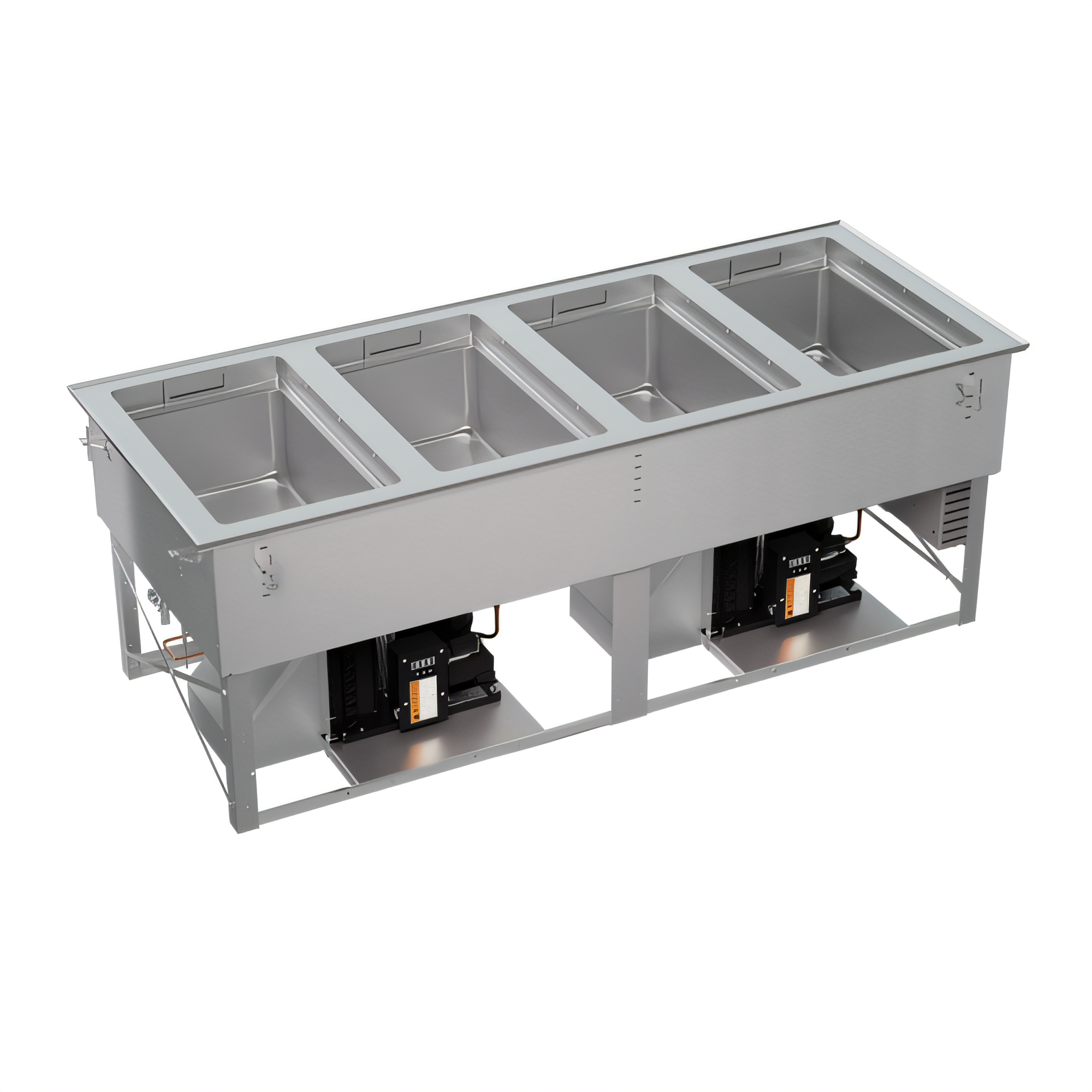

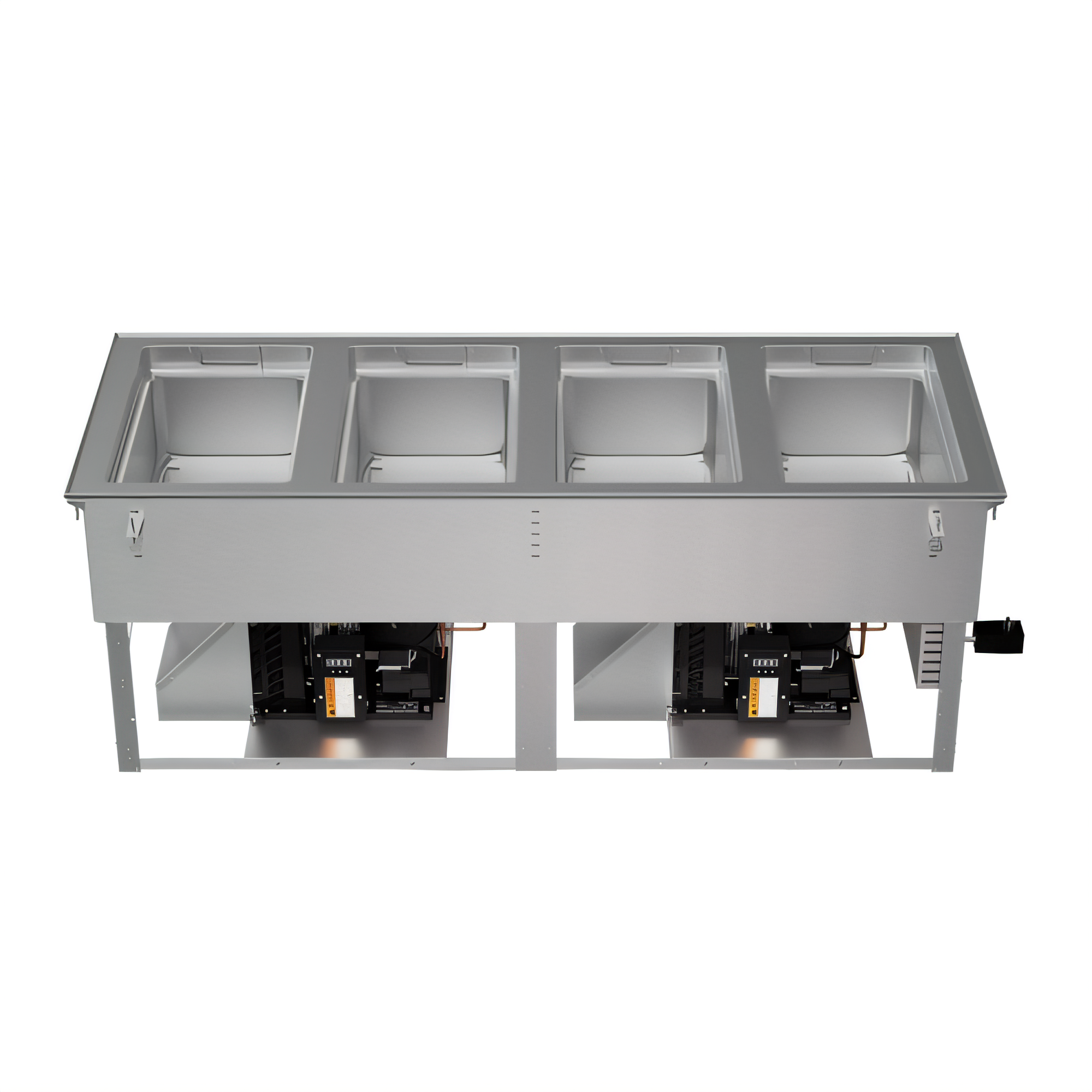

Vollrath FC-HCF-04208-AD Steam Tables & Food Wells - FC-HCF-04208-AD
Model FC-HCF-04208-AD • 120/208-240 V • NEMA 14-20P
Hold entrées at serving temperature, chill salads, or keep sorbet frozen-solid—all in one countertop cut-out. Vollrath’s next-generation drop-in lets each well switch independently between Hot, Cold, and Frozen modes at the touch of a button, giving you unmatched menu flexibility from breakfast through late-night service.
Features
- Three operating modes per well (HOT, COLD, FROZEN) with last-setting memory.
- Auto-Drain technology evacuates water automatically when you leave Hot mode—no manual shut-off valve to forget.
- Rugged 18-gauge, 300-series stainless-steel top, wells, and user interface for a lifetime of commercial use.
- Eco-friendly R290 hydrocarbon refrigeration wrapped around each well for rapid, even chilling.
- Bright electronic control panel on a 4 ft (1.2 m) cord—mount it exactly where your crew needs it.
- Accepts four full-size (12 × 20 in) or fractional pans up to 6 in (15.2 cm) deep; adapter bars included.
- 2 in (5.1 cm) stepped recess creates an NSF-compliant cold-air blanket over the food surface.
- Self-contained refrigeration and supplied mounting clips simplify installation in counters up to 3 in (7.6 cm) thick.
- Made in the USA; UL & NSF/ANSI 8 listed; backed by a 2-year parts & labor warranty.
Specifications
| Item Number |
FC-HCF-04208-AD |
| Number of Wells |
4 (independently controlled) |
| Temperature Modes |
Off / Hot (wet) / Cold / Frozen |
| Pan Capacity |
4 full-size 12 × 20 in pans or fractional equivalents, up to 6 in deep |
| Overall Dimensions (W × D × H) |
65.7 × 26.0 × 24.4 in (166.9 × 66.0 × 62.0 cm) |
| Countertop Cut-Out |
64 11⁄16 × 25 1⁄4 in (164.2 × 64.1 cm), 7⁄8 in (2.2 cm) corner radius |
| Compressor |
½ HP, self-contained |
| Refrigerant |
R290, 100 g × 2 |
| Electrical |
120/208–240 V, 60 Hz, 1-phase, 2 × 500 W, 13.2 A |
| Power Cord / Plug |
6 ft cord, NEMA 14-20P |
What our Experts Think
-
Four-well flexibility: Each well operates independently in hot, cold, or frozen mode, perfect for buffets, salad bars, and catering lines.
-
Durable commercial construction: 18-gauge stainless steel with foamed-in-place insulation and robust refrigeration coils for heavy daily use.
-
Food safety & compliance: Stepped cold-wall design maintains proper cold-air blanket; accommodates full-size or fractional pans up to 6″ deep.
-
Easy installation & maintenance: Drop-in design with mounting clips for counters up to 3″ thick and integral auto-drain simplifies setup and cleaning.
-
Energy-efficient cooling: Uses eco-friendly refrigerant while delivering consistent, reliable temperature control across all wells.
Q&A
Q: What is the Vollrath FC‑HCF‑04208‑AD?
A: A four‑well drop‑in food well/module designed for commercial buffets, cafeterias, and catering — capable of hot, cold or frozen holding in a single unit.
Q: How many wells and what size pans does it support?
A: It has 4 independently controlled wells and accommodates full‑size or fractional food pans up to 6 inches deep.
Q: What temperature modes are available?
A: Each well can be independently set to Hot, Cold, Frozen, or Off — letting you serve a variety of dishes at proper serving temperatures simultaneously.
Q: What is the build quality and construction?
A: Constructed from rugged 18‑gauge, 300‑series stainless steel with foamed‑in‑place insulation and wrapped refrigeration coils for durability, efficiency, and easy cleaning.
Q: What are its physical and power specs?
A: Overall dimensions about 65.7″ W × 26″ D × 24.4″ H, self‑contained refrigeration using eco‑friendly R290 refrigerant, draws ~13.2 A, and includes a 6-ft power cord and standard plug — designed for countertop drop-in installation.
Q: What makes this model a reliable choice for foodservice operations?
A: Its independent temperature control per well, pan-size flexibility, stainless steel durability, integrated auto‑drain and easy installation make it ideal for high‑volume buffet, cafeteria or catering environments.
Maintenance Tips
-
Clean Daily: Drain and wipe wells with warm, soapy water to remove food residue and prevent buildup.
-
Use Non-Abrasive Tools: Soft cloths or pads protect stainless steel surfaces and maintain finish.
-
Maintain Water Levels: Ensure proper water in wells during operation to protect heating elements.
-
Descale Periodically: Remove mineral deposits if using hard water for consistent heating performance.
-
Inspect Seals & Drains: Check for wear or leaks; replace parts promptly to avoid malfunctions.
-
Dry Thoroughly: Always dry wells and controls before powering on to protect internal components.
