$10,949.11 $10,073.99 Sale

Vollrath FC-HCF-04208-FF Steam Tables & Food Wells - FC-HCF-04208-FF

Flat-flange, self-contained, R290 refrigeration – Made in USA

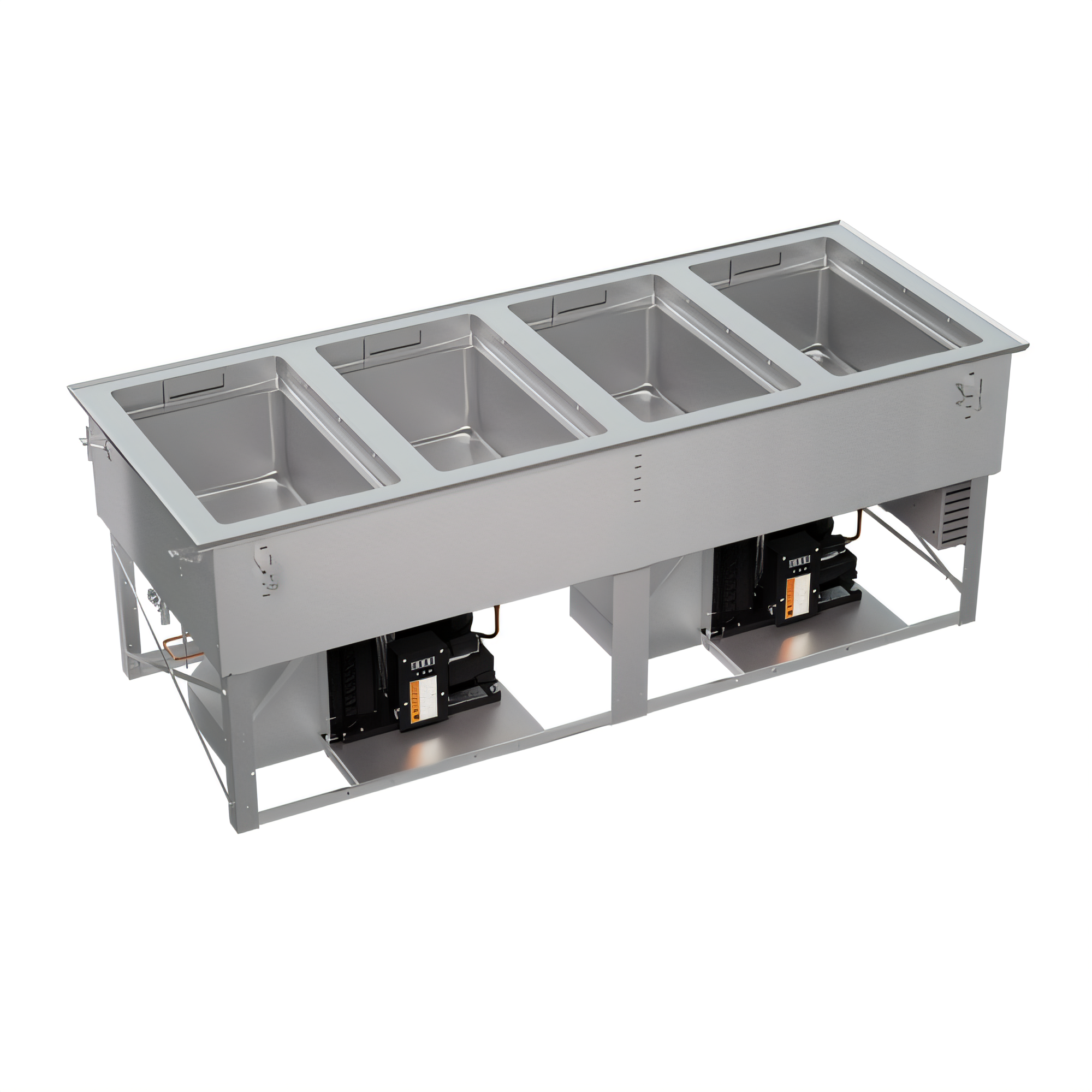

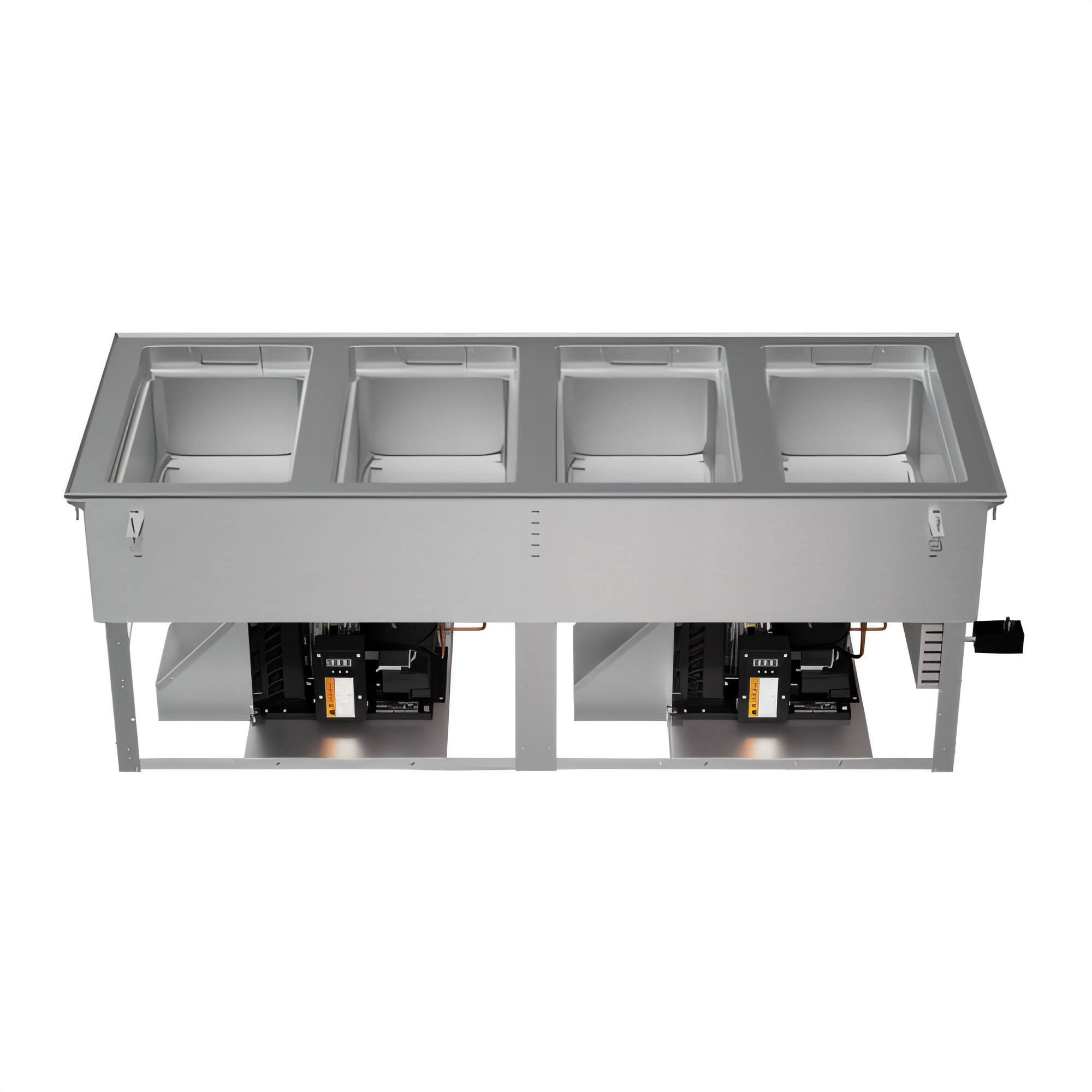

Give your serving line ultimate menu flexibility with one drop-in that does it all. The Vollrath FC-HCF-04208-FF lets you run each of its four wells in HOT, COLD or FROZEN mode – independently and at the touch of a button – while the flush flat flange provides a seamless, easy-to-clean installation in virtually any counter.

Features
  • Three modes in one unit – keep soups steaming, salads chilled, and desserts frozen all at the same time.
  • Individual electronic controls with 4 ft (1.2 m) remote-mount cable for ergonomic placement.
  • Durable 18-gauge, 300-series stainless steel top, wells & control bezel stand up to daily commercial use.
  • Accepts full-size or fractional pans up to 6 in (15.2 cm) deep; 2 in (5.1 cm) stepped cold-wall recess maintains NSF cold-food zone.
  • Eco-friendly R290 hydrocarbon refrigerant with low GWP and high efficiency ¼ HP compressors (2×).
  • Integral ¾ in (19 mm) drains speed change-overs; water added for hot mode automatically evacuates in cold/frozen modes.
  • Ships ready to plug in – 6 ft (1.8 m) cord & 14-20P plug included.
  • UL Listed, UL Sanitation (NSF/ANSI 8) certified and backed by a 2-year limited warranty.
Specifications
Model FC-HCF-04208-FF (Flat Flange)
Number of Wells / Modes 4 independent wells; Hot • Cold • Frozen
Overall Dimensions (W × D × H) 65.7" × 26.0" × 24.4" (166.9 × 66.0 × 62.0 cm)
Counter Cut-Out 64 ⅞" × 25 ¼" (164.7 × 64.1 cm); ⅞" (2.2 cm) corner radius
Pan Capacity 4 full-size or fractional pans, up to 6" deep
Construction 18-ga 300-series stainless steel top, wells & user interface
Refrigeration Self-contained; R290, ¼ HP × 2; 100 g charge each
Electrical 208–240 V / 60 Hz / 1 Ø; 2,500 W; 13.2 A; NEMA 14-20P
Heat Output (Hot Mode) 8,500 BTUH total
Weight 324 lb (147 kg) shipping weight
Certifications UL Listed; UL Sanitation (NSF/ANSI 8)
Country of Origin USA
What our Experts Think

  • Four-well multi-mode flexibility: Each well operates independently in hot, cold, or frozen mode — ideal for buffets, cafeterias, or catering lines serving varied dishes.

  • Durable commercial construction: 18‑gauge, 300‑series stainless steel with foamed-in-place insulation and robust refrigeration coils withstands heavy daily use and is easy to clean.

  • Efficient, eco-friendly cooling: Uses environmentally friendly refrigerant for reliable cold and frozen operation.

  • Pan compatibility & food safety: Accommodates full-size and fractional pans up to 6″ deep; 2″ cold-wall recess maintains a cold-air blanket for compliant cold/frozen holding.

  • Easy drop-in installation: Flat-flange design fits standard countertops with mounting clips and plug-in power for simple setup.

Q&A

Q: What is the Vollrath FC-HCF-04208-FF?
A: A four-well drop-in food well unit designed for commercial counters, capable of independently holding food hot, cold, or frozen — ideal for buffets, cafeterias, and catering operations.

Q: What food pans does it support?
A: Compatible with standard full-size or fractional pans up to 6 inches deep.

Q: What temperature modes does it offer?
A: Each well can be set independently to Hot (wet), Cold, Frozen, or Off mode, offering flexibility for varied menu items.

Q: What is its build quality?
A: Made from 18-gauge, 300-series stainless steel with foamed-in-place insulation and wrapped refrigeration coils, providing durability, sanitation, and energy-efficient cooling.

Q: What are its dimensions and installation requirements?
A: Overall size: 65.66″ W × 26″ D × 24.4″ H; countertop cut-out: ~64.9″ × 25.25″; fits counters up to 3″ thick. Electrical: 120 / 208–240 V, 13.2 amps, plug-in cord included.

Q: What maintenance features does it have?
A: Built-in ¾-inch integral drain simplifies draining and cleaning, supporting easy transitions between hot and cold modes.

Q: Why choose this model?
A: Provides flexible temperature control, durable stainless-steel construction, multiple well sizes, independent controls, and easy drop-in installation — ideal for commercial kitchens with mixed hot/cold menu needs.F

Maintenance Tips

  • Clean Daily: Turn off and unplug the unit, drain all wells, and wipe interior and exterior surfaces with a soft cloth and mild detergent. Avoid abrasive cleaners or steel wool.

  • Rinse & Dry: Rinse thoroughly and dry completely to prevent water spots, mineral buildup, and corrosion.

  • Maintain Water Levels: For wet-well use, keep water at the recommended level and never operate the unit dry to protect heating elements.

  • Descale Periodically: In hard-water areas, descale wells and heating elements to maintain heat efficiency and prevent scale buildup.

  • Protect Electrical Components: Do not spray water or cleaning solutions directly onto controls or electrical parts; wipe gently with a damp cloth.

  • Inspect Seals & Drains: Check drain valves, gaskets, and fittings regularly; clear clogs and replace worn parts promptly to ensure proper operation.

  • Avoid Harsh Chemicals: Do not use chlorine-based or acidic cleaners to prevent damage to stainless steel surfaces.
